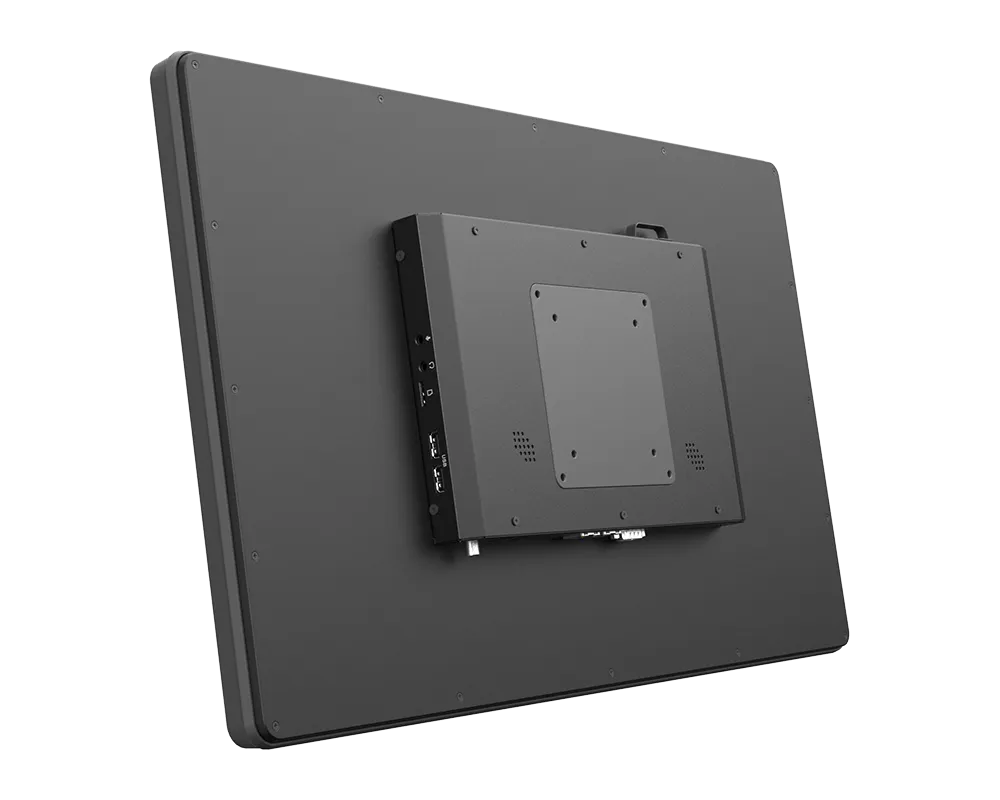

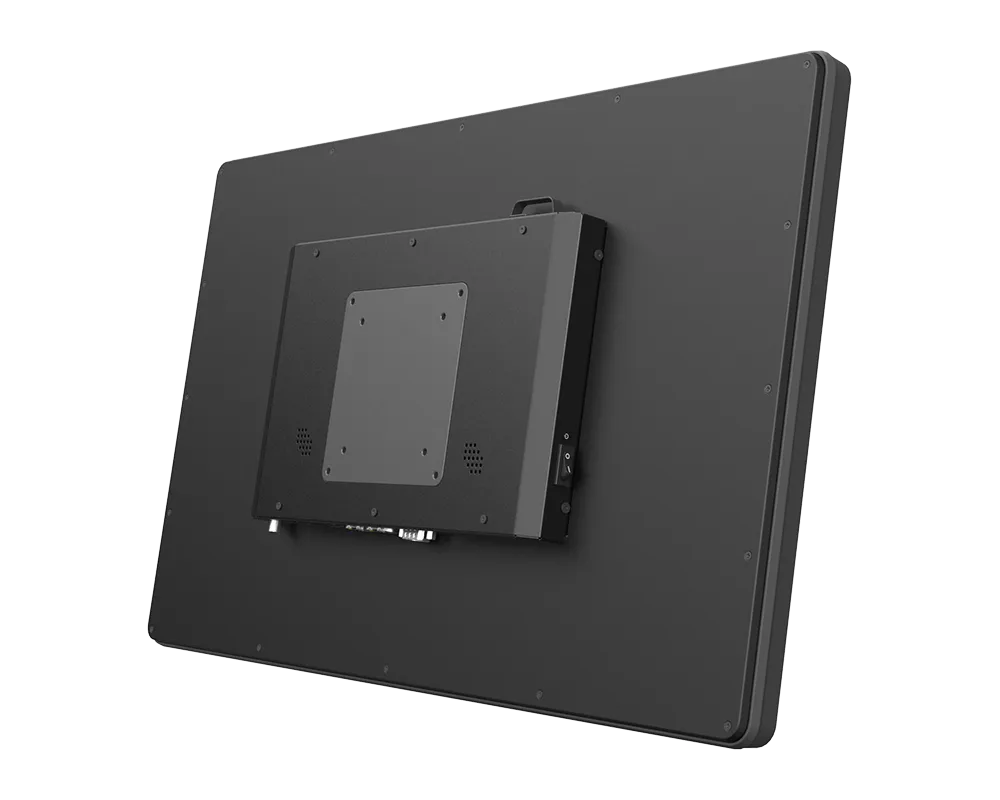

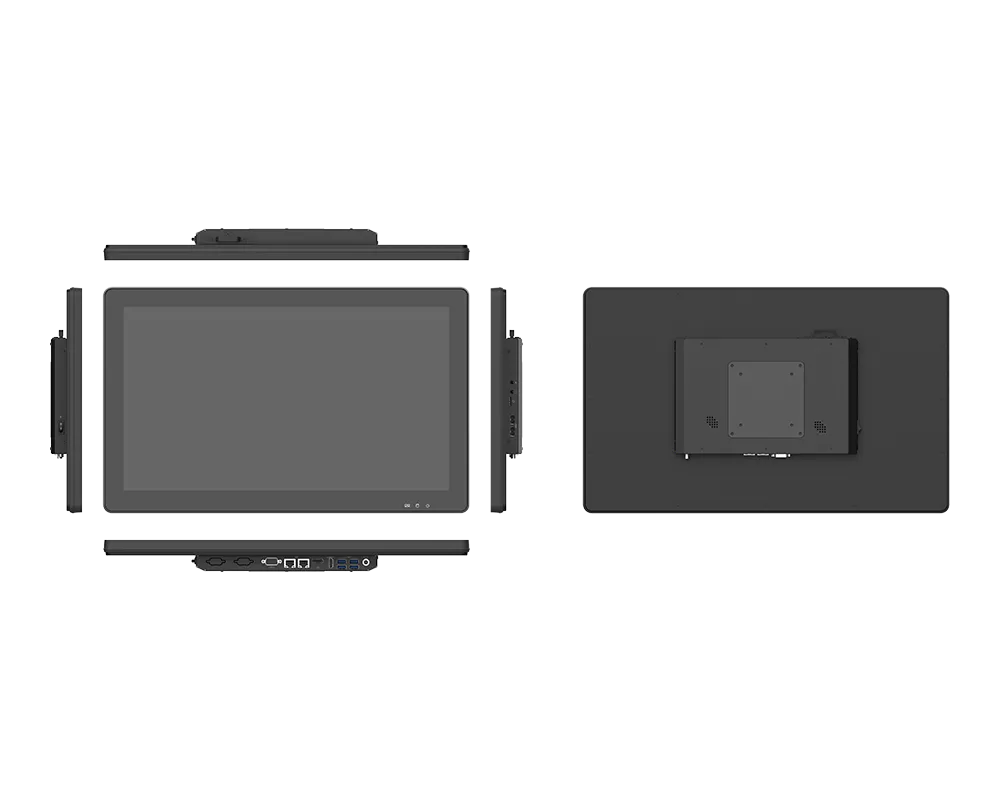

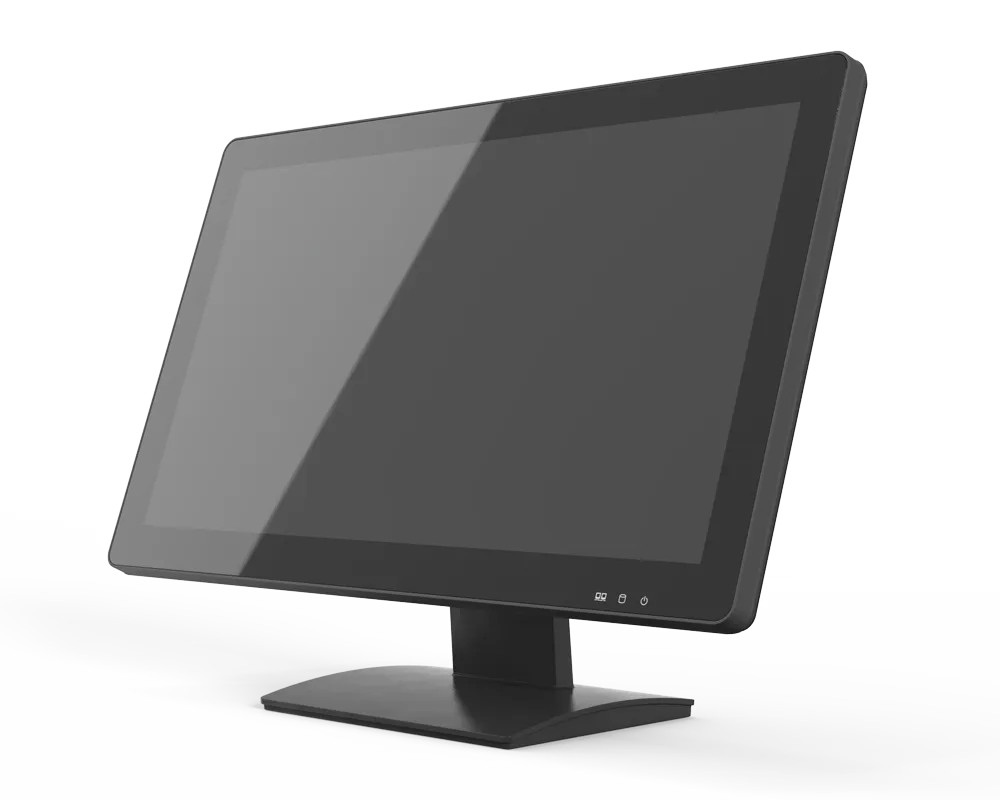

MS-1A81
21.5" Fanless HMI Panel PC with Intel® Alderlake N Series
- Intel® Alderlake N CPU
- Panel Size: 21.5”
- Fully Flat Panel / Fanless & Ultra Slim Design
- Capacitive Type Touch
- IP65 Front Panel and IP41 for Rear
- Backup Battery for 60 mins at idle state (Option)
- Rich I/O
- Dual Storage: HDD+SSD (Optional)
- Intel® WLAN Support
Products Specifications
- Part Number
- MS-1A81
Display
- LCD Size
- 21.5"
- Resolution
- 1920 x 1080
- Brightness (cd/m2)
- 500
- Contrast Ratio
- 1000
- Support Colors
- 16.7M
- Pixel Pitch (H/Vmm)
- 247.95 x 247.95 (um)
- Viewing Angle
- 89/89/89/89
- Touch Panel
- Projective Capacitive
System Processor
- CPU
- Intel® Alder Lake N Series Intel® Processor N97 2.0GHz ,QC ,12W Intel® Atom X7425E 1.5GHz , QC, 12W Intel® Core I3-N305 1.8GHz , 8C, 15W
- Frequency
- 3.2 GHz up to 3.80 GHz
- L2 Cache
- 6MB
- Chipset
- SoC
Memory
- Technology
- Single-channel DDR5 MHz
- Max. Capacity
- Up to 16GB
- Socket
- 1 x So-DIMM Slot (262-Pin)
Graphic
- Display Interface
- HDMI up to 3840 x 2160
DP up to 4096 x 2160
Ethernet
- Controller
- 2 x Intel® I225V Co-Lay Intel® I225LM PCIe 2.5GbE LAN
I/O Interface
- PS/2
- --
- VGA
- --
- RJ-45
- 2
- Audio
- 1 x Line-out
1 x MIC-in
- USB
- 2 x Dual Stacked Type-A USB 3.1
2 x USB 2.0
- Parallel
- --
- Serial
- 3 x COM (1 x edge I/O, 2 x internal)
COM1~2: RS-232/422/485, 0V/5V/12V
COM3: RS-232, 0V/5V/12V
(COM2~3 Optionwith cable)
- HDMI
- 1
- DVI
- --
- DisplayPort
- 1
- Antenna
- Inside
Expansion Slot
- M.2
- 1 M.2 E key (reserved for WiFi)
1 x M.2 B key (reserved for storage)
- Mini-PCIe
- --
Storage
- SATA
- 1 x 2.5" HDD (Option)
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input
- DC-in 12~24V
Environment
- Operating Temperature
- 0°C ~ 40°C
- Operating Humidity
- 20%~90% RH
- Storage Humidity
- 10% ~ 90% non-condensing
- Storage Temperature
- -20°C ~ 60°C
Physical Characteristics
- Housing
- Plastic / Metal
- Dimensions
- 333.01 x 538.55 x 41.95 mm
- Weight
- 5.6kg (12.34lbs)
- Mounting
- VESA 75 x 75, 100 x 100 mm (Optional)
Certification
- EMC
- FCC ,CE, BSMI, VCCI
- Safety
- PSE
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC 2021
Windows 11 IoT Enterprise 2022
MS-1A81 is a 21.5" Front IP65 Fanless HMI Panel PC powered by Intel® Alderlake N Series CPU, featuring a fully flat panel design with a capacitive or resistive touch interface. Designed for industrial environments, it boasts IP65 front panel and IP41 rear panel ratings, ensuring resilience against dust and water ingress. The device includes a backup battery for up to 1 hour, offering reliability during power interruptions. It supports dual storage options with HDD and SSD configurations, and Intel® WLAN for connectivity needs. Rich I/O capabilities enhance its versatility, making it suitable for various industrial applications requiring robust and reliable computing solutions.
