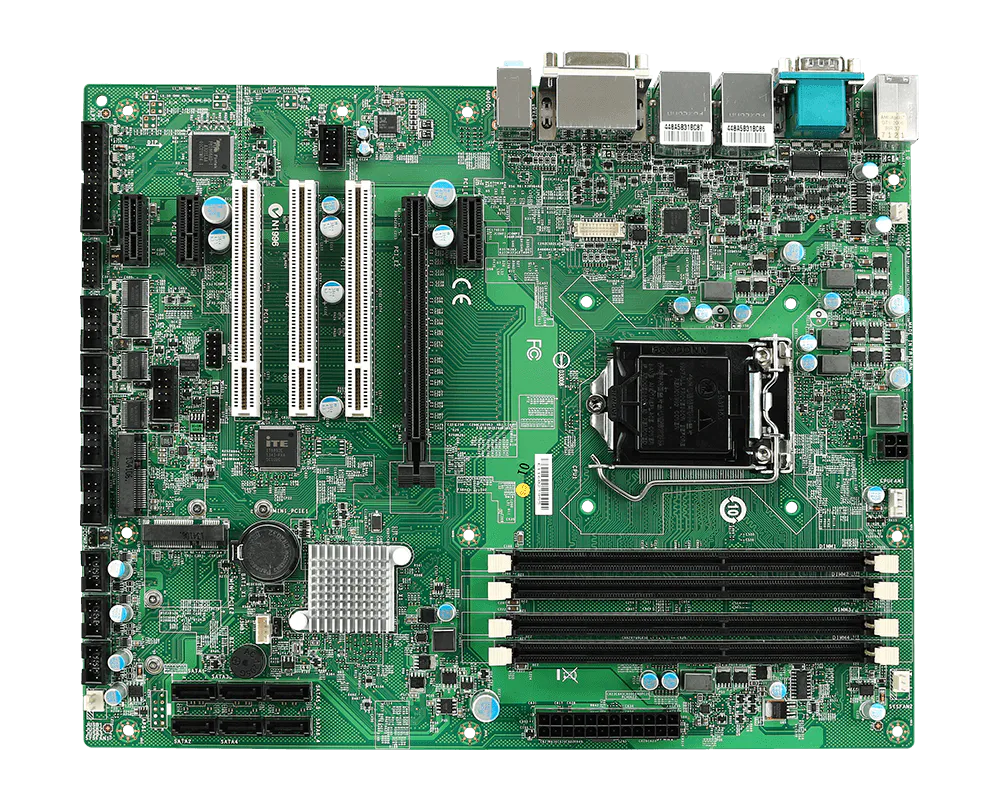

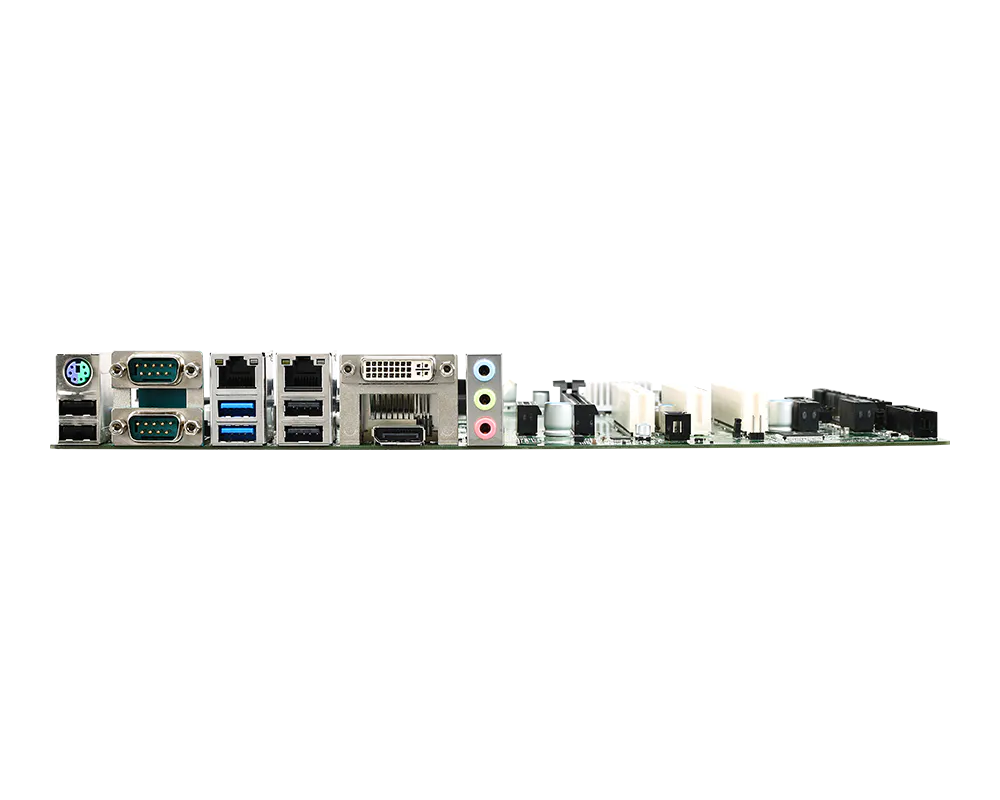

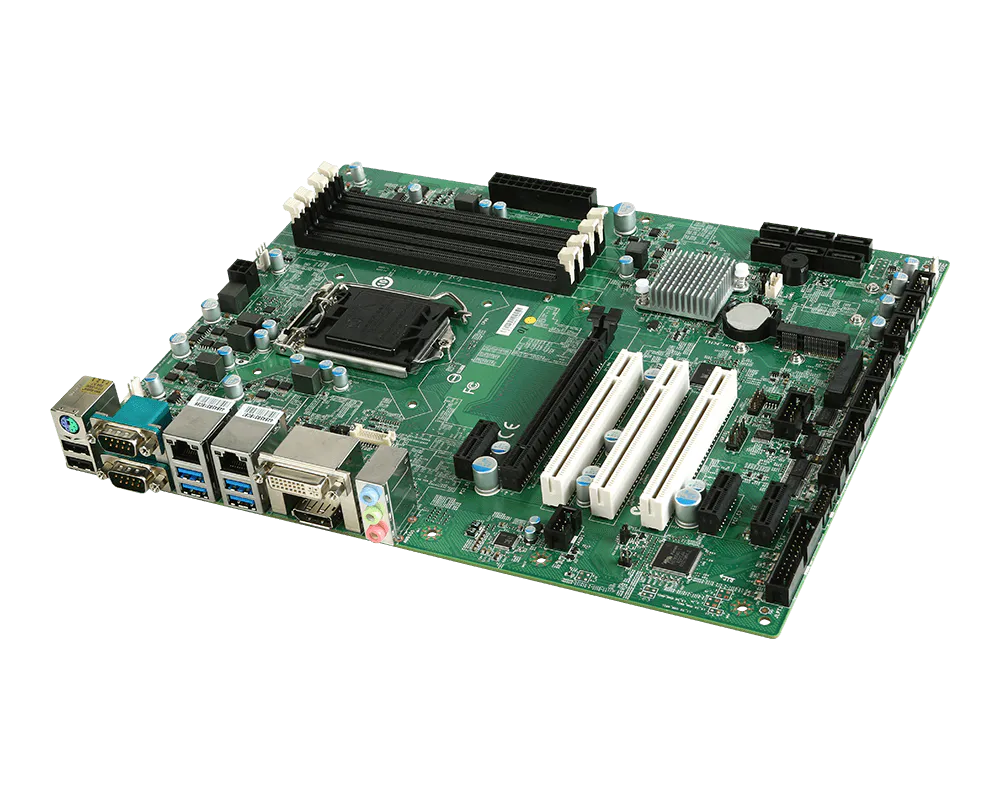

ATX with 4th Gen Intel® Haswell Core™ i7/i5/i3/Pentium®/Celeron® Processor and Intel® H81/Q87 for High-Performance Solution

ATX with 4th Gen Intel^® Haswell Core™ i7/i5/i3/Pentium^®/Celeron^® Processor and Intel^® H81/Q87 for High-Performance Solution

Intel^® 4th Gen Haswell-S Series with Q87/H81
4 DDR3L/DDR3 1600 MHz UDIMM slots up to 32GB
Triple independent displays: VGA, DVI-D, DP
2 GbE LAN
1 PCIe x16 (Gen 3), 3 PCIe x1 (Gen 3), 3 PCI, 2 Mini-PCIe (Full-size) slots
6 SATA 3.0 for storage
4 USB 3.2 Gen 1, 8 USB 2.0, 6 COM (2 RS-485), GPIO, LPT, PS/2, Audio, 3 System FAN
SMBus, Chassis Intrusion
ATX Power

Overview
Product Specifications
Ordering-Information
Packing-List


‧ Processor	CPU	4th Gen Intel^® Core™ i7/i5/i3/Pentium/Celeron Processor, Max. 84W
	Frequency	2.4GHz~4.0 GHz (Depends on CPU)
	L2 Cache	2M~8M (Depends on CPU)
	CPU Type	Socket (LGA 1150)
	Chipset	Intel^® Q87/H81 Express
	BIOS	AMI
‧Memory	Technology	Dual-channel DDR3/DDR3L 1333/1600MHz
	Max. Capacity	Up to 32GB
	Socket	4 x 240-pin DIMMs
‧Display	Controller	Intel® HD Graphics
	Graphic Memory	Shared system memory up to 1.7 GB SDRAM
	DVI	1 (DVI-I)
	DisplayPort	1
	Multiple Display	2 independent displays (H81 SKU) 3 independent displays (Q87 SKU)
	Display Interface	VGA up to 1920 x 1080 DVI-D up to 2560 x 1600 DP up to 2560 x 1600
‧Ethernet	Controller	1 x Intel^® I217-LM GbE LAN PHY 1 x Intel^® I210-AT GbE LAN
‧Audio	Controller	Realtek^® ALC887 HD Audio Codec
‧Super I/O	Controller	Fintek F81866AD-I
‧H/W Monitor	Watchdog Timer	256-level Watchdog Timer
	Smart Fan	Yes
‧TPM	Controller	Pin header
‧I/O Interface	USB	8 x USB 2.0 (Q87: 2 x rear; 6 x internal; H81: 4 x rear; 4 x internal) 4 x USB 3.0 (Q87: 4 x rear; H81: 2 x rear)
	Serial	6 x COM (COM1~2: rear; COM3~6: internal) COM1~2: RS-232/422/485, 0V/5V/12V COM3~6: RS-232, 0V/5V/12V
	Parallel	1
	PS/2	1 x PS/2 port by Y-cable for keyboard and mouse
	GPIO	8-bits (4 x GPI; 4 x GPO), 5V
‧Expansion Slot	PCIe x16	1
	PCIe x1	3
	PCI	3
	M.2	N/A
	Mini-PCIe	2 x Full-size (Q87 only)
‧Storage	SATA	6 x SATA 3.0 (H81 SKU only support 2 x SATA 2.0, 2 x SATA 3.0) (Q87 SKU support RAID 0/1/5/10)
‧ Power Supply	DC	N/A
	ATX	ATX-Power 24P, 12V-4P
‧ Environment	Operating Temperature	-10 ~ 60°C
	Operating Humidity	10 ~ 90%, non-condensing
	Storage Temperature	-20 ~ 80°C
	Storage Humidity	10 ~ 90%, non-condensing
‧ Form Factor	Dimensions	305mm x 244mm (ATX)
	Weight	0.70 Kg
‧ Regulatory Compliance	EMC	FCC, CE, C-Tick, VCCI, BSMI (Class A)
‧ Software Platform	OS Support	Windows XP (32/64-bit) Windows 7 (32/64-bit) Windows 8 (32/64-bit) Windows 10 (64-bit)

‧ Part Number	Description
919-98B5-001	MS-98B5 10 Q87,ATX, LGA1150,4DDR3,1DVI- I+2DisplayPort 1.2a +4USB3.0+8USB2.0+6SATA3.0+ 6COM+2GBE LAN+ATX POWER,RoHS
919-98B5-002	MS-98B5 10 OPT:A, H81,ATX, LGA1150,2DDR3,1DVI- I+2DisplayPort 1.2a +2USB3.0+8USB2.0+2- SATA3.0+2SATA2.0+6COM+2*GBE LAN+ATX POWER,RoHS

‧ Part Number	Description		Quantity
K14-1018004-V03	Internal COM Port Cable with Bracket, 510mm		2
K18-1025011-V03	Internal LPT Cable with Bracket, 300mm		1
K1B-3008012-E06	Internal USB2.0, 330mm		1
K1D-1008261-V03	SATA Cable, 500mm		2
K39-3002004-E06	External PS/2 Y-Cable, 190mm		1
E21-98B5010-C22	I/O Shielding		1
G71-SEDC159-N56	Driver DVD		1

Product Specifications

Part Number
MS-98B5

Processor

CPU
4th Gen Intel^® Core™ i7/i5/i3/Pentium/Celeron^® Processor, Max. 84W

Frequency
2.4GHz~4.0 GHz (Depends on CPU)

L2 Cache
2M~8M (Depends on CPU)

CPU Type
Socket (LGA 1150)

Chipset
Intel^® Q87/H81 Express

BIOS
AMI

Memory

Technology
Dual-channel DDR3/DDR3L 1333/1600 MHz

Max. Capacity
Up to 32GB

Socket
4 x 240-pin UDIMMs

Display

Controller
Intel^® HD Graphics

Graphic Memory
Depends on CPU

DVI
1 (DVI-I)

DisplayPort
1

Multiple Display
2 independent displays (H81 SKU)
3 independent displays (Q87 SKU)

Display Interface
VGA up to 1920 x 1080
DVI-D up to 2560 x 1600
DP up to 2560 x 1600

Ethernet

Controller
1 x Intel^® I217-LM GbE LAN PHY
1 x Intel^® I210-AT GbE LAN

Audio

Controller
Realtek^® ALC887 HD Audio Codec

Super I/O

Controller
Fintek F81866AD-I

H/W Monitor

Watchdog Timer
256-level Watchdog Timer

Smart Fan
Yes

TPM

Controller
Pin header

I/O Interface

PS/2
1 x PS/2 port by Y-cable for keyboard and mouse

USB
H81: 8 x USB 2.0 (4 x rear, 4 x internal)
4 x USB 3.2 Gen 1 (2 x rear, 2 x internal)
Q87: 8 x USB 2.0 (2 x rear, 6 x internal)
4 x USB 3.2 Gen 1 (rear)

Parallel
1

Serial
6 x COM (COM1~2: rear; COM3~6: internal)
COM1~2: RS-232/422/485, 0V/5V/12V
COM3~6: RS-232, 0V/5V/12V

GPIO
8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

PCIe x16
1

PCIe x1
3

Mini-PCIe
2 x Full-size (Q87 only)

Storage

SATA
6 x SATA 3.0
(H81 SKU only support 2 x SATA 2.0, 2 x SATA 3.0)
(Q87 SKU support RAID 0/1/5/10)

Power Supply

ATX
ATX-Power 24P, 12V-4P

Environment

Operating Temperature
-10 ~ 60°C

Operating Humidity
10 ~ 90%, non-condensing

Storage Humidity
10 ~ 90%, non-condensing

Storage Temperature
-20 ~ 80°C

Form Factor

Dimensions
305mm x 244mm (ATX)

Weight
0.70 kg

Certification

EMC
FCC, CE, C-Tick, VCCI, BSMI (Class A)

Software Platform

OS Support
Windows XP (32/64-bit)
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Windows 10 (64-bit)

Ordering Information

Part Number
Description

919-98B5-001
MS-98B5 10 Q87,ATX, LGA1150,4*DDR3,1*DVI- I+2*DisplayPort 1.2a +4*USB3.0+8*USB2.0+6*SATA3.0+ 6*COM+2*GBE LAN+ATX POWER,RoHS

919-98B5-002
MS-98B5 10 OPT:A, H81,ATX, LGA1150,2*DDR3,1*DVI- I+2*DisplayPort 1.2a +2*USB3.0+8*USB2.0+2*- SATA3.0+2*SATA2.0+6*COM+2*GBE LAN+ATX POWER,RoHS

Packing List

Part Number
Description
Quantity

K14-1018004-V03
MInternal COM Port Cable with Bracket, 510mm
2

K18-1025011-V03
Internal LPT Cable with Bracket, 300mm
1

K1B-3008012-E06
Internal USB2.0, 330mm
1

K1D-1008261-V03
ATA Cable, 500mm
2

K39-3002004-E06
External PS/2 Y-Cable, 190mm
1

E21-98B5010-C22
I/O Shielding
1

G71-SEDC159-N56
Driver DVD
1

The MSI MS-98B5 is an ATX industrial motherboard supporting 4th Gen Intel® Haswell Core™ i7/i5/i3/Pentium®/Celeron® processors with Q87/H81 chipsets. It features up to 32GB DDR3L/DDR3 1600 MHz memory, triple independent displays (VGA, DVI-D, DP), dual GbE LAN, and multiple expansion slots including 1 PCIe x16, 3 PCIe x1, and 3 PCI slots. Additionally, it offers 6 SATA 3.0 ports, numerous USB and COM ports, and onboard TPM support, designed for high-performance and versatile industrial applications.
