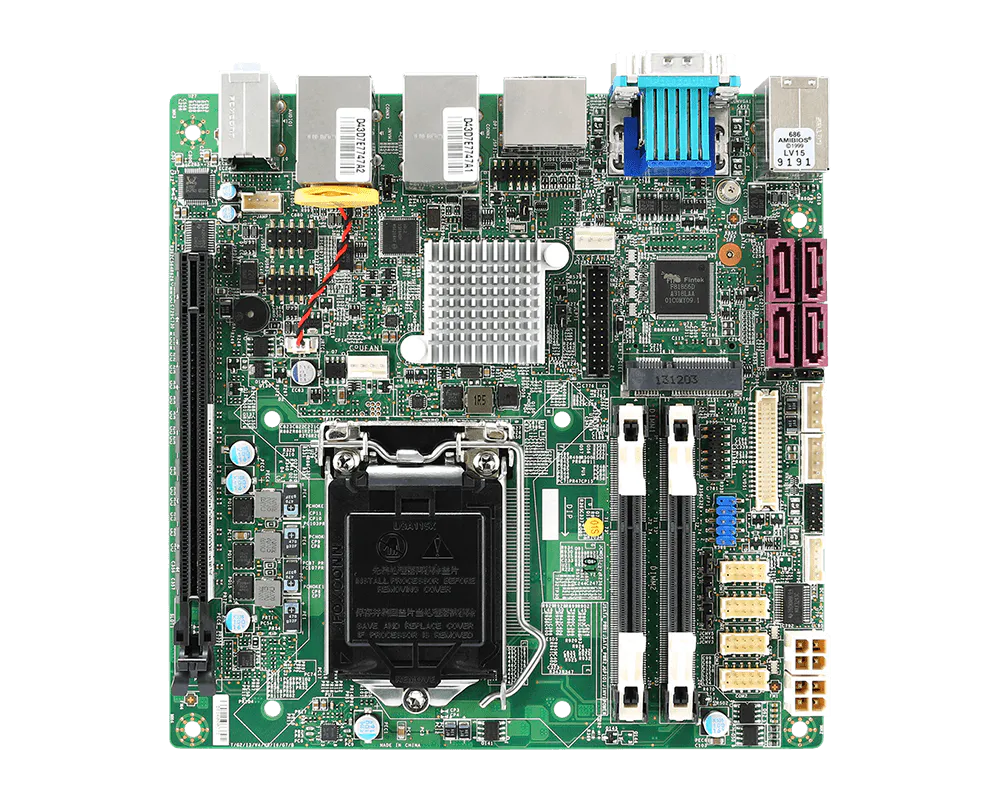

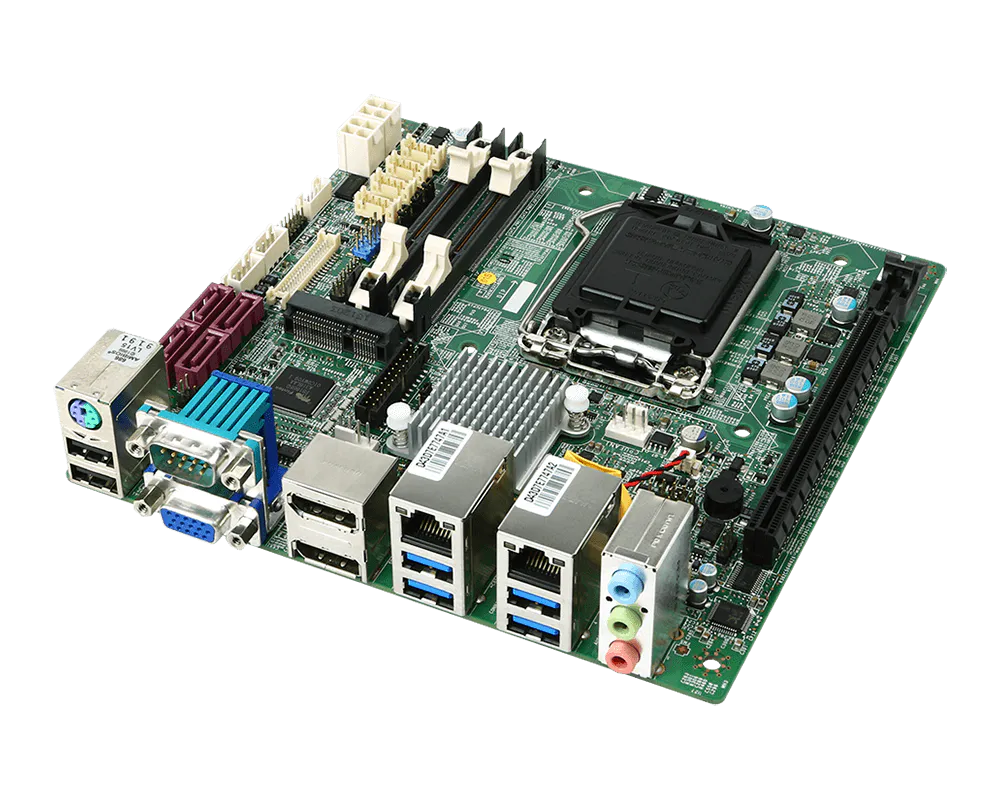

Mini-ITX with 4th Gen Intel® Haswell/Haswell Refresh Platform for Multi-Displays & High-Performance Solution
- Intel® 4th Gen Haswell-S Series with Q87/H81
- 2 DDR3L/DDR3 1600/1333/1066 MHz SO-DIMM slots up to 16GB
- Triple independent displays: VGA, 2 DP, LVDS
- 2 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3), 1 Mini-PCIe (Full size, with mSATA), 1 Mini-PCIe (Half size) slots
- mSATA, 4 SATA 3.0 for storage

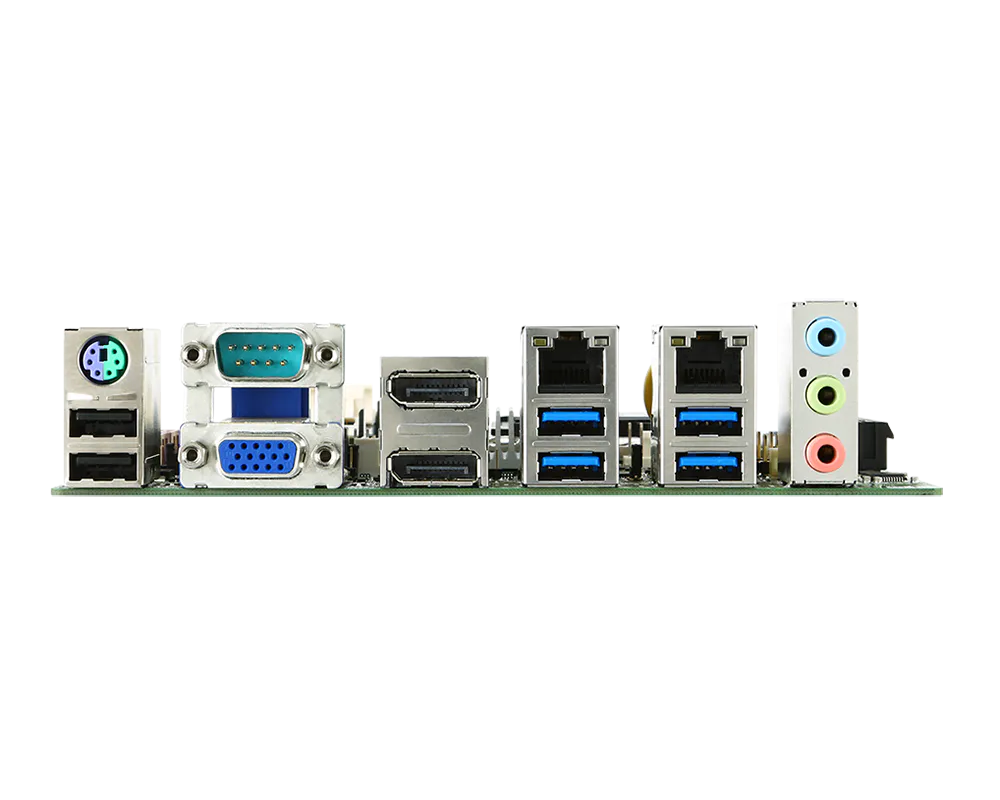

- 4 USB 3.2 Gen 1, 6 USB 2.0, 5 COM (1 RS-485), GPIO, LPT, PS/2, Audio, System FAN
- DC-IN 12V
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
 |
|||
| ‧ Processor | CPU | 4th Gen Intel® Desktop Haswell/ Haswell Refresh Core™ i7/i5/i3/Celeron®/ Pentium® Processor, Max. 65W | |
| Frequency | 2.2GHz~4.4GHz (Depends on CPU) | ||
| L2 Cache | 2M ~ 8M (Depends on CPU) | ||
| CPU Type | Socket (LGA 1150) | ||
| Chipset | Intel® H81/Q87 Express | ||
| BIOS | AMI | ||
| ‧System Memory | Technology | Dual-channel DDR3/DDR3L 1333/1600MHz | |
| Max. Capacity | Up to 16GB | ||
| Socket | 2 x 204-pin SO-DIMMs | ||
| ‧Display | Controller | Intel® HD Graphics | |
| Graphic Memory |
Shared system memory up to 1.7 GB SDRAM |
||
| LVDS | Dual channel 24-bit (add chrontel 7511B chipset) | ||
| VGA | 1 | ||
| DisplayPort | 2 | ||
| Multiple Display |
2 independent displays (H81 SKU) 3 independent displays (Q87 SKU) |
||
| Display Interface |
LVDS up to 1920 x 1200 VGA up to 1920 x 1200 DP up to 3840 x 2160 |
||
| ‧Ethernet | Controller |
1 x Intel® I217-LM GbE LAN PHY (iAMT 9.0 supported) 1 x Intel® I210-AT PCIe GbE LAN |
|
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧Super I/O | Controller | Fintek F81866 | |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| Smart Fan | Yes | ||
| ‧TPM | Controller | Pin header | |
| ‧I/O Interfaces | USB |
Q87: 6 x USB 2.0 (4 x internal; 2 x rear ); 4 x USB 3.0 (rear) H81: 6 x USB 2.0 (2 x internal; 4 x rear ); 2 x USB 3.0 (rear) |
|
| Serial |
5 COM ports (COM1: rear; COM2~5: internal) COM1: RS-232/422/485, 0V/5V/12V COM2: RS-232 w/ WOR function COM3~5: RS-232, 0V/5V/12V |
||
| Parallel | 1 (Pin header) | ||
| PS/2 | 1 | ||
| GPIO | 8-bits (4 x GPI; 4 x GPO), 5V | ||
| ‧Expansion Slot | PCIe x 16 | 1 (up to 75W) | |
| M.2 | N/A | ||
| Mni-PCIe |
1 x Full-size (w/ mSATA) 1 x Half-size |
||
| ‧Storage | SATA |
Q87: 4 x SATA 3.0 H81: 2 x SATA 3.0; 1 x SATA 2.0 |
|
| mSATA | 1 | ||
| ‧ Power Supply | DC | DC-in 12V | |
| ATX | N/A | ||
| ‧ Environment | Operating Temperature | 0 ~ 60°C | |
| Storage Temperature | -20 ~ 80°C | ||
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| ‧ Form Factor | Dimensions | 170mm x 170mm (Mini-ITX) | |
| Weight | 0.37 kg | ||
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI | |
| ‧ Software Platform | OS Support |
Windows XP (32/64-bit) Windows 7 (32/64-bit) Windows 8 (32/64-bit) Linux Fedora 19 |
|
 |
|||
| ‧ Part Number | Description | ||
| 919-98C7-005 | MS-98C7 10 Mini-ITX, Q87, Haswell Mbl, 2x DDR3 SO-DIMM, LVDSx1/VGAx1/DPx2, 4x SATA III,2x GbE LAN,10x USB,5xCOM DC Power (ROHS) | ||
| 919-98C7-006 | MS-98C7 10 OPT A Mini-ITX, H81, Haswell Mbl, 2x DDR3 SO-DIMM, LVDSx1/VGAx1/DPx2, 2x SATA III,1xSATA II, 2x GbE LAN,8x USB,5xCOM DC Power (ROHS) | ||
 |
|||
| ‧ Part Number | Description | ||
| E21-98C7010-C22 | I/O shield | ||
| K14-1018003-V03 | INT COM PORT CABLE, 300mm | ||
| K1D-1008261-V03 | INT SATA CABLE, 500mm | ||
| K1D-3008006-V03 | INT SATA CABLE,POWER, 200/300mm | ||
| K39-3002004-E06 | EXT OTHER CABLE, PS2 Y-CABLE/2/190mm | ||
 |
|||
| ‧ Part Number | Description | ||
| K10-3004215-V03 | DC-In Cable, 160mm | ||
| K1B-3008012-E06 | USB 2.0 Cable, 330mm | ||
Product Specifications
- Part Number
- MS-98C7
Processor
- CPU
- 4th Gen Intel® Desktop Haswell/ Haswell Refresh Core™ i7/i5/i3/Celeron®/ Pentium® Processor, Max. 65W
- Frequency
- 2.2GHz~4.4GHz (Depends on CPU)
- L2 Cache
- 2M ~ 8M (Depends on CPU)
- CPU Type
- Socket (LGA 1150)
- Chipset
- Intel® H81/Q87 Express
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3/DDR3L 1333/1600MHz
- Max. Capacity
- Up to 16GB
- Socket
- 2 x 204-pin SO-DIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- Dual channel 24-bit (add chrontel 7511B chipset)
- VGA
- 1
- DisplayPort
- 2
- Multiple Display
- 2 independent displays (H81 SKU)
3 independent displays (Q87 SKU)
- Display Interface
- LVDS up to 1920 x 1200
VGA up to 1920 x 1200
DP up to 3840 x 2160
Ethernet
- Controller
- 1 x Intel® I217-LM GbE LAN PHY (iAMT 9.0 supported)
1 x Intel® I210-AT PCIe GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81866
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header
I/O Interface
- PS/2
- 1
- USB
- Q87: 6 x USB 2.0 (4 x internal, 2 x rear ); 4 x USB 3.2 Gen 1 (rear)
H81: 6 x USB 2.0 (2 x internal, 4 x rear ); 2 x USB 3.2 Gen 1 (rear)
- Parallel
- 1 (Pin header)
- Serial
- 5 COM ports (COM1: rear; COM2~5: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232 w/ WOR function
COM3~5: RS-232, 0V/5V/12V
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x16
- 1 (up to 75W)
- Mini-PCIe
- 1 x Full-size (w/ mSATA)
1 x Half-size
Storage
- SATA
- Q87: 4 x SATA 3.0
H81: 2 x SATA 3.0; 1 x SATA 2.0
- mSATA
- 1
Power Supply
- DC Input
- DC-in 12V
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170mm (Mini-ITX)
- Weight
- 0.37 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows XP (32/64-bit)
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Linux Fedora 19
Ordering Information
- Part Number
- Description
- 919-98C7-005
- MS-98C7 10 Mini-ITX, Q87, Haswell Mbl, 2x DDR3 SO-DIMM, LVDSx1/VGAx1/DPx2, 4x SATA III,2x GbE LAN,10x USB,5xCOM DC Power (ROHS)
- 919-98C7-006
- MS-98C7 10 OPT A Mini-ITX, H81, Haswell Mbl, 2x DDR3 SO-DIMM, LVDSx1/VGAx1/DPx2, 2x SATA III,1xSATA II, 2x GbE LAN,8x USB,5xCOM DC Power (ROHS)
Packing List
- Part Number
- Description
- E21-98C7010-C22
- I/O Shield
- K14-1018003-V03
- INT COM PORT CABLE, 300mm
- K1D-1008261-V03
- NT SATA CABLE, 500mm/li>
- K1D-3008006-V03
- NT SATA CABLE,POWER, 200/300mm
- K39-3002004-E06
- EXT OTHER CABLE, PS2 Y-CABLE/2/190mm
Optional Item
- Part Number
- Description
- K10-3004215-V03
- DC-In Cable, 160mm
- K1B-3008012-E06
- USB 2.0 Cable, 330mm
