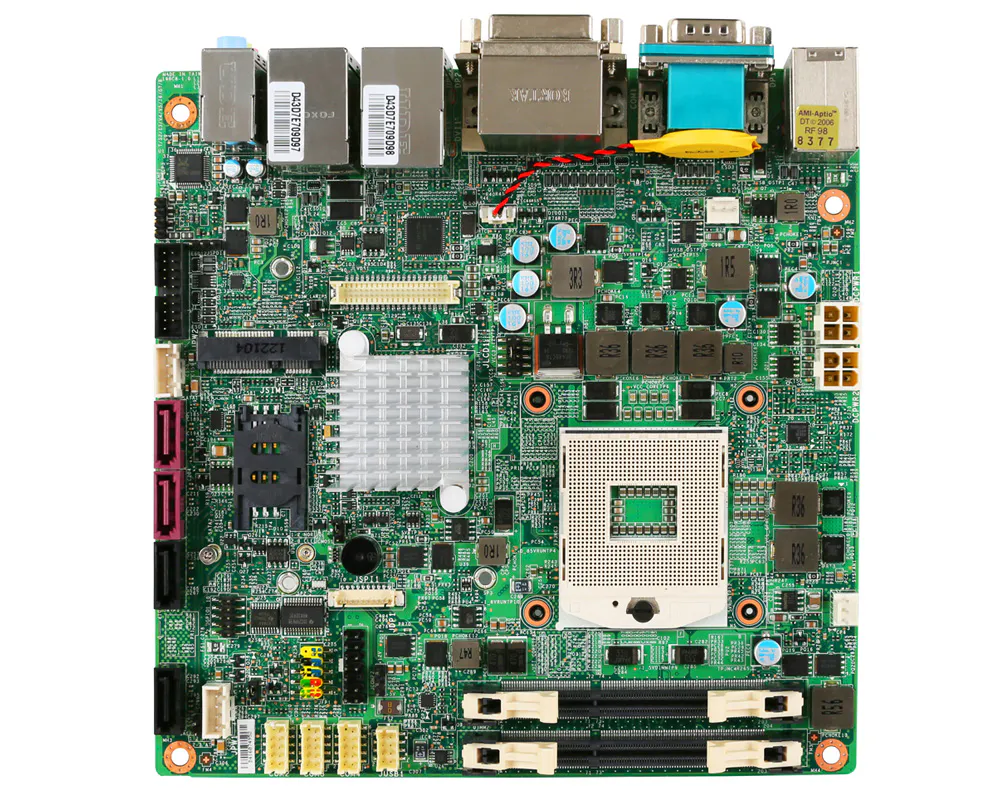

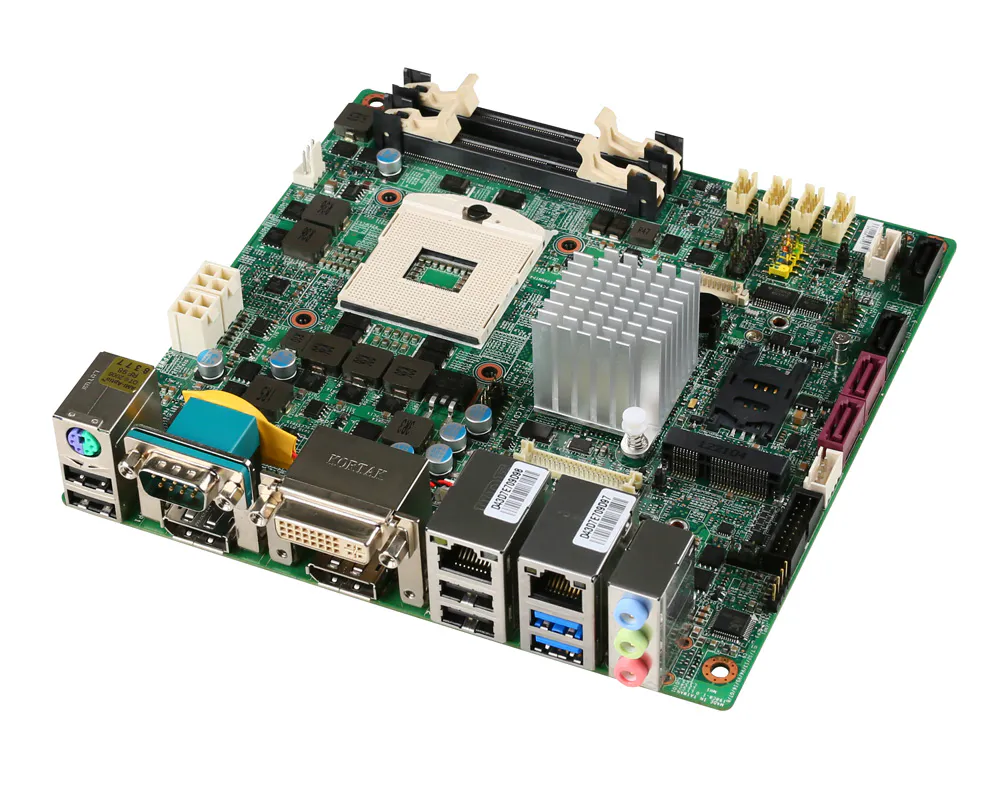

Mini-ITX SBC 3rd Gen Intel® Core™ & Celeron® Processor and Intel® HM76/QM77 for Multi-Displays & High-Performance Solutions
- Embedded Motherboard for high graphic performance application, Medical or Gaming or High-end Digital Signage
- Supports Intel® Ivy Bridge and Sandy Bridge Mobile series CPU
- Supports standard and low-voltage DDR3 SO-DIMM memory up to 16GB (for Ivy Bridge only)
- Multiple video outputs: DP, DP, DVI-I, LVDS with 3 independent displays supported (for Ivy Bridge only)
- Great 3D graphic performance with high definition up to 1080p
- Supports DirectX 11
- Supports SATA 3.0 and mSATA by mini-PCIe slot
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
 |
|||
| ‧ Processor | CPU | 3rd Gen Intel® Mobile Ivy bridge/Sandy bridge Core™ i7/i5/i3/Celeron®/Pentium® Processors, Max. 45W | |
| Frequency | 1.0 GHz~3.8 GHz (Depends on CPU) | ||
| L2 Cache | 2M~8M (Depends on CPU) | ||
| CPU Type | Socket G2 (rPGA 989) | ||
| Chipset | Intel® QM77/HM76 Express | ||
| BIOS | AMI | ||
| ‧System Memory | Technology | Dual-channel DDR3 1066/1333/1600 MHz | |
| Max. Capacity | Up to 16GB | ||
| Socket | 2 x 204-pin SO-DIMMs | ||
| ‧Display | Controller | Intel® HD Graphics | |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | ||
| LVDS | Dual channel 18/24-bit | ||
| DVI | 1 (DVI-I) | ||
| DisplayPort | 2 | ||
| Multiple Display | LVDS up to 1920 x 1200 DP up to 2560 x 1600 DVI-I up to 1920 x 1200 |
||
| Display Interface | 2 independent displays supported (SNB CPU only) 3 independent displays supported (IVB CPU only) |
||
| ‧Ethernet | Controller | 1 x Intel® 82579 PHY GbE LAN 1 x Intel® I210-AT PCIe GbE LAN |
|
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧Super I/O | Controller | Fintek F81866D | |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| Smart Fan | Yes | ||
| ‧TPM | Controller | Through pin header | |
| ‧I/O Interface | USB | 6 x USB 2.0 (4 x rear; 2 x internal) 4 x USB 3.0 (2 x rear; 2 x internal) |
|
| Serial | 4 x COM ports (COM1: rear; COM2~4: internal) COM1: RS-232/422/485, 0V/5V/12V COM2~4: RS-232, 0V/5V/12V |
||
| PS/2 | 1 | ||
| GPIO | 8-bits (4 x GPI; 4 x GPO), 5V | ||
| ‧Expansion Slot | M.2 | N/A | |
| Mni-PCI E | 1 x Full-size 1 x Half-size, mSATA |
||
| ‧Storage | SATA |
2 x SATA 3.0 |
|
| mSATA | 1 | ||
| ‧ Power Supply | DC | DC-in 12V/19V | |
| ATX | N/A | ||
| ‧ Environment | Operating Temperature | 0 ~ 70°C | |
| Storage Temperature | -20 ~ 80°C | ||
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| ‧ Form Factor | Dimensions | 170mm x 170mm (Mini-ITX) | |
| Weight | 0.35 Kg | ||
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI | |
| ‧ Software Platform | OS Support | Windows 7 (32/64-bit) Windows 8 (32 bit) |
|
 |
|||
| ‧ Part Number | Description | ||
| 919-98C8-003 | HM76 2*DDR3 SODIMM, 2*miniPCIe, 2*LAN, 1*DVI-I, 2*DP, 1*LVDS, 4*com port, 6*USB 2.0, 4*USB 3.0 | ||
| 919-98C8-004 | QM77 2*DDR3 SODIMM, 2*miniPCIe, 2*LAN, 1*DVI-I, 2*DP, 1*LVDS, 4*com port, 6*USB 2.0, 4*USB 3.0 | ||
 |
|||
| ‧ Part Number | Description | ||
| E21-98C8010-C22 | I/O SHIELDING | ||
| E32-0800383-A21 | MECH FANSINK | ||
| K39-3002004-E06 | PS2 Y-Cable, 190mm | ||
| K14-1018003-V03 | COM PORT CABLE, 300mm | ||
| K1D-1012064-V03 | SATA CABLE, 200mm | ||
| E93-0000118-H06 | CPU BACK PLATE | ||
| G71-SEDC094-J24 | DRIVER CD | ||
Product Specifications
- Part Number
- MS-98C8
Processor
- CPU
- 3rd Gen Intel® Mobile Ivy bridge/Sandy bridge Core™ i7/i5/i3/Celeron®/Pentium® Processors, Max. 45W
- Frequency
- 1.0 GHz~3.8 GHz (Depends on CPU)
- L2 Cache
- 2M~8M (Depends on CPU)
- CPU Type
- Socket G2 (rPGA 989)
- Chipset
- Intel® QM77/HM76 Express
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3 1066/1333/1600 MHz
- Max. Capacity
- Up to 16GB
- Socket
- 2 x 204-pin SO-DIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Shared system memory up to 1.7 GB SDRAM
- LVDS
- Dual channel 18/24-bit
- DVI
- 1 (DVI-I)
- DisplayPort
- 2
- Multiple Display
- LVDS up to 1920 x 1200
DP up to 2560 x 1600
DVI-I up to 1920 x 1200
- Display Interface
- 1 x Intel® 82579 PHY GbE LAN
1 x Intel® I210-AT PCIe GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81866D
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Through pin header
I/O Interface
- PS/2
- 1
- USB
- 6 x USB 2.0 (4 x rear; 2 x internal)
4 x USB 3.0 (2 x rear; 2 x internal)
- Serial
- 4 x COM ports (COM1: rear; COM2~4: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232, 0V/5V/12V
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- Mini-PCIe
- 1 x Full-size
1 x Half-size, mSATA
Storage
- SATA
- 2 x SATA 3.0
2 x SATA 2.0
- mSATA
- 1
Power Supply
- DC Input
- DC-in 12V/19V
Environment
- Operating Temperature
- 0 ~ 70°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 170mm x 170mm (Mini-ITX)
- Weight
- 0.35 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8 (32 bit)
Ordering Information
- Part Number
- Description
- 919-98C8-003
- HM76 2*DDR3 SODIMM, 2*miniPCIe, 2*LAN, 1*DVI-I, 2*DP, 1*LVDS, 4*com port, 6*USB 2.0, 4*USB 3.0
- 919-98C8-004
- QM77 2*DDR3 SODIMM, 2*miniPCIe, 2*LAN, 1*DVI-I, 2*DP, 1*LVDS, 4*com port, 6*USB 2.0, 4*USB 3.0
Packing List
- Part Number
- Description
- E21-98C8010-C22
- I/O SHIELDING
- E32-0800383-A21
- MECH FANSINK
- K39-3002004-E06
- PS2 Y-Cable, 190mm
- K14-1018003-V03
- COM PORT CABLE, 300mm
- K1D-1012064-V03
- SATA CABLE, 200mm
- E93-0000118-H06
- CPU BACK PLATE
- G71-SEDC094-J24
- DRIVER CD
