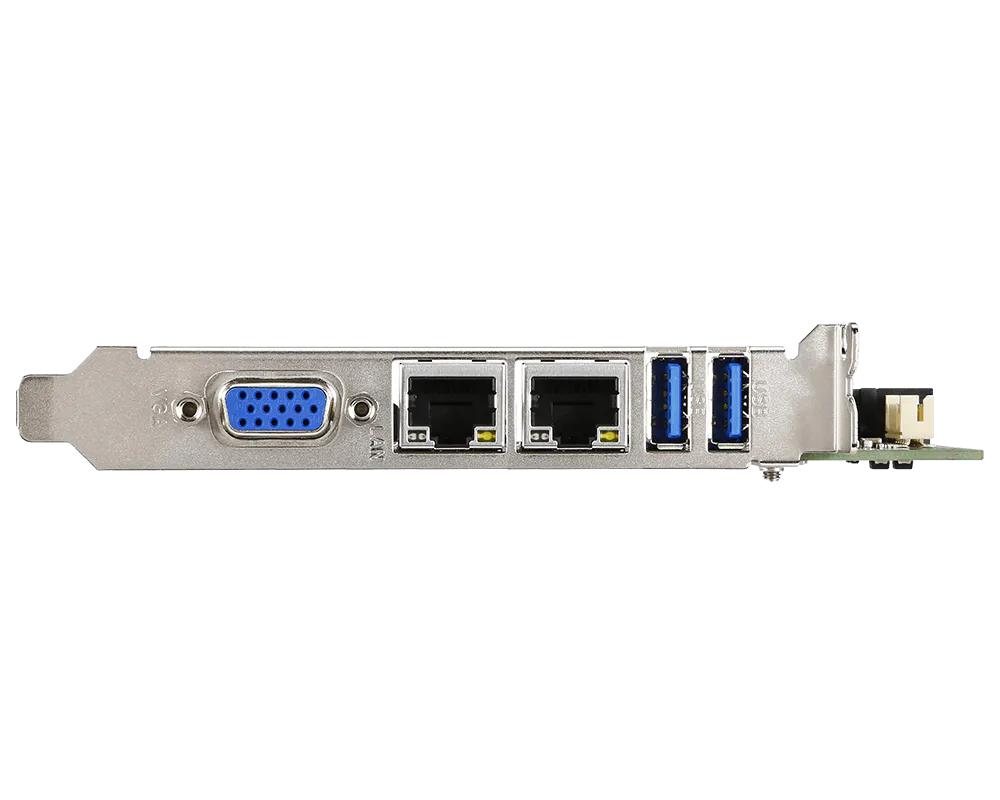

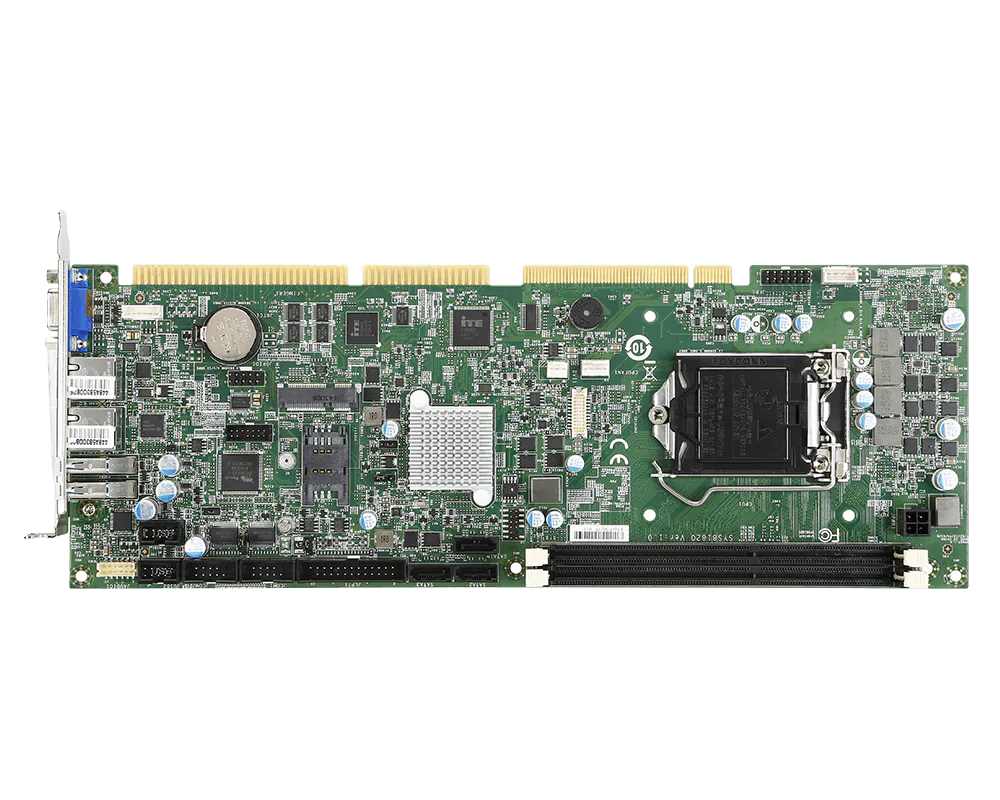

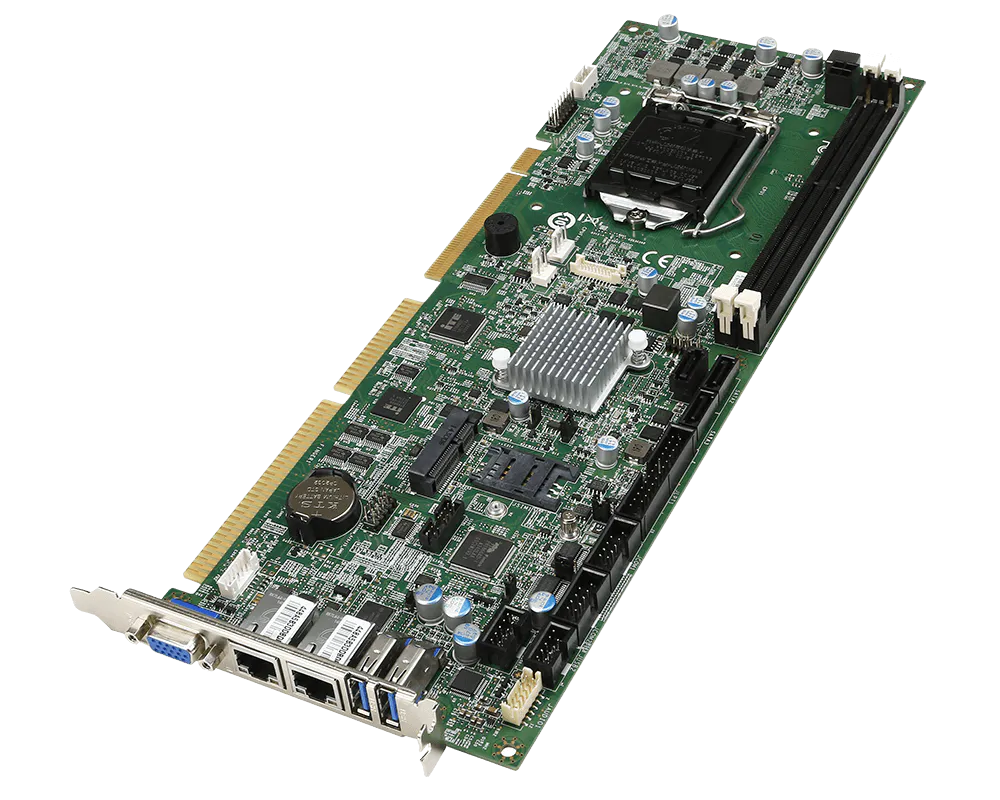

PICMG 1.0 SBC with 4th Gen Intel® Desktop Haswell/Haswell Refresh Platform for High-Performance Solution
- Intel® 4th Gen Haswell-S/Haswell refresh-S Series with H81
- 2 DDR3/DDR3L 1600/1333 MHz UDIMM slots up to 16GB
- Dual independent displays: VGA, DVI-D
- 2 GbE LAN with RJ-45
- mSATA, 2 SATA 3.0, SATA 2.0
- 2 USB 3.2 Gen1, 4 USB 2.0, 2 COM (1 RS-485), GPIO, PS/2
- Product Specifications
- Ordering-Information
- Optional-Items
Product Specifications
- Part Number
- MS-98G7
Processor
- CPU
- 4th Gen Intel® Desktop Haswell/Haswell refresh Core™ i7/i5/i3/Pentium®/Celeron® Processor, Max. 84W
- Frequency
- 2.4GHz~4.0 GHz (Depends on CPU)
- L2 Cache
- 2M~8M (Depends on CPU)
- CPU Type
- Socket (LGA 1150)
- Chipset
- Intel® H81
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3/DDR3L 1333/1600MHz
- Max. Capacity
- Up to 16GB
- Socket
- 2 x 240-pin UDIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- VGA
- 1
- DVI
- 1 (DVI-D, pin-header)
- Multiple Display
- 2 independent displays
- Display Interface
- VGA up to 1920 x 1200 @60Hz
DVI-D up to 1920 x 1200 @60Hz
Ethernet
- Controller
- 1 x Intel® I217-LM GbE LAN
1 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81866
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header
I/O Interface
- PS/2
- 1 (wafer connector)
- USB
- 4 x USB 2.0 (internal)
2 x USB 3.2 Gen 1 (rear)
- Parallel
- 1
- Serial
- 2 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232, 0V/5V/12V
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- Mini-PCIe
- 1 x Full-size (w/ mSATA)
Storage
- SATA
- 1 x SATA 2.0
2 x SATA 3.0
- mSATA
- 1
Power Supply
- ATX
- ATX/AT-Power 12V-4P, power from PICMG1.0 backplane
Environment
- Operating Temperature
- 0 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 338 x 122mm (PICMG 1.0)
- Weight
- 0.40 kg
Certification
- EMC
- FCC, CE
Software Platform
- OS Support
- Windows XP (32-bit)
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Linux Fedora 19 (by request)
Linux Ubuntu 10.04 (by request)
Ordering Information
- Part Number
- Description
- 919-98G7-106
- MS-98G7 11 OPT:C Intel Haswell Processor+Intel H81, 2*DDR3 UDIMM, VGA,DVI-D, 3*SATA,2*LAN,6*USB,2*COM,m-SATA, 1 x Mini-PCIe,1*SIM Holder,ATX power
Optional Item
- Part Number
- Description
- Quantity
- K1D-1008261-V03
- SATA 3.0 Cable, 500mm
- 1
- K18-1025011-V03
- Parallel Cable, 300mm
- 1
- K1B-3008034-V03
- USB 2.0 Cable, 150mm
- 1
