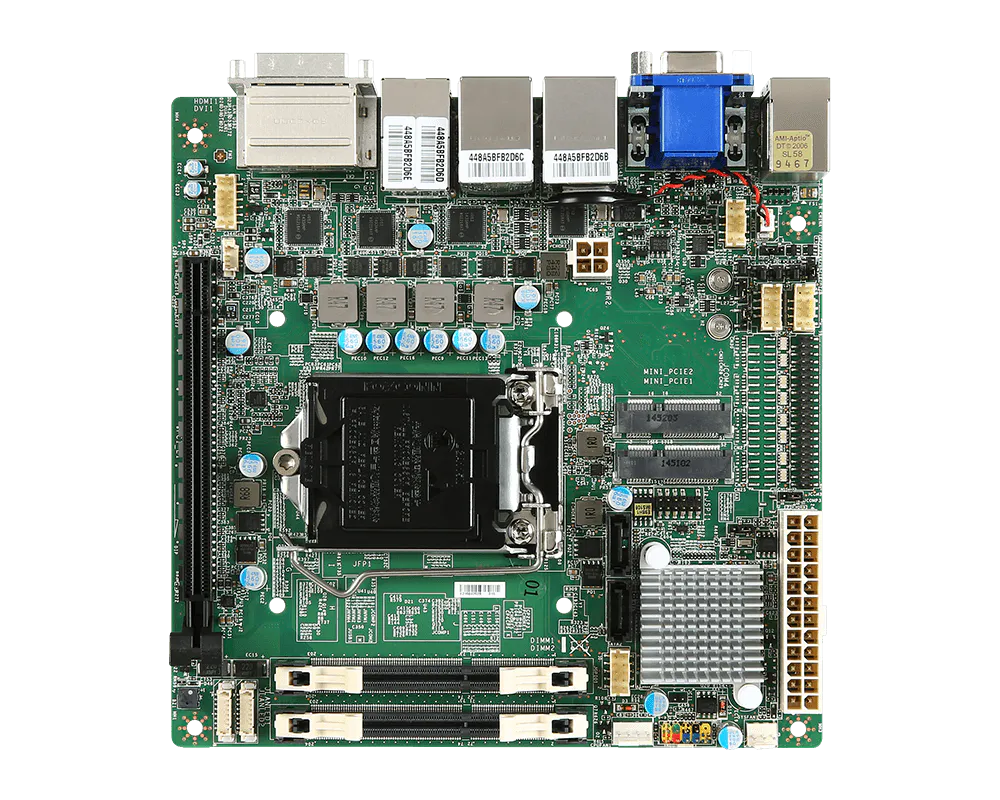

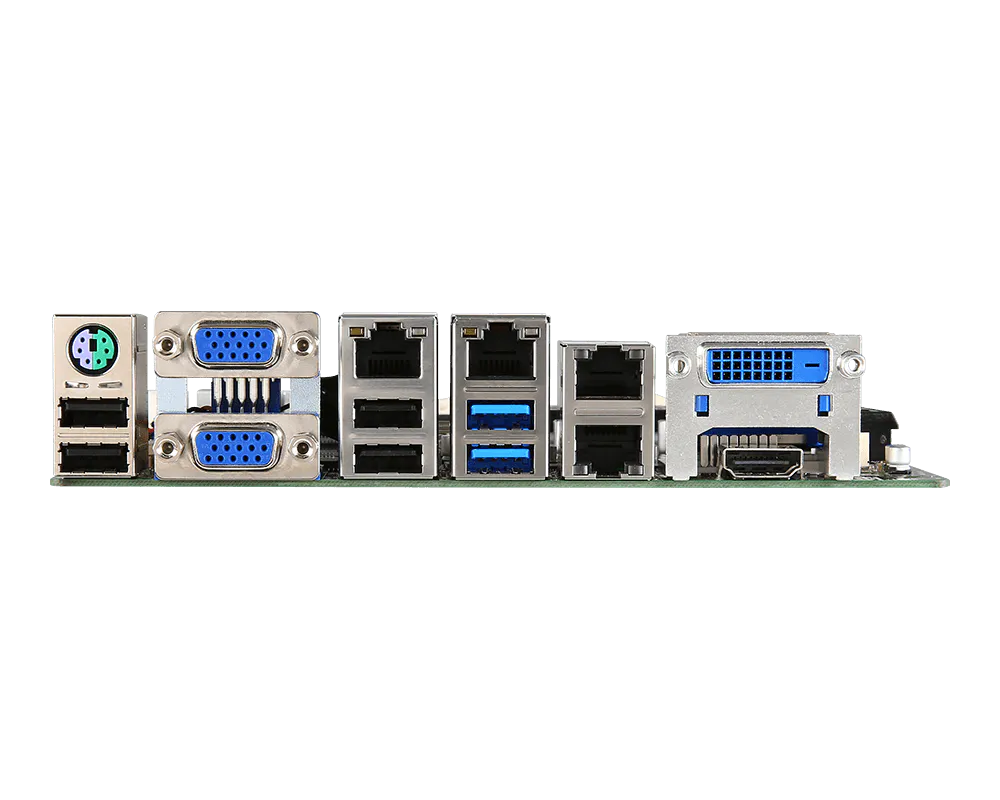

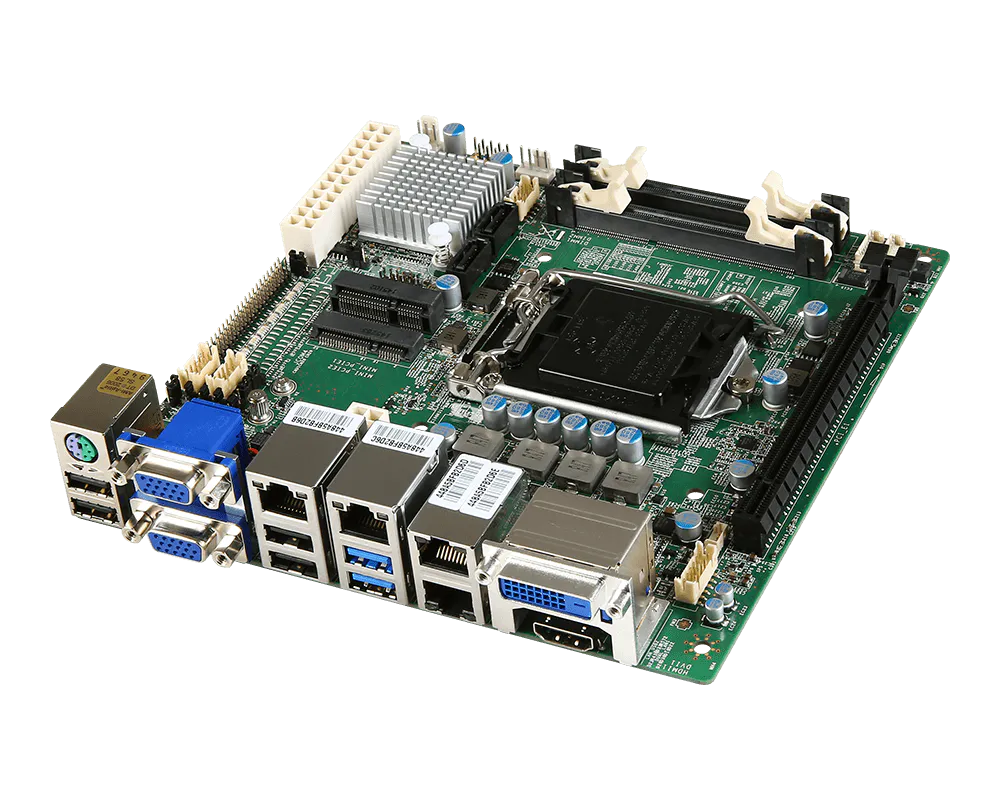

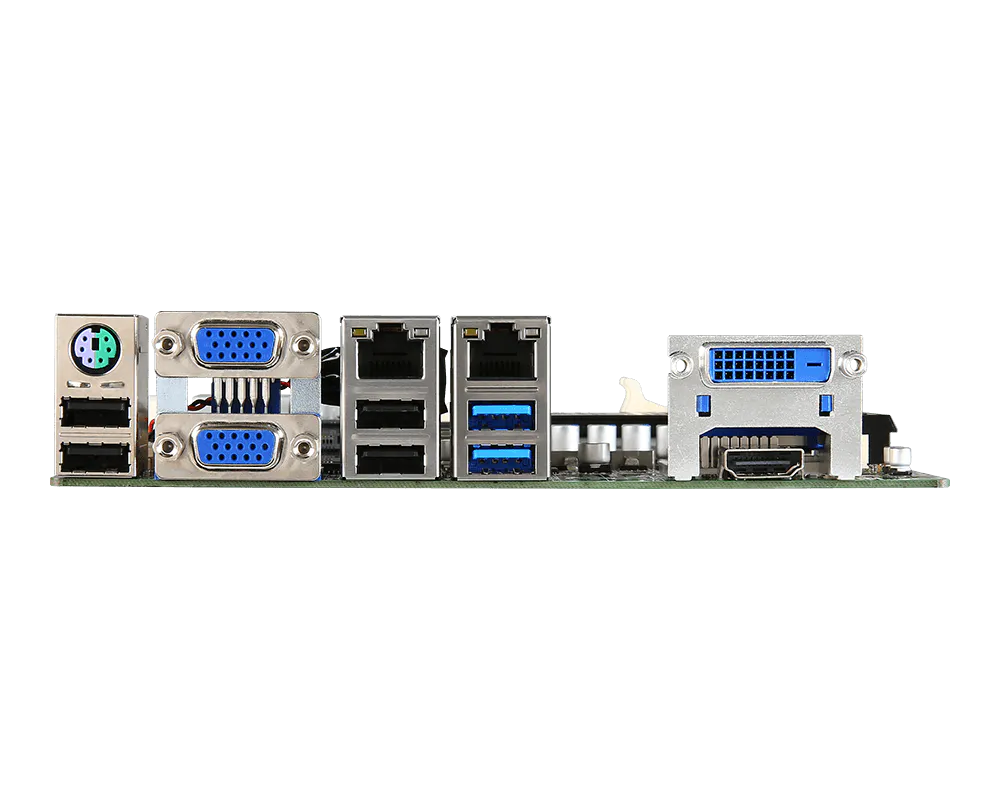

Mini-ITX with 4th Gen Intel® Desktop Haswell/Haswell Refresh Platform for 4 GLAN, 10 COM & 3 Independent Displays
- Intel® 4th Gen Haswell-S Series with Q87/H81
- 2 DDR3L/DDR3 1600/1333/1066 MHz SO-DIMM slots up to 16GB
- Triple independent displays: 2 VGA, DVI-D, DP (HDMI™ by option)
- 4 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3), 1 Mini-PCIe (Full size, with mSATA), 1 Mini-PCIe (Half size) slots
- mSATA, 2 SATA 3.0 for storage
- SATA RAID 0/1/5 (RAID 5 Configured with mSATA)
- 2 USB 3.2 Gen 1, 6 USB 2.0, 10 COM (2 RS-485), GPiO,PS/2, Audio, System FAN
- ATX Power
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
 |
|||
| ‧ Processor | CPU | 4th Gen Intel® Desktop Haswell/Haswell refresh Core i7/i5/i3/Pentium/Celeron Processor, Max. 84W | |
| Frequency | 2.4GHz~4.0 GHz (Depends on CPU) | ||
| L2 Cache | 2M~8M (Depends on CPU) | ||
| CPU Type | Socket (LGA 1150) | ||
| Chipset | Intel® Q87/H81 Express | ||
| BIOS | AMI | ||
| ‧Memory | Technology | Dual-channel DDR3/DDR3L 1066/1333/1600MHz | |
| Max. Capacity | Up to 16GB | ||
| Socket | 2 x 204-pin SO-DIMMs | ||
| ‧Display | Controller | Intel® HD Graphics | |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | ||
| VGA | 2 | ||
| DVI | 1 (DVI-D) | ||
| HDMI™ | 1 | ||
| Multiple Display |
3 independent displays (Q87 SKU) 2 independent displays (H81 SKU) |
||
| Display Interface |
VGA1 up to 1920 x 1080 VGA2 up to 1920 x 1080 DVI-D up to 1920 x 1200 HDMI™ up to 1920 x 1200 |
||
| ‧Ethernet | Controller |
4 x Intel® I210-AT GbE LAN 2 x Intel® I211-AT GbE LAN (Optional by SKU) |
|
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧Super I/O | Controller | Fintek F81866D | |
| ‧H/W Monitor | Watchdog Timer | 255-level Watchdog Timer | |
| Smart Fan | Yes | ||
| ‧TPM | Controller | Pin header | |
| ‧I/O Interface | USB |
2 x USB 3.0 (rear) 4 x USB 2.0 (2 x rear; 2 x internal) |
|
| Serial |
10 x COM (COM1~10: internal) COM1: RS-232/422/485, 0V/5V/12V COM2: RS-232/422/485, 0V/5V/12V COM3~6: RS-232, 0V/5V/12V COM7~10: RS-232, 0V/5V/12V (depends on SKU) |
||
| Parallel | N/A | ||
| PS/2 | 1 | ||
| GPIO | 8-bits (4 x GPI; 4 x GPO), 5V | ||
| ‧Expansion Slot | PCIe x 16 | 1 | |
| M.2 | N/A | ||
| Mni-PCIe |
1 x Full-size (W/ mSATA) 1 x Half-size |
||
| ‧Storage | SATA |
2 x SATA 3.0 |
|
| mSATA | 1 | ||
| ‧ Power Supply | DC | N/A | |
| ATX | ATX-Power 24P, 12V-4P | ||
| ‧ Environment | Operating Temperature | -10 ~ 60°C | |
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Temperature | -20 ~ 80°C | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| ‧ Form Factor | Dimensions | 170mm x 170mm (Mini-ITX) | |
| Weight | 0.37 Kg | ||
| ‧ Regulatory Compliance | EMC | FCC Class A, CE, RCM, VCCI, BSMI | |
| ‧ Software Platform | OS Support |
Windows XP (32-bit) Windows 7 (32/64-bit) Windows 8/8.1 (32/64-bit) Windows 10 (64-bit) Fedora 19 Ubunda 13.04 |
|
 |
|||
| ‧ Part Number | Description | ||
| 919-98H1-101 | MS-98H1 V1.0 Mini-ITX, Intel Haswell Processor+Intel H81,2*DDR3/DDR3L SO-DIMM+1*DVI-D+1*HDMI™+ 2*VGA+4*GbE LAN+6*COM+8*USB Port ,ATX power | ||
| 919-98H1-102 | MS-98H1 V1.0 Mini-ITX, Intel Haswell Processor+Intel H81,2* DDR3/DDR3L SO-DIMM+1*DVI-D+1*HDMI™+ 2*VGA+2*GbE LAN+10*COM+8*USB Port ,ATX power | ||
| 919-98H1-103 | MS-98H1 V1.0 Mini-ITX, Intel Haswell Processor+Intel Q87,2* DDR3/DDR3L SO-DIMM+1*DVI-D+1*HDMI™+ 2*VGA+2*GbE LAN+10*COM+8x USB Port ,ATX power | ||
 |
|||
| ‧ Part Number | Description | Quantity | |
| E21-98H10X0-C22 | I/O SHEILDING | 1 | |
Product Specifications
- Part Number
- MS-98H1
Processor
- CPU
- 4th Gen Intel® Desktop Haswell/Haswell refresh Core i7/i5/i3/Pentium/Celeron® Processor, Max. 84W
- Frequency
- 2.4GHz~4.0 GHz (Depends on CPU)
- L2 Cache
- 2M~8M (Depends on CPU)
- CPU Type
- Socket (LGA 1150)
- Chipset
- Intel® Q87/H81 Express
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3/DDR3L 1066/1333/1600MHz
- Max. Capacity
- Up to 16GB
- Socket
- 2 x 204-pin SO-DIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- VGA
- 2
- DVI
- 1 (DVI-D)
- HDMI
- 1
- Multiple Display
- 3 independent displays (Q87 SKU)
2 independent displays (H81 SKU)
- Display Interface
- VGA1 up to 1920 x 1080
VGA2 up to 1920 x 1080
DVI-D up to 1920 x 1200
HDMI™ up to 1920 x 1200
Ethernet
- Controller
- 4 x Intel® I210-AT GbE LAN
2 x Intel® I211-AT GbE LAN
(Optional by SKU)
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
Super I/O
- Controller
- Fintek F81866D
H/W Monitor
- Watchdog Timer
- 255-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header
I/O Interface
- PS/2
- 1
- USB
- 6 x USB 2.0 (4 x rear, 2 x internal)
2 x USB 3.2 Gen 1 (rear)
- Serial
- 10 x COM (COM1~10: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232/422/485, 0V/5V/12V
COM3~6: RS-232, 0V/5V/12V
COM7~10: RS-232, 0V/5V/12V (depends on SKU)
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x16
- 1
- Mini-PCIe
- 1 x Full-size (W/ mSATA)
1 x Half-size
Storage
- SATA
- 2 x SATA 3.0
- mSATA
- 1
Power Supply
- ATX
- ATX-Power 24P, 12V-4P
Environment
- Operating Temperature
- -10 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170mm (Mini-ITX)
- Weight
- 0.37 kg
Certification
- EMC
- FCC Class A, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows XP (32-bit)
Windows 7 (32/64-bit)
Windows 8/8.1 (32/64-bit)
Windows 10 (64-bit)
Fedora 19
Ubunda 13.04
Ordering Information
- Part Number
- Description
- 919-98H1-101
- MS-98H1 V1.0 Mini-ITX, Intel Haswell Processor+Intel H81,2*DDR3/DDR3L SO-DIMM+1*DVI-D+1*HDMI™+ 2*VGA+4*GbE LAN+6*COM+8*USB Port ,ATX power
- 919-98H1-102
- MS-98H1 V1.0 Mini-ITX, Intel Haswell Processor+Intel H81,2* DDR3/DDR3L SO-DIMM+1*DVI-D+1*HDMI™+ 2*VGA+2*GbE LAN+10*COM+8*USB Port ,ATX power
- 919-98H1-1033
- MS-98H1 V1.0 Mini-ITX, Intel Haswell Processor+Intel Q87,2* DDR3/DDR3L SO-DIMM+1*DVI-D+1*HDMI™+ 2*VGA+2*GbE LAN+10*COM+8x USB Port ,ATX power
Packing List
- Part Number
- Description
- Quantity
- E21-98H10X0-C22
- I/O SHEILDING
- 1
