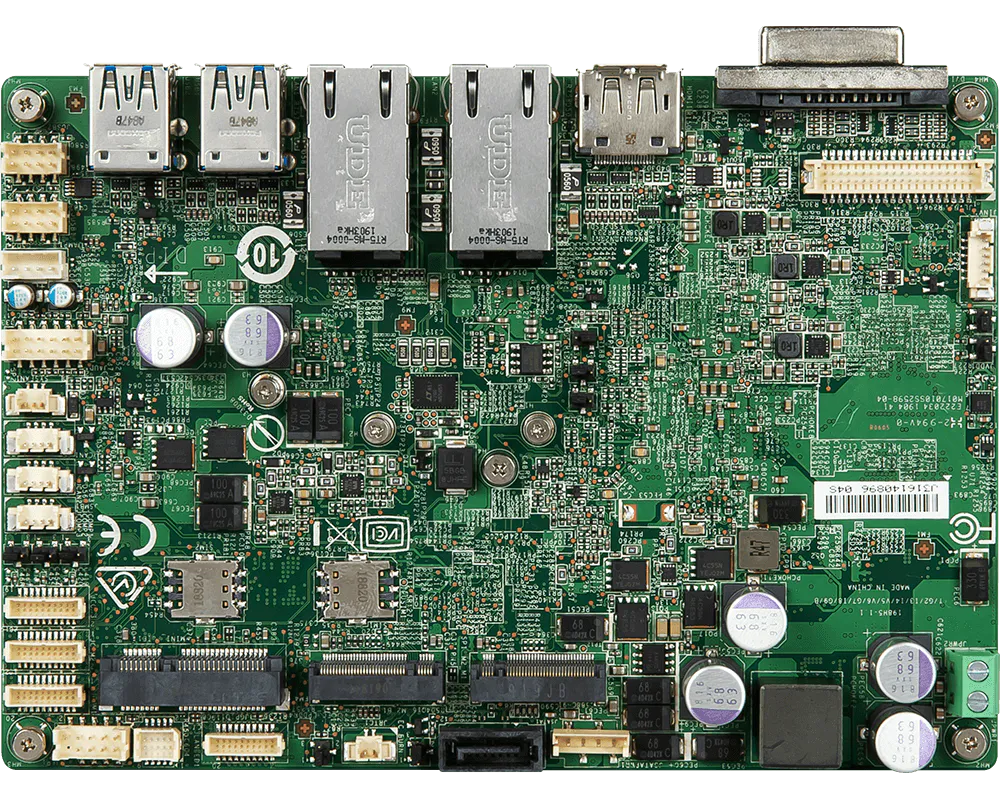

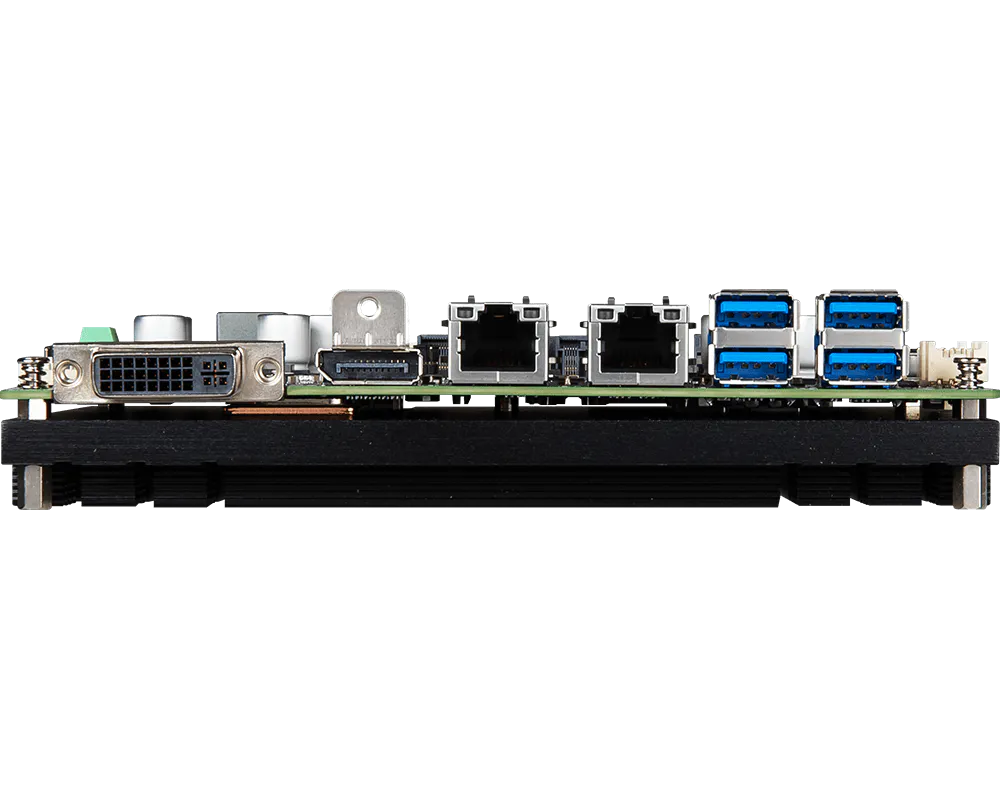

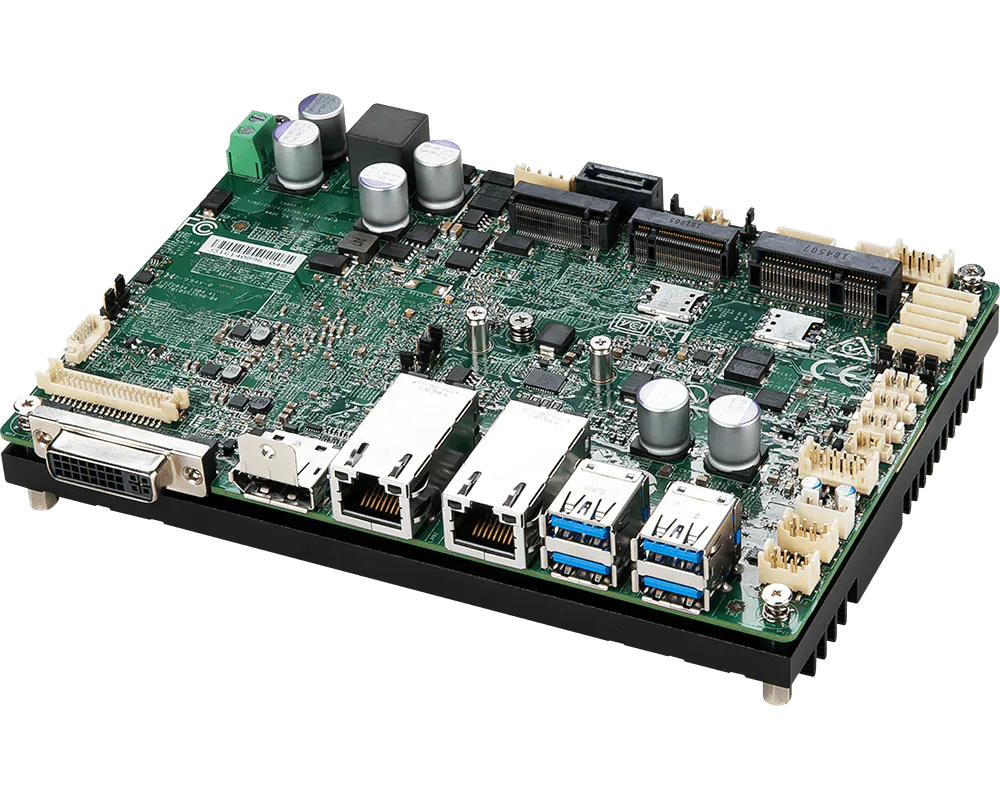

EPIC SBC with Intel® Apollo Lake/Apollo Lake-I Series for Fanless, Low-Power, PoE, CANBus & Wide Temperature Solution
- Intel® Apollo Lake/Apollo Lake-I Series SoC
- LPDDR4 2133 MHz onboard memory up to 4GB
- Triple independent displays : DVI-D, HDMI™ 1.4 (DP by option), LVDS
- 2 PoE/GbE LAN with RJ-45 (IEEE 802.11af compliant)
- 1 Mini-PCIe (Full size, with NANO SIM-Holder), 1 M.2 B Key (with NANO SIM-Holder)
- SATA 3.0, M.2 M Key for storage
- 4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
- Onboard TPM 2.0 (by option)
- ESD: Contact 6KV/ Air 8KV
- Dual channel CANBus 2.0B
- Wide operating temperature : -40~85°C
- Wide voltage DC-IN 12~48V
- Product Specifications
- Ordering-Information
- Packing-List
- Optional-Items
Product Specifications
- Part Number
Ordering Information
- Part Number
- Description
- 919-98H5-002
- MS-98H5\609-98H5-020\809-98H5-005 VER:11 OPT B,4 Inches, Intel Apollo Lake-I E3940, F1 Steping, 4GB LPDDR4, 4*USB3.0+4*USB2.0+6*COM+HDMI™+DVI+2*I210 LAN with POE+1*LVDS+1*mini-PCIe+1*SATA, 2*M.2, 2*CANBUS DC12~48V, WT for channel
- 919-98H5-004
- MS-98H5\609-98H5-050\809-98H5-004 VER:11 OPT E,4 Inches, Intel Apollo Lake J3455, F1 Stepping, 4GB LPDDR4, 4*USB3.0+4*USB2.0+6*COM+HDMI™+DVI+2*I211 LAN+1*LVDS+1*mini- PCIe+1*SATA,2*M.2, DC12~48V, Non-WT for channel
Packing List
- Part Number
- Description
- Quantity
- K1B-3008034-V03
- USB Cable, 150mm
- 1
- K14-3018001-V03
- COM Cable, 150mm
- 1
- K1G-3002031-V03
- DC Power Cable, 150mm (for 919-98H5-002)
- 1
- K1G-3004069-V03
- DC Power Cable, 150mm (for 919-98H5-004)
- 1
- K1D-3012023-V03
- SATA Cable with Power, 230mm
- 1
Optional Item
- Part Number
- Description
- E31-0806200-K08
- Heartspreader for Apollo Lake
- E31-0806210-K08
- Heartspreader for Apollo Lake-I
