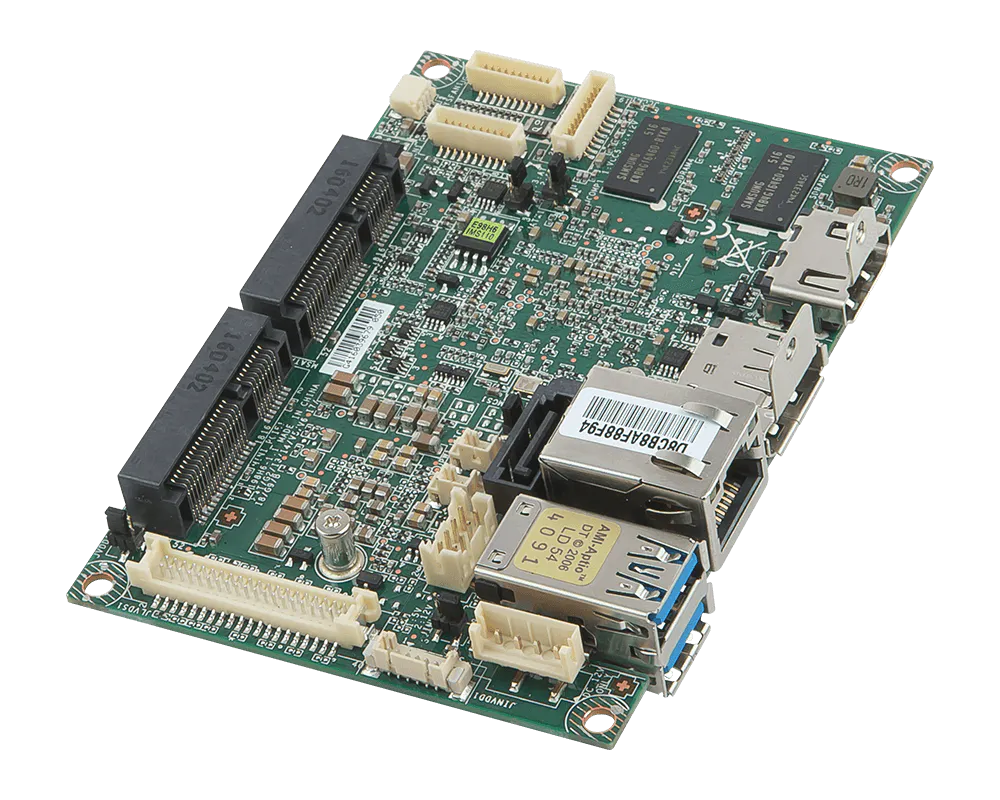

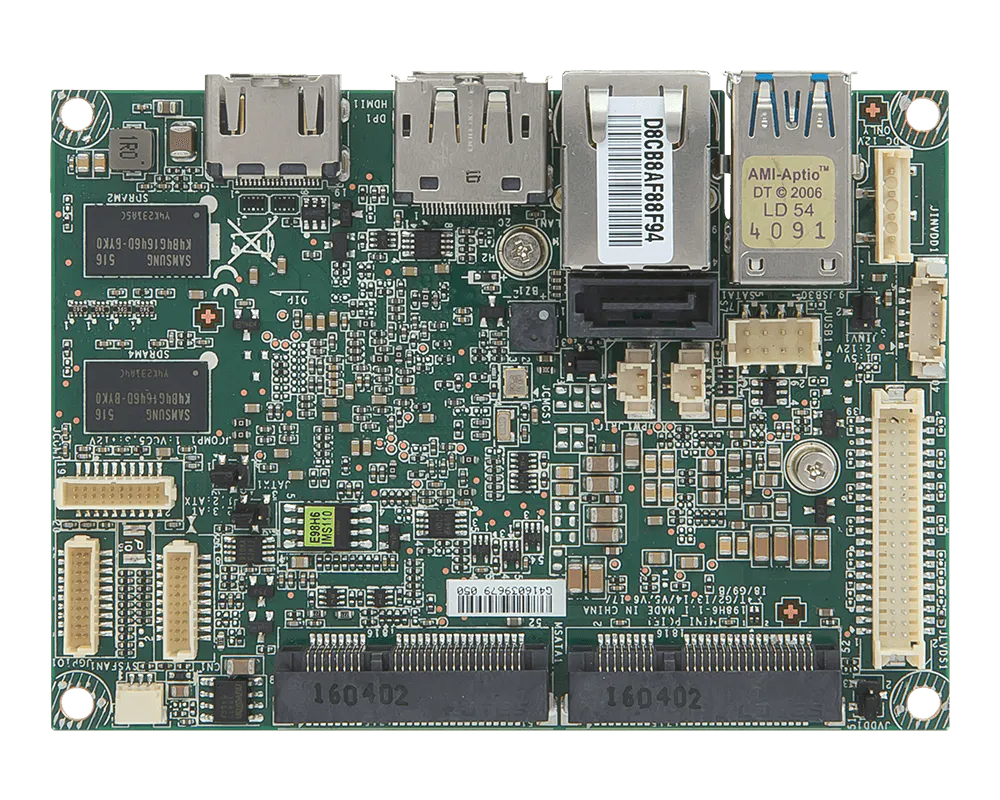

Pico-ITX SBC with Intel® Braswell N3000 Series SoC Platform for Low-Power and Fanless Solution
- Intel® Braswell Series SoC
- LPDDR3L 1600MHz onboard memory up to 2GB
- Triple independent displays: DP, HDMI™, LVDS
- 2 GbE LAN with RJ-45
- 2 USB 3.2 Gen 1, 2 USB 2.0, 2 COM (RS-485), GPIO, Audio
- 1 Mini-PCIe (Full size with mSATA), 1 Mini-PCIe (Half-size) Slots
- SATA 3.0 for storage
- DC-IN 12V
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-98H6
Processor
- CPU
- Intel® Pentium® processor N3710, QC, 6W
Intel® Celeron® processor N3160, QC, 6W
Intel® Celeron® processor N3010, DC, 4W
- Frequency
- N3710, 1.6 GHz up to 2.56 GHz
N3160, 1.6 GHz up to 2.24 GHz
N3010, 1.04 GHz up to 2.24 GHz
- L2 Cache
- 2MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC
- BIOS
- AMI
Memory
- Technology
- Single-channel DDR3L 1600MHz
- Max. Capacity
- Up to 2GB
- Socket
- Onboard
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- Dual Channel 18/24-bit
- HDMI
- 1
- DisplayPort
- 1
- Multiple Display
- 3 independent displays
- Display Interface
- LVDS up to 1920 x 1200 @ 60 Hz
HDMI™ up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz
DP1.1a up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz
Ethernet
- Controller
- 1 x Intel® I211-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
Expansion Slot
- Mini-PCIe
- 1 x Half-size
Storage
- SATA
- 1 x SATA 3.0
- mSATA
- 1

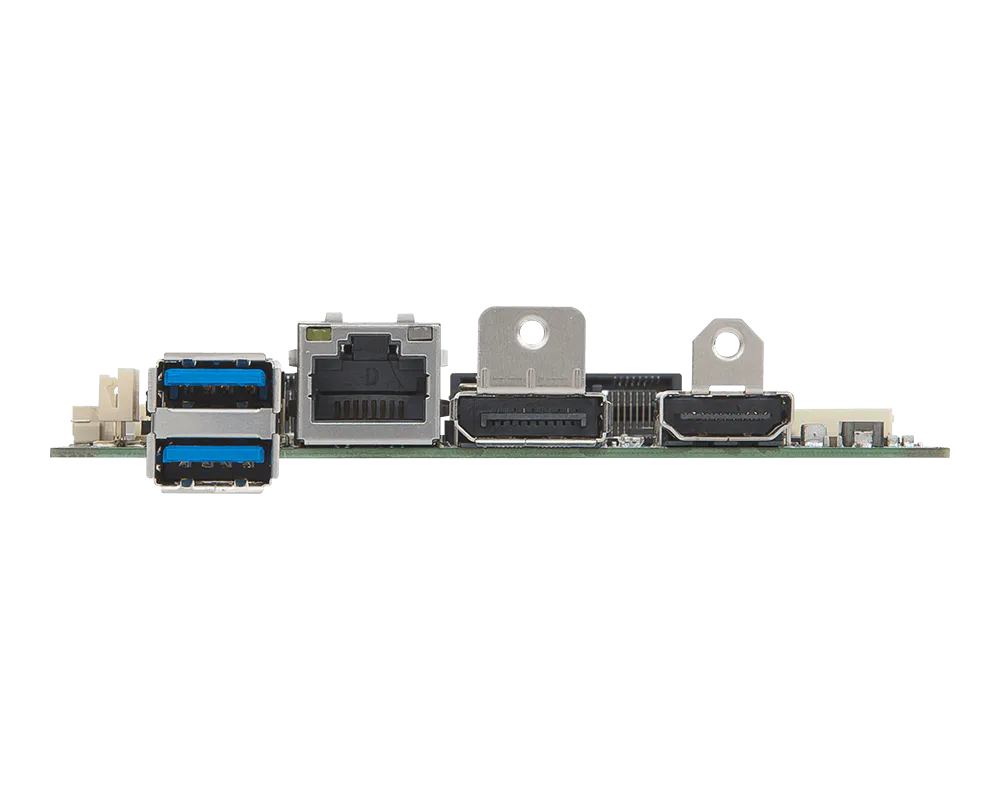

I/O Interface
- USB
- 2 x USB 2.0 (internal)
2 x USB 3.2 Gen 1 (rear)
- Serial
- 2 x COM ports (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232/422/485, 0V/5V/12V
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
Power Supply
- DC Input
- DC-in 12V
Environment
- Operating Temperature
- Heat-Spreader: 100(L) x 72.2(W) x 8(H) mm (standard packing)
Heat-Sink: -10~60°C , 100(L) x 72.2(W) x 33(H) mm (by option)
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 100 x 72mm (Pico-ITX)
- Weight
- 0.27 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64-bit)
Linux Fedora 21 (by request)
Linux Ubuntu14.04 (by request)
Ordering Information
- Part Number
- Description
- 919-98H6-011
- Intel Braswell N3710 SoC, Onboard 2GB DDR3L, HDMI™, DP, GbE LAN, 2*USB3.0, 2*COM, Mini-PCIe, mSATA, I2C, DC-IN 12V, SATA CABLE WITH POWER, USB CABLE, COM PORT CALBE, DC-IN CABLE, CD, SINGLE
- 919-98H6-012
- Intel Braswell N3160 SoC, Onboard 2GB DDR3L, HDMI™, DP, GbE LAN, 2*USB3.0, 2*COM, Mini-PCIe, mSATA, I2C, DC-IN 12V, SATA CABLE WITH POWER, USB CABLE, COM PORT CALBE, DC-IN CABLE, CD, SINGLE
- 919-98H6-013
- Intel Braswell N3010 SoC, Onboard 2GB DDR3L, HDMI™, DP, GbE LAN, 2*USB3.0, 2*COM, Mini-PCIe, mSATA, I2C, DC-IN 12V, SATA CABLE WITH POWER, USB CABLE, COM PORT CALBE, DC-IN CABLE, CD, SINGLE
Packing List
- Part Number
- Description
- Quantity
- K14-3018001-V03
- COM PORT Cable, 150mm
- 1
- K1B-3008034-V03
- USB Cable, 150mm
- 1
- K1D-3010008-V03
- SATA Cable with Power, 150mm
- 1
- K1G-3004057-V03
- DC Power Cable, 150mm
- 1
- G71-SEDC149-X03
- Driver DVD
- 1
