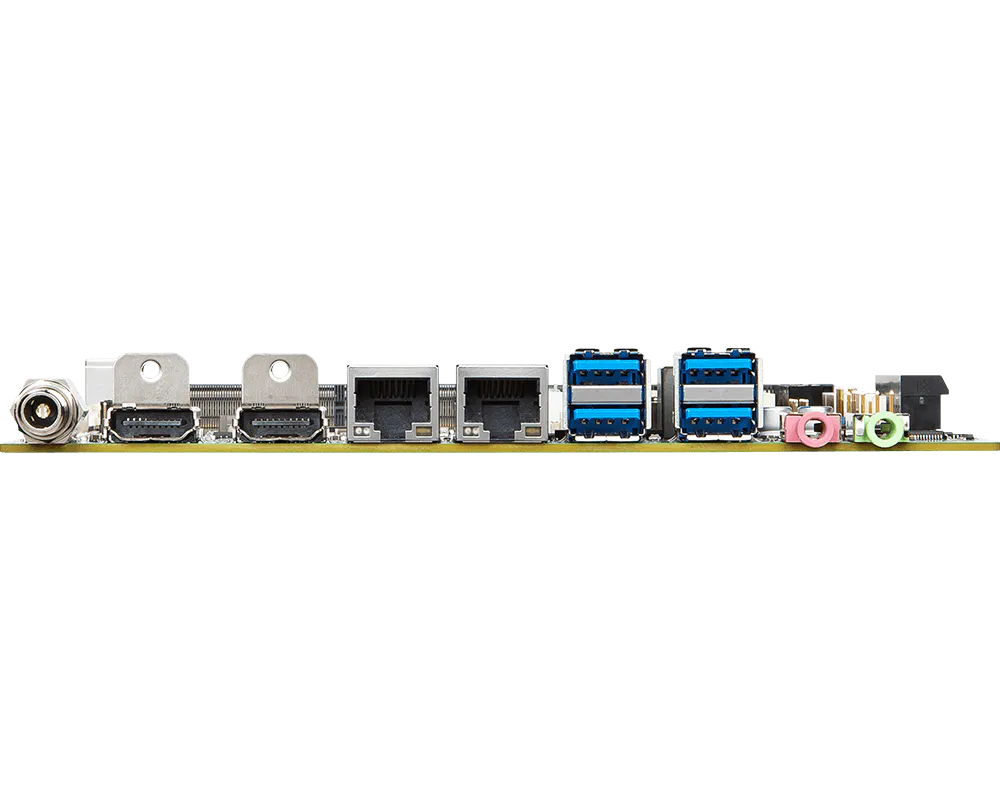

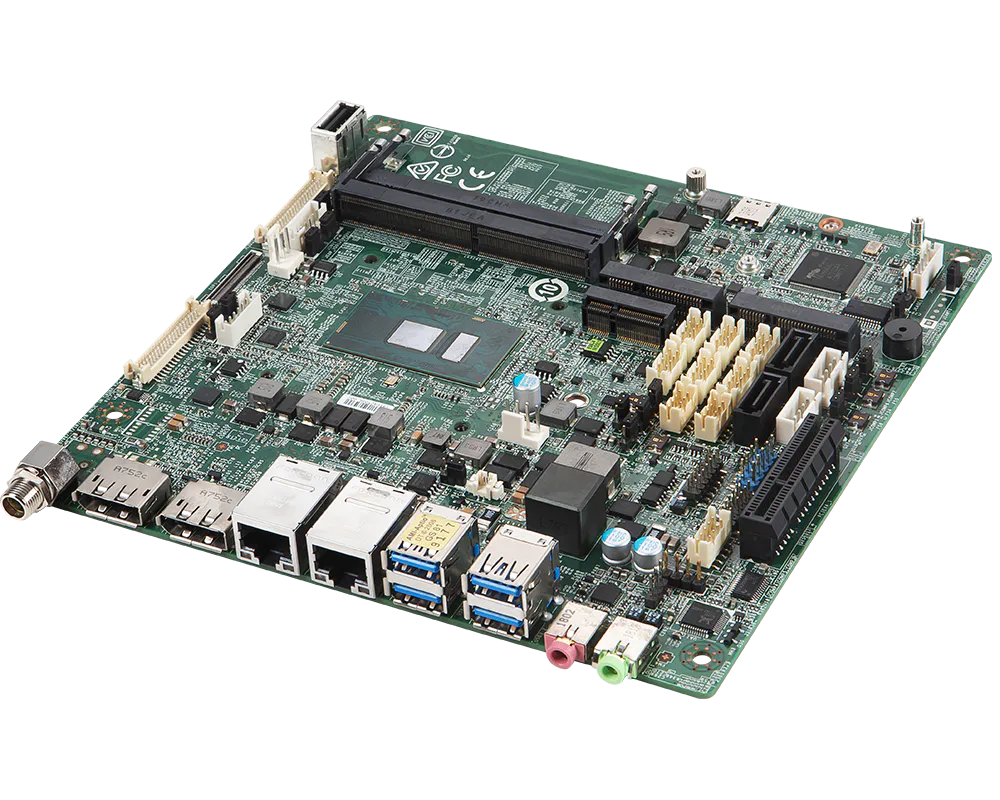

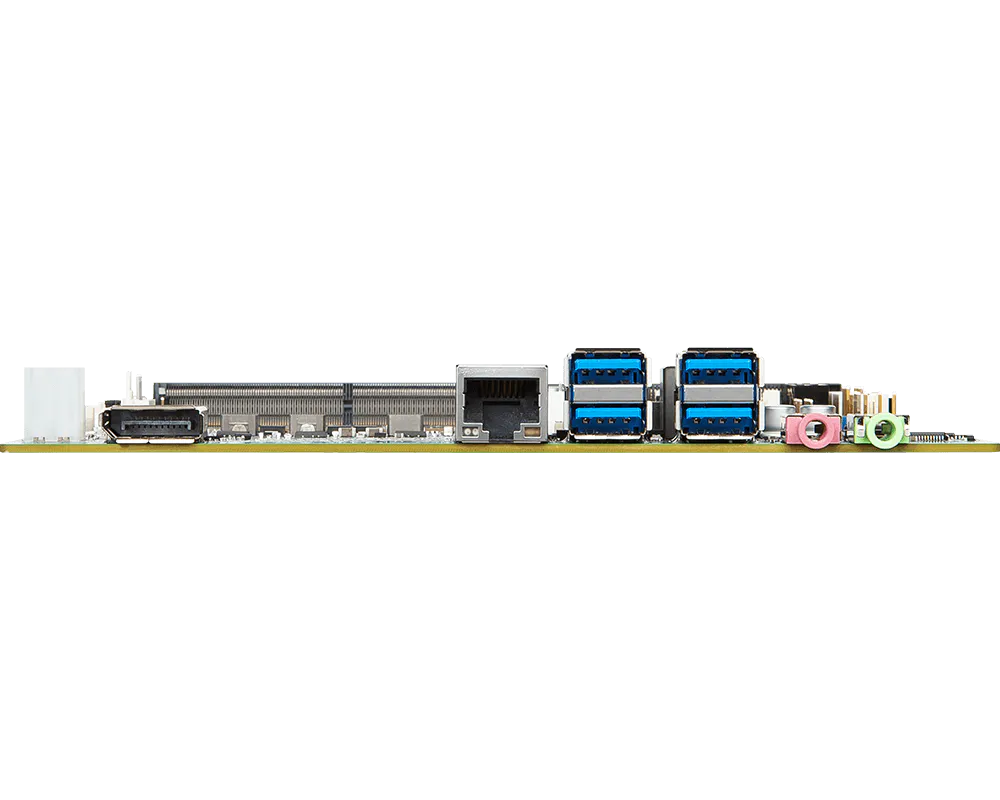

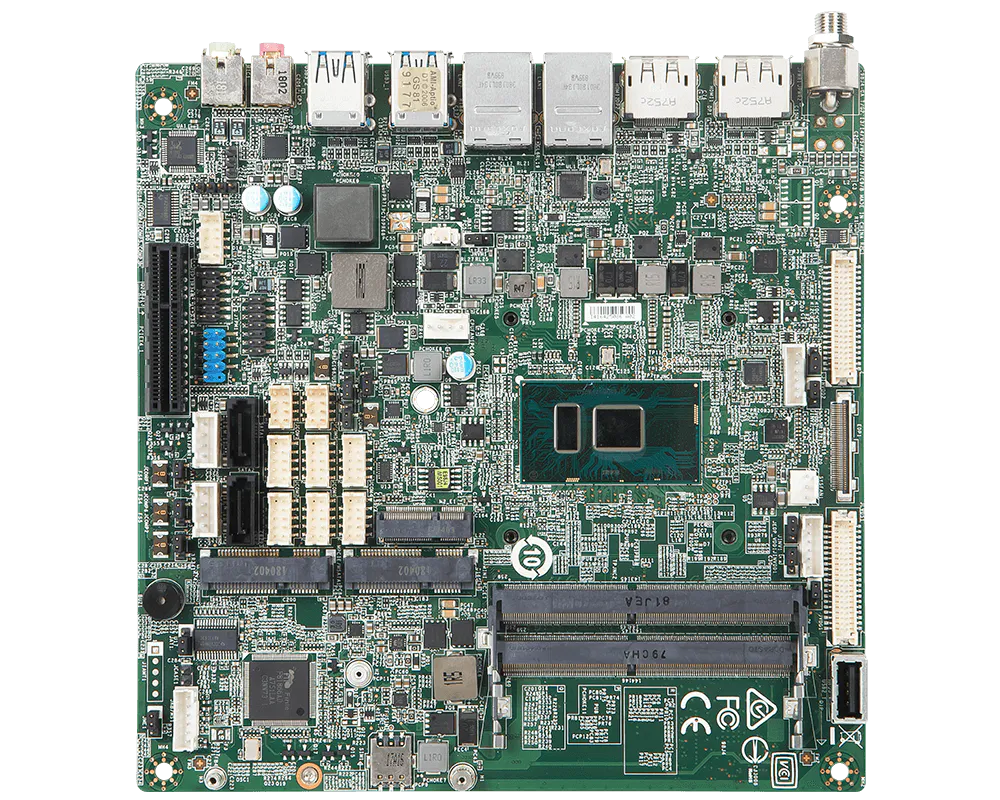

MS-98J4

Mini-ITX with Intel® Kaby Lake/Skylake ULT Platform for Low Power, Low Profile, Multi-Displays and High Performances Solutions

  • Intel® 7th/6th Gen Kaby Lake-U/Skylake-U Series
  • 2 DDR4 2133 MHz SODIMM Slots up to 32GB
  • Triple independent displays: DP 1(HDMI™ by option), DP 2(HDMI™/ LVDS 2 by option), LVDS 1(eDP by option)
  • HDMI™ 2.0
  • 2 GbE LAN(1 by option) with RJ-45
  • 1 PCIe x4 (Gen 3), 1 M.2 E Key, 1 Mini-PCIe (Full size, with SIM Holder), 1 Mini-PCIe (Full size, with mSATA)slots
  • mSATA, M.2 M key, 2 SATA 3.0 for storage
  • 4 USB 3.2 Gen 1, 5 USB 2.0 (1 by option), 6 COM (2 RS485, 2 ports by option), GPIO, PS/2, Audio, S/PDIF
  • Onboard TPM 2.0
  • OVP & OCP
  • Wide Voltage DC-IN 12~24V
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-98J4-SKU1
  • MS-98J4-SKU2

Processor

  • CPU
  • 7th/6th Gen Intel® Mobile Kaby Lake/Skylake- ULT Core™ i7/i5/i3/Celeron® Processor,DC/ QC, Max. 15W
  • 7th/6th Gen Intel® Mobile Kaby Lake/Skylake- ULT Core™ i7/i5/i3/Celeron® Processor,DC/ QC, Max. 15W
  • Frequency
  • Depends on CPU
  • Depends on CPU
  • L2 Cache
  • Depends on CPU
  • Depends on CPU
  • CPU Type
  • Integrated
  • Integrated
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Dual-channel DDR4 2133 MHz SDRAM
  • Dual-channel DDR4 2133 MHz SDRAM
  • Max. Capacity
  • Up to 32GB
  • Up to 32GB
  • Socket
  • 2 x 260-pin SO-DIMMs
  • 2 x 260-pin SO-DIMMs

Display

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • 2 x Dual channel 24-bit
    (LVDS1 co-design with eDP, LVDS2 co-desigh with DP2/HDMI™2.0)
  • 2 x Dual channel 24-bit
    (LVDS1 co-design with eDP, LVDS2 co-desigh with DP2/HDMI™2.0)
  • eDP
  • 1 (Co-design with LVDS1)
  • 1 (Co-design with LVDS1)
  • HDMI
  • 2 (1 x HDMI™1.4 colay with DP1, 1 x HDMI™2.0 colay with DP2)
  • 2 (1 x HDMI™1.4 colay with DP1, 1 x HDMI™2.0 colay with DP2)
  • DisplayPort
  • 2 (DP1 colay with HDMI™1.4, DP2 colay with HDMI™2.0)
  • 2 (DP1 colay with HDMI™1.4, DP2 colay with HDMI™2.0)
  • Multiple Display
  • 3 independent displays
  • 3 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200 @60Hz
    eDP up to 4096 x 2304 @60Hz
    DP up to 4096 x 2304 @60Hz
    HDMI™ up to 4096 x 2160 @60Hz
  • LVDS up to 1920 x 1200 @60Hz
    eDP up to 4096 x 2304 @60Hz
    DP up to 4096 x 2304 @60Hz
    HDMI™ up to 4096 x 2160 @60Hz

Ethernet

  • Controller
  • 1 x Intel® I219LM GbE LAN PHY
    1 x Intel® I211-AT/I210-AT GbE LAN
  • 1 x Intel® I211-AT GbE LAN

Audio

  • Controller
  • Realtek® ALC887/888S HD Audio Codec
  • Realtek® ALC887/888S HD Audio Codec

Super I/O

  • Controller
  • Fintek F81866AD-I
  • Fintek F81866AD-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes

TPM

  • Controller
  • Infineon SLB9665TT2.0(default)
    Pin header (By BOM option)
  • Infineon SLB9665TT2.0(default)
    Pin header (By BOM option)

I/O Interface

  • PS/2
  • 1 (pin header)
  • 1 (pin header)
  • USB
  • 5 x USB 2.0 (4 x internal, 1 x vertical connector)
    4 x USB 3.1 Gen 1 (rear)
  • 5 x USB 2.0 (4 x internal, 1 x vertical connector)
    4 x USB 3.1 Gen 1 (rear)
  • Serial
  • 6 x COM Ports (Internal)
    COM1~2: RS-232/422/485, 0V/5V/12V, RI support (RS-232/422/485 by Optional , RS485 support 1000M+)
    COM3~6: RS-232, 0V/5V/12V (depends on SKU)
  • 2 x COM Ports (Internal)
    COM3~4: RS-232, 0V/5V/12V
  • GPIO
  • 8-bits (4 x GPI; 4 x GPO), 5V
  • 8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

  • PCIe x4
  • 1
  • M.2
  • 1 x E Key 2230 for Wi-Fi/BT module
    1 x M Key 2280 for SSD
  • 1 x E Key 2230 for Wi-Fi/BT module
  • Mini-PCIe
  • 1 x Full-size(w/mSATA)
    1 x Full/Half-size(w/ SIM Holder)
  • 1 x Full-size(w/mSATA)
    1 x Full/Half-size(w/ SIM Holder)

Storage

  • SATA
  • 1 x SATA 3.0
  • 1 x SATA 3.0
  • mSATA
  • 1 (shared w/ Mini-PCIe)
  • 1 (shared w/ Mini-PCIe)

Power Supply

  • DC Input
  • DC-in 12V~24V
  • DC-in 12V~24V

Environment

  • Operating Temperature
  • -10 ~ 60°C
  • -10 ~ 60°C
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 170mm x 170mm (Mini-ITX)
  • 170mm x 170mm (Mini-ITX)
  • Weight
  • 0.34 Kg
  • 0.34 Kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI
  • FCC, CE, RCM, VCCI, BSMI

Software Platform

  • OS Support
  • Windows 7 (32/64-bit) (For Skylake-U Only)
    Windows 8.1 (64-bit) (For Skylake-U Only)
    Windows 10/ Windows 10 IoT Enterprise (64-bit)
    Linux Kernel 4.x (Fedora 25 & Ubuntu 16.04 )
  • Windows 7 (32/64-bit) (For Skylake-U Only)
    Windows 8.1 (64-bit) (For Skylake-U Only)
    Windows 10/ Windows 10 IoT Enterprise (64-bit)
    Linux Kernel 4.x (Fedora 25 & Ubuntu 16.04 )

Ordering Information

  • Part Number
  • Description
  • 919-98J4-102
  • MS-98J4\609-98J4-010\809-98J4-106 VER:10 OPT:A, Mini-ITX, KabyLake Core i5-7300U, 2*DDR4,1*PCIex4, 2*DP, 2*LVDS, 1*eDP, 5*USB2, 4*USB3, 4*COM, 2*Mini-PCIe, 1* M.2 E Key, 1*M.2 M Key, 2*LAN, 2*SATA,DC Jack, 1*SATA CABLE, I/O SHIELD, DRIVER CD, BULK, For Channel
  • 919-98J4-103
  • MS-98J4\609-98J4-020\809-98J4-107 VER:1.0 OPT:B, Mini-ITX, Skylake Core i3-6100U,2*DDR4,1*DP,2*LVDS,4*USB2,4*USB3,2*COM,2*Mini-PCIe,1*M.2 E Key,1*LAN,2*SATA,DC CONN,1*SATA CABLE,1*POWER CABLE, I/O SHIELD, DRIVER CD, BULK, For Channel

Packing List

  • Part Number
  • Description
  • Quantity
  • K1D-1012064-V03
  • SATA Cable ,200mm
  • 1
  • K10-3004215-V03
  • DC Power Cable, 160mm
  • 1
  • E21-98J4020-C22
  • I/O Shield(SKU2, 2xDP)
  • 1
  • E21-98J4030-C22
  • I/O Shield(SKU3, 1xDP)
  • 1
  • G71-SEDC188-N56/X03
  • Driver CD
  • 1
