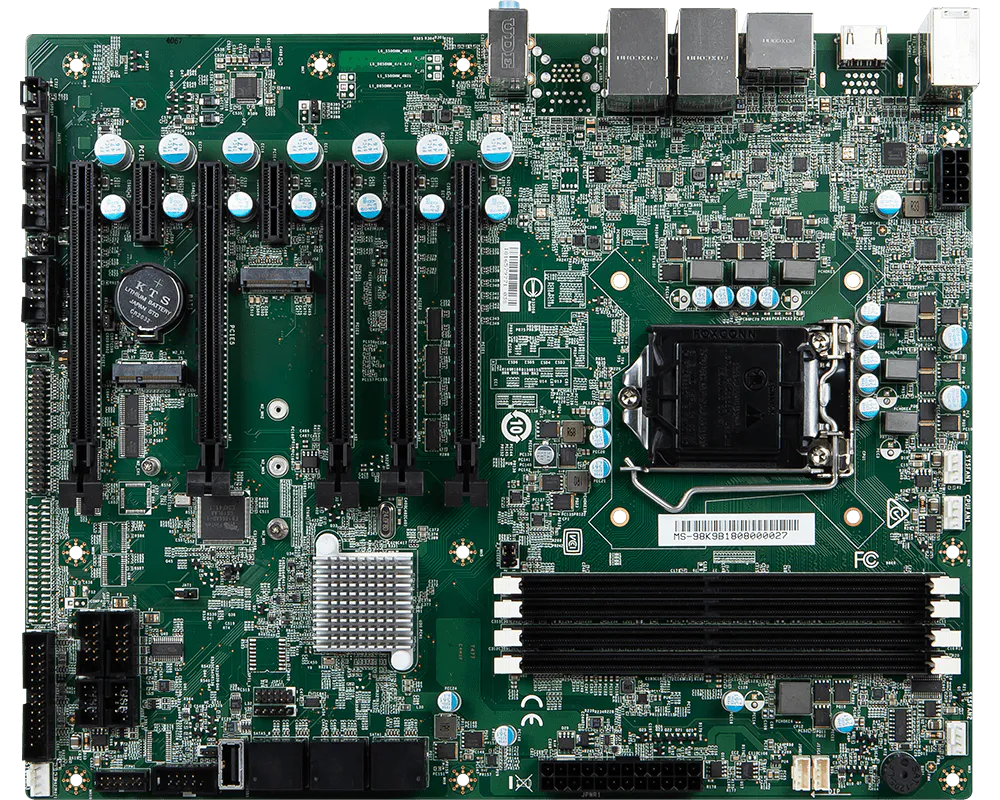

MS-98K9
ATX with 8th Gen Intel® Coffee Lake-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® Processor & Intel® C246/Q370 for High-Performance Solution
- Intel® 8th Gen Coffee Lake-S Series with C246/Q370
- 4 DDR4 2666 MHz ECC/non-ECC UDIMM slots up to 64GB
- Triple independent displays: VGA, 2DP, HDMI™
- 3 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3) or 2 PCIe x8 (Gen3) or 1 PCIe x8 (Gen3) & 2 PCIe x4 (Gen3), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3), 1 M.2 E key slots
- M.2 M key, 6 SATA 3.0 for storage
- SATA RAID 0/1/5/10
- 6 USB 3.2 Gen 2, 7 USB 2.0, 10 COM (2 RS-485), GPIO, LPT, PS/2, Audio, S/PDIF, 3 System FAN
- Onboard TPM 2.0 (by option)
- SMBus, I2C, iAMT 12.x, Chassis Intrusion
- ATX Power
Products Specifications
- Part Number
- MS-98K9-SKU1
- MS-98K9-SKU2
- MS-98K9-SKU3
Processor
- CPU
- 8th Gen Intel® Desktop Coffee Lake-S Xeon® /i7/i5/i3/ Pentium® /Celeron® Series Processor, Max 95W
- 8th Gen Intel® Desktop Coffee Lake-S i7/i5/i3/Pentium®/Celeron® Series Processor, Max 95W
- 8th Gen Intel® Desktop Coffee Lake-S i7/i5/i3/Pentium®/Celeron® Series Processor, Max 95W
- Frequency
- 2.1GHz~4.7GHz (Depends on CPU)
- 2.1GHz~4.7GHz (Depends on CPU)
- 2.1GHz~4.7GHz (Depends on CPU)
- L2 Cache
- 2MB~12MB (Depends on CPU)
- 2MB~12MB (Depends on CPU)
- 2MB~12MB (Depends on CPU)
- CPU Type
- Socket (LGA 1151)
- Socket (LGA 1151)
- Socket (LGA 1151)
- Chipset
- Intel® C246 Express
- Intel® Q370 Express
- Intel® Q370 Express
- BIOS
- AMI UEFI
- AMI UEFI
- AMI UEFI
Memory
- Technology
- Dual-channel DDR4 (ECC/non-ECC) 2666 MHz
- Dual-channel DDR4 (non-ECC) 2666 MHz
- Dual-channel DDR4 (non-ECC) 2666 MHz
- Max. Capacity
- Up to 64 GB
- Up to 64 GB
- Up to 64 GB
- Socket
- 4 x 288-pin UDIMM
- 4 x 288-pin UDIMM
- 4 x 288-pin UDIMM
Graphic
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- Depends on CPU
- VGA
- 1
- 1
- 1
- DisplayPort
- 2
- 2
- 2
- Multiple Display
- 3 independent displays
- 3 independent displays
- 3 independent displays
- Display Interface
- VGA up to 1920 x 1200 @60Hz
HDMI™ up to 4096 x 2160 @24Hz
DP up to 4096 x 2304 @60Hz - VGA up to 1920 x 1200 @60Hz
HDMI™ up to 4096 x 2160 @24Hz
DP up to 4096 x 2304 @60Hz - HDMI™ up to 4096 x 2160 @24Hz
DP up to 4096 x 2304 @60Hz
Ethernet
- Controller
- 1 x Intel® I219-LM GbE LAN PHY
2 x Intel® I210-AT GbE LAN - 1 x Intel® I219-LM GbE LAN PHY
2 x Intel® I210-AT GbE LAN - 1 x Intel® I219-LM GbE LAN PHY
1 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG Audio Codec
- Realtek® ALC887-VD2-CG Audio Codec
- Realtek® ALC887-VD2-CG Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
- Fintek F81866AD-I
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
- Yes
TPM
- Controller
- Infineon SLB 9665TT2.0
- Infineon SLB 9665TT2.0
- Box header (Default) Infineon
SLB9665TT2.0 (by BOM option)

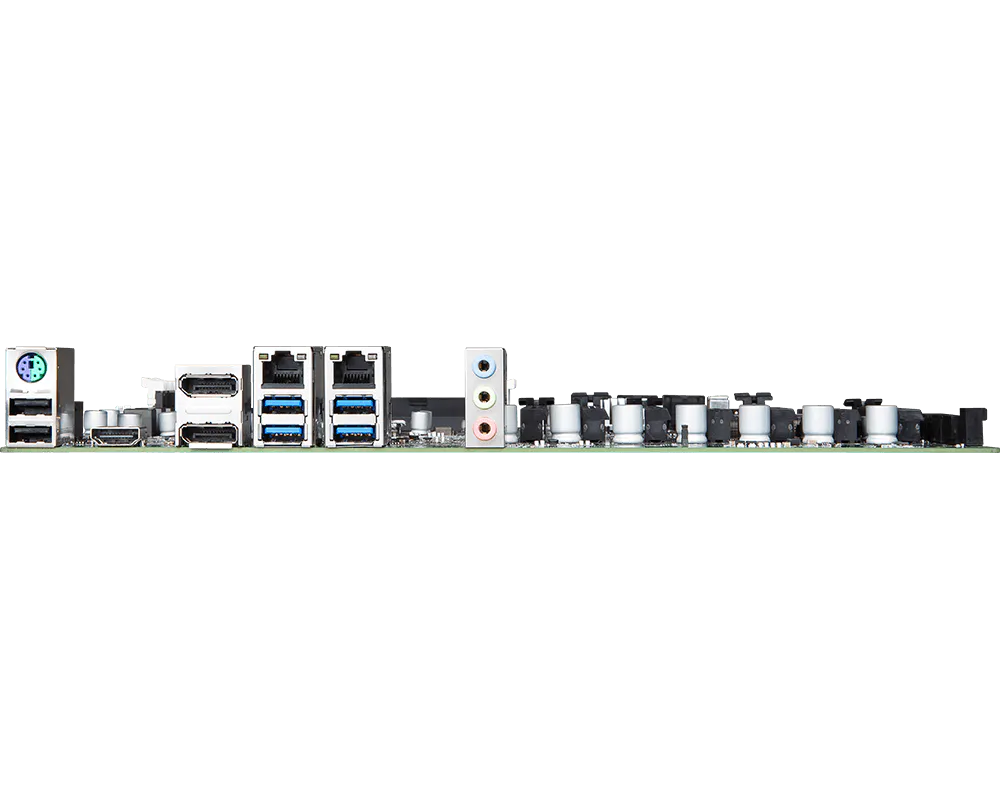

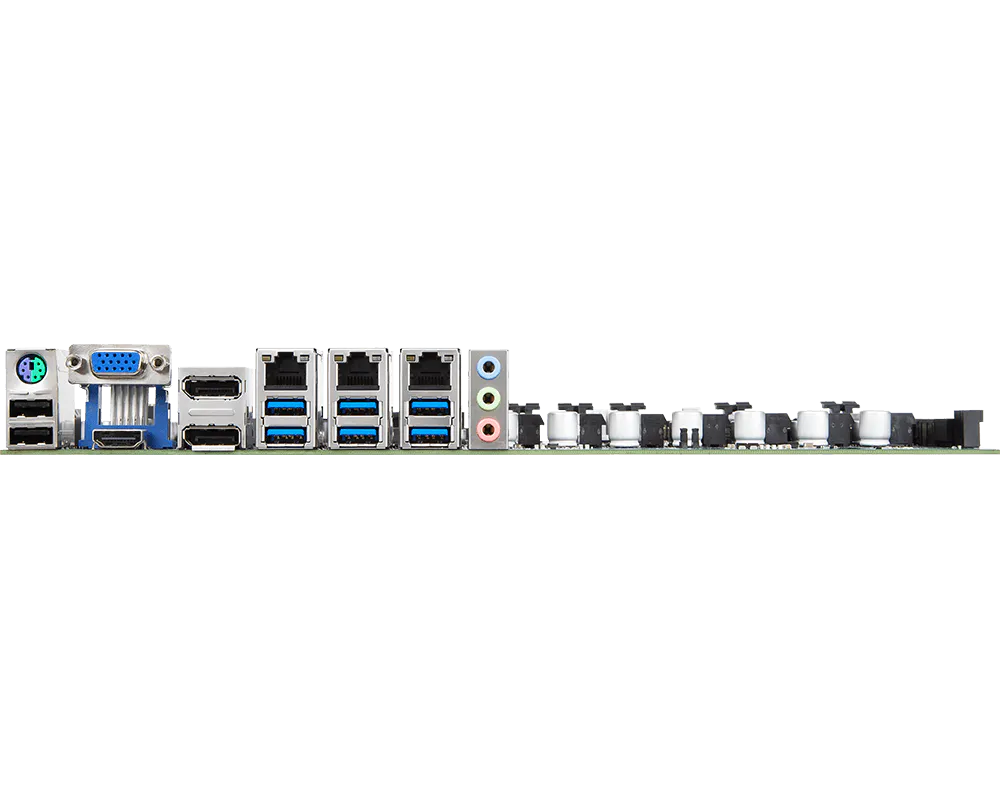

I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- 1 x PS/2 port by Y-cable for keyboard and mouse
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 7 x USB 2.0 (2 x rear, 5 x internal with one Vertical Type-A)
6 x USB 3.2 Gen 2 (rear) - 7 x USB 2.0 (2 x rear, 5 x internal with one Vertical Type-A)
6 x USB 3.2 Gen 2 (rear) - 7 x USB 2.0 (2 x rear, 5 x internal with one Vertical Type-A)
4 x USB 3.2 Gen 2 (rear)
- Parallel
- Yes
- Yes
- Yes
- Serial
- 10 x COM ports (internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Autoflow Control
COM3~10: RS-232, 0V/5V/12V - 10 x COM ports (internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Autoflow Control
COM3~10: RS-232, 0V/5V/12V - 6 x COM ports (internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control
COM3~6: RS-232, 0V/5V/12V
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
- PCIe x16
- 3 (Signal configred as 1 PCIe x16 or 2 PCIe x8 or 1 PCIe x8 + 2 PCIe x4)
- 3 (Signal configred as 1 PCIe x16 or 2 PCIe x8 or 1 PCIe x8 + 2 PCIe x4)
- 3 (Signal configred as 1 PCIe x16 or 2 PCIe x8 or 1 PCIe x8 + 2 PCIe x4)
- PCIe x4
- 2 (PCIe x16 Slot Type; 1*PCIe x4 NVMe)
- 2 (PCIe x16 Slot Type; 1*PCIe x4 NVMe)
- 2 (PCIe x16 Slot Type; 1*PCIe x4 NVMe)
- PCIe x1
- 2
- 2
- 2
- M.2
- 1 x M key (PCIe x4 NVMe, SATA 3.0), 2242/2260/2280
1 x E key (PCIe x1, USB 2.0), 2230 - 1 x M key (PCIe x4 NVMe, SATA 3.0), 2242/2260/2280
1 x E key (PCIe x1, USB 2.0), 2230 - 1 x M Key (PCIe x4 NVMe, SATA 3.0), 2242/2260/2280
1 x E Key (PCIe x1, USB 2.0), 2230
Storage
- SATA
- 6 x SATA 3.0
(RAID 0/1/5/10, SATA port 6 share with M.2 M Key) - 6 x SATA 3.0
(RAID 0/1/5/10, SATA port 6 share with M.2 M Key) - 6 x SATA 3.0
(RAID 0/1/5/10, SATA port 6 share with M.2 M Key)
Power Supply
- ATX
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s - -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s - -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
- -20 ~ 80°C
Form Factor
- Dimensions
- 305 x 244 mm (ATX)
- 305 x 244 mm (ATX)
- 305 x 244 mm (ATX)
- Weight
- 0.70 kg
- 0.70 kg
- 0.70 kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI
- CE, FCC Class B, BSMI, RCM, VCCI
- CE, FCC Class B, BSMI, RCM, VCCI
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request) - Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request) - Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)
Ordering Information
Packing List
The MSI MS-98K9 is an industrial ATX motherboard designed for high-performance solutions, supporting 8th Gen Intel® Coffee Lake-S processors (Xeon®, Core™ i7/i5/i3, Pentium®, Celeron®) with Intel® C246/Q370 chipsets. It features 4 DDR4 slots for up to 64GB RAM, triple independent display outputs (VGA, 2DP, HDMI), multiple PCIe slots, comprehensive storage options including 6 SATA 3.0 ports with RAID support, extensive I/O interfaces, and robust expansion capabilities. It operates in a wide temperature range, making it suitable for various industrial applications.
