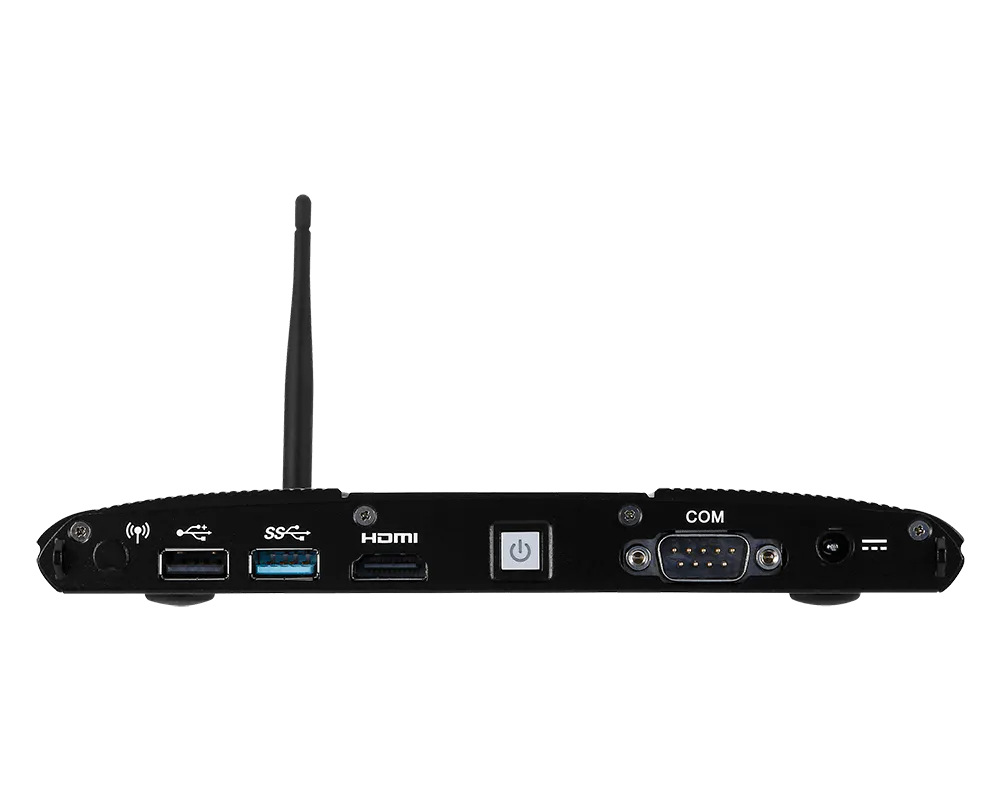

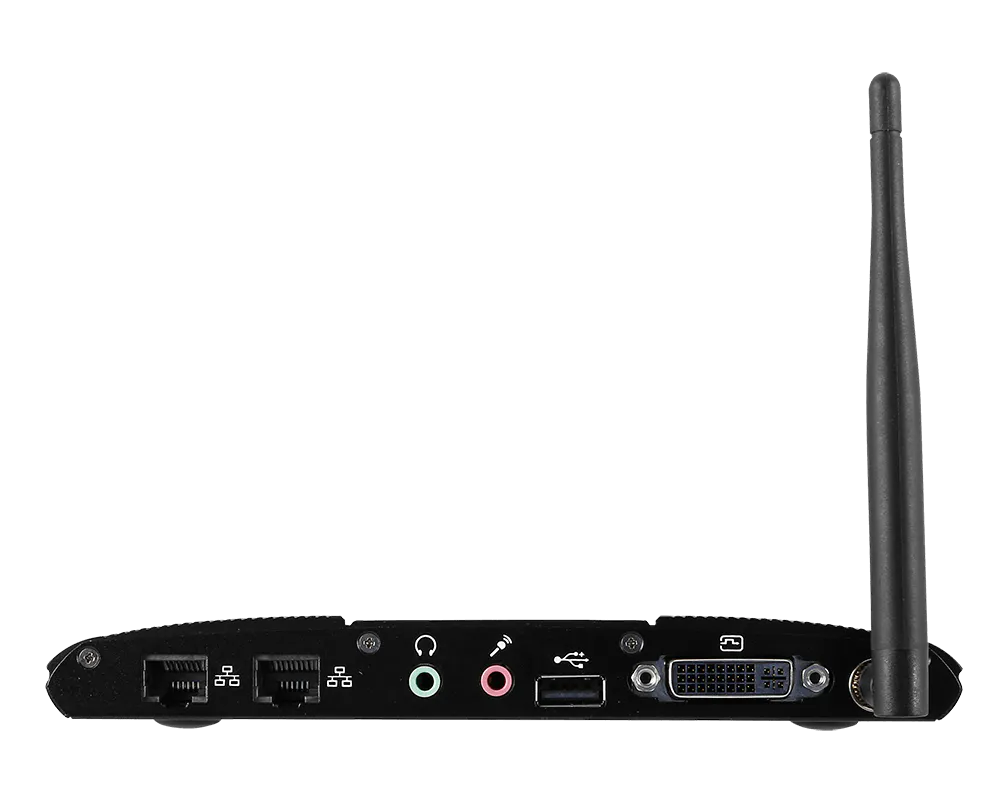

Ultra-Slim & Featherweight Fanless Box PC with Intel® BayTrail Platform for Low-Power & Digital Signage Player
- Intel® Bay Trail-D Series SoC
- 2 DDR3L 1333 MHz SODIMM slots up to 8GB
- Dual independent displays: DVI-I, HDMI™
- 2 GbE LAN with RJ-45
- 1 Mini-PCIe (Full size, with mSATA, SIM Holder), 1 Mini-PCIe (Half size) slots
- mSATA, SATA 2.0 (2.5" SSD/HDD, 7mm) for storage
- USB 3.2 Gen 1, 2 USB 2.0, COM(RS485), Audio
- DC-IN 19V
- Ultra-Slim & fanless design with thinness 19mm
- Overview
- Product Specifications
- Ordering-Information
- Packing-List
 |
|||
| ‧ System Processor | CPU | Intel® Celeron® Processor J1900, QC, 10 W | |
| Frequency | 2GHz~2.42GHz | ||
| L2 Cache | 2MB | ||
| CPU Type | BGA | ||
| Chipset | N/A | ||
| BIOS | AMI | ||
| ‧Memory | Technology | Dual-channel DDR3L 1333MHz | |
| Max. Capacity | Up to 8GB | ||
| Socket | 2 x 204-pin SO-DIMMs | ||
| ‧Graphic | Controller | Intel® HD Graphics | |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | ||
| Multiple Display | 2 independent displays | ||
| Display Interface | HDMI™ up to 1920 x 1080 @60Hz DVI-I up to 1920 x 1200 @60Hz |
||
| ‧Ethernet | Controller | 2 x Intel® I210-AT GbE | |
| ‧Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| ‧H/W Monitor | Watchdog Timer | 256-level Watchdog Timer | |
| Smart Fan | Yes | ||
| ‧TPM | Controller | N/A | |
| ‧Expansion Slot | M.2 | N/A | |
| Mni-PCIe | 1 x Full-size (w/ mSATA or SIM holder) 1 x Half-size |
||
| ‧Storage | SATA | 1 x 2.5" HDD/SSD | |
| mSATA | 1 | ||
| ‧I/O Interface | RJ-45 | 2 | |
| Audio | 1 x Mic-in 1 x Line-out |
||
| USB | 2 x USB 2.0 1 x USB 3.0 |
||
| Serial | 1 x COM port COM1: RS-232/422/485, 0V/5V/12V |
||
| GPIO | N/A | ||
| CANbus | N/A | ||
| HDMI™ | 1 | ||
| DVI | 1 (DVI-I) | ||
| Antenna | 1 (opening reserved for 2nd antenna) | ||
| ‧Power Supply | DC Input; | DC-in 19V | |
| AC Input | N/A | ||
| ‧ Environment | Operating Temperature | 0 ~ 40°C (HDD) -10 ~ 60°C (SSD) |
|
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Temperature | -20 ~ 80°C | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| Vibration | Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD) | ||
| Shock | Operating, 3 G, half sine 11 ms duration (w/ HDD) | ||
| ‧Physical haracteristics | Dimensions (W x D x H) | 180 x 255 x 19mm | |
| Weight | 1.30 kg | ||
| Mounting | VESA mount | ||
| ‧ Certification | EMC | FCC, CE, RCM, VCCI, BSMI | |
| Safety | BSMI, CB, Energy Star | ||
| ‧Software Platform | OS Support | Windows 7 (32/64-bit) Windows 8.1 (32/64-bit) Windows 10 (64-bit) |
|
 |
|||
| ‧ Part Number | Description | ||
| 9S9-9A65-001 | MS-9A65\709-9A65-010\829-9A65-001 STD VER 1.0, WindBOX II, FANLESS, BAYTRAIL J1900, MEMORY 2GB, HDD 500GB, WIRELESS LAN, MSI LOGO, BLACK, 1*ANTENNA, CD, ADAPTER 19V/65W, POWER CORD USA, SINGLE | ||
| 9S9-9A65-002 | MS-9A65\709-9A65-010\829-9A65-002 OPT:A VER 1.0, WindBOX II, FANLESS, BAYTRAIL J1900, MEMORY 2GB, HDD 500GB, WIRELESS LAN, MSI LOGO, BLACK, 1*ANTENNA, CD, ADAPTER 19V/65W, POWER CORD EU, SINGLE | ||
 |
|||
| ‧ Part Number | Description | Quantity | |
| G71-SEDC131-X03 | Driver CD | 1 | |
| K33-3001020-I45/ K33-3001021-I45 |
Power Cord, USA, 1800mm/ Power Cord, EU, 1800mm |
1 | |
| S93-0401680-S14 | 19V/65W DOE VI Adaptor | 1 | |
| S79-0000360-V03 | Antenna | 1 | |
| E24-9A14090-K23 | Cable Tie | 2 | |
| E22-9A95080-C22 | VESA Mounting Bracket | 1 | |
Product Specifications
- Part Number
- MS-9A65
System Processor
- CPU
- Intel® Celeron®® Processor J1900, QC, 10 W
- Frequency
- 2GHz~2.42GHz
- L2 Cache
- 2MB
- CPU Type
- BGA
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3L 1333MHz
- Max. Capacity
- Up to 8GB
- Socket
- 2 x 204-pin SO-DIMMs
Graphic
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- Multiple Display
- 2 independent displays
- Display Interface
- HDMI™ up to 1920 x 1080 @60Hz
DVI-I up to 1920 x 1200 @60Hz
Ethernet
- Controller
- 2 x Intel® I210-AT GbE
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
Expansion Slot
- Mini-PCIe
- 1 x Full-size (w/ mSATA or SIM holder)
1 x Half-size
Storage
- SATA
- 1 x 2.5" HDD/SSD
- mSATA
- 1
I/O Interface
- RJ-45
- 2
- Audio
- 1 x Mic-in
1 x Line-out
- USB
- 2 x USB 2.0
1 x USB 3.2 Gen 1
- Serial
- 1 x COM port
COM1: RS-232/422/485, 0V/5V/12V
- HDMI
- 1
- DVI
- 1 (DVI-I)
- Antenna
- 1 (opening reserved for 2nd antenna)
Power Supply
- DC Input
- DC-in 19V
Environment
- Operating Temperature
- 0 ~ 40°C (HDD)
-10 ~ 60°C (SSD)
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD)
- Shock
- Operating, 3 G, half sine 11 ms duration (w/ HDD)
Physical Characteristics
- Dimensions
- 180 x 255 x 19mm
- Weight
- 1.30 kg
- Mounting
- VESA mount
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
- Safety
- BSMI, CB, Energy Star
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64-bit)
Ordering Information
- Part Number
- Description
- 9S9-9A65-001
- MS-9A65\709-9A65-010\829-9A65-001 STD VER 1.0, WindBOX II, FANLESS, BAYTRAIL J1900, MEMORY 2GB, HDD 500GB, WIRELESS LAN, MSI LOGO, BLACK, 1*ANTENNA, CD, ADAPTER 19V/65W, POWER CORD USA, SINGLE
- 9S9-9A65-002
- MS-9A65\709-9A65-010\829-9A65-002 OPT:A VER 1.0, WindBOX II, FANLESS, BAYTRAIL J1900, MEMORY 2GB, HDD 500GB, WIRELESS LAN, MSI LOGO, BLACK, 1*ANTENNA, CD, ADAPTER 19V/65W, POWER CORD EU, SINGLE
Packing List
- Part Number
- Description
- Quantity
- G71-SEDC131-X03
- Driver CD
- 1
- K33-3001020-I45
- Power Cord, USA, 1800mm
- 1
- K33-3001021-I45
- Power Cord, EU, 1800mm
- 1
- S93-0401680-S14
- 19V/65W DOE VI Adaptor
- 1
- S79-0000360-V03
- Antenna
- 1
- 24-9A14090-K23
- Cable Tie
- 2
- E22-9A95080-C22
- VESA Mounting Bracket
- 1
