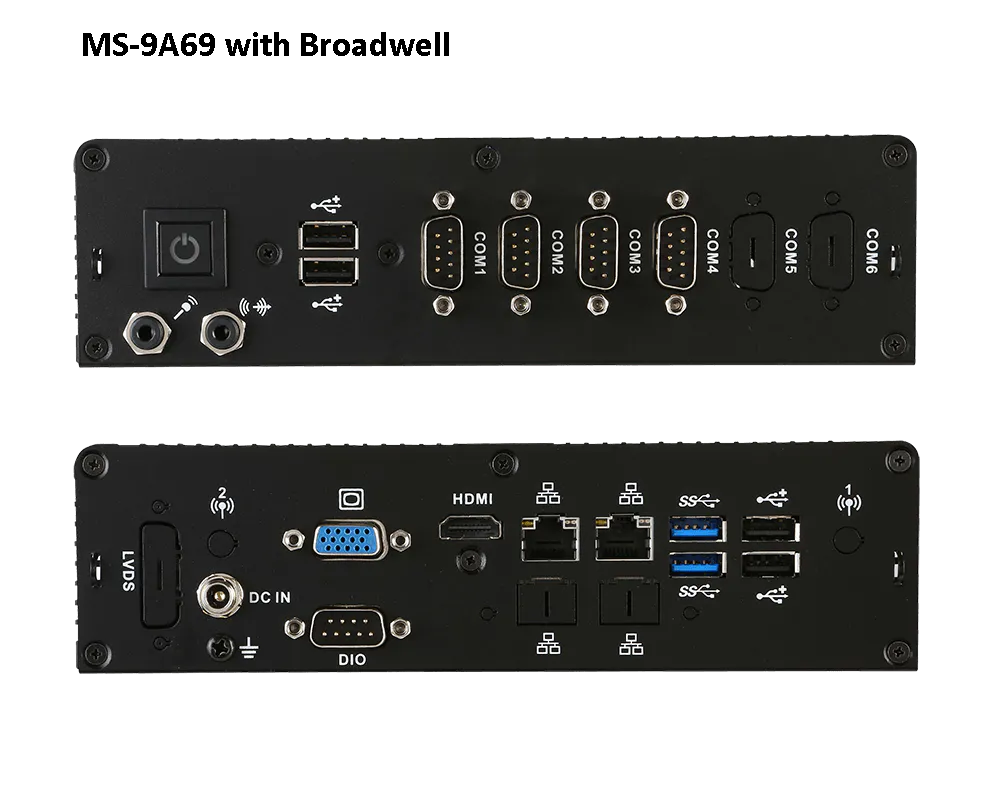

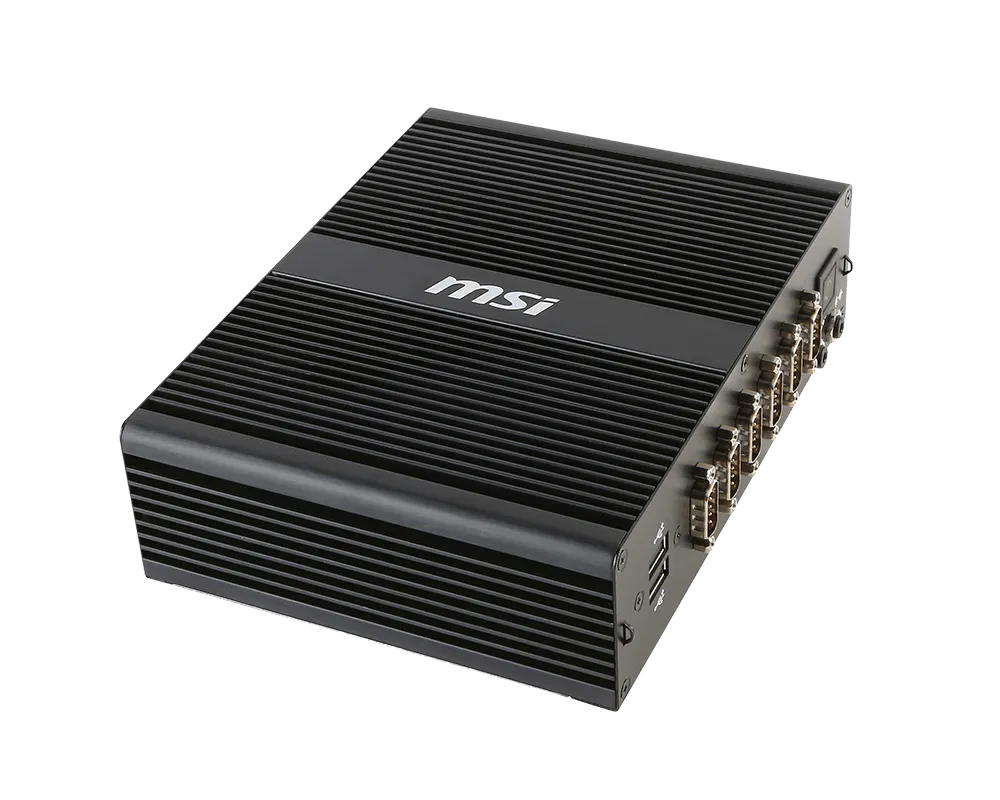

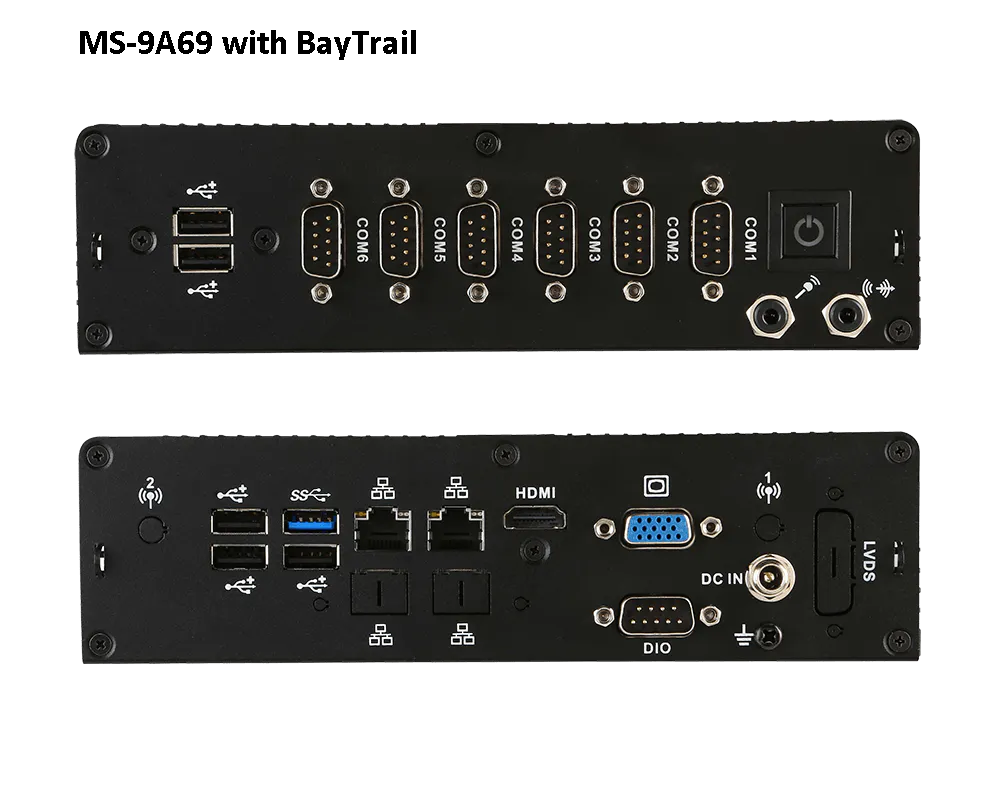

MS-9A69

Compact-Size Box PC with Intel® Bay Trail-D or BDW ULT Series Processor for Ultra Low-Power Fanless Solution

  • Intel® Bay Trail-D/M Series SoC
  • DDR3L 1333/1600 MHz SODIMM up to 8GB
  • Triple independent displays: VGA, HDMI™, LVDS (by option)
  • 2 GbE LAN with RJ-45
  • 2 Mini-PCIe (Full size, 1 with mSATA)
  • SATA 2.0 (2.5" SSD/HDD) for storage
  • USB 3.2 Gen 1, 5 USB 2.0, 6 COM (1 RS-485), GPIO, Audio
  • 2 openings reserved for antennas
  • DC-IN 12/19/24V

  • Intel® Haswell/Broadwell ULT Series
  • DDR3L 1333/1600 MHz SODIMM up to 8GB
  • Triple independent displays: VGA, HDMI™, LVDS (by option)
  • 2 GbE LAN with RJ-45
  • Mini-PCIe (Full-size with mSATA), Mini-PCIe (Half-size) Slots
  • 2 SATA 3.0 (2.5" SSD/HDD) for storage
  • 2 USB 3.2 Gen 1, 4 USB 2.0, 4 COM (1 RS-485), GPIO, Audio
  • 2 openings reserved for antennas
  • DC-IN 12/19/24V
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • MS-9A69-SKU1
  • MS-9A69-SKU2

System Processor

  • CPU
  • Intel® Celeron® Processor J1900, QC, 10W
  • Intel® BDW ULT Core™ i3-5010U Processor, DC, 15W
  • Frequency
  • 2 GHz
  • 2.1 GHz
  • L2 Cache
  • 2MB
  • 3MB
  • CPU Type
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC Process
  • Integrated in SoC Process
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Single-channel DDR3L 1333 MHz
  • Single-channel DDR3L 1600 MHz
  • Max. Capacity
  • Up to 8GB
  • Up to 8GB
  • Socket
  • 1 x 204-pin SO-DIMM
  • 1 x 204-pin SO-DIMM

Graphic

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Multiple Display
  • 2 independent displays
  • 3 independent displays
  • Display Interface
  • VGA up to 2560 x 1600 @60Hz
    HDMI™ up to 1920 x 1080 @60Hz
    LVDS up to 1920 x 1200 @60Hz (optional)
  • VGA up to 1920 x 1200 @60Hz
    HDMI™ up to 1920 x 1080 @60Hz
    LVDS up to 1920 x 1200 @60Hz (optional)

Ethernet

  • Controller
  • 2 x Intel® I210-AT GbE LAN
  • 1 x Intel® I210-AT GbE LAN
    1 x Intel® I218-LM GbE LAN PHY

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec
  • Realtek® ALC887-VD2-CG HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer

I/O Interface

  • PS/2
  • 8-bit (4*GPI; 4*GPO)
  • 8-bit (4*GPI; 4*GPO)
  • CANbus
  • 2 x CAN 2.0B (by BOM option)
  • 2 x CAN 2.0B (by BOM option)
  • LVDS
  • 1 (optional)
  • 1 (optional)
  • VGA
  • 1
  • 1
  • RJ-45
  • 4 (optional 2 x RJ-45 version available)
  • 4 (optional 2 x RJ-45 version available)
  • Audio
  • 1 x Mic-in, 1 x Line-out
  • 1 x Mic-in, 1 x Line-out
  • USB
  • 5 x USB 2.0
    1 x USB 3.2 Gen 1
  • 4 x USB 2.0
    2 x USB 3.2 Gen 1
  • Serial
  • 6 x COM ports
    COM1: RS-232/422/485,0V/5V/12V
    COM2~6: RS-232,0V/5V/12V
  • 4 x COM ports
    COM1: RS-232/422/485,0V/5V/12V
    COM2~4: RS-232,0V/5V/12V
  • HDMI
  • 1
  • 1
  • Antenna
  • 2 openings reserved for antennas
  • 2 openings reserved for antennas

Expansion Slot

  • Mini-PCIe
  • 2 x Full-size (one w/ mSATA)
  • 1 x Full-size (w/ mSATA)
    1 x Half-size

Storage

  • SATA
  • 1 x 2.5" HDD/SSD
  • 1 x 2.5" HDD/SSD
  • mSATA
  • 1
  • 1

Power Supply

  • DC Input
  • DC-in 12V/19V/24V
  • DC-in 12V/19V/24V

Environment

  • Operating Temperature
  • -10 ~ 45°C (HDD)
    -10 ~ 55°C (SSD or mSATA)
  • -10 ~ 45°C (HDD)
    -10 ~ 55°C (SSD or mSATA)
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Vibration
  • Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD)
  • Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD)
  • Shock
  • Operating, 3 G, half sine 11 ms duration (w/ HDD)
  • Operating, 3 G, half sine 11 ms duration (w/ HDD)

Physical Characteristics

  • Dimensions
  • 200 x 150 x 55mm
  • 200 x 150 x 55mm
  • Weight
  • 1.38 Kg
  • 1.38 Kg
  • Mounting
  • Wall mount (STD)/VESA mount(by BOM option)/ DIN-rail mount(by BOM option)
  • Wall mount (STD)/VESA mount(by BOM option)/ DIN-rail mount(by BOM option)

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI
  • FCC, CE, RCM, VCCI, BSMI
  • Safety
  • BSMI
  • BSMI

Software Platform

  • OS Support
  • Windows 7 (32/64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (32/64 Bit)
    Linux Fedora 20
    Linux Ubuntu 13.10
  • Windows 7 (32/64-bit)
    Windows 8.1 (32/64-bit)
    Windows 10 (64 Bit)
    Linux Fedora 19
    Linux Ubuntu 13.04

Ordering Information

  • Part Number
  • Description
  • 939-9A69-009
  • BAREBONE, FANLESS, J1900, W/O MSI LOGO, BLACK, ADAPTER 19V/65W, POWER CORD USA, SATA CABLE, SINGLE
  • 939-9A69-015
  • BAREBONE, FANLESS, I3-5010U, MSI LOGO, BLACK, CD, ADAPTER 19V/65W, POWER CORD USA, SATA CABLE
  • 939-9A69-016
  • BAREBONE, FANLESS, J1900, MSI LOGO, BLACK, CD, ADAPTER 19V/65W, POWER CORD EU, SATA CABLE
  • 939-9A69-017
  • BAREBONE, FANLESS, I3-5010U, MSI LOGO, BLACK, CD, ADAPTER 19V/65W, POWER CORD EU, SATA CABLE
  • 939-9A69-018
  • BAREBONE, FANLESS, J1900, MSI LOGO, BLACK, CD, ADAPTER 19V/65W, POWER CORD USA, SATA CABLE

Packing List

  • Part Number
  • Description
  • 939-9A69-001
  • 939-9A69-002
  • 939-9A69-003
  • 939-9A69-004
  • G71-SEDC145-N56
  • Driver DVD
  • 1
  • 1
  • 1
  • 1
  • K1D-3012009-V03
  • SATA cable with Power, 150mm
  • 1
  • 1
  • 1
  • 1
  • K33-3001020-I455
  • Power cable, USA, 1800mm
  • 1
  • 1
  • K33-3001021-I455
  • Power cable, EU, 1800mm
  • 1
  • 1
  • S93-0401690-S14
  • ADAPTER 19V/65W
  • 1
  • 1
  • 1
  • 1
  • E22-9A69040-T81
  • Wall mounting bracket
  • 2
  • 2
  • 2
  • 2
  • E49-1303007-P65
  • Screw for HDD
  • 4
  • 4
  • 4
  • 4
  • E24-9B02010-P09
  • DIN Rail
  • 2
  • 2
  • 2
  • 2
  • E41-1356002-P65
  • Screw for DIN Rail
  • 4
  • 4
  • 4
  • 4

Optional Item

  • Part Number
  • Description
  • E22-9A25031-C22
  • VESA Mount
  • E24-9B02010-P099
  • DIN Rail
  • E41-1356002-P65
  • Screw for DIN Rail
