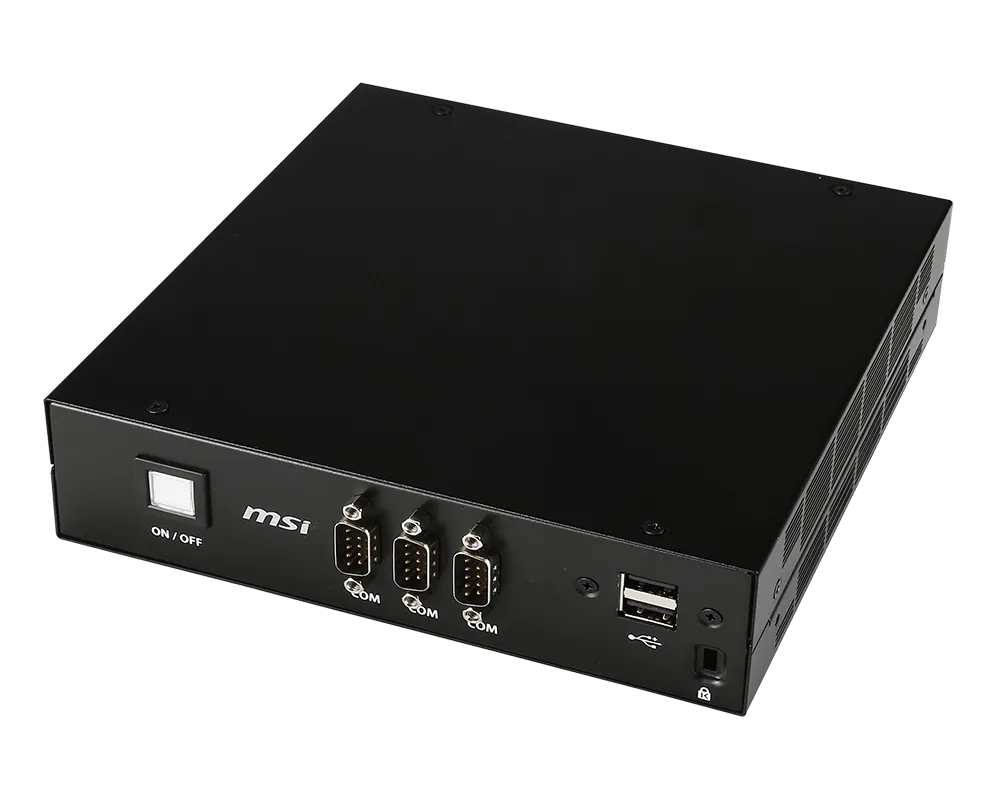

Swappable Box PC with Intel® BayTrail/Haswell Platform for Low-Power & High-Performance Solution
- Intel® Bay Trail-D/Bay Trail-M Series SoC
- 2 DDR3L 1333/1066 MHz SODIMM slots up to 8GB
- Dual independent displays: VGA, HDMI™
- 2 GbE LAN with RJ-45
- 1 Mini-PCIe (Full size, with mSATA) slots
- SATA 2.0 (2.5" SSD/HDD, 7mm) for storage
- USB 3.2 Gen 1, 6 USB 2.0, 5 COM(1 RS485), Audio, System FAN
- DC-IN 12V
- Intel® 4th Gen Haswell-S/ Haswell Refresh-S Series with Q87
- 2 DDR3L 1600/1333 MHz SODIMM slots up to 16GB
- Triple independent displays: VGA, 2 DP
- 2 GbE LAN with RJ-45
- 1 Mini-PCIe (Full size, with mSATA), 1 Mini-PCIe (Half size) slots
- mSATA, SATA 3.0 (2.5" SSD/HDD, 7mm) for storage
- 4 USB 3.2 Gen 1, 4 USB 2.0, 4 COM(1 RS485), PS/2, Audio, System FAN
- DC-IN 12V
- Product Specifications
- Ordering-Information
- Packing-List
Product Specifications
- Part Number
- MS-9A78-SKU1
- MS-9A78-SKU2
System Processor
- CPU
- Intel® Celeron® Processor J1900/ N2930, QC, 10W/7.5W
- 4th Gen Intel® Desktop Haswell/ Haswell Refresh Core™ i7/i5/ i3/Celeron®/Pentium® Processor, Max. 45W
- Frequency
- 2GHz~2.42GHz (J1900)
1.83GHz~2.16GHz (N2930) - 1.5GHz~2.3 GHz (Depends on CPU)
- L2 Cache
- 2MB
- 2M~8M (Depends on CPU)
- CPU Type
- BGA
- Socket (LGA 1150)
- Chipset
- -
- Intel® Q87 Express
- BIOS
- AMI
- AMI
Memory
- Technology
- Dual-channel DDR3L 1066/1333MHz
- Dual-channel DDR3/DDR3L 1333/1600MHz
- Max. Capacity
- Up to 8GB
- Up to 16GB
- Socket
- 2 x 204-pin SO-DIMMs
- 2 x 204-pin SO-DIMMs
Graphic
- Controller
- Intel® HD Graphics
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- Multiple Display
- 2 independent displays
- 3 independent displays
- Display Interface
- VGA up to 2560 x 1600 @60Hz
HDMI™ up to 1920 x 1080 @60Hz - VGA up to 1920 x 1200 @60Hz
DP up to 3840 x 2160 @60Hz
Ethernet
- Controller
- 2 x Intel® i210-AT GbE LAN
- 1 x Intel® I217-LM GbE PHY (iAMT 9.0 supported)
1 x Intel® I210-AT PCIe GbE LAN
Audio
- Controller
- Realtek® ALC887 HD Audio Codec
- Realtek® ALC887 HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
TPM
- Controller
- Pin header
- Pin header

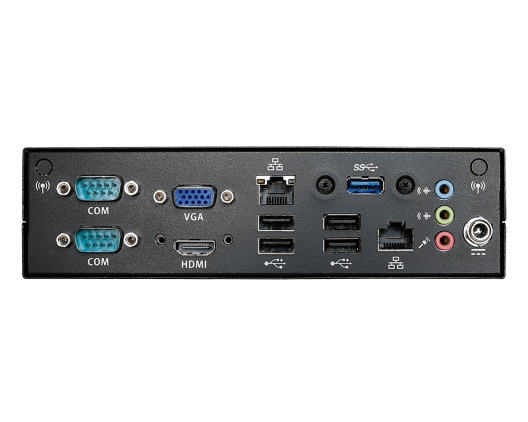

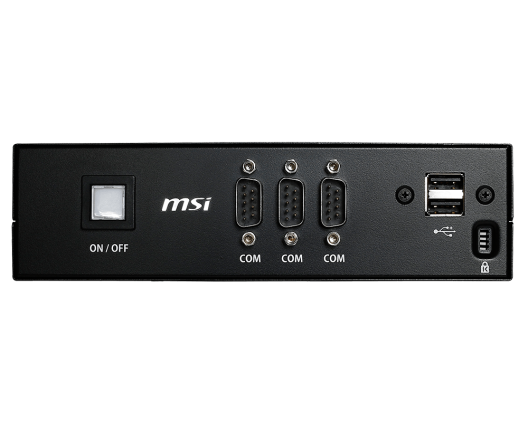

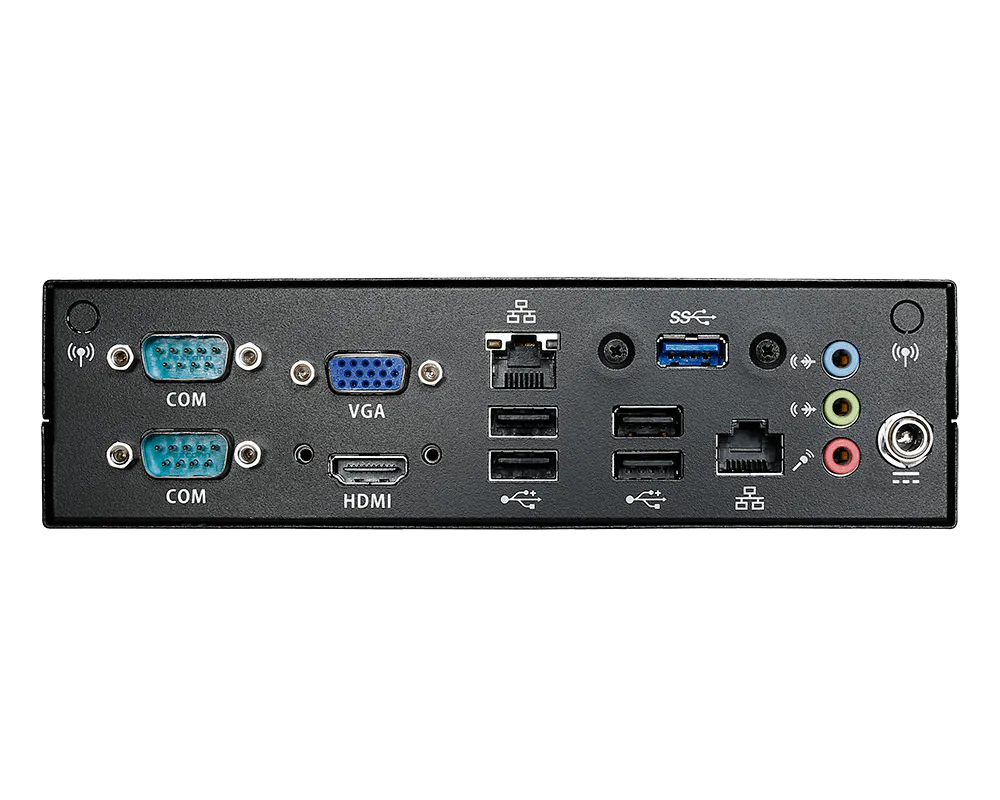

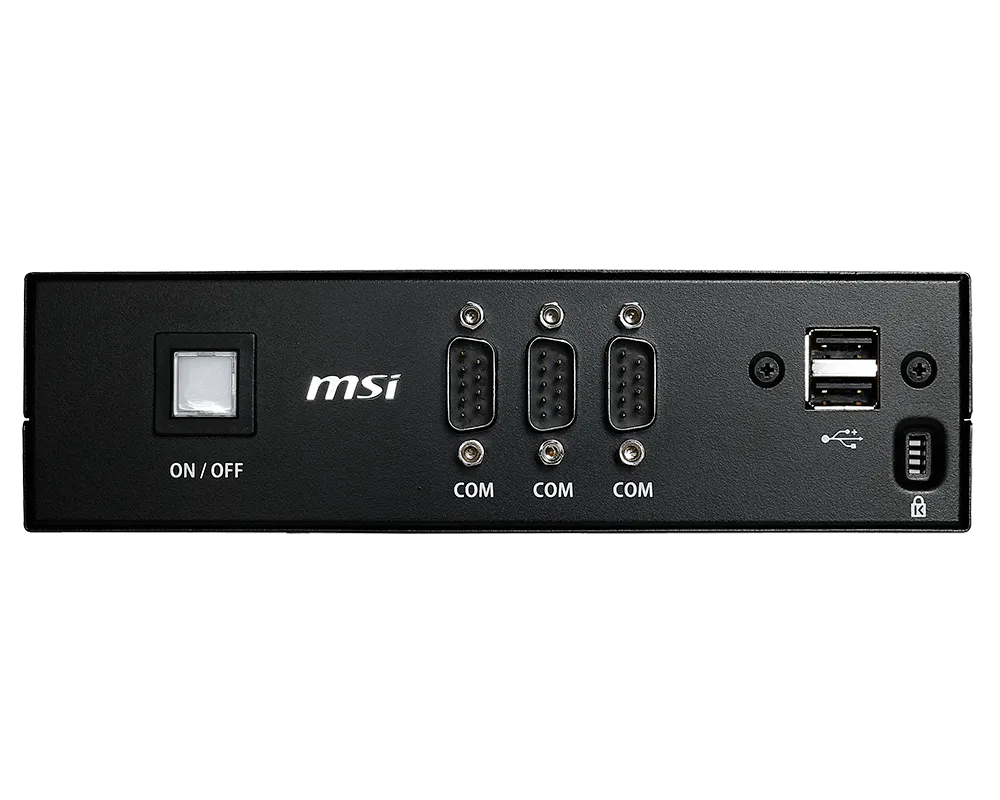

I/O Interface
- PS/2
- -
- 1
- VGA
- 1
- 1
- RJ-45
- 2
- 2
- Audio
- 1 x Mic-in; 1 x Line-out; 1 x Line-in
- 1 x Mic-in; 1 x Line-out; 1 x Line-in
- USB
- 6 x USB 2.0
1 x USB 3.2 Gen 1 - 4 x USB 2.0
4 x USB 3.2 Gen 1
- Serial
- 5 x COM ports
COM1: RS-232/422/485, 0V/5V/12V
COM2~5: RS-232, 0V/5V/12V - 4 x COM ports
COM1: RS- 232/422/485, 0V/5V/12V
COM2~4: RS-232
- HDMI
- 1
- -
- DisplayPort
- -
- 2
- Antenna
- 2 openings reserved for antennas
- 2 openings reserved for antennas
Expansion Slot
- Mini-PCIe
- 1 x Full-size (w/ mSATA)
- 1 x Full-size (w/ mSATA)
1 x Half-size
Storage
- SATA
- 1 x 2.5" HDD/SSD
- 1 x 2.5" HDD/SSD
- mSATA
- 1
- 1
Power Supply
- DC Input
- DC-in 12V
- DC-in 12V
Environment
- Operating Temperature
- -10 ~ 50°C (HDD)
-10 ~ 60°C (SSD) - -10 ~ 50°C (TDP: 35W)
-10 ~ 40°C (TDP: 45W)
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
- Vibration
- Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD)
- Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD)
- Shock
- Operating, 3 G, half sine 11 ms duration (w/ HDD)
- Operating, 3 G, half sine 11 ms duration (w/ HDD)
Physical Characteristics
- Dimensions
- 180 x 183 x 49mm
- 180 x 183 x 49mm
- Weight
- 1.80 Kg
- 1.80 Kg
- Mounting
- Wall mount
- Wall mount
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
- FCC, CE, RCM, VCCI, BSMI
- Safety
- BSMI, CB, UL
- BSMI, CB, UL
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Windows 10 (64-bit) - Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Windows 10 (64-bit)
Linux Fedora V19 (Kernal 3.8.2)
Ordering Information
- Part Number
- Description
- 939-9A78-001
- J1900, 12V 84W DC-in DOE VI Adaptor, EU Power Cord
- 939-9A78-002
- J1900, 12V 84W DC-in DOE VI Adaptor, USA Power Cord
- 939-9A78-003
- Q87, DC12V 150W Adapter, EU Power Cord
- 939-9A78-004
- Q87, DC12V 150W Adapter, USA Power Cord
- 939-9A78-005
- Q87, 12V 130W DC-in DOE V Adaptor, USA Power Cord, White Brand
- 939-9A78-006
- Q87, 12V 130W DC-in DOE VI Adaptor, USA Power Cord
Packing List
- Part Number
- Description
- 939-9A78-003
- 939-9A78-004
- G71-SEDC132-X03
- Driver CD
- v
- v
- G71-SEDC133-X03
- Driver CD
- K33-3001002-I45
- Power Cord, USA, 1800mm
- v
- K33-3001005-I45
- Power Cord, EU,1830mm
- v
- S93-0401650-S14
- 12V 84W DOE VI Adaptor
- S93-0404300-D04
- 12V 130W DOE V Adaptor
- v
- v
- S93-0404320-D04
- 12V 150W DOE VI Adaptor
- S79-0000360-V03
- Antenna
- v
- v
- K1L-3001057-V03
- Coaxial Cable, 1220mm
- K1L-3001055-V03
- Coaxial Cable, 1160mm
- v
- v
- E32-2600190-K08
- Thermal Module
- v
- v
- E43-1304016-P65
- Thermal Module Screw
- v
- v
- E43-1304037-P65
- HDD Screw
- v
- v
- E25-9A58020-K23
- HDD Rubber
- v
- v
- E22-6891010-C22
- Mini-PCIE Half Card Bracket
- v
- v
- E43-1203003-P65
- Mini-PCIE Half Card Screw
- v
- v
- E22-9A68050-LA2
- Wall Mount Bracket
- v
- v
- E43-1064014-P65
- Wall Mount Screw
- v
- v
- 33-1020351-H06
- COM port jumper
- v
- v
