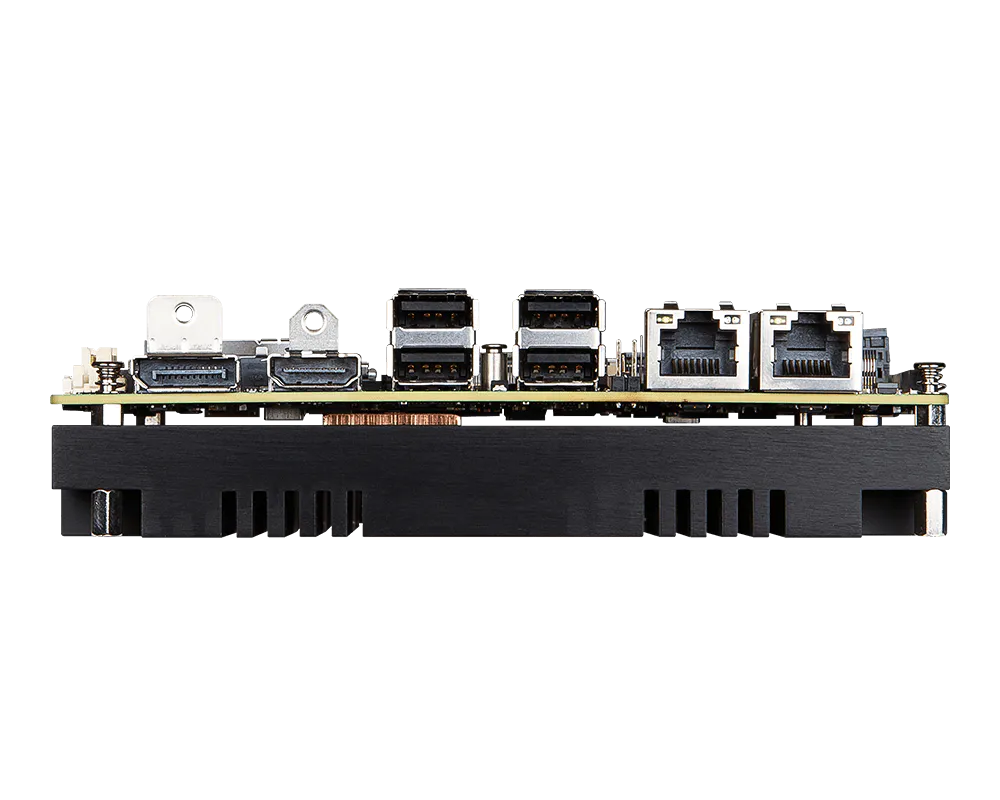

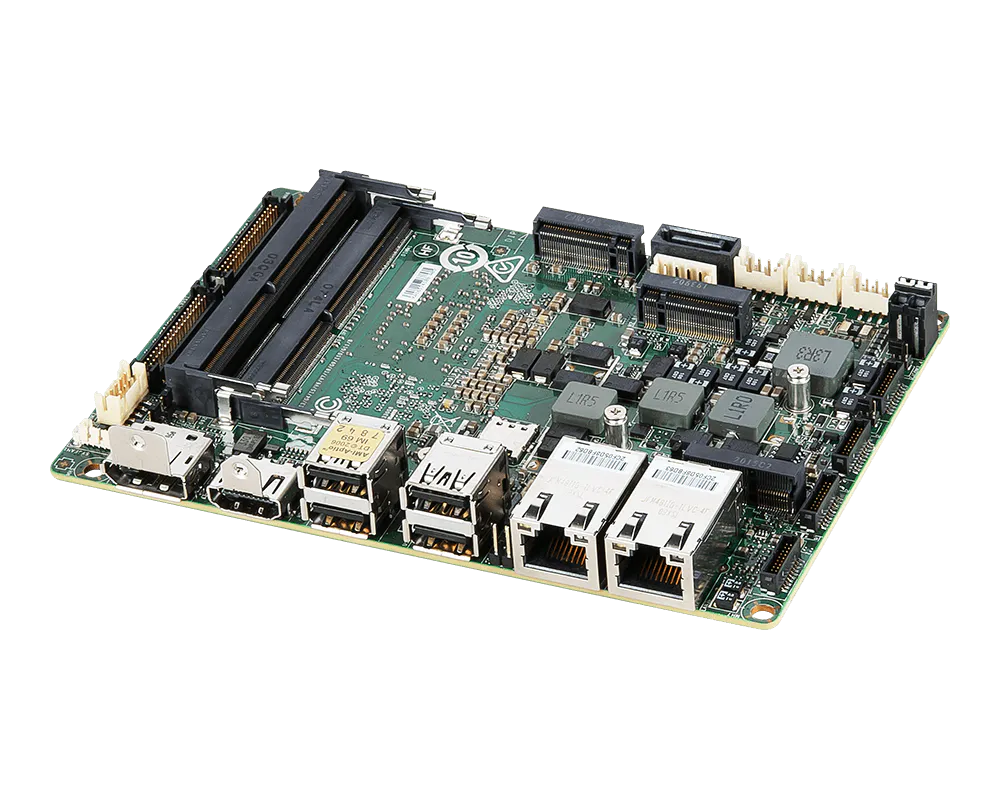

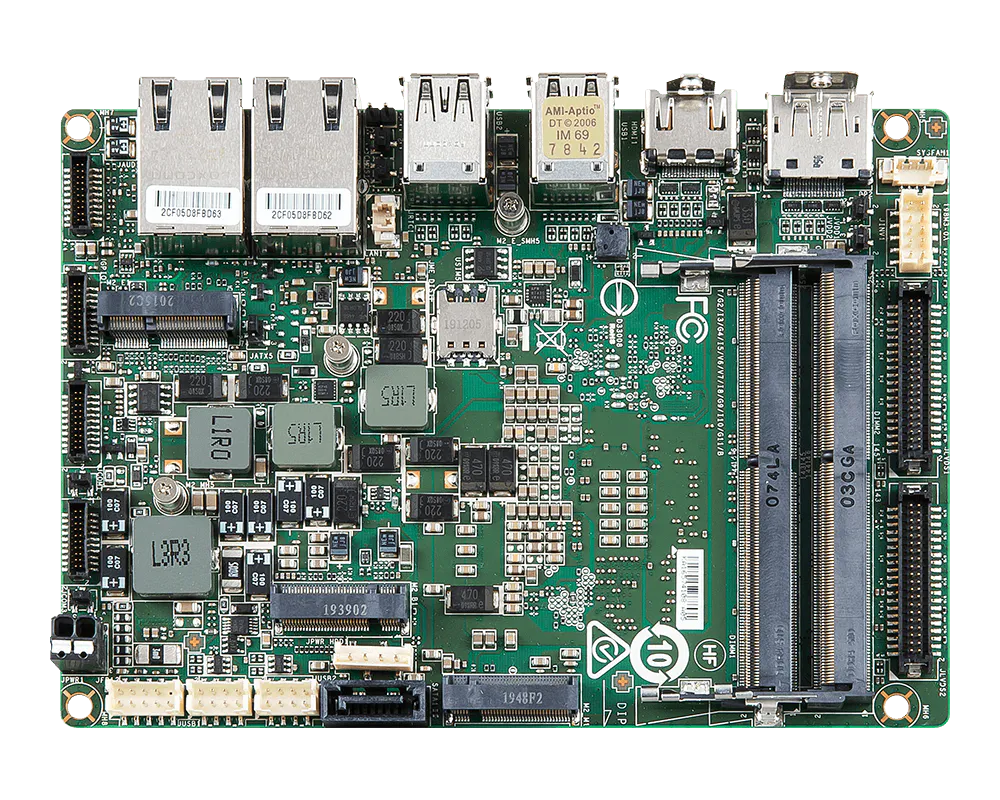

MS-98M3

3.5" SBC with Intel® Tiger Lake-UP3 for Fanless, Ultra Low-Power, High-Performance & Wide Temperature Solution

  • Intel® 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series
  • DDR4 3200 MHz SODIMM Slot up to 64GB
  • Quadruple independent displays: DP++ , HDMI™, 2 LVDS/eDP
  • 2 2.5GbE LAN with RJ-45
  • 1 M.2 B key (with NANO SIM-holder), 1 M.2 E key
  • 1 M.2 M key, 1 SATA 3.0 for storage
  • SATA RAID 0/1 (Supported by i7/i5 SKUs)
  • 4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), DIO, Audio
  • Onboard TPM 2.0
  • Wide Voltage DC-IN 12~24V (OCP & OVP)
  • Wide operating temperature supported
  • Specifications
  • Download
  • Where To Buy

Products Specifications

  • Part Number
  • Embedded SKUs
  • Industrial SKUs

Processor

  • CPU
  • 11th Gen Intel® IoTG Mobile Tiger Lake-UP3 Core™ i7-1185G7E/i5-1145G7E, QC, 28W
    11th Gen Intel® IoTG Mobile Tiger Lake-UP3 Core™ i3-1115G4E, DC, 28W
    11th Gen Intel® IoTG Mobile Tiger Lake-UP3 Celeron® 6305E, DC, 15W
  • 11th Gen Intel® IoTG Mobile Tiger Lake-UP3 Core™ i7-1185GRE/i5-1145GRE, QC, 28W
    11th Gen Intel® IoTG Mobile Tiger Lake-UP3 Core™ i3-1115GRE, DC, 28W
  • Frequency
  • 1.5GHz~4.4GHz (Depends on CPU)
  • 1.5GHz~4.4GHz (Depends on CPU)
  • L2 Cache
  • 4MB~12MB (Depends on CPU)
  • 6MB~12MB (Depends on CPU)
  • CPU Type
  • BGA
  • BGA
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Dual-channel DDR4 3200MHz
  • Dual-channel DDR4 3200MHz
  • Max. Capacity
  • Up to 64GB
  • Up to 64GB
  • Socket
  • 2 x 260-pin SO-DIMMs
  • 2 x 260-pin SO-DIMMs

Display

  • Controller
  • Intel® Iris® Xe Graphics (For i7/i5 SKUs)
    Intel® UHD Graphics (For i3/Celeron SKUs)
  • Intel® Iris® Xe Graphics (For i7/i5 SKUs)
    Intel® UHD Graphics (For i3 SKU)
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • 2 x Dual Channel 18/24-bit (Connector shared with eDP)
  • 2 x Dual Channel 18/24-bit (Connector shared with eDP)
  • eDP
  • 2 x eDP (Connector shared with LVDS)
  • 2 x eDP (Connector shared with LVDS)
  • HDMI
  • 1
  • 1
  • DisplayPort
  • 1
  • 1
  • Multiple Display
  • 4 independent displays
  • 4 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200 @60 Hz
    eDP up to 4096 x 2160 @60 Hz
    HDMI™ up to 4096 x 2160 @30Hz
    DP up to 7680 x 4320 @60Hz
  • LVDS up to 1920 x 1200 @60 Hz
    eDP up to 4096 x 2160 @60 Hz
    HDMI™ up to 4096 x 2160 @30Hz
    DP up to 7680 x 4320 @60Hz

Ethernet

  • Controller
  • 2 x Intel® I225-LM 2.5 GbE LAN
  • 2 x Intel® I225-IT 2.5 GbE LAN
    (LAN Speed running at 1000/100/10Mbps when OP TEMP. over 70°C)

Audio

  • Controller
  • Realtek® ALC888-VD2-GR HD Audio Codec
  • Realtek® ALC888-VD2-GR HD Audio Codec

Super I/O

  • Controller
  • Fintek F81966AB-I
  • Fintek F81966AB-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes

TPM

  • Controller
  • Infineon SLB9670VQ2.0
  • Infineon SLB9670XQ2.0

Expansion Slot

  • M.2
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
    1 x M.2 B key (SATA 3.0, PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042
    1 x M.2 E key (PCIe x1, USB 2.0), 2230
  • 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
    1 x M.2 B key (SATA 3.0, PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042
    1 x M.2 E key (PCIe x1, USB 2.0), 2230

Storage

  • SATA
  • 1 x SATA 3.0
  • 1 x SATA 3.0

I/O Interface

  • USB
  • 4 x USB 2.0 (internal)
    4 x USB 3.2 Gen 2 (rear)
  • 4 x USB 2.0 (internal)
    4 x USB 3.2 Gen 2 (rear)
  • Serial
  • 4 x COM ports (internal)
    COM1~4: RS-232/422/485, 0V/5V/12V, support auto flow control
  • 4 x COM ports (internal)
    COM1~4: RS-232/422/485, 0V/5V/12V, support auto flow control
  • GPIO
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V

Power Supply

  • DC Input
  • DC-in 12~24V (OCP & OVP)
  • DC-in 12~24V (OCP & OVP)

Environment

  • Operating Temperature
  • -10 ~ 60°C
    Note:
    1. Thermal w/ Airflow:0.7m/s
    2. The standard thermal solution only supports TDP up to 15W.
  • -40 ~ 70°C (w/Turbo disabled)
    Note:
    1. Thermal w/ Airflow:0.7m/s
    2. The standard thermal solution only supports TDP up to 15W. 3. -40 ~ 85°C by request
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -40 ~ 85°C
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing

Form Factor

  • Dimensions
  • 146 x 102 mm (3.5")
  • 146 x 102 mm (3.5")
  • Weight
  • 0.65 kg
  • 0.65 kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI, UKCA, IC
  • FCC, CE, RCM, VCCI, BSMI, UKCA, IC

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise 2019 LTSC (64-bit, RS5)
    Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 21H2, Pre-scan)
    Linux Ubuntu 22.04 (64-bit, by request)
    Linux Yocto Project 3.1 (64-bit, by request)
  • Windows 10 IoT Enterprise 2019 LTSC (64-bit, RS5)
    Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 21H2, Pre-scan)
    Linux Ubuntu 22.04 (64-bit, by request)
    Linux Yocto Project 3.1 (64-bit, by request)

Ordering Information

  • Part Number
  • Description
  • 919-98M3-001
  • MS-98M3\609-98M3-010\809-98M3-014 VER 1.0 STD Intel Tiger Lake-UP3, i7-1185GRE,2*DDR4,1*DP,1*HDMI™,2*LVDS/eDP,3*M.2,2*2.5GbE LAN,1*SATA3.0,4*USB3.2 Gen2,4*USB 2.0,4*COM,DC 12~24V,WT
  • 919-98M3-002
  • MS-98M3\609-98M3-020\809-98M3-015 VER 1.0 OPT:A Intel Tiger Lake-UP3,i5-1145GRE,2*DDR4,1*DP,1*HDMI™,2*LVDS/eDP,3*M.2,2*2.5GbE LAN,1*SATA3.0,4*USB3.2 Gen2,4*USB 2.0,4*COM,DC 12~24V,WT
  • 919-98M3-003
  • MS-98M3\609-98M3-030\809-98M3-016 VER 1.0 OPT:B Intel Tiger Lake-UP3, i3-1115GRE,2*DDR4,1*DP,1*HDMI™,2*LVDS/eDP,3*M.2,2*2.5GbE LAN,1*SATA3.0,4*USB3.2 Gen2,4*USB 2.0,4*COM,DC 12~24V,WT
  • 919-98M3-004
  • MS-98M3\609-98M3-040\809-98M3-017 VER 1.0 OPT:C Intel Tiger Lake-UP3, i7-1185G7E,2*DDR4,1*DP,1*HDMI™,2*LVDS/eDP,3*M.2,2*2.5GbE LAN,1*SATA3.0,4*USB3.2 Gen2,4*USB 2.0,4*COM,DC 12~24V,Non-WT
  • 919-98M3-005
  • MS-98M3\609-98M3-050\809-98M3-018 VER 1.0 OPT:D Intel Tiger Lake-UP3, i5-1145G7E,2*DDR4,1*DP,1*HDMI™,2*LVDS/eDP,3*M.2,2*2.5GbE LAN,1*SATA3.0,4*USB3.2 Gen2,4*USB 2.0,4*COM,DC 12~24V,Non-WT
  • 919-98M3-006
  • MS-98M3\609-98M3-060\809-98M3-019 VER 1.0 OPT:E Intel Tiger Lake-UP3, i3-1115G4E,2*DDR4,1*DP,1*HDMI™,2*LVDS/eDP,3*M.2,2*2.5GbE LAN,1*SATA3.0,4*USB3.2 Gen2,4*USB 2.0,4*COM,DC 12~24V,Non-WT
  • 919-98M3-007
  • MS-98M3\609-98M3-070\809-98M3-020 VER 1.0 OPT:F Intel Tiger Lake-UP3, Celeron 6305E,2*DDR4,1*DP,1*HDMI™,2*LVDS/eDP,3*M.2,2*2.5GbE LAN,1*SATA3.0,4*USB3.2 Gen2,4*USB 2.0,4*COM,DC 12~24V,Non-WT

Packing List

  • Part Number
  • Description
  • Quantity
  • K1G-3002057-V03
  • DC Power Cable, 200mm
  • 1
  • K14-3018001-V03
  • COM Port Cable, 150mm
  • 1
  • K1B-3008067-V03
  • USB Cable, 150mm
  • 1
  • K1D-3012023-V03
  • SATA Cable with Power, 230mm
  • 1

Optional Item

  • Part Number
  • Description
  • E31-0806800-K08
  • Heatspreader

BIOS

Attention:

Users who download BIOS from here (not using Live Update) should use the flash utility included in the downloaded compressed file when doing the BIOS update. To avoid BIOS update failure, please do not use older versions of the update utility or utilities not provided by MSI. We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2022-08-24

Version

100

File Size

9.97 MB

Type

BIOS

OS

Note

For Intel TigerLake UP3

Driver

Special Note:

The Drivers provided here are exclusively for MSI products only. MSI takes no responsibility for any damage resulted from improper usage or lack of technical expertise.

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

OS
  • All
  • Win11 64
  • Win10 64
Chipset Driver
Release Date

2022-08-25

Version

10.1.19013.8304

File Size

4.05 MB

Type

System & Chipset Drivers

OS

Win10 64

Note

For Win10 x64 21H2

Lan Driver
Release Date

2022-08-25

Version

27.3

File Size

73.15 MB

Type

LAN Drivers

OS

Win10 64

Note

For Win10 x64 21H2

AMT Driver
Release Date

2022-08-25

Version

15.0.35.1951 V6

File Size

704.85 MB

Type

LAN Drivers

OS

Win10 64

Note

For Win10 x64 21H2 / Win10 x64 RS5

Serial IO Driver
Release Date

2022-08-25

Version

30.100.2129.8

File Size

2.65 MB

Type

Others Drivers

OS

Win10 64, Win11 64

Note

For Win10 x64 21H2 / Win10 x64 RS5 / Win11 x64

RST Driver
Release Date

2022-08-25

Version

18.6.1.1016

File Size

21.81 MB

Type

Others Drivers

OS

Win10 64

Note

For Win10 x64 21H2

GNA Driver
Release Date

2022-08-25

Version

03.00.00.1363

File Size

0.05 MB

Type

Others Drivers

OS

Win10 64, Win11 64

Note

For Win10 x64 21H2 / Win11 x64

Lan Driver
Release Date

2022-08-25

Version

26.4

File Size

64.69 MB

Type

LAN Drivers

OS

Win10 64

Note

For Win10 x64 RS5

GAN Driver
Release Date

2022-08-25

Version

02.00.00.1097

File Size

0.26 MB

Type

Others Drivers

OS

Win10 64

Note

For Win10 x64 RS5

Lan Driver
Release Date

2022-08-25

Version

NDIS-1.0.2.14

File Size

539.18 MB

Type

LAN Drivers

OS

Win11 64

Note

ME Driver
Release Date

2022-08-25

Version

15.0.35.1951 V6.2

File Size

1698.14 MB

Type

Others Drivers

OS

Win11 64

Note

Manual

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.An easy guide for you to assemble your PC step by step, please refer to "Quick Installation Guide"..

We suggest using Chrome, Firefox 3.0 or IE 9.0 above browsers to download BIOS, Drivers, etc.

Release Date

2022-12-05

Version

File Size

3.92 MB

Type

Manual

Data Sheet

Attention:

MSI™ provides user manuals (in PDF format) here for download. You can use Adobe Acrobat Reader (Adobe's WEB Site) to open them.

Release Date

2022-10-07

Version

File Size

0.48 MB

Language

Inquiry
