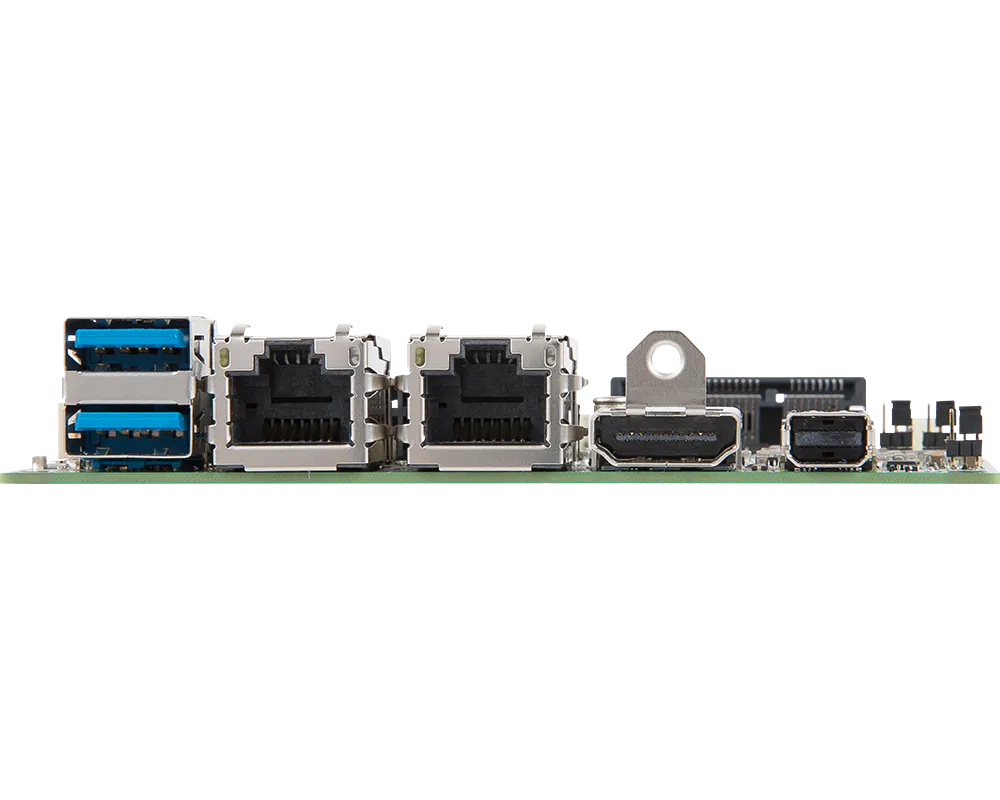

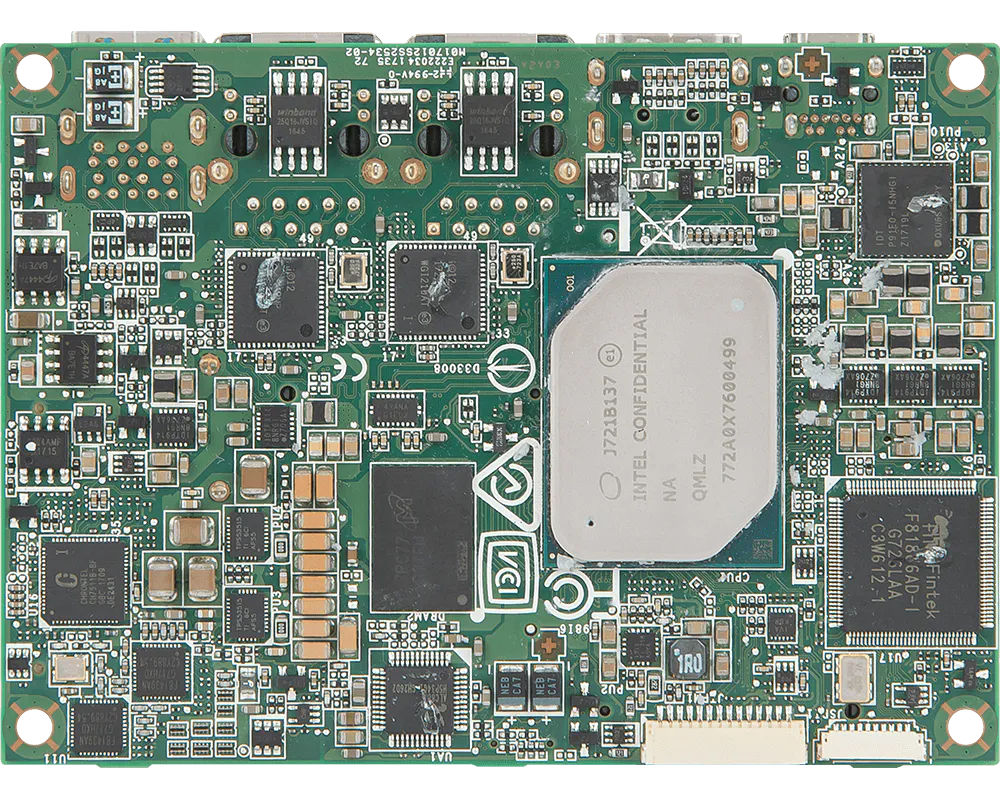

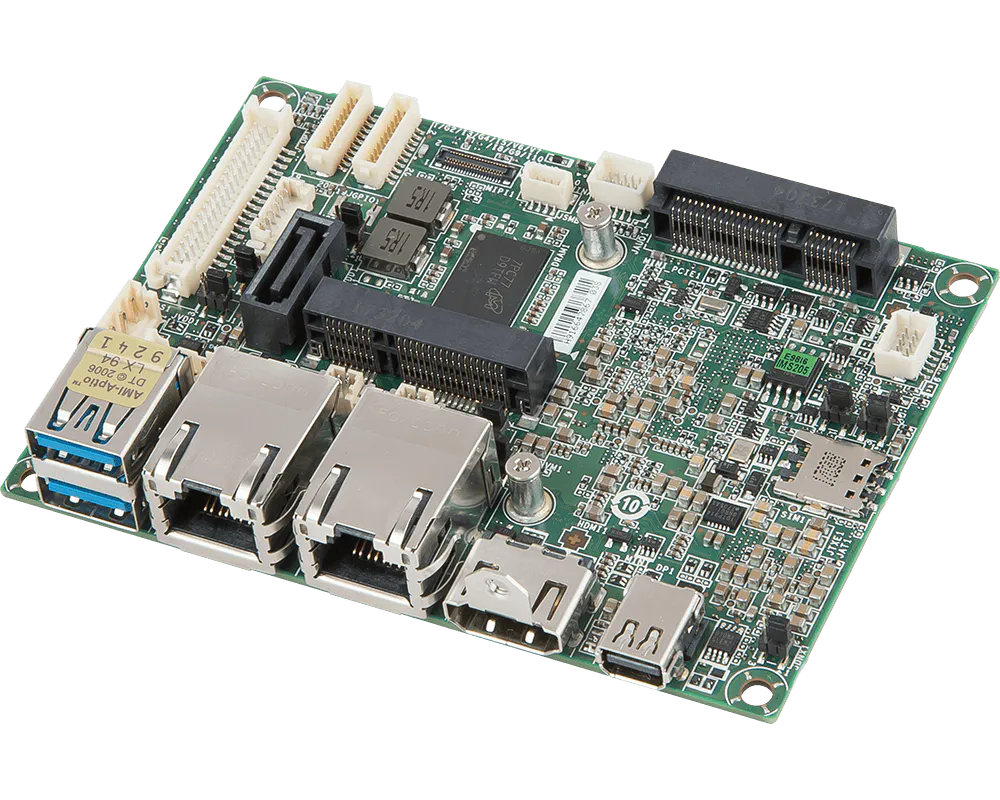

Pico-ITX SBC with Intel® Apollo Lake/Apollo Lake-I for Fanless, Low-Power, High-Performance, Wide Temperature & Harsh environment Solution

Pico-ITX SBC with Intel^® Apollo Lake/Apollo Lake-I for Fanless, Low-Power, High-Performance, Wide Temperature & Harsh environment Solution

Intel^® Apollo Lake/Apollo Lake-I Series SoC
LPDDR4 2133 MHz onboard memory up to 4GB
Triple independent displays: Mini-DP, HDMI™, LVDS
2 GbE LAN with RJ-45
2 USB 3.2 Gen 1, 2 USB 2.0, 2 COM (RS-485), DIO, Audio
1 Mini-PCIe (Full size with NANO SIM-Holder), 1 Mini-PCIe (Half size with mSATA) Slots
SATA 3.0 for storage
Wide operating temperature : -40~85°C
DC-IN 12V

Wide Temperature Solutions promotion DM

產品規格
Ordering-Information
Packing-List
Optional-Items

產品規格

料號編碼
MS-98I6-Apollo Lake SKUs
MS-98I6-Apollo Lake-I SKUs

Processor

CPU
Intel^® Pentium^® Processor N4200, QC,6W
Intel^® Celeron^® Processor N3350, DC, 6W
Intel^® Celeron^® Processor J3455, QC, 10W
Intel^® Atom™ x5 Processor E3940, QC, 9.5W
Intel^® Atom™ x5 Processor E3930, DC, 6.5W

Frequency
N4200, 1.5 GHz, up to 2.5 GHz
N3350, 1.1 GHz, up to 2.3 GHz
J3455, 1.5 GHz, up to 2.3 GHz
E3940, 1.6 GHz, up to 1.8 GHz
E3930, 1.3 GHz, up to 1.8 GHz

L2 Cache
2M
2M

CPU Type
BGA
BGA

Chipset
Integrated in SoC
Integrated in SoC

BIOS
AMI
AMI

Memory

Technology
Single-channel LPDDR4 2133MHz
Single-channel LPDDR4 2133MHz

Max. Capacity
Up to 4 GB
Up to 4 GB

Socket
Onboard
Onboard

Display

Controller
Intel^® HD Graphics
Intel^® HD Graphics

Graphic Memory
Depends on CPU
Depends on CPU

LVDS
Dual channel 18/24-bit
Dual channel 18/24-bit

HDMI
1
1

DisplayPort
1 (Mini-Displayport)
1 (Mini-Displayport)

Multiple Display
3 independent displays
3 independent displays

Display Interface
LVDS up to 1920 x 1200 @ 60 Hz
HDMI™ up to 3840 x 2160 @ 30 Hz
Mini-DP up to 4096 x 2160 @ 60 Hz
LVDS up to 1920 x 1200 @ 60 Hz
HDMI™ up to 3840 x 2160 @ 30 Hz
Mini-DP up to 4096 x 2160 @ 60 Hz

Ethernet

Controller
2 x Intel^® I211-AT GbE LAN
2 x Intel^® I210-IT GbE LAN

Audio

Controller
Realtek^® ALC887-VD2-CG HD Audio Codec
Realtek^® ALC887-VD2-CG HD Audio Codec

Super I/O

Controller
Fintek F81866D-I
Fintek F81866D-I

H/W Monitor

Watchdog Timer
256-level Watchdog Timer
256-level Watchdog Timer

TPM

Controller
Pin header
Pin header

Expansion Slot

Mini-PCIe
1 x Full-size
1 x Half-size
(Mini-PCIe Full-size Slot w/ NANO SIM-Holder)
(Mini-PCIe Half-size Slot w/ mSATA)
1 x Full-size
1 x Half-size
(Mini-PCIe Full-size Slot w/ NANO SIM-Holder)
(Mini-PCIe Half-size Slot w/ mSATA)

Storage

SATA
1 x SATA 3.0
1 x SATA 3.0

mSATA
1 (Shared with Mini-PCIe Half-size)
1 (Shared with Mini-PCIe Half-size)

I/O Interface

USB
2 x USB 2.0 (internal)
2 x USB 3.2 Gen 1 (rear)
2 x USB 2.0 (internal)
2 x USB 3.2 Gen 1 (rear)

Serial
2 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232/422/485, 0V/5V/12V
2 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232/422/485, 0V/5V/12V

GPIO
16-bits (8 x GPI; 8 x GPO), 5V
16-bits (8 x GPI; 8 x GPO), 5V

Power Supply

DC Input
DC-in 12V
DC-in 12V

Environment

Operating Temperature
-10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
-40 ~ 85°C
Note: Thermal w/ Airflow:0.7m/s

Operating Humidity
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing

Storage Humidity
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing

Storage Temperature
-20 ~ 80°C
-40 ~ 85°C

Form Factor

Dimensions
101 x 73 mm (Pico-ITX)
101 x 73 mm (Pico-ITX)

Weight
0.27 kg
0.27 kg

Certification

EMC
FCC, CE, RCM, VCCI, BSMI
FCC, CE, RCM, VCCI, BSMI

Software Platform

OS Support
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)

Ordering Information

Part Number
Description

919-98I6-006
MS-98I6 10, Apollo Lake-I E3940 F1 Stepping, Onboard LPDDR4 4GB, 1*HDMI™, 1*LVDS, 1*Mini-DP, 1*MIPI,2*Mini-Pcie, 2*USB3.0,2*USB2.0, 1*SATA3.0, 2*COM, 2*LAN, DC 12V, SINGLE

919-98I6-007
MS-98I6 10, Apollo Lake-I E3930 F1 Stepping, Onboard LPDDR4 4GB, 1*HDMI™, 1*LVDS, 1*Mini-DP, 1*MIPI, 2*Mini-Pcie, 2*USB3.0, 2*USB2.0, 1*SATA3.0, 2*COM, 2*LAN, DC 12V, SINGLE

919-98I6-009
MS-98I6 10, Apollo Lake N4200 F1 Stepping, Onboard LPDDR4 4GB, 1*HDMI™, 1*LVDS, 1*Mini-DP, 1*MIPI,2*Mini-Pcie, 2*USB3.0,2*USB2.0, 1*SATA3.0, 2*COM, 2*LAN, DC 12V, SINGLE

919-98I6-010
MS-98I6 10, Apollo Lake N3350 F1 Stepping, Onboard LPDDR4 4GB, 1*HDMI™, 1*LVDS, 1*Mini-DP, 1*MIPI, 2*Mini-Pcie, 2*USB3.0, 2*USB2.0, 1*SATA3.0, 2*COM, 2*LAN, DC 12V, SINGLE

Packing List

Part Number
Description
Quantity

K14-3018001-V03
COM PORT Cable, 150mm
1

K1B-3008067-V03
USB Cable, 150mm
1

K1D-3010008-V03
SATA Cable with Power, 150mm
1

K1G-3004057-V03
DC Power Cable, 150mm
1

Optional Item

Part Number
Description

E31-0805900-K08
Heatspreader for Apollo Lake-I

E31-0805910-K08
Heatspreader for Apollo Lake
