Compact-Size Box PC with Intel® Kaby Lake-U/Skylake-U or Apollo Lake-I Series Processor for Ultra Low-Power Fanless Solution

Compact-Size Box PC with Intel^® Kaby Lake-U/Skylake-U or Apollo Lake-I Series Processor for Ultra Low-Power Fanless Solution

Intel^® Apollo Lake/Apollo Lake-I Series SoC
DDR3L 1866/1600 MHz SODIMM Slot up to 8GB

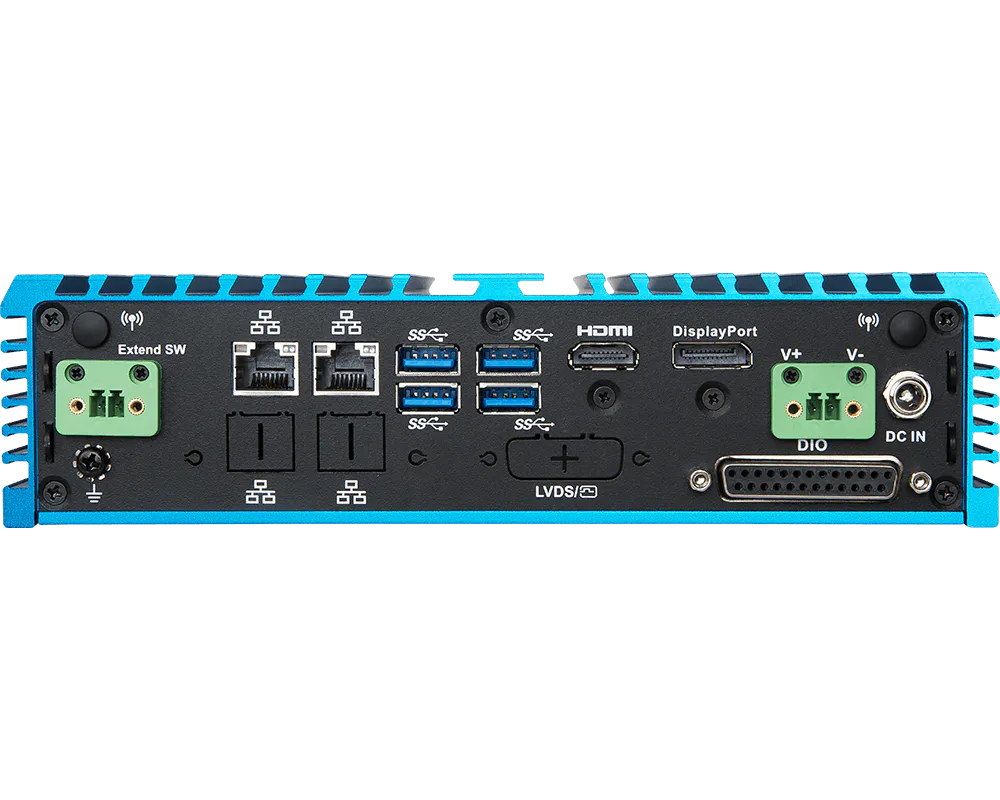

Triple independent displays: DP++, HDMI™, LVDS/DVI-I (by option)
2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
SATA 3.0 storage (2.5" SSD/HDD) , micro SD for storage

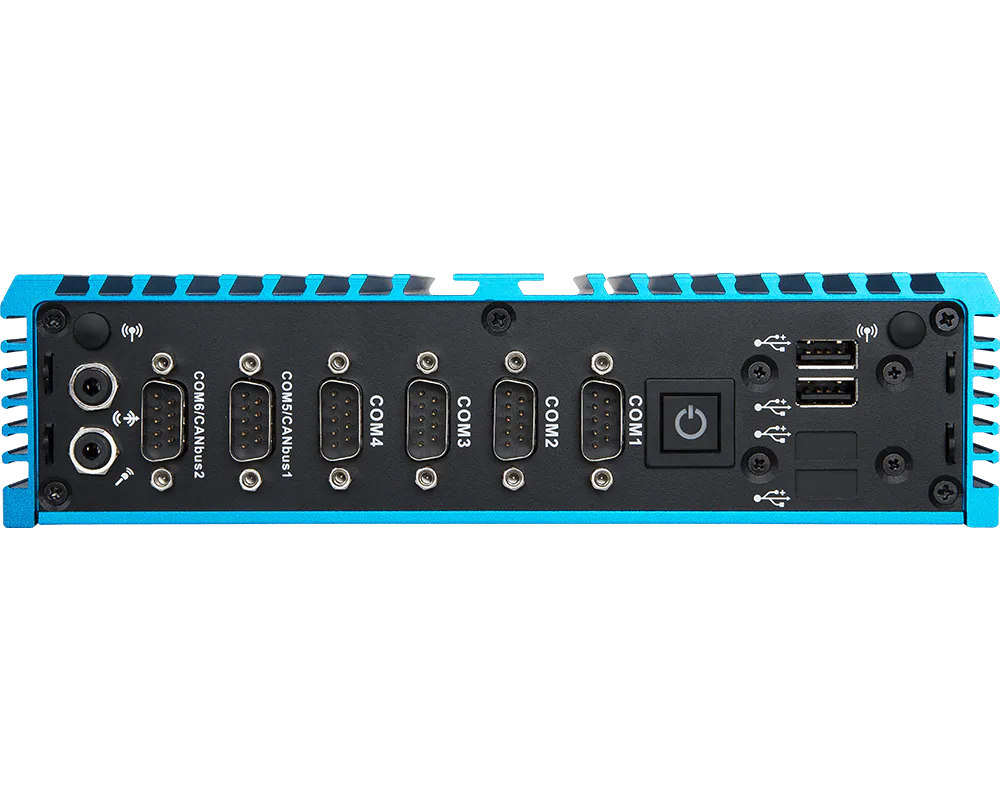

4 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (1 RS-485), GPIO, Audio
4 opening reserved for antennas
Anti-Vibration & Shockproof Design to Compliance IEC 61373
Railway design to Compliance EN50155 TX Class
Wide operating temperature: -20~70°C
Wide Voltage DC-IN 12~24V
Ultra-Compact with fanless design

Intel^® 7th/6th Gen Kaby Lake-U/Skylake-U Series
DDR4 2133 MHz SODIMM Slot up to 16GB
Triple independent displays: DP++, HDMI™, LVDS/DVI-I (by option)
2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
2 SATA 3.0 storage (2.5" SSD/HDD) , micro SD for storage SATA RAID 0/1

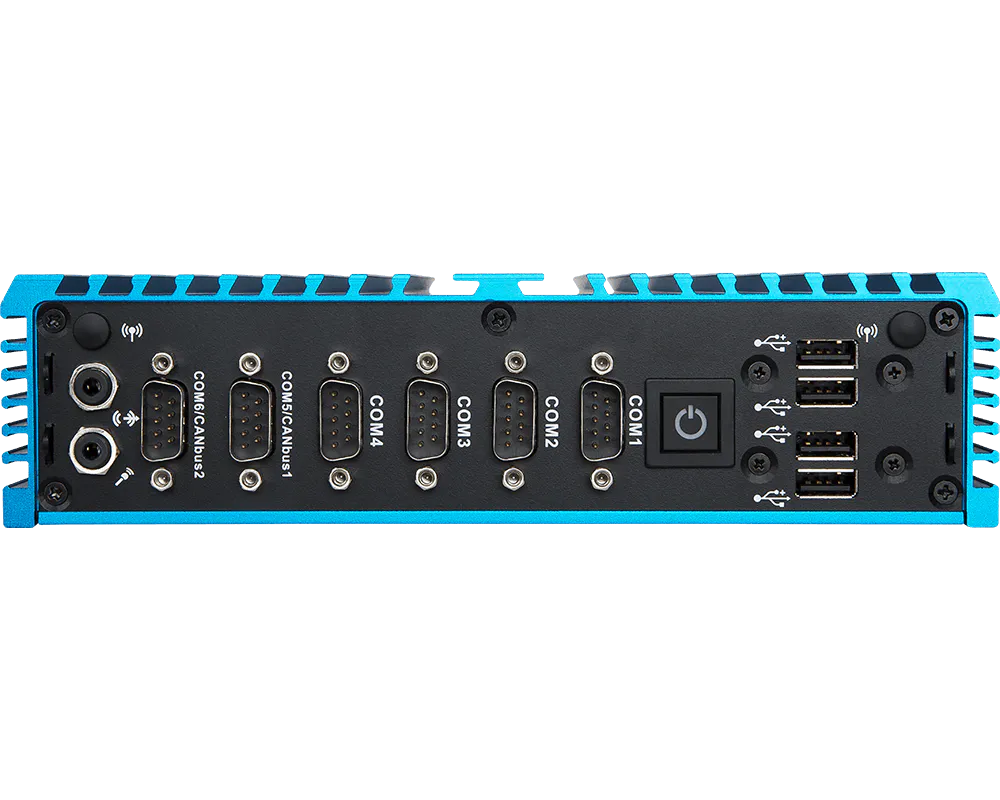

4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (1 RS-485), GPIO, Audio
4 opening resrved for antennas
Anti-Vibration & Shockproof Design to Compliance IEC 61373
Railway design to Compliance EN50155 TX Class
Wide Voltage DC-IN 12~24V
Ultra-Compact with fanless design

MS-9A89 promotion DM

Compatible with Embedded Box MS-98H3

產品規格
Ordering-Information
Packing-List
Optional-Items

產品規格

料號編碼
MS-9A89

Ordering Information

Part Number
Description

939-9A89-001
MS-9A89\709-9A89-010\829-9A89-004\STD VER 11, BB, FANLESS, KBL-U CPU i3-7100U, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD EU, SINGLE

939-9A89-002
MS-9A89\709-9A89-010\829-9A89-005\STD VER 11, BB, FANLESS, KBL-U CPU i3-7100U, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD USA, SINGLE

939-9A89-007
MS-9A89\709-9A89-040\829-9A89-005\STD VER 11, BB, FANLESS, SKL-U CPU i5-6300U, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD US, SINGLE, For Channel

939-9A89-008
MS-9A89\709-9A89-050\829-9A89-005\STD VER 11, BB, FANLESS, SKL-U CPU i3-6100U, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD US, SINGLE, For Channel

939-9A89-009
MS-9A89\709-9A89-060\829-9A89-006\STD VER 12, BB, FANLESS, APL-I CPU E3950, F1, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD EU, SINGLE, For Channel

939-9A89-010
MS-9A89\709-9A89-060\829-9A89-007\STD VER 12, BB, FANLESS, APL-I CPU E3950, F1, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD US, SINGLE, For Channel

939-9A89-011
MS-9A89\709-9A89-070\829-9A89-006\STD VER 12, BB, FANLESS, APL-I CPU E3940, F1, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD EU, SINGLE, For Channel

939-9A89-012
MS-9A89\709-9A89-070\829-9A89-007\STD VER 12, BB, FANLESS, APL-I CPU E3940, F1, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD US, SINGLE, For Channel

939-9A89-013
MS-9A89\709-9A89-080\829-9A89-004\STD VER 11, BB, FANLESS, SKL-U CPU i7-6600U, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD EU, SINGLE, For Channel

939-9A89-014
MS-9A89\709-9A89-080\829-9A89-005\STD VER 11, BB, FANLESS, SKL-U CPU i7-6600U, W/O MSI LOGO, BLUE, CD, ADAPTER 19V/65W, POWER CORD US, SINGLE, For Channel

Packing List

Part Number
Description
939-9A89-001
939-9A89-002
939-9A89-007
939-9A89-008
939-9A89-009
939-9A89-010
939-9A89-011
939-9A89-012
939-9A89-013
939-9A89-014

G71-SEDC185-N56
MS-9A89-U Series Driver DVD
1
1
1
1
1
1

G71-SEDC210-N56
MS-9A89-A Series Driver DVD
1
1
1
1

K33-3001020-I45
Power Cord, US, 1800mm
1
1
1
1
1
1

K33-3001021-I45
Power Cord, EU, 1800mm
1
1
1
1

K1D-3012009-V03
SATA Cable with Power, 150mm
1
1
1
1
1
1
1
1
1
1

S93-0401780-S14
Adaptor 19V/65W
1
1
1
1
1
1
1
1
1
1

E22-9A59010-LA2
Wall Mounting Bracket
2
2
2
2
2
2
2
2
2

E49-1065009-P65
Screw for Wall Mounting
4
4
4
4
4
4
4
4
4
4

E25-9B01030-K23
Rubber for Wall Mounting
4
4
4
4
4
4
4
4
4
4

NA1-1020051-PC1
Phoenix Terminal Plugged
2
2
2
2
2
2
2
2
2
2

E49-1303007-P65
Screw for HDD
4
4
4
4
4
4
4
4
4
4

E24-9B02010-P09
DIN Rail
2
2
2
2
2
2
2
2
2
2

E41-1356002-P65
Screw for DIN Rail
4
4
4
4
4
4
4
4
4
4

Optional Item

Part Number
Description

S51-0800140-I69
Dual LAN Expansion Module (Wide Temperature)

S51-0800130-I69
Dual LAN Expansion Module (Normal Temperature)

919-99C0-102
LVDS/DVI-I Converter Board (MS-99C0)

S93-0406560-S14
Adaptor 19V/90W

K19-3040087-V03
LVDS Cable

E22-9A95080-C22
VESA Mounting

MS-9A89 is a versatile Compact-Size Box PC offering ultra-low-power fanless solutions with support for Intel® Apollo Lake/Apollo Lake-I or Intel® 7th/6th Gen Kaby Lake-U/Skylake-U series processors. It features robust specifications such as DDR3L or DDR4 SODIMM slots for up to 16GB of RAM, triple independent displays (DP++, HDMI™, LVDS/DVI-I options), dual GbE LAN ports (expandable via Mini-PCIe), multiple storage options including SATA 3.0 and micro SD, and extensive connectivity with USB 3.2 Gen 1/2.0 ports, COM ports, GPIO, and audio support. Designed for rugged environments, it meets anti-vibration and shockproof standards (IEC 61373) and complies with EN50155 TX Class for railway applications. It operates on a wide voltage DC input range of 12~24V, making it suitable for various industrial and embedded applications, and has received recognition with the Taiwan Excellence Award.
