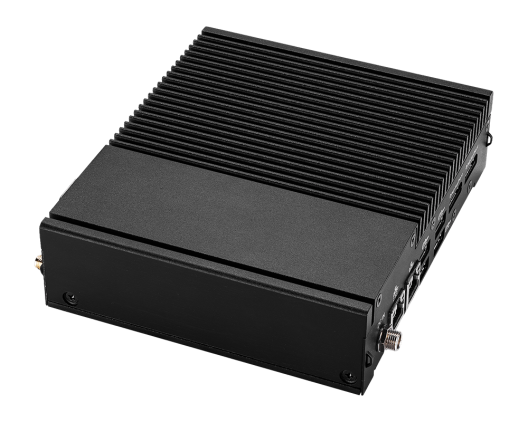

Compact-Size Box PC with Intel® Meteor Lake-U/Arrow Lake-U Series Processor for Ultra Low-Power Fanless Solution
- Intel® Meteor Lake-U/Arrow Lake-U Series
- 2 DDR5 5600 MHz SODIMM/6400 MHz CSODIMM Slots up to 96~128GB
- Dual independent displays: 2 DP
- 1 2.5GbE and 1 GbE LAN with RJ-45
- 1 M.2 B key, M.2 E key Slot
- 1 M.2 M key
- 4 USB 10 Gbps, 2 COM
- Onboard TPM 2.0
- 2 opening resrved for antennas
- Anti-Vibration & Shockproof Design to Compliance IEC 61373
- Wide operating temperature: -10~60°C
- Wide Voltage DC-IN 12~24V (OCP & OVP)
- Ultra-Compact with fanless design
- 產品規格
產品規格
- 料號編碼
- MS-C927-SKU
System Processor
- CPU
- Intel® Core Ultra Processors (Series 1) Meteor Lake- U Series Processors, Core™ Ultra 7 165U/155U, Core™ Ultra 5 135U/125U
Intel® Core Ultra Processors (Series 2) Arrow Lake- U Series Processors
- Frequency
- P-Core: 4.3GHz~5.3GHz (Depends on CPU)
E-Core: 3.6GHz~4.2GHz (Depends on CPU)
- L2 Cache
- 12MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC Process
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR5 5600~6400MHz (Depends on CPU)
- Max. Capacity
- Up to 96~128GB (Depends on CPU)
- Socket
- 2 x 262-pin SO-DIMM
Graphic
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- Multiple Display
- 2 independent displays
- Display Interface
- DP up to 4096 x 2304 @60Hz
Ethernet
- Controller
- 1 x Intel® I219-LM GbE LAN
1 x Intel® I226-V GbE LAN
Audio
- Controller
- Realtek® ALC897 HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- --
TPM
- Controller
- Infineon SLB9672VU2.0
I/O Interface
- PS/2
- --
- CANbus
- --
- LVDS
- --
- VGA
- --

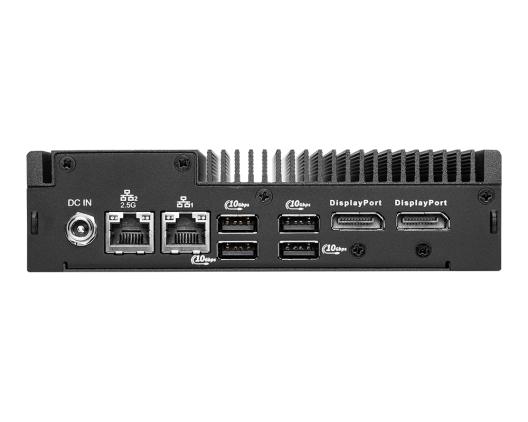

- RJ-45
- 2
- PoE
- --
- Audio
- --
- USB
- 4 x USB 10 Gbps
- Parallel
- --
- Serial

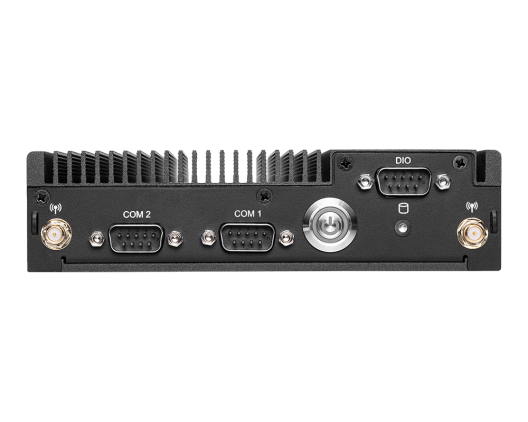

- 2 x COM ports
COM1~2: RS-232/422/485, 0V/5V/12V
- HDMI
- --
- GPIO
- 8-bit (Default 4 x GPI, 4 x GPO), 5V
- DVI
- --
- DisplayPort
- 2
- Antenna
- 2 openings reserved for antennas
Expansion Slot
- PCIe x16
- --
- PCIe x8
- --
- PCIe x4
- --
- PCIe x1
- --
- PCI
- --
- M.2
- 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
1 x M.2 B key (PCIe x1, USB 2.0), 2242/3042
1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
- Mini-PCIe
- --
Storage
- SATA
- --
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input
- DC-in 12~24V (OCP & OVP)
- AC Input
- --
Environment
- IP Rating
- --
- Operating Temperature
- -10~60 °C (w/SSD)
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- IEC61373 Category 1, Class B
- Shock
- IEC61373 Category 1, Class B
Physical Characteristics
- Dimensions
- 130 x 155 x 40 mm
- Weight
- 1.1 kg
- Mounting
- Wall mount (STD)/DIN-rail mount (STD)
Certification
- EMC
- CE, FCC, RCM, VCCI, BSMI, UKCA, IC
- Safety
- IEC 62368: CE(LVD) / BSMI
Software Platform
- OS Support
- Windows 11 IoT Enterprise LTSC (64-bit, 24H2)
Windows 10 IoT Enterprise LTSC (64-bit, 21H2, Pre-scan)
Linux (Support by request)
