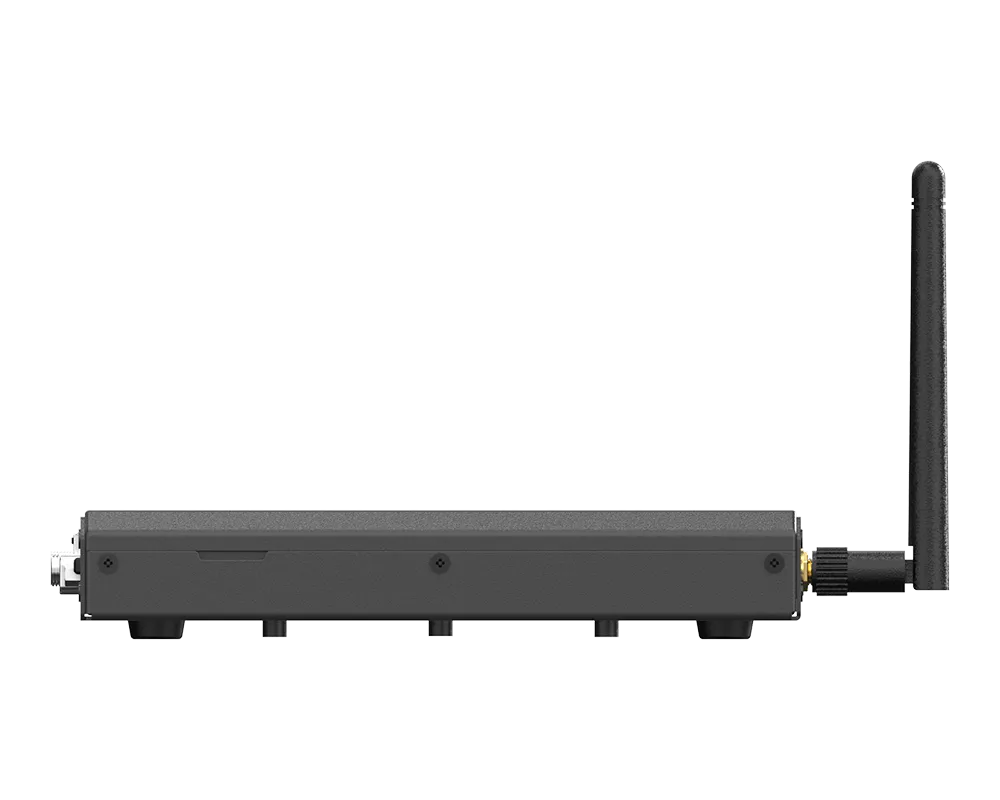

Ultra Slim Fanless Box PC with Intel® IOTG Alder Lake-N Processor for Ultra Low-Power Solution

  • Intel® Alder Lake-N PC Client Series SoC
  • DDR5 4800 MHz SODIMM Slot up to 16GB
  • Dual independent displays: DP, HDMI
  • 2 2.5 GbE LAN with RJ-45
  • 1 M.2 B Key, 1 M.2 E Key Slot

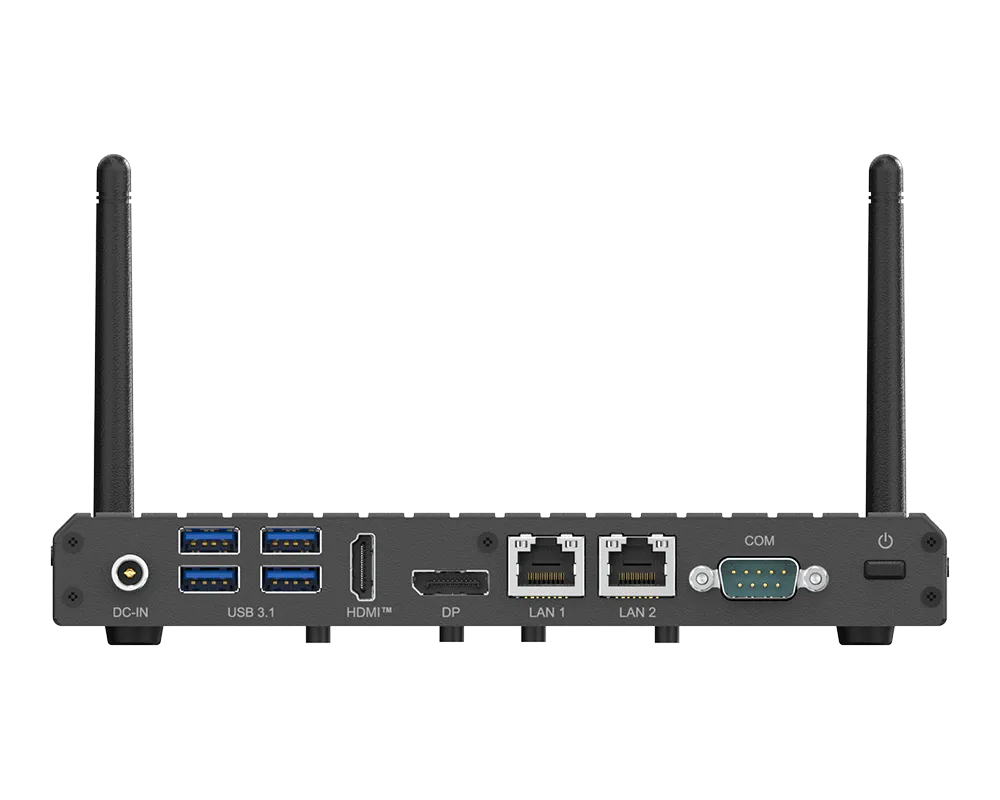

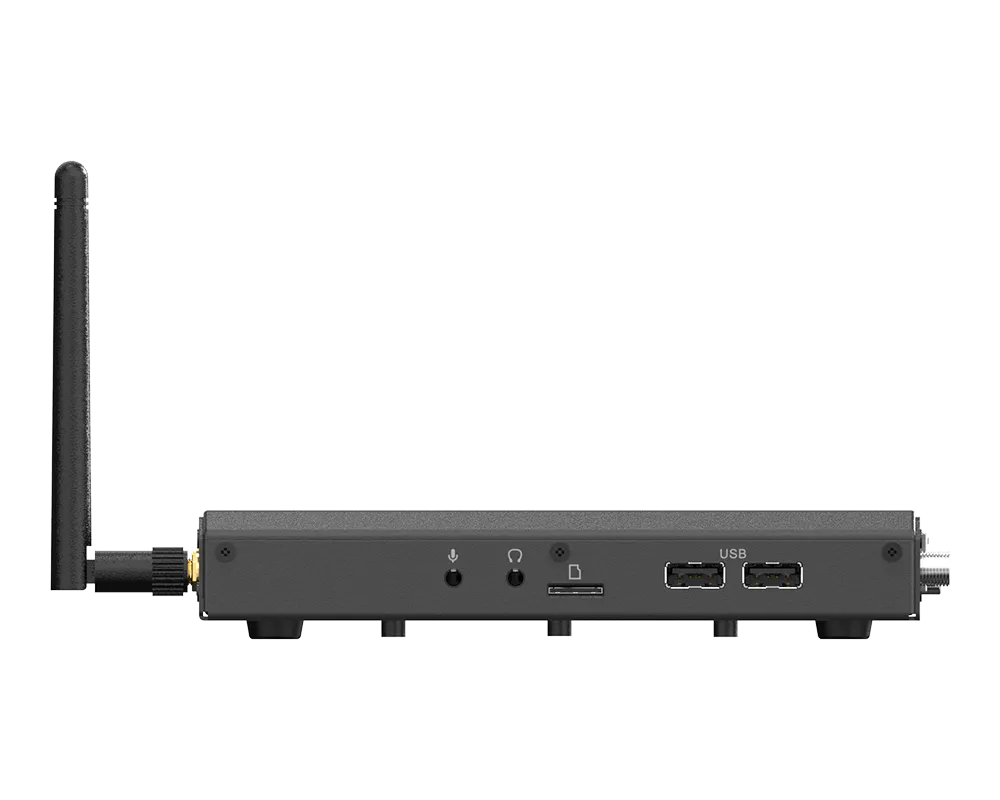

  • 4 USB 3.1 , 2 USB 2.0, 1 COM (1 RS-485), Audio
  • 2 opening reserved for antennas
  • DC-IN 12~24V
  • Ultra Slim with fanless design
  • 產品規格

產品規格

  • 料號編碼
  • MS-1P17-SKU1
  • MS-1P17-SKU2
  • MS-1P17-SKU3

System Processor

  • CPU
  • Intel® IOTG Alder Lake-N Processor N97, QC, 12W
  • Intel® IOTG Alder Lake-N Atom® X7425E, QC, 12W
  • Intel® IOTG Alder Lake-N Core i3-N305, OC, to 15W
  • Frequency
  • 2 GHz, up to 3.6 GHz
  • 3.4 GHz
  • 1.8 GHz, up to 3.8 GHz
  • L2 Cache
  • 6MB
  • 6MB
  • 6MB
  • CPU Type
  • BGA
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC Process
  • Integrated in SoC Process
  • Integrated in SoC Process
  • BIOS
  • AMI
  • AMI
  • AMI

Memory

  • Technology
  • Single-Channel DDR5 4800 MHz
  • Single-Channel DDR5 4800 MHz
  • Single-Channel DDR5 4800 MHz
  • Max. Capacity
  • Up to 16 GB
  • Up to 16 GB
  • Up to 16 GB
  • Socket
  • 1 x 262-pin SO-DIMM
  • 1 x 262-pin SO-DIMM
  • 1 x 262-pin SO-DIMM

Graphic

  • Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • Multiple Display
  • 2 independent displays
  • 2 independent displays
  • 2 independent displays
  • Display Interface
  • HDMI up to 3840 x 2160 @30Hz
    DP up to 4096 × 2304 @60Hz
  • HDMI up to 3840 x 2160 @30Hz
    DP up to 4096 × 2304 @60Hz
  • HDMI up to 3840 x 2160 @30Hz
    DP up to 4096 × 2304 @60Hz

Ethernet

  • Controller
  • 2 x Intel® I225-V 2.5 GbE LAN
  • 2 x Intel® I225-V 2.5 GbE LAN
  • 2 x Intel® I225-V 2.5 GbE LAN

Audio

  • Controller
  • Realtek® ALC256 HD Audio Codec
  • Realtek® ALC256 HD Audio Codec
  • Realtek® ALC256 HD Audio Codec

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • --
  • --
  • --

TPM

  • Controller
  • Infineon SLB9672VU2.0
  • Infineon SLB9672VU2.0
  • N/A

I/O Interface

  • PS/2
  • --
  • --
  • --
  • CANbus
  • --
  • --
  • --
  • LVDS
  • --
  • --
  • --
  • VGA
  • --
  • --
  • --
  • RJ-45
  • 2 x 2.5GbE LAN
  • 2 x 2.5GbE LAN
  • 2 x 2.5GbE LAN
  • PoE
  • --
  • --
  • --
  • Audio
  • 1 x Line-out
    1 x Mic-in
  • 1 x Line-out
    1 x Mic-in
  • 1 x Line-out
    1 x Mic-in
  • USB
  • 4 x USB 3.1
    2 x USB 2.0
  • 4 x USB 3.1
    2 x USB 2.0
  • 4 x USB 3.1
    2 x USB 2.0
  • Parallel
  • --
  • --
  • --
  • Serial
  • 1 x COM port
    COM1: RS-232/422/485, 0V/5V/12V
  • 1 x COM port
    COM1: RS-232/422/485, 0V/5V/12V
  • 1 x COM port
    COM1: RS-232/422/485, 0V/5V/12V
  • HDMI
  • 1
  • 1
  • 1
  • GPIO
  • --
  • --
  • --
  • DVI
  • --
  • --
  • --
  • DisplayPort
  • 1
  • 1
  • Antenna
  • 2 openings reserved for antennas
  • 2 openings reserved for antennas
  • 2 openings reserved for antennas

Expansion Slot

  • PCIe x16
  • --
  • --
  • --
  • PCIe x8
  • --
  • --
  • --
  • PCIe x4
  • --
  • --
  • --
  • PCIe x1
  • --
  • --
  • --
  • PCI
  • --
  • --
  • --
  • M.2
  • 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
    1 x M.2 E key (PCIe x1, USB 2.0), 2230
  • 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
    1 x M.2 E key (PCIe x1, USB 2.0), 2230
  • 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280
    1 x M.2 E key (PCIe x1, USB 2.0), 2230
  • Mini-PCIe
  • --
  • --
  • --

Storage

  • SATA
  • --
  • --
  • --
  • CFast
  • --
  • --
  • --
  • mSATA
  • --
  • --
  • --
  • CompactFlash
  • --
  • --
  • --

Power Supply

  • DC Input
  • DC-in 12~24V with Lockable DC Jack
  • DC-in 12~24V with Lockable DC Jack
  • DC-in 12~24V with Lockable DC Jack
  • AC Input
  • --
  • --
  • --

Environment

  • IP Rating
  • --
  • --
  • Operating Temperature
  • 0 ~ 40°C
  • 0 ~ 40°C
  • 0 ~ 40°C
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C
  • Vibration
  • --
  • --
  • --
  • Shock
  • --
  • --
  • --

Physical Characteristics

  • Dimensions
  • 197 x 162.8 x 25 mm
  • 197 x 162.8 x 25 mm
  • 197 x 162.8 x 25 mm
  • Weight
  • 0.91 kg
  • 0.91 kg
  • 0.91 kg
  • Mounting
  • Stand/VESA mount(by BOM option)
  • Stand/VESA mount(by BOM option)
  • Stand/VESA mount(by BOM option)

Certification

  • EMC
  • CE, FCC, RCM, VCCI, BSMI, UKCA
  • CE, FCC, RCM, VCCI, BSMI, UKCA
  • CE, FCC, RCM, VCCI, BSMI, UKCA
  • Safety
  • BSMI
  • BSMI
  • BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    Linux (Support by request)
