Slim Fanless Box PC with Intel® Alder Lake-P Platform U-Series, High Performance & Low-Power for 4K2K Digital Signage, KIOSK, Automation & AIoT Edge Computer
- Intel® 12th Gen Alder Lake-P U-series
- 2 DDR4 3200 MHz SODIMM slots up to 64GB
- Quadruple independent displays: 2 HDMI™, 2 DP
- 2 2.5GbE LAN with RJ-45
- 1 M.2 B key (with NANO SIM-holder), 1 M.2 E key
- 1 M.2 M key, 1 SATA 3.0 (2.5” SSD, 7mm) for storage
- 3 USB 3.2 Gen 2, 2 USB 2.0, 2 COM, Line-out
- Onboard TPM 2.0
- Easy access all on bottom side for 2 Memory, 3 M.2, 2.5”SSD
- Cableless design with proprietary board
- DC-IN 19V
- Slim & fanless design with thinness 29mm
- 產品規格
- Ordering-Information
- Packing-List
產品規格
- 料號編碼
- MS-C902
System Processor
- CPU
- 12th Gen Intel® Mobile Alder Lake-P U-series Core™ i5/i3/ Celeron® Processor, DC, 15W
- Frequency
- 1.0 GHz~4.4 GHz (Depends on CPU)
- L2 Cache
- 8MB~12MB (Depends on CPU)
- CPU Type
- BGA
- Chipset
- Integrated
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR4 3200 MHz
- Max. Capacity
- Up to 64GB
- Socket
- 2 x 260-pin SO-DIMMs
Graphic
- Controller
- Intel® Iris® Xe Graphics (For i5 SKUs)
Intel® UHD Graphics (For i3/Celeron SKUs)
- Graphic Memory
- Depends on CPU
- Multiple Display
- 4 independent displays
- Display Interface
- HDMI™ 2.0 up to 4096 x 2304 @60Hz
DP up to to 7680 x 4320 @60Hz
Ethernet
- Controller
- 2 x Intel® I226-LM 2.5 GbE LAN
Audio
- Controller
- Realtek® ALC888-VD2-GR HD Audio Codec (Co-lay ALC897)
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
TPM
- Controller
- Infineon SLB9670VQ 2.0
Expansion Slot
- M.2
- 1 x M.2 M key (PCIe Gen4 x4 NVMe, SATA 3.0), 2242/2280
1 x M.2 B key (PCIe x1, USB 3.2, USB 2.0 w/NANO SIM-Holder), 2242/3042
1 x M.2 E key (PCIe x1, USB 2.0), 2230
Storage
- SATA
- 1 x 2.5" SSD (7mm)

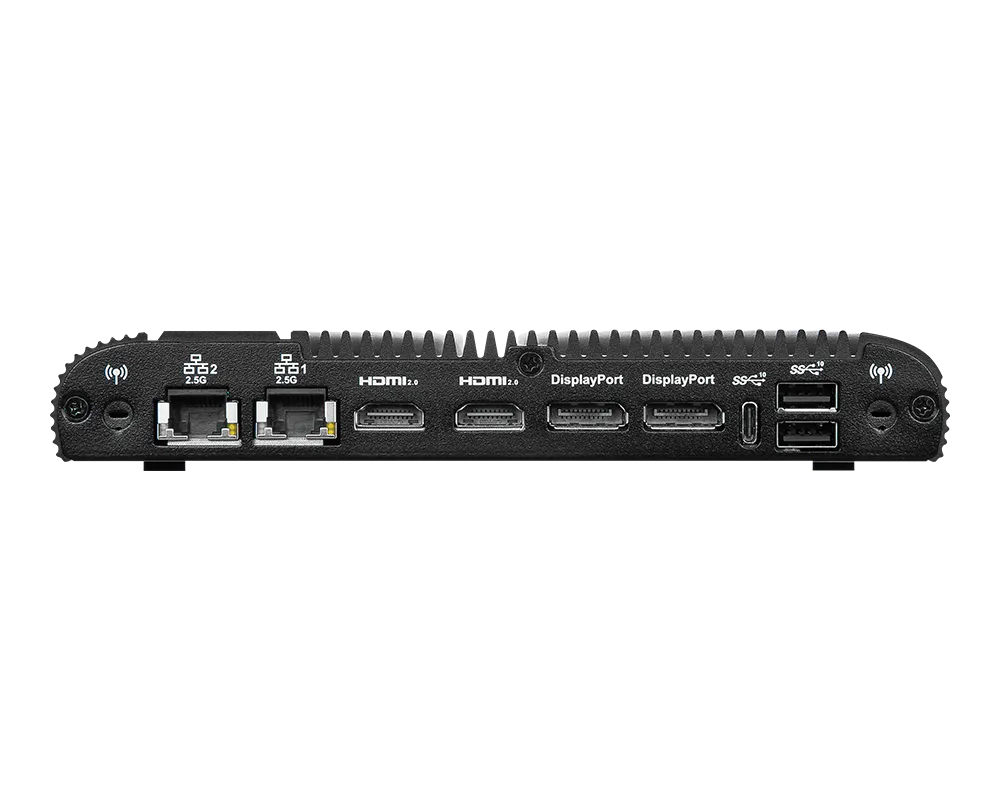

I/O Interface
- RJ-45
- 2
- Audio
- 1 x Line-out (Mic-in by AP driver)
- USB
- 2 x USB 3.2 Gen2, Type-A
1 x USB 3.2 Gen2, Type-C
2 x USB 2.0, Type-A

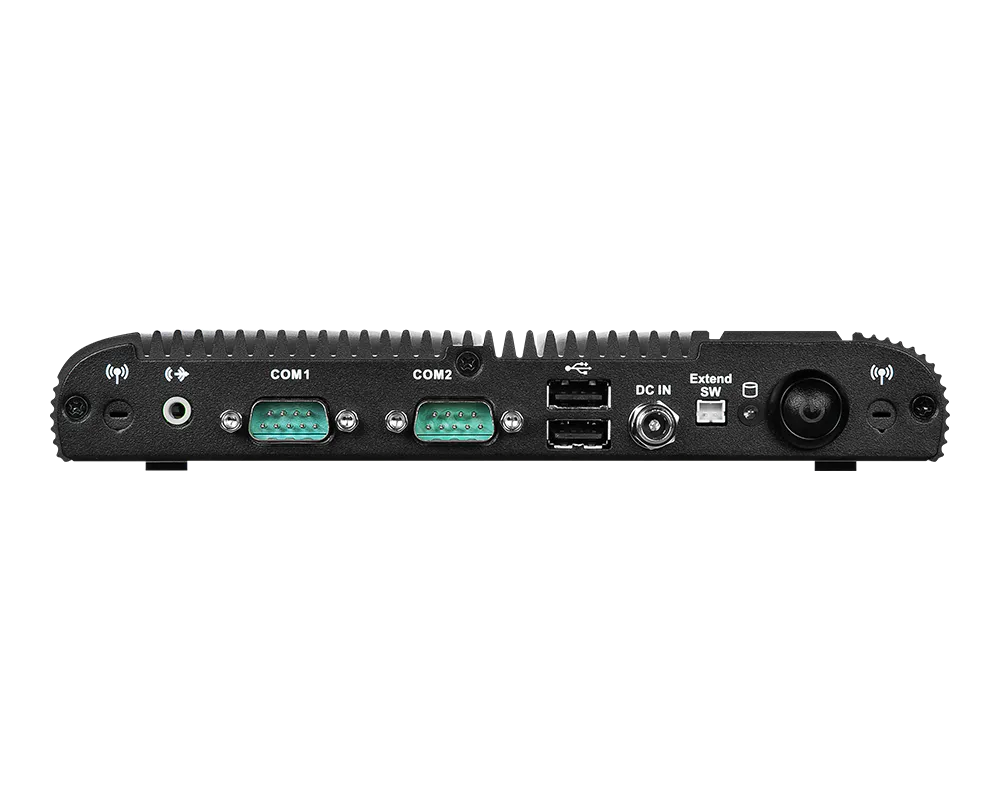

- Serial
- 2 x COM ports
COM1/2: RS-232/422/485, 0V/5V/12V
- HDMI
- 2
- DisplayPort
- 2
- Antenna
- 4 openings reserved for antennas
Power Supply
- DC Input
- DC-in 19V with Lockable DC Jack
Environment
- IP Rating
- Full IP40
- Operating Temperature
- -10 ~ 50°C (SSD)
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80 ° C
- Vibration
- Operating: IEC 60068-2-64: 2 Grms, 5 ~ 500 Hz, 1hr/axis (w/ SSD)
- Shock
- Operating: IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD)
Form Factor
- Dimensions
- 196 x 285 x 29 mm
- Weight
- 2.24 kg
- Mounting
- VESA/Wall mount
Certification
- EMC
- FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC
- Safety
- BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 936-C902-001
- MS-C902 VER 1.0, WINDBOX, Barebone, Fanless, Intel Alder Lake i5-1235U, LOGO msi, BLACK, 2*ANTENNA, VESA MOUNT, POWER CORD USA
- 936-C902-002
- MS-C902 VER 1.0 WINDBOX, Barebone, Fanless, Intel Alder Lake i5-1235U, LOGO msi, BLACK, 2*ANTENNA, VESA MOUNT, POWER CORD EU
- 936-C902-003
- MS-C902 VER 1.0 WINDBOX, Barebone, Fanless, Intel Alder Lake i5-1245UE, LOGO msi, BLACK, 2*ANTENNA, VESA MOUNT, POWER CORD USA
- 936-C902-004
- MS-C902 VER 1.0 WINDBOX, Barebone, Fanless, Intel Alder Lake i5-1245UE, LOGO msi, BLACK, 2*ANTENNA, VESA MOUNT, POWER CORD EU
- 936-C902-005
- MS-C902 VER 1.0 WINDBOX, Barebone, Fanless, Intel Alder Lake i3-1215UE, LOGO msi, BLACK, 2*ANTENNA, VESA MOUNT, POWER CORD USA
- 936-C902-006
- MS-C902 VER 1.0 WINDBOX, Barebone, Fanless, Intel Alder Lake i3-1215UE, LOGO msi, BLACK, 2*ANTENNA, VESA MOUNT, POWER CORD EU
Packing List
- Part Number
- Description
- Quantity
- S93-0406700-S14
- Adaptor 19V/90W
- 1
- K33-3001020-I45
K33-3001021-I45 - Power Cord, USA, 1800mm
Power Cord, EU, 1800mm - 1
- E22-9A95080-C22
- VESA Mounting Bracket
- 1
- E41-1406003-P65
- VESA Mounting Screw
- 4
- E43-1304047-P65
- 2.5" HDD/SSD Screw
- 2
- S79-0000360-V03
- ANTENNA
- 2
