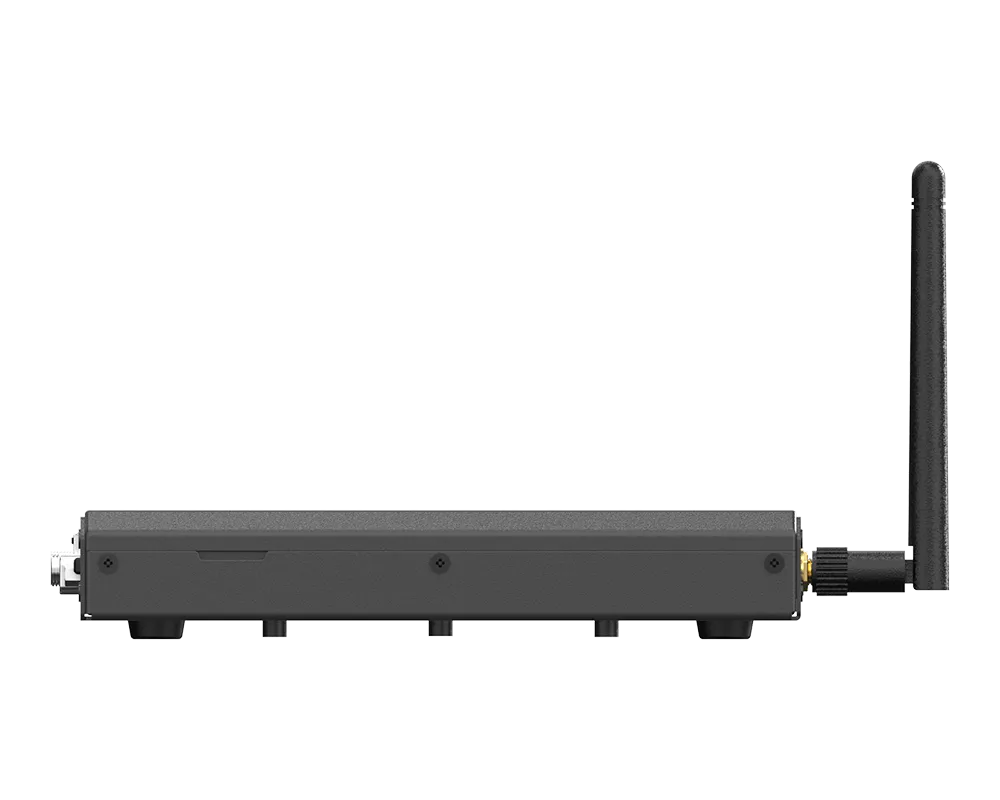

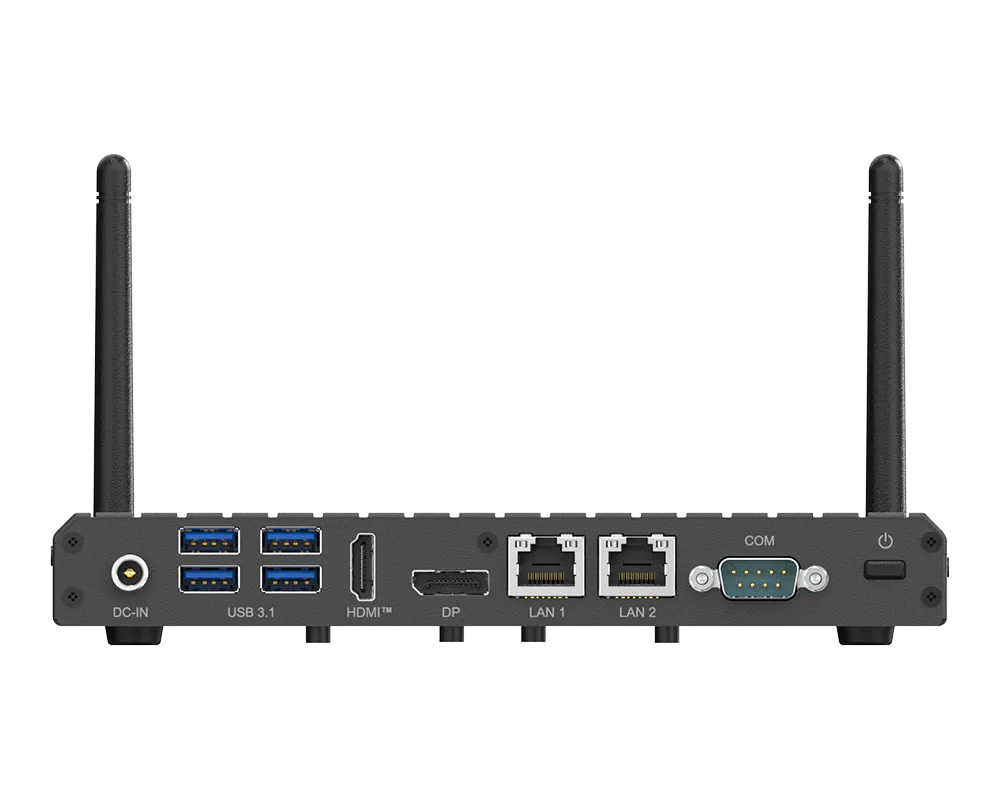

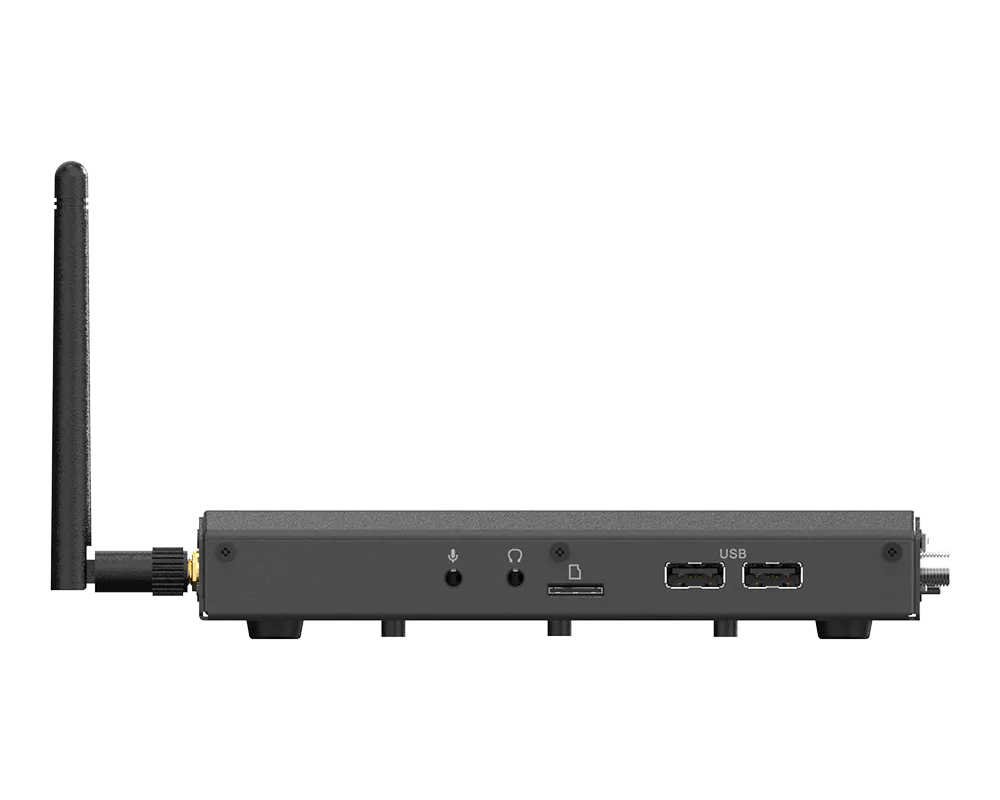

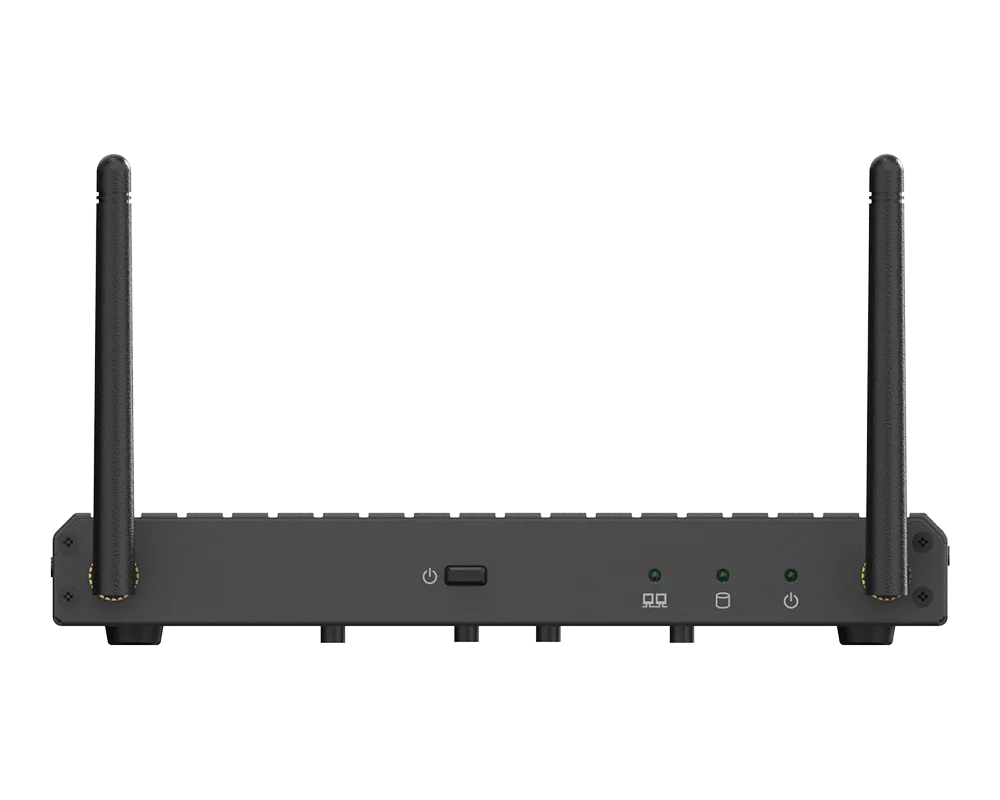

Ultra Slim Fanless Box PC with Intel® IOTG Alder Lake-N Processor for Ultra Low-Power Solution
- Intel® Alder Lake-N PC Client Series SoC
- DDR5 4800 MHz SODIMM Slot up to 16GB
- Dual independent displays: DP, HDMI
- 2 2.5 GbE LAN with RJ-45
- 1 M.2 B Key, 1 M.2 E Key Slot
- 4 USB 3.1 , 2 USB 2.0, 1 COM (1 RS-485), Audio
- 2 opening reserved for antennas
- DC-IN 12~24V
- Ultra Slim with fanless design
- 產品規格
- Ordering-Information
- Packing-List
- Optional-Items
產品規格
- 料號編碼
- MS-C924-SKU1
- MS-C924-SKU2
- MS-C924-SKU3
Ordering Information
- Part Number
- Description
- 9S6-C924-001
- Intel Alder Lake-N N97, 8G DDR5, 128G SSD, 1*HDMI, 1*DP, 2*2.5GbE, 4*USB 3.1 , 2*USB 2.0, 1*COM, 20V/100W Adapter, Power Cord US, DC-in 12-24V
- 9S6-C924-002
- Intel Alder Lake-N I3-N305, 8G DDR5, 128G SSD, 1*HDMI, 1*DP, 2*2.5GbE, 4*USB 3.1 , 2*USB 2.0, 1*COM, 20V/100W Adapter, Power Cord US, DC-in 12-24V
Packing List
- Part Number
- Description
- Quantity
- K33-3001002-I45
- Power cord
- 1
- S93-0406680-C54
- Adapter
- 1
- E2P-D732011-G40
- Mylar for optional WiFi module
- 1
Optional Item
- Part Number
- Description
- OE2-1A21001-000
- VESA Mount
- S79-2900580-V03
- WiFi Antenna x2
- 307-P170111-F89
- Stand
