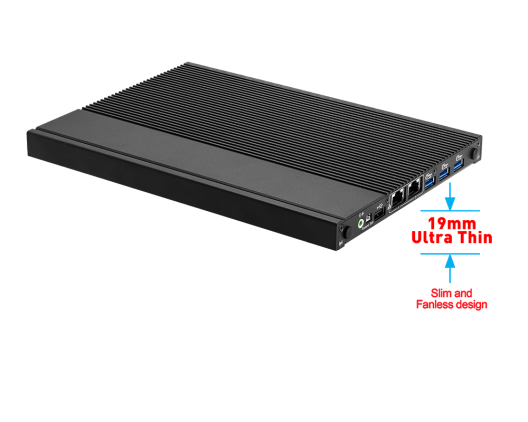

Ultra-Slim & Featherweight Fanless Box PC with Intel® Alder Lake-N/Twin Lake Platform, Low-Power for Digital Signage
- Intel® Alder Lake-N/Twin Lake PC Client Series SoC
- DDR5 4800 MHz SODIMM Slot up to 16GB
- Triple independent displays: 2 DP, 1 HDMI 2.0
- 2 GbE LAN with RJ-45
- 1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
- 3 USB 3.2 Gen 1, 1 USB 2.0, 1 COM(RS485), Audio
- Onboard TPM 2.0
- Easy access HDD, Memory, SIM Card, M.2 slots
- DC-IN 12~24V
- Ultra-slim, cableless & low power fanless design with thinness 19mm
- Anti-Vibration & Shockproof Design to Compliance IEC 60068-2
- 產品規格
- Ordering-Information
- Packing-List
產品規格
- 料號編碼
- MS-C926-SKU
System Processor
- CPU
- Intel® Alder Lake-N Processor N97, QC, 12W
Intel® Twin Lake Processor N150, QC, 6W
Intel® Twin Lake Processor N250, QC, 6W
Intel® Twin Lake Core 3-N355, OC, 15W
- Frequency
- 1.0 GHz, up to 3.9 GHz (Depends on CPU)
- L2 Cache
- 6MB
- CPU Type
- BGA
- Chipset
- Integrated in SoC Process
- BIOS
- AMI
Memory
- Technology
- Single-channel DDR5 4800 MHz
- Max. Capacity
- Up to 16GB
- Socket
- 1 x 262-pin SO-DIMM
Graphic
- Controller
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- DisplayPort
- HDMI 2.0 up to 4096 x 2304 @60Hz
DP up to 4096 × 2304 @60Hz
- Multiple Display
- 3 independent displays
Ethernet
- Controller
- 2 x Intel® I226-V 2.5 GbE LAN
Audio
- Controller
- Realtek® ALC897 HD Audio Codec
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- --
TPM
- Controller
- Infineon SLB9672VU2.0

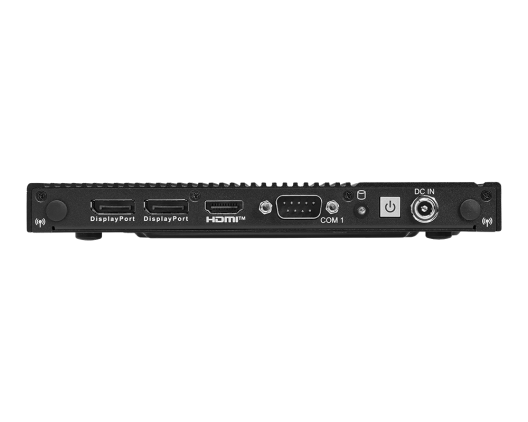

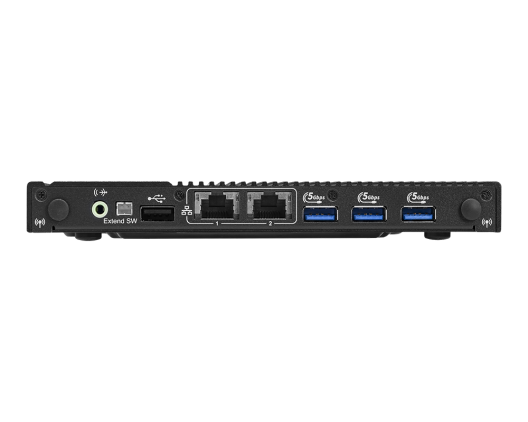

I/O Interface
- PS/2
- --
- CANbus
- --
- LVDS
- --
- VGA
- --
- RJ-45
- 2
- PoE
- --
- Audio
- 1 x Line-out
- USB
- 1 x USB 2.0
3 x USB 3.2 Gen 1
- Parallel
- --
- Serial
- 1 x COM port
COM1: RS-232/422/485, 0V/5V/12V
- HDMI
- 1
- GPIO
- --
- DVI
- --
- DisplayPort
- 2
- Antenna
- 4 openings reserved for antennas
Expansion Slot
- PCIe x16
- --
- PCIe x8
- --
- PCIe x4
- --
- PCIe x1
- --
- PCI
- --
- M.2
- 1 x M.2 B key (PCIe x1/SATA, USB 3.2 Gen 2 x 1, USB 2.0, w/NANO SIM-Holder), 2242/3042/2280
1 x M.2 E key (PCIe x1, USB 2.0), 2230
- Mini-PCIe
- --
Storage
- SATA
- 1 x 2.5" HDD/SSD
- CFast
- --
- mSATA
- --
- CompactFlash
- --
Power Supply
- DC Input
- DC-in 12~24V Wide-Range with Lockable DC Jack
- AC Input
- --
Environment
- IP Rating
- --
- Operating Temperature
- -10 ~ 50°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- Vibration
- Operating, IEC 60068-2-64: 2 Grms, 5~ 500 Hz, 1hr/axis (w/ SSD)
- Shock
- Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD)
Physical Characteristics
- Dimensions
- 180 x 255 x 19 mm
- Weight
- 1.3 kg
- Mounting
- VESA mount
Wall mount (STD)
Certification
- EMC
- CE, FCC, RCM, VCCI, BSMI, UKCA, IC
- Safety
- IEC 62368: CE(LVD) / BSMI
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC (64-bit, 21H2, Only for ADL-N)
Windows 11 IoT Enterprise LTSC (64-bit, 24H2)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 936-C92612-001
- MS-C92612 VER 10 INTEL ALDER LAKE-N N97, W/O LOGO MSI, BLACK, WITH ADAPTER 19V/65W, WALL MOUNT, VESA MOUNT
- 936-C92612-002
- MS-C92612 VER 10 OPT A INTEL TWIN LAKE N250, W/O LOGO MSI, BLACK, WITH ADAPTER 19V/65W, WALL MOUNT, VESA MOUNT
- 936-C92612-003
- MS-C92612 VER 10 OPT B INTEL TWIN LAKE CORE 3-N355, W/O LOGO MSI, BLACK, WITH ADAPTER 19V/65W, WALL MOUNT, VESA MOUNT
- 936-C92612-004
- MS-C92612 VER 10 OPT C INTEL TWIN LAKE N150, W/O LOGO MSI, BLACK, WITH ADAPTER 19V/65W, WALL MOUNT, VESA MOUNT
Packing List
- Part Number
- Description
- Quantity
- S93-0401780-S14
- Adaptor 19V/65W
- 1
- E22-9A69040-815
- Wall Mount Bracket
- 2
- E22-9A95080-C22
- VESA Mount Bracket
- 1
- K1L-3001190-V03
- COAXIAL CABLE, 120mm
- 1
- K1L-3001191-V03
- COAXIAL CABLE, 140mm
- 1
- K1L-3001192-V03
- COAXIAL CABLE, 370mm
- 1
- K1L-3001193-V03
- COAXIAL CABLE, 220mm
- 1
- K1L-3001194-V03
- COAXIAL CABLE, 110mm
- 1
- K1L-3001195-V03
- COAXIAL CABLE, 260mm
- 1
