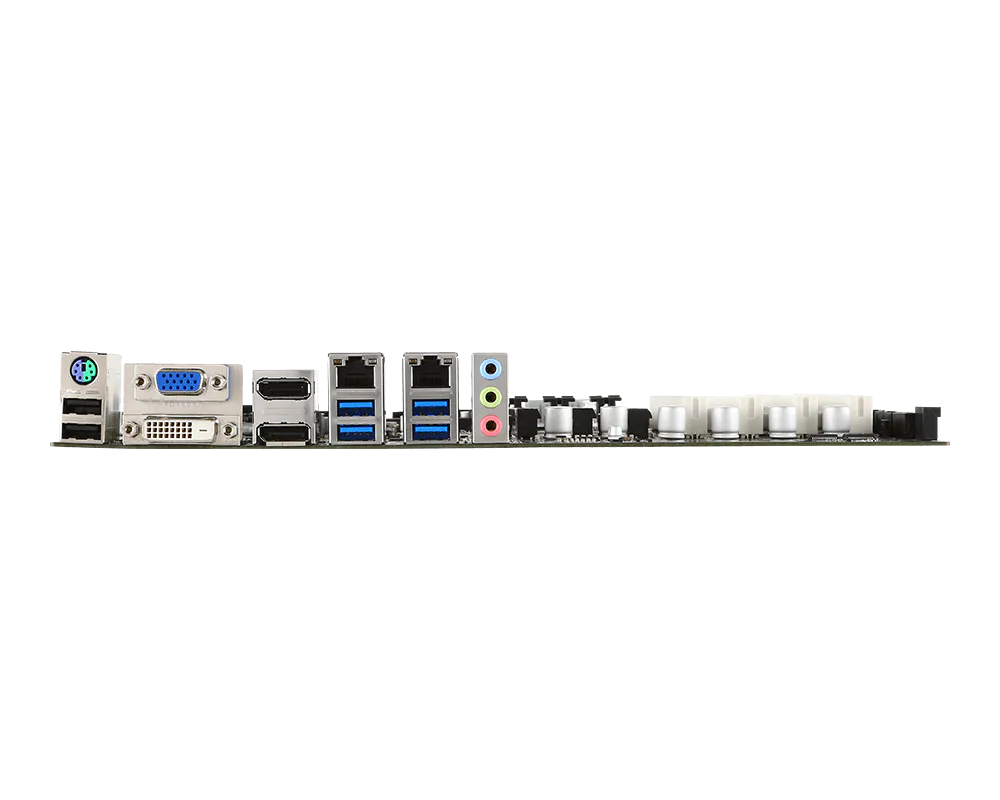

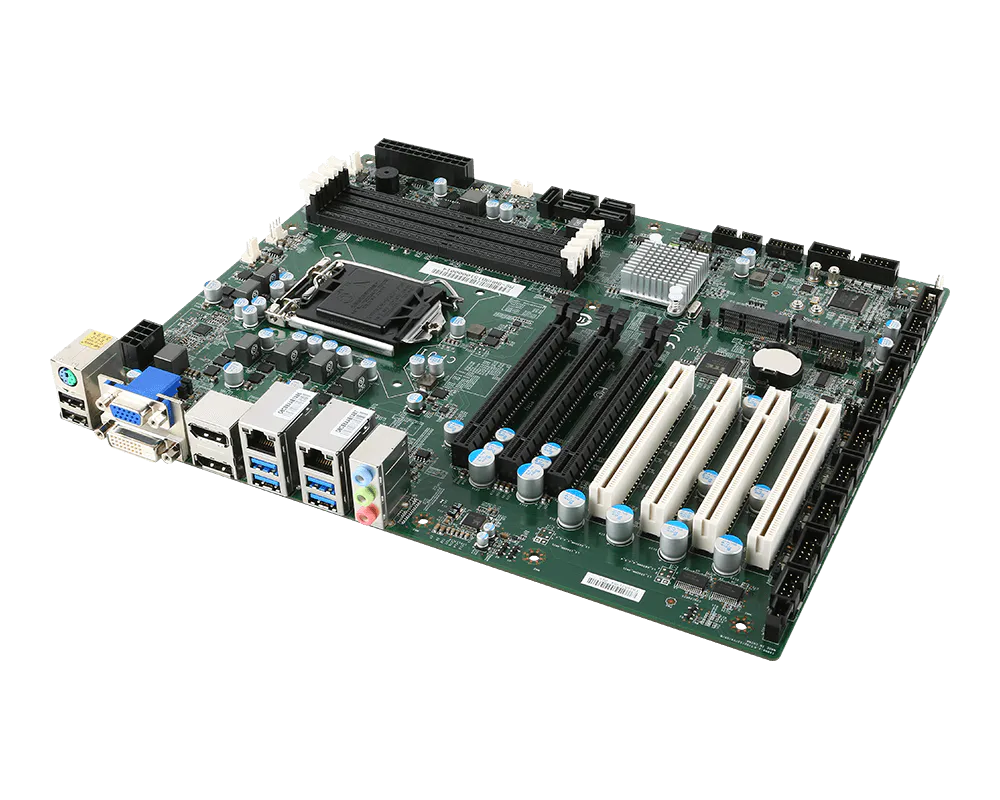

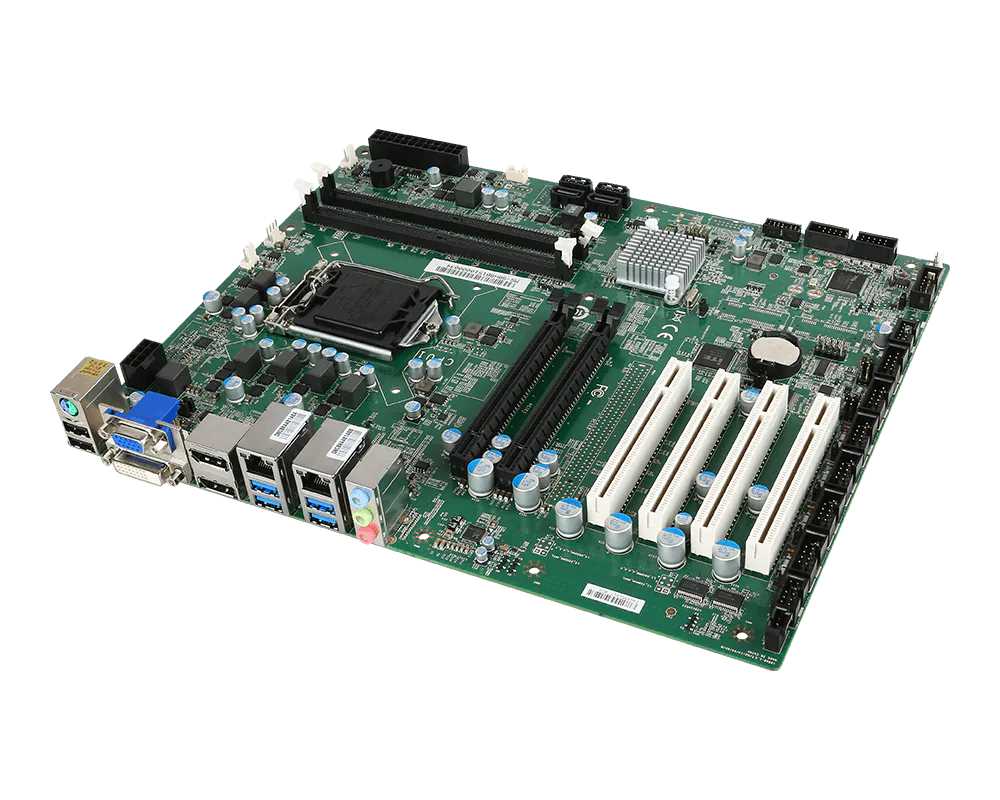

ATX with 7th/6th Gen Intel® Kaby Lake/Skylake Core™ Xeon®/i7/i5/ i3 Pentium®/Celeron® Processor & Intel® C236/Q170/H110 for High-Performance Solution

ATX with 7th/6th Gen Intel^® Kaby Lake/Skylake Core™ Xeon^®/i7/i5/i3, Pentium^®, Celeron^® Processor & Intel^® C236/Q170/H110 for High-Performance Solution

Intel^® 7th/6th Gen Intel^® Kaby Lake-S/Skylake-S Series with C236/Q170/H110
4 DDR4 2133 MHz ECC/non-ECC UDIMM slots up to 64GB
Triple independent displays: VGA, DVI-D, 2DP
2 GbE LAN with RJ-45
1 PCIe x16 (Gen 3), 2 PCIe x4 (Gen 3), 4 PCI, 1 Mini-PCIe (Full-size, with mSATA), 1 Mini-PCIe (Full-size) slots
mSATA, 5 SATA 3.0 for storage
SATA RAID 0/1/5/10
6 USB 3.2 Gen 1, 6 USB 2.0, 6 COM (2 RS-485), GPIO, LPT, PS/2, Audio, S/PDIF, 3 System FAN
SMBus, Chassis Intrusion
ATX Power

產品規格
Ordering-Information
Packing-List

產品規格

料號編碼
MS-98H9-C236 SKU
MS-98H9-H110 SKU
MS-98H9-Q170 SKU

Processor

CPU
7th/6th Gen Intel^® Desktop Kaby Lake/ Skylake Xeon/ i7/i5/ i3/Pentium^®/ Celeron^® Series Processor, Max 95W
7th/6th Gen Intel^® Desktop Kaby Lake/Skylake i7/i5/i3/Pentium^®/Celeron^® Series Processor, Max 95W
7th/6th Gen Intel^® Desktop Kaby Lake/Skylake i7/i5/i3/Pentium^®/Celeron^® Series Processor, Max 95W

Frequency
2.6 GHz~4.5 GHz (Depends on CPU)
2.6 GHz~4.5 GHz (Depends on CPU)
2.6 GHz~4.5 GHz (Depends on CPU)

L2 Cache
2MB~8MB (Depends on CPU)
2MB~8MB (Depends on CPU)
2MB~8MB (Depends on CPU)

CPU Type
Socket (LGA 1151)
Socket (LGA 1151)
Socket (LGA 1151)

Chipset
Intel^® C236 Express
Intel^® H110 Express
Intel^® Q170 Express

BIOS
AMI UEFI
AMI UEFI
AMI UEFI

Memory

Technology
Dual-channel DDR4 (ECC) 2133 MHz
Dual-channel DDR4 (non-ECC) 2133 MHz
Dual-channel DDR4 (ECC) 2133 MHz

Max. Capacity
Up to 64GB
Up to 32GB
Up to 64GB

Socket
4 x 288-pin UDIMMs
2 x 288-pin UDIMMs
4 x 288-pin UDIMMs

Display

Controller
Intel^® HD Graphics
Intel^® HD Graphics
Intel^® HD Graphics

Graphic Memory
Depends on CPU
Depends on CPU
Depends on CPU

VGA
1 (Non PnP)
1 (Non PnP)
1 (Non PnP)

DVI
1 (DVI-D)
1 (DVI-D)
1 (DVI-D)

DisplayPort
2
2
2

Multiple Display
3 independent displays
2 independent displays
3 independent displays

Display Interface
VGA up to 1920 x 1080
DVI-D up to 1920 x 1200
DP up to 4096 x 2304
VGA up to 1920 x 1080
DVI-D up to 1920 x 1200
DP up to 4096 x 2304
VGA up to 1920 x 1080
DVI-D up to 1920 x 1200
DP up to 4096 x 2304

Ethernet

Controller
1 x Intel^® I219-LM GbE LAN PHY (Support Intel® AMT 11)
1 x Intel^® I210-AT GbE LAN
1 x Intel^® I219-LM GbE LAN PHY (Support Intel® AMT 11)
1 x Intel^® I210-AT GbE LAN
1 x Intel^® I219-LM GbE LAN PHY (Support Intel® AMT 11)
1 x Intel^® I210-AT GbE LAN

Audio

Controller
Realtek^® ALC887 HD Audio Codec
Realtek^® ALC887 HD Audio Codec
Realtek^® ALC887 HD Audio Codec

Super I/O

Controller
Fintek F81866AD-I
Fintek F81866AD-I
Fintek F81866AD-I

H/W Monitor

Watchdog Timer
256-level Watchdog Timer
256-level Watchdog Timer
256-level Watchdog Timer

Smart Fan
Yes
Yes
Yes

TPM

Controller
Box header
Box header
Box header

I/O Interface

PS/2
1 x PS/2 port by Y-cable for keyboard and mouse
1 x PS/2 port by Y-cable for keyboard and mouse
1 x PS/2 port by Y-cable for keyboard and mouse

USB
6 x USB 2.0 (2 x rear, 4 x internal)
6 x USB 3.2 Gen 1 (4 x rear, 2 x internal)
4 x USB 2.0 (2 x rear, 2 x internal)
4 x USB 3.2 Gen 1 (rear)
6 x USB 2.0 (2 x rear, 4 x internal)
6 x USB 3.2 Gen 1 (4 x rear, 2 x internal)

Parallel
Yes
Yes
Yes

Serial
6 x COM (COM1~6: internal)
COM1~2: RS-232/422/485, 0V/5V/12V
COM3~6: RS-232, 0V/5V/12V
6 x COM (COM1~6: internal)
COM1~2: RS-232/422/485, 0V/5V/12V
COM3~6: RS-232, 0V/5V/12V
6 x COM (COM1~6: internal)
COM1~2: RS-232/422/485, 0V/5V/12V
COM3~6: RS-232, 0V/5V/12V

GPIO
8-bits (4 x GPI; 4 x GPO), 5V
8-bits (4 x GPI; 4 x GPO), 5V
8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

PCIe x16
1
1
1

PCIe x4
2
1
2

Mini-PCIe
2 x Full-size (one w/ mSATA)
2 x Full-size (one w/ mSATA)

Storage

SATA
5 x SATA 3.0 (RAID 0/1/5/10)
4 x SATA 3.0
5 x SATA 3.0 (RAID 0/1/5/10)

mSATA
1
1

Power Supply

ATX
ATX-Power 24P, 12V-8P
ATX-Power 24P, 12V-8P
ATX-Power 24P, 12V-8P

Environment

Operating Temperature
-10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
-10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
-10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s

Operating Humidity
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing

Storage Humidity
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing

Storage Temperature
-20 ~ 80°C
-20 ~ 80°C
-20 ~ 80°C

Form Factor

Dimensions
305 x 244 mm (ATX)
305 x 244 mm (ATX)
305 x 244 mm (ATX)

Weight
0.70 Kg
0.70 Kg
0.70 Kg

Certification

EMC
FCC, CE, RCM, VCCI, BSMI (Class B)
FCC, CE, RCM, VCCI, BSMI (Class B)
FCC, CE, RCM, VCCI, BSMI (Class B)

Software Platform

OS Support
Windows 7 (32/64-bit) (Skylake-S Series CPU Only)
Windows 8.1 (64-bit) (Skylake-S Series CPU Only)
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)
Windows 7 (32/64-bit) (Skylake-S Series CPU Only)
Windows 8.1 (64-bit) (Skylake-S Series CPU Only)
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)
Windows 7 (32/64-bit) (Skylake-S Series CPU Only)
Windows 8.1 (64-bit) (Skylake-S Series CPU Only)
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)

Ordering Information

Part Number
Description

919-98H9-001
MS-98H9 VER:10 Intel Kaby Lake-S/Skylake-S, Intel C236, 4*DDR4, 1*DVI-D+1*VGA+2*DP+6*USB3.2 Gen 1+6*USB 2.0+5*SATA 3.0+1*PCIe x16+2*PCIe x4+4*PCI+2*Mini-PCIe+1*mSATA+6*COM+2*LAN+ATX POWER

919-98H9-002
MS-98H9 VER:10 Intel Kaby Lake-S/Skylake-S, Intel Q170, 4*DDR4, 1*DVI-D+1*VGA+2*DP+6*USB3.2 Gen 1+6*USB 2.0+5*SATA 3.0+1*PCIe x16+2*PCIe x4+4*PCI+2*Mini-PCIe+1*mSATA+6*COM+2*LAN+ATX POWER

919-98H9-003
MS-98H9 VER:10 Intel Kaby Lake-S/Skylake-S, Intel H110, 2*DDR4, 1*DVI-D+1*VGA+2*DP+4*USB3.2 Gen 1+4*USB 2.0+4*SATA 3.0+1*PCIe x16+1*PCIe x4+4*PCI+6*COM+2*LAN+ATX POWER

Packing List

Part Number
Description
Quantity

K1B-3008012-E06
USB 2.0 Cable, 330mm
1

K14-1018004-V03
COM Port Cable, 510mm
1

K39-3002004-E06
PS/2 Y-Cable, 190mm
1

K18-1025011-V03
LPT Cable, 300mm
1

K1D-1008261-V03
SATA Cable, 500mm
2

E21-98H9010-C22
I/O SHIELDING
1
