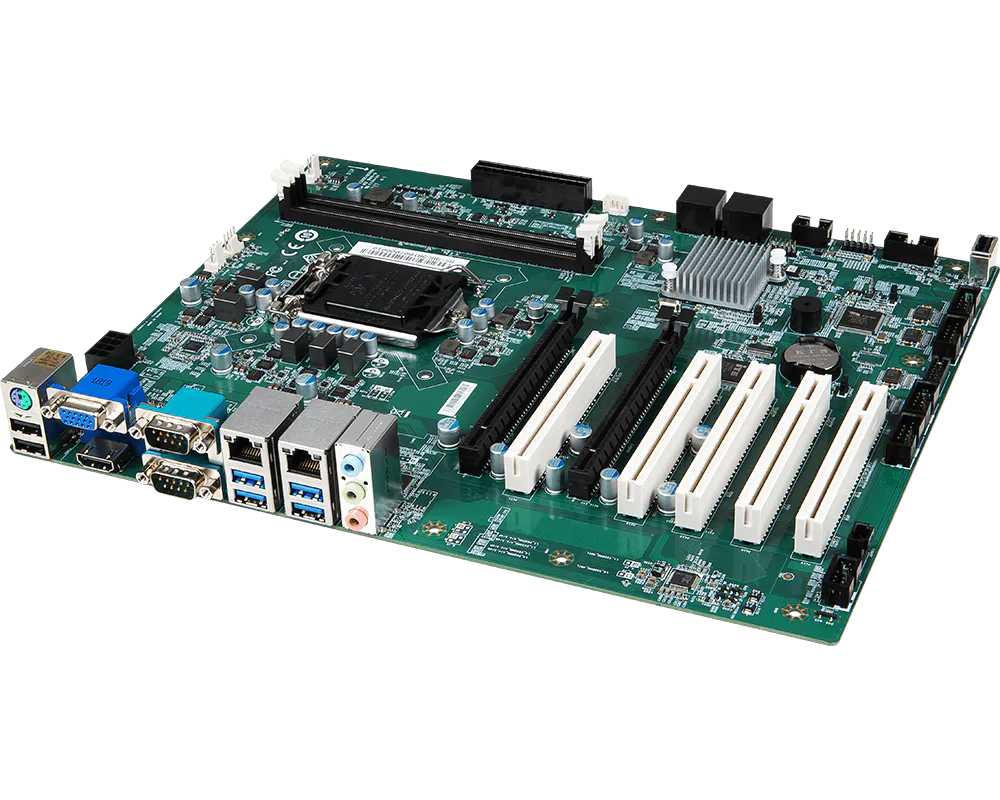

ATX with 7th/6th Gen Intel® Kaby Lake/Skylake Core™ i7/i5/ i3, Pentium®, Celeron® Processor & Intel® H110 for Mainstream Solution
- Intel® 7th/6th Gen Kaby Lake-S/Skylake-S Series with H110
- 2 DDR4 2133/2400 MHz UDIMM slots up to 32GB
- Dual independent displays: VGA, HDMI™
- 2 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3), 1 PCIe x4 (Gen 3), 5 PCI slots
- 4 SATA 3.0 for storage
- 4 USB 3.2 Gen 1, 5 USB 2.0, 6 COM ports (1 RS-485), GPIO, PS/2, Audio, S/PDIF, 2 System FAN
- SMBus, Chassis Intrusion
- ATX Power
- 產品規格
- Ordering-Information
- Packing-List
產品規格
- 料號編碼
- MS-98L9
Processor
- CPU
- 7th/6th Gen Intel® Desktop Kaby Lake/Skylake i7/i5/i3/ Pentium® /Celeron® Series Processor, Max 65W
- Frequency
- 2.3GHz~4.2GHz (Depends on CPU)
- L2 Cache
- 2MB~8MB (Depends on CPU)
- CPU Type
- Socket (LGA 1151)
- Chipset
- Intel® H110 Express
- BIOS
- AMI UEFI
Memory
- Technology
- Dual-channel DDR4 2133/2400 MHz
- Max. Capacity
- Up to 32GB
- Socket
- 2 x 288-pin UDIMMs
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- VGA
- 1
- HDMI
- 1
- Multiple Display
- 2 independent displays
- Display Interface
- VGA up to 1920 x 1200 @60Hz
HDMI™ up to 4096 x 2160 @24Hz
Ethernet
- Controller
- 1 x Intel® I219-LM GbE LAN PHY
1 x Intel® I211-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Box header

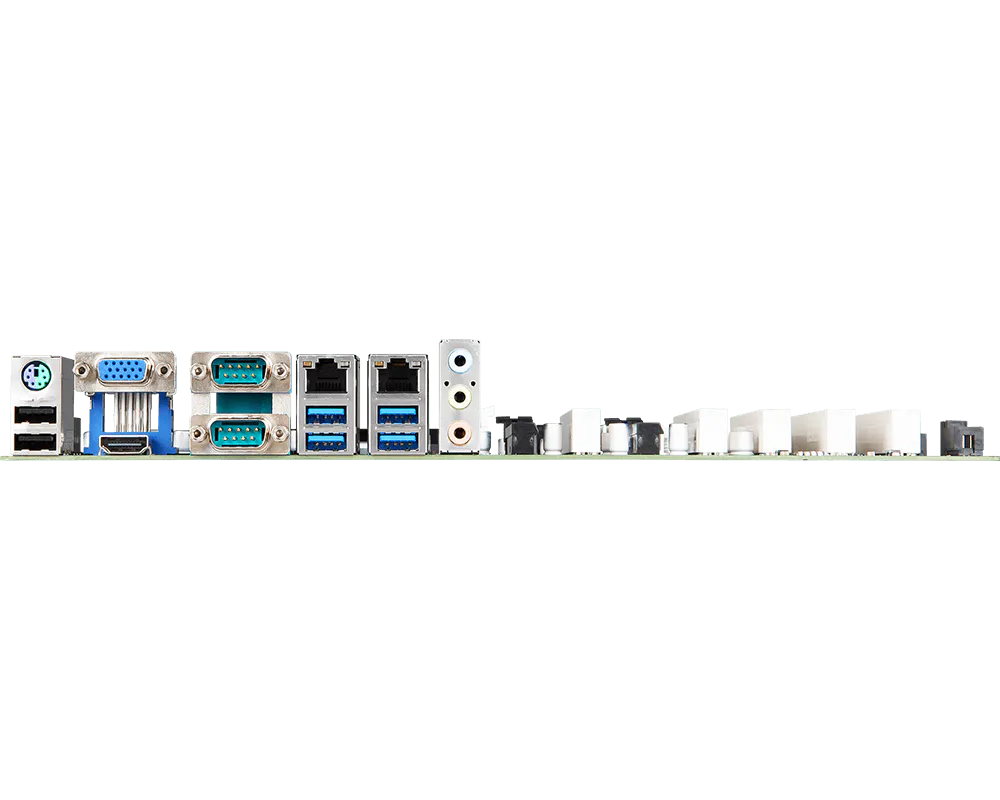

I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 5 x USB 2.0 (2 x rear, 3 x internal with one Vertical Type-A)
4 x USB 3.2 Gen 1 (rear)
- Serial
- 6 x COM ports (2 x rear, 4 x internal)
COM1: RS-232/422/485, 0V/5V/12V, Auto-flow Control
COM2~6: RS-232, COM2: 0V/5V/12V
- GPIO
- GPIO 1: 8-bits (4 x GPI; 4 x GPO by default), 5V
GPIO 2 : 8-bits (8 x GPI or 8 x GPO by request), 5V
Expansion Slot
- PCIe x16
- 1
- PCIe x4
- 1 (PCIe x16 Slot Type)
- PCI
- 5
Storage
- SATA
- 4 x SATA 3.0
Power Supply
- ATX
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 305 x 244 mm (ATX)
- Weight
- 0.70 kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI
Software Platform
- OS Support
- Windows 7 (32/64-bit) (Skylake-S Series CPU Only)
Windows 8.1 (64-bit) (Skylake-S Series CPU Only)
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 919-98L9-001
- MS-98L9\609-98L9-010\809-98L9-005 VER11 Intel Kaby Lake-S/Skylake-S H110,2*DDR4,1*PCIe x16,1*PCIe x4, 5*PCI,HDMI™,VGA,2*LAN,4*USB3.0,5*USB2.0,4*SATA3. 0,6*COM,ATX POWER,RoHS,SINGLE,For Channel
Packing List
- Part Number
- Description
- Quantity
- K1D-1008261-V03
- SATA Cable ,500mm
- 2
- E21-98L9010-C22
- I/O SHIELDING
- 1
- G71-SEDC193-N562
- Driver CD
- 1
