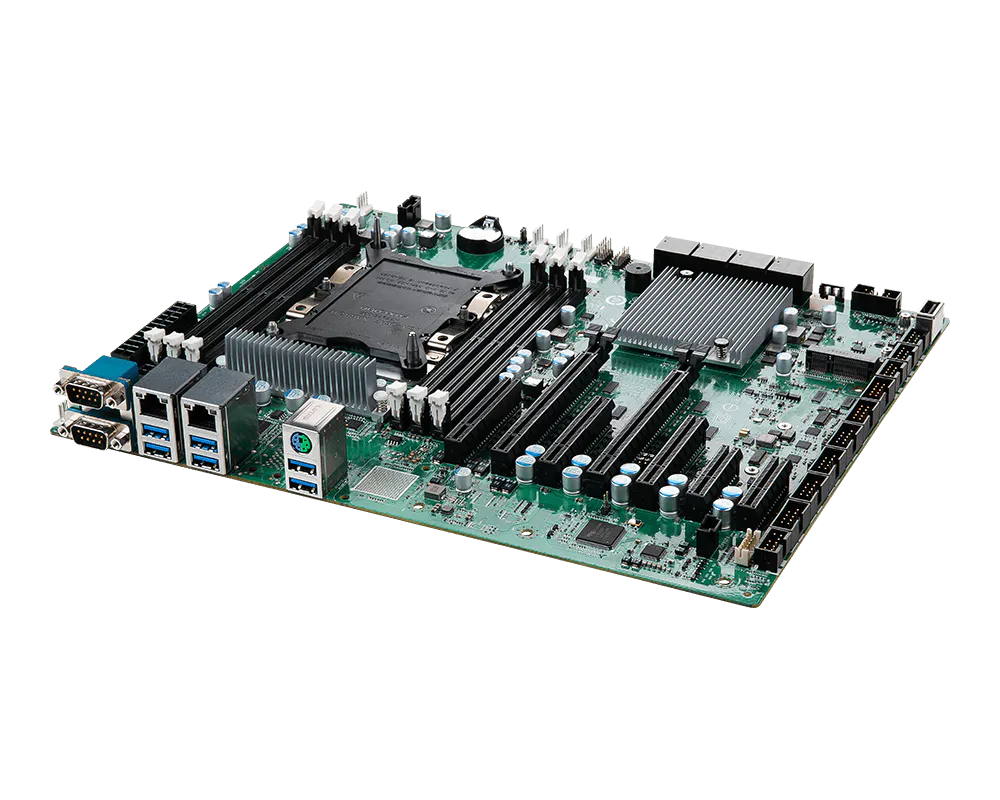

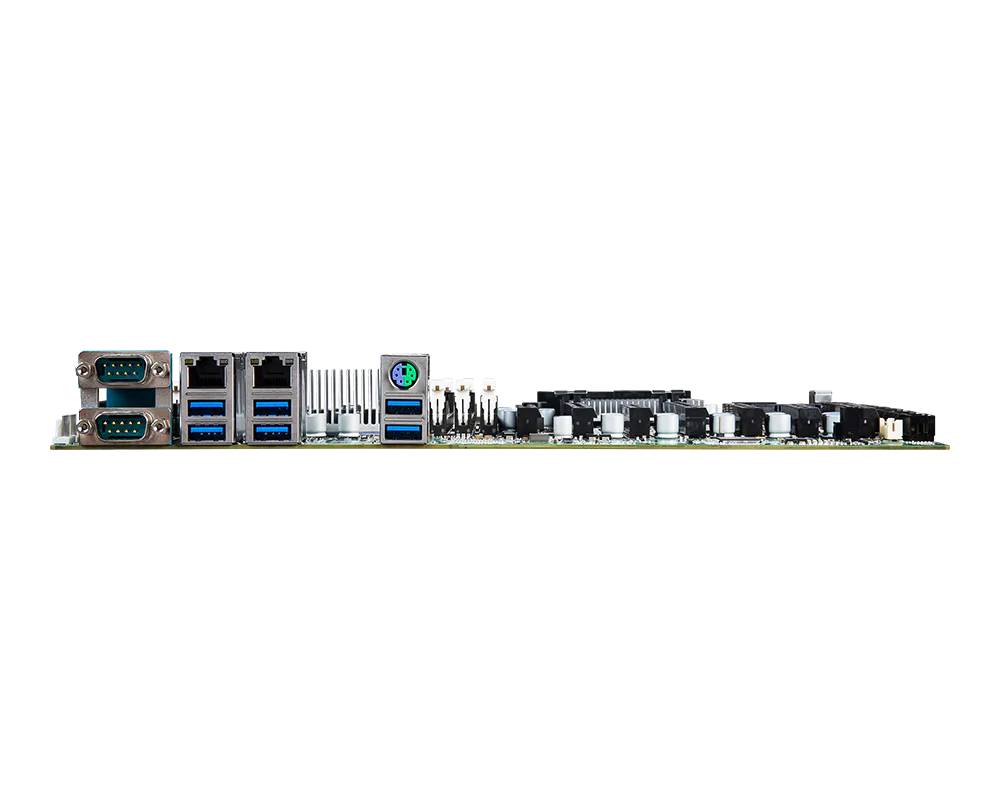

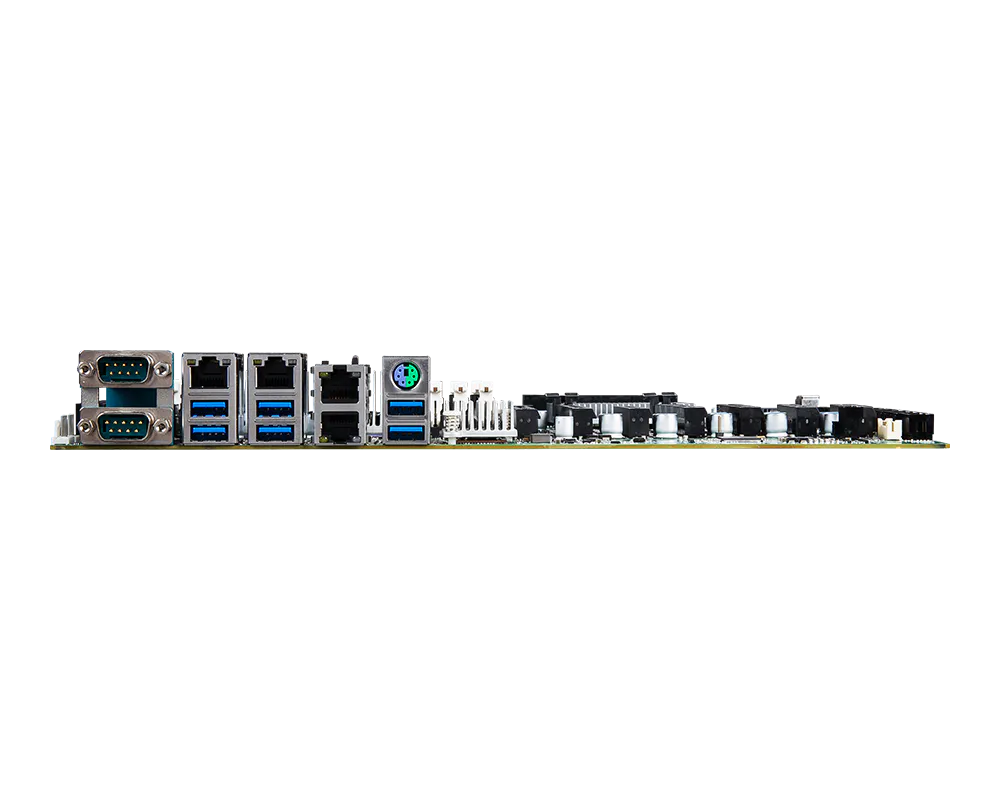

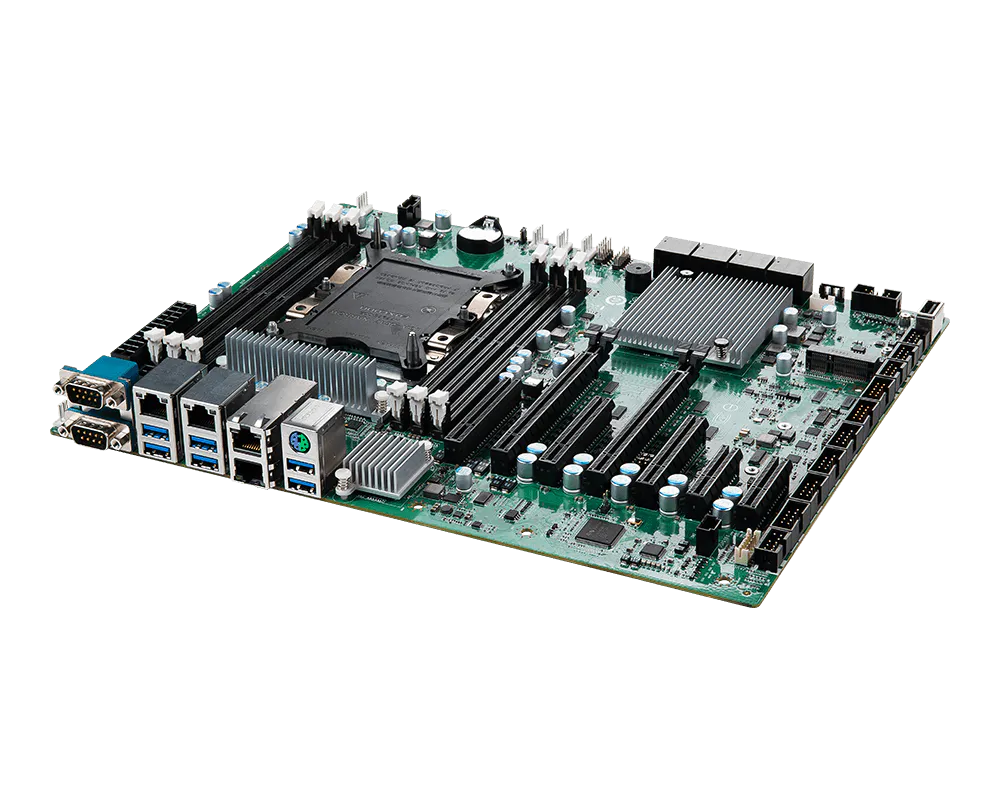

ATX with 2nd/1st Gen Intel® Cascade Lake/Skylake Xeon® Scalable Processors & Intel® C622/C621 Chipset for Ultra-High Performance Solution
- Intel® 2nd/1st Gen Cascade Lake-SP/Skylake-SP Series with C622/C621
- 6 DDR4 2666 MHz ECC RDIMMs up to 192GB
- 2 GbE LAN, 2 10GbE LAN with RJ-45
- 2 PCIe x16 (Gen 3) or 4 PCIe x8 (Gen3), 1 PCIe x8 (Gen 3), 2 PCIe x4 (Gen 3), 1 Mini-PCIe (Full/Half-size, with mSATA) slots
- mSATA, 8 SATA 3.0 for storage
- SATA RAID 0/1/5/10
- 6 USB 3.2 Gen 1, 7 USB 2.0, 6 COM (2 RS-485), GPIO, PS/2, Audio, 6 System FAN
- Onboard TPM 2.0
- Intel® VROC for RAID function with NVMe storage
- SMBus, Chassis Intrusion, PMBus
- ATX Power
- 產品規格
- Ordering-Information
- Packing-List
- Optional-Items
產品規格
- 料號編碼
- MS-98M9-SKU1
- MS-98M9-SKU2
System Processor
- CPU
- 2nd/1st Gen Intel® Cascade Lake/Skylake Xeon® Scalable Processors, Max 205W
- 2nd/1st Gen Intel® Cascade Lake/Skylake Xeon® Scalable Processors, Max 205W
- Frequency
- 1.9GHz~2.5GHz (Depends on CPU)
- 1.9GHz~2.5GHz (Depends on CPU)
- L2 Cache
- 11MB~27.5MB (Depends on CPU)
- 11MB~27.5MB (Depends on CPU)
- CPU Type
- Socket (LGA 3647)
- Socket (LGA 3647)
- Chipset
- Intel® C622 Express
- Intel® C621 Express
- BIOS
- AMI UEFI
- AMI UEFI
Memory
- Technology
- Six-channel DDR4 (ECC) 2666 MHz
- Six-channel DDR4 (ECC) 2666 MHz
- Max. Capacity
- Up to 192GB
- Up to 192GB
- Socket
- 6 x 288-pin RDIMMs
- 6 x 288-pin RDIMMs
Ethernet
- Controller
- 1 x Intel® PHY X557-AT2 GbE LAN
2 x Intel® I210-AT GbE LAN - 2 x Intel® I210-AT GbE LAN
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
- Realtek® ALC887-VD2-CG HD Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
TPM
- Controller
- Infineon SLB9665TT2.0
- Infineon SLB9665TT2.0
I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 7 x USB 2.0 (7 x internal with one Vertical Type-A)
6 x USB 3.2 Gen 1 (rear) - 7 x USB 2.0 (7 x internal with one Vertical Type-A)
6 x USB 3.2 Gen 1 (rear)
- Serial
- 6 x COM ports (2 x rear, 4 x internal)
COM1: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control
COM2: RS-232/422/485, 0V/5V/12V, Auto-flow Control
COM3~6: RS-232, 0V/5V/12V - 6 x COM ports (2 x rear, 4 x internal)
COM1: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control
COM2: RS-232/422/485, 0V/5V/12V, Auto-flow Control
COM3~6: RS-232, 0V/5V/12V
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
- PCIe x16
- 2 (Signal configured as 2 PCIe x16 or 4 PCIe x8 or 1 PCIe x16 + 2 PCIe x8)
- 2 (Signal configured as 2 PCIe x16 or 4 PCIe x8 or 1 PCIe x16 + 2 PCIe x8)
- PCIe x8
- 3 (Slot3&5 single shared with PCIe x16)
- 3 (Slot3&5 single shared with PCIe x16)
- PCIe x4
- 2
- 2
- Mini-PCIe
- 1 x Full/Half-size (mSATA)
- 1 x Full/Half-size (mSATA)
Storage
- SATA
- 8 x SATA 3.0 (RAID 0/1/5/10)
- 8 x SATA 3.0 (RAID 0/1/5/10)
- mSATA
- 1 (shared w/ Mini-PCIe)
- 1 (shared w/ Mini-PCIe)
Power Supply
- ATX
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- 0 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
Form Factor
- Dimensions
- 305 x 244 mm (ATX)
- 305 x 244 mm (ATX)
- Weight
- 0.90 kg
- 0.90 kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI
- CE, FCC Class B, BSMI, RCM, VCCI
Software Platform
- OS Support
- Windows Server 2012 (64-bit) (Skylake-SP Series CPU Only)
Windows Server 2016 (64-bit) (Skylake-SP & Cascade Lake Series CPU)
Windows Server 2019 (64-bit) (Cascade Lake Series CPU)
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5) (by request)
Linux (Support by request) - Windows Server 2012 (64-bit) (Skylake-SP Series CPU Only)
Windows Server 2016 (64-bit) (Skylake-SP & Cascade Lake Series CPU)
Windows Server 2019 (64-bit) (Cascade Lake Series CPU)
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5) (by request)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 919-98M9-001
- MS-98M9\609-98M9-010\809-98M9-003 Ver 1.0 Intel Xeon-SP C622, 4*DDR4 RDIMM, 2*PCIe x16, 3*PCIe x8, 2*PCIe x4, 1*Mini-PCIe, TPM2.0,4*LANs, 6*USB3.0, 7*USB2.0, 8*SATA-3.0, 6*COM, ATX POWER, RoHS,SINGLE
- 919-98M9-002
- MS-98M9\609-98M9-020\809-98M9-004 Ver 1.0 Intel Xeon-SP C621,4*DDR4 RDIMM, 2*PCIe x16, 3*PCIe x8, 2*PCIe x4, 1*Mini-PCIe, TPM2.0, 2*LANs, 6*USB3.0, 7*USB2.0, 8*SATA-3.0, 6*COM, ATX POWER, RoHS, SINGLE
Packing List
- Part Number
- Description
- Quantity
- K1D-1008261-V03
- SATA Cable, 500mm
- 2
- K1B-3008012-E06
- USB 2.0 Cable, 330mm
- 1
- E21-98M9020-C22
- I/O SHIELDING (SKU1)
- 1
- E21-98M9010-C22
- I/O SHIELDING (SKU2)
- 1
Optional Item
- Part Number
- Description
- K14-1018004-V03
- COM Port Cable, 510mm
