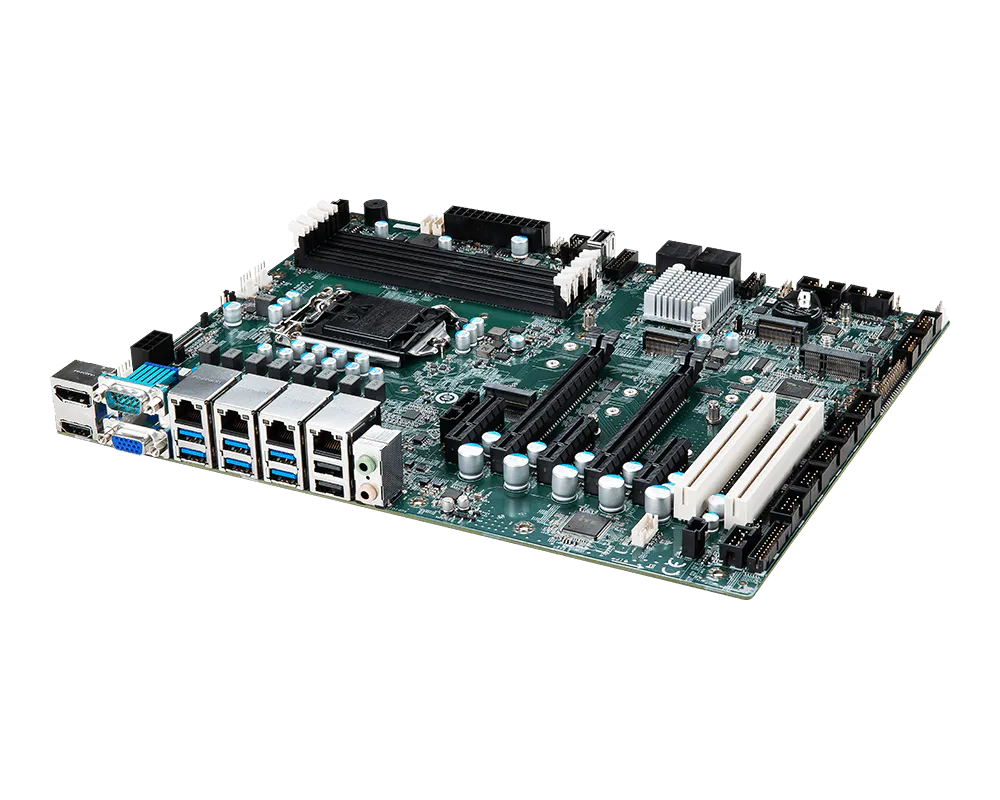

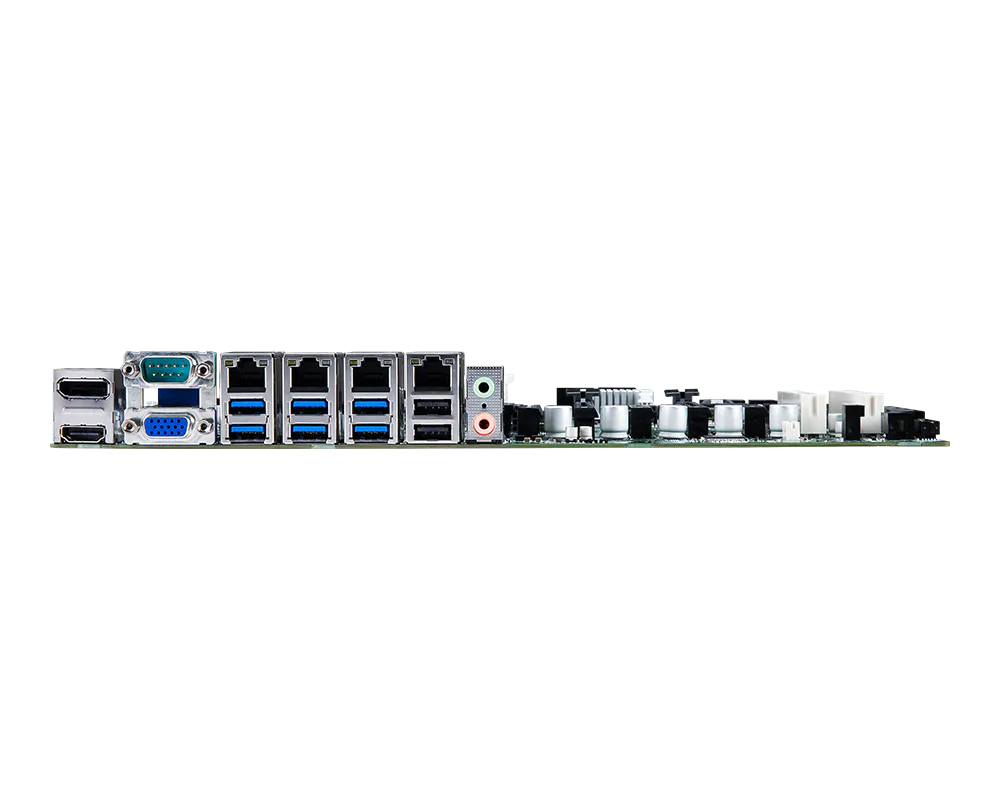

ATX with 10th Gen Intel® Comet Lake-S Xeon®, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® W480E/Q470E for High-Performance Solution

ATX with 10th Gen Intel^® Comet Lake-S Xeon^®, Core™ i9/i7/i5/i3, Pentium^®, Celeron^® Processor & Intel^® W480E/Q470E for High-Performance Solution

Intel^® 10th Gen Comet Lake-S Series with W480E/Q470E
4 DDR4 2933 MHz ECC/non-ECC UDIMMs up to 128GB
Triple independent displays: VGA, DP, HDMI™, eDP
4 GbE LAN with RJ-45
1 PCIe x16 (Gen 3) or 2 PCIe x8 (Gen 3), 3 PCIe x4 (Gen 3), 2 PCI, 1 Mini-PCIe (Full/Half-size) slots
3 M.2 M key, 4 SATA 3.0 for storage
SATA RAID 0/1/5/10
6 USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 5 USB 2.0, 10 COM, GPIO, LPT, PS/2, Audio, S/PDIF, 3 System FAN
Onboard TPM 2.0
SMBus, I2C, PMBus, iAMT 14.x, Chassis Intrusion
ATX Power

產品規格
Ordering-Information
Packing-List

產品規格

料號編碼
MS-98N9-SKU1
MS-98N9-SKU2

Processor

CPU
10th Gen Intel^® Comet Lake-S Xeon^®, Core™ i9/i7/i5/i3, Pentium^®, Celeron^® Processor, Max 125W
10th Gen Intel^® Comet Lake-S Core™ i9/i7/i5/i3, Pentium^®, Celeron^® Processor, Max 125W

Frequency
1.8GHz~4.8GHz (Depends on CPU)
1.8GHz~4.8GHz (Depends on CPU)

L2 Cache
2MB~20MB (Depends on CPU)
2MB~20MB (Depends on CPU)

CPU Type
Socket (LGA 1200)
Socket (LGA 1200)

Chipset
Intel^® W480E Express
Intel^® Q470E Express

BIOS
AMI UEFI
AMI UEFI

Memory

Technology
Dual-channel DDR4 (ECC/non-ECC) 2933 MHz
Dual-channel DDR4 (non-ECC) 2933 MHz

Max. Capacity
Up to 128GB
Up to 128GB

Socket
4 x 288-pin UDIMMs
4 x 288-pin UDIMMs

Display

Controller
Intel^® UHD Graphics
Intel^® UHD Graphics

Graphic Memory
Depends on CPU
Depends on CPU

HDMI
1
1

DisplayPort
1
1

Multiple Display
3 independent displays
3 independent displays

Display Interface
VGA up to 1920 x 1200 @60Hz
HDMI™ up to 4096 x 2160 @30Hz
DP up to 4096 x 2304 @60Hz
eDP up to 4096 x 2304 @60Hz
VGA up to 1920 x 1200 @60Hz
HDMI™ up to 4096 x 2160 @30Hz
DP up to 4096 x 2304 @60Hz
eDP up to 4096 x 2304 @60Hz

Ethernet

Controller
1 x Intel^® I219-LM GbE LAN PHY
3 x Intel^® I210-AT GbE LAN
1 x Intel^® I219-LM GbE LAN PHY
1 x Intel^® I210-AT GbE LAN

Audio

Controller
Realtek^® ALC888S-VD2-GR Audio Codec
Realtek^® ALC888S-VD2-GR Audio Codec

Super I/O

Controller
Fintek F81966D-I
Fintek F81966D-I

H/W Monitor

Watchdog Timer
256-level Watchdog Timer
256-level Watchdog Timer

Smart Fan
Yes
Yes

TPM

Controller
Infineon SLB 9670VQ2.0
Infineon SLB 9670VQ2.0

I/O Interface

PS/2
1 (wafer Connector)
1 (wafer Connector)

USB
6 x USB 3.2 Gen 2 (6 x rear)
2 x USB 3.2 Gen 1 (2 x internal)
5 x USB 2.0 (2 x rear, 3 x internal with one Vertical Type-A Connector)
6 x USB 3.2 Gen 2 (6 x rear)
2 x USB 3.2 Gen 1 (2 x internal)
5 x USB 2.0 (2 x rear, 3 x internal with one Vertical Type-A Connector)

Parallel
Yes
Yes

Serial
10 x COM ports (1 x rear, 9 x internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control
COM3~6: RS-232/422/485 with 0V/5V/12V Auto-flow Control Supported
COM7~10: RS-232, 0V/5V/12V
6 x COM ports (1 x rear, 5 x internal)
COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control
COM3~6: RS-232/422/485 with 0V/5V/12V Auto-flow Control Supported

GPIO
16-bits (8 x GPI; 8 x GPO), 5V
16-bits (8 x GPI; 8 x GPO), 5V

Expansion Slot

PCIe x16
1 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
1 (Signal configured as 1 PCIe x16 or 2 PCIe x8)

PCIe x4
3
3

M.2
3 x M.2 M key (PCIe x4 NVMe, signal shared with PCIe Slot 1 & 3 & 5),
2 with 2242/2260/2280,
1 with 2242/2260/2280/22110
3 x M.2 M key (PCIe x4 NVMe, signal shared with PCIe Slot 1 & 3 & 5),
2 with 2242/2260/2280,
1 with 2242/2260/2280/22110

Mini-PCIe
1 x Full/Half-size (mSATA)
1 x Full/Half-size (mSATA)

Storage

SATA
4 x SATA 3.0 (RAID 0/1/5/10)
4 x SATA 3.0 (RAID 0/1/5/10)

Power Supply

ATX
ATX-Power 24P, 12V-8P
ATX-Power 24P, 12V-8P

Environment

Operating Temperature
-10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
-10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s

Operating Humidity
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing

Storage Temperature
-20 ~ 80°C
-20 ~ 80°C

Form Factor

Dimensions
305 x 244 mm (ATX)
305 x 244 mm (ATX)

Weight
0.735 Kg
0.735 Kg

Certification

EMC
CE, FCC Class B, BSMI, RCM, VCCI
CE, FCC Class B, BSMI, RCM, VCCI

Software Platform

OS Support
Windows 10 IoT Enterprise 2019 SAC (64-bit, RS5)
Windows 10 Enterprise LTSC (64-bit, RS5)
Linux (Support by request)
Windows 10 IoT Enterprise 2019 SAC (64-bit, RS5)
Windows 10 Enterprise LTSC (64-bit, RS5)
Linux (Support by request)

Ordering Information

Part Number
Description

919-98N9-001
MS-98N9\609-98N9-010\809-98N9-005 10 OPT:A Intel CML-S LGA1200, W480E,4*DDR4, 1*VGA, 1*HDMI™,1*DP,1*eDP,4*LAN,6*USB 3.2 Gen 2,2*USB 3.2 Gen 1,5*USB2.0,4*SATA3.0,3*M.2,10*COM,2*PCIe x16,4*PCIe x4,2*PCI,TPM2.0,ATX,RoHS,SINGLE,For Channel

919-98N9-002
MS-98N9\609-98N9-020\809-98N9-006 10 OPT:B Intel CML-S LGA1200, Q470E,4*DDR4, 1*VGA, 1*HDMI™,1*DP,1*eDP,2*LAN,6*USB 3.2 Gen 2,2*USB 3.2 Gen 1,5*USB2.0,4*SATA3.0,3*M.2,6*COM,2*PCIe x16,4*PCIe x4,2*PCI,TPM2.0,ATX,RoHS,SINGLE,For Channel

Packing List

Part Number
Description
Quantity

K1B-3008012-E06
USB 2.0 CABLE, 330mm
1

K1D-1008261-V03
SATA CABLE, 500mm
2

E21-98N9010-C22
I/O SHIELDING (SKU1)
1

E21-98N9020-C22
I/O SHIELDING (SKU2)
1
