MS-98F7
MS-98F7
MS-98F7
MS-98F7
MS-98F7
MS-98F7

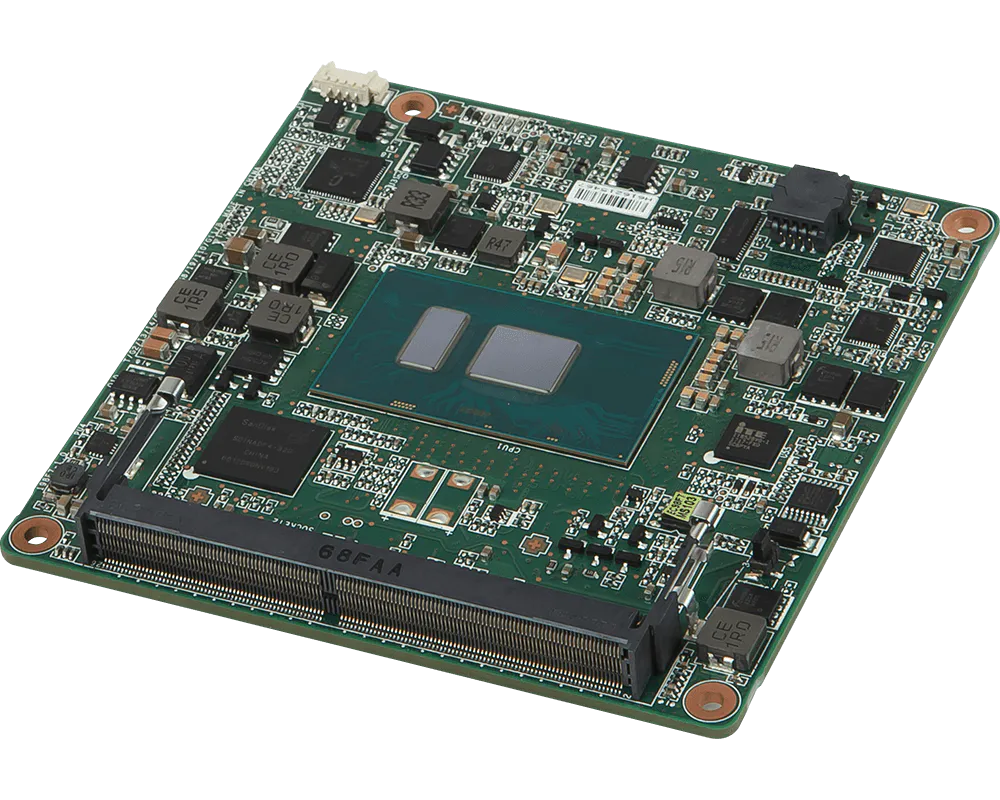

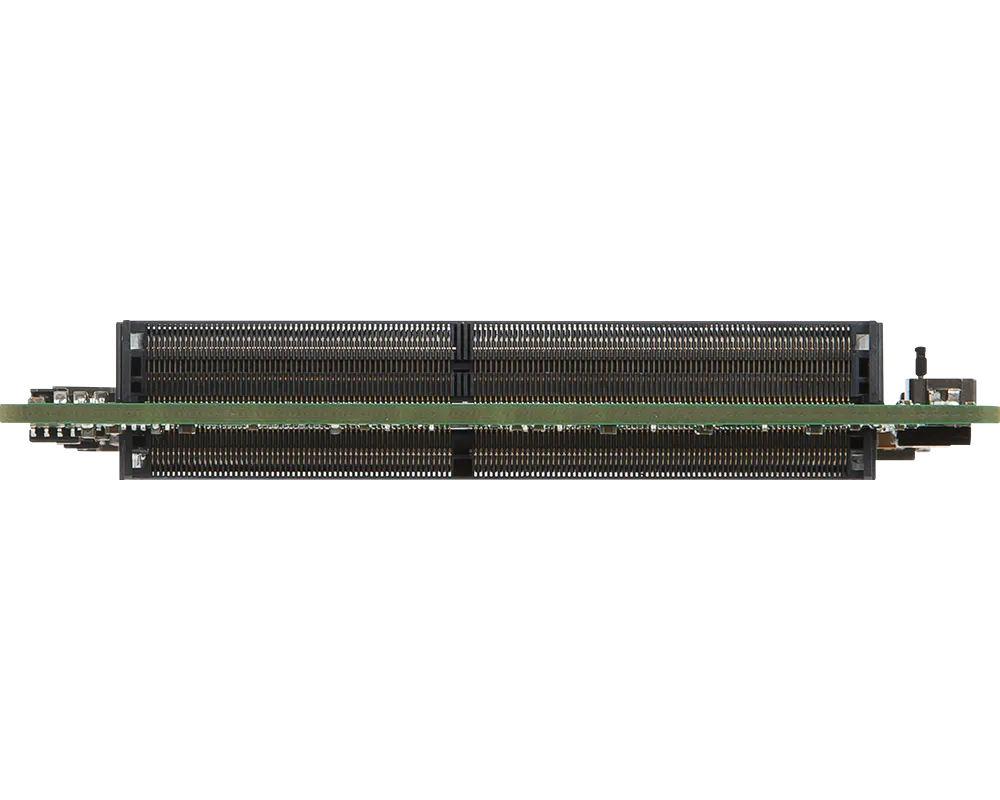

COM Express SBC with 7th/6th Gen Intel® Kaby Lake-U/ Skylake-U Platform for Type6-Compact Solution

  • Intel® 7th/6th Gen Kaby Lake-U/Skylake-U Series
  • 2 DDR4 2133/1866 MHz SODIMM slots up to 32GB
  • Triple independent displays: VGA, LVDS, 2 DDI
  • GbE LAN
  • 8 PCIe x1 (Gen 3)
  • 3 SATA 3.0, 32GB eMMC 5.0 for storage
  • SATA RAID 0/1/5
  • 4 USB 3.2 Gen 1, 8 USB 2.0, 2 UART
  • Onboard TPM 2.0
  • iAMT 11.x
  • Overview
  • 產品規格
  • Ordering-Information
  • Packing-List
‧ Processor CPU 7th/6th Gen Intel® Embedded Mobile Kaby Lake-ULT/Skylake-ULT Core™ i7/i5/i3/Celeron Processor, DC, 15W
Frequency 2.0GHz~3.4GHz (Depends on CPU)
L2 Cache 2MB~4MB (Depends on CPU)
CPU Type BGA
Chipset N/A
BIOS AMI
‧Memory Technology Dual-channel DDR4 1866/2133MHz
Max. Capacity Up to 32 GB
Socket 2 x 260-pin SO-DIMMs
‧Graphic Controller Intel® HD Graphics
Graphic Memory N/A
LVDS Dual Channel 24-bit
eDP N/A
VGA 1 (Share with DDI1 Signal, by BOM option)
DVI 2 DDI ports support HDMI™/DP
(DDI1 by BOM option, default is for VGA)
HDMI™
DisplayPort
Multiple Display 3 independent displays
Display Interface LVDS Resolution up to 1920x1200 @ 60 Hz
VGA Resolution up to 1920 x 1080 @ 60 Hz
2 x DDI: HDMI™1.4 up to 4096 x 2160 @ 24 Hz
DP up to 4096 x 2304 @ 60Hz
‧Ethernet Controller 1 x Intel® I219LM GbE-PHY LAN (AMT 11.x supported)
‧Audio Controller Support HD audio interface to carrier board
‧Super I/O Controller N/A
‧H/W Monitor Watchdog Timer 256-level Watchdog Timer
Smart Fan Yes
‧TPM Controller Yes (TPM2.0, by BOM option)
‧I/O Interface USB 8 x USB 2.0 (to carrier board)
4 x USB 3.0 (to carrier board)
Serial 2 x COM (to carrier board)
Parallel N/A
PS/2 N/A
GPIO 8-bits (4 x GPI; 4 x GPO), 5V
‧Expansion Slot PCIe x16 N/A
PCIe x4 1
PCIe x1 8 x PCI Express GEN. 3.0 lanes
(Supports 5 x PCIe x1 or 4 x PCIe x1 & 1 x PCIe x4 )
PCI N/A
M.2 N/A
Mini-PCIe N/A
‧Storage SATA 3 x SATA3.0
eMMC 32GB eMMC 5.1 (by BOM option)
‧ Power Supply DC N/A
ATX ATX +12 V and +5 VSB (standby power)
AT: +12 V
‧ Environment Operating Temperature 20 ~ 70°C
Operating Humidity 10 ~ 90%, non-condensing
Storage Temperature -20 ~ 80°C
Storage Humidity 10 ~ 90%, non-condensing
‧ Form Factor Dimensions 95mm x 95mm (COM Express compact module)
Weight 0.105 kg
‧ Certification EMC FCC, CE, RCM, VCCI, BSMI
Software Platform OS Support Windows 7 (32/64bit) (Sky Lake-ULT Only)
Windows 8.1 (64bit) (Sky Lake-ULT Only)
Windows 10 (64bit)
Fedora 25
Ubuntu 16.04
‧ Part Number Description
919-98F7-001 MS-98F7 10 COM Express Compact M/B Intel Kabylake-U I7-7600U, 2*DDR4 SO-DIMM, DDI /VGA/ LVDS signal, 1*eMMC, 1*TPM2.0, 2*COM Express type 6 connector
919-98F7-002 MS-98F7 10 OPT:A COM Express Compact M/B Intel Kabylake-U I5-7300U, 2*DDR4 SO-DIMM, 2*DDI / LVDS signal, 2*COM Express type 6 connector
919-98F7-003 MS-98F7 10 OPT:B COM Express Compact M/B Intel Kabylake-U I3-7100U, 2*DDR4 SO-DIMM, 2*DDI / LVDS signal, 2*COM Express type 6 connector
919-98F7-004 MS-98F7 10 OPT:C COM Express Compact M/B Intel Skylake-U I7-6600U, 2*DDR4 SO-DIMM, DDI /VGA/ LVDS signal, 1*eMMC, 1*TPM2.0, 2*COM Express type 6 connector
‧ Part Number Description
Coming soon Heat spreader

產品規格

  • 料號編碼
  • MS-98F7

Processor

  • CPU
  • 7th/6th Gen Intel® Embedded Mobile Kaby Lake-ULT/Skylake-ULT Core™ i7/i5/i3/Celeron Processor, DC, 15W
  • Frequency
  • 2.0GHz~3.4GHz (Depends on CPU)
  • L2 Cache
  • 2MB~4MB (Depends on CPU)
  • CPU Type
  • BGA

Display

  • DVI
  • N/A (2 DDI ports support HDMI™/DP (DDI1 BOM option, default is for VGA)
  • Controller
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Multiple Display
  • 3 independent displays
  • Display Interface
  • LVDS Resolution up to 1920x1200 @ 60 Hz
    VGA Resolution up to 1920 x 1080 @ 60 Hz
    2 x DDI: HDMI™1.4 up to 4096 x 2160 @ 24 Hz
    DP up to 4096 x 2304 @ 60Hz
  • LVDS
  • Dual Channel 24-bit
  • VGA
  • 1 (Share with DDI1 Signal, by BOM option)
  • HDMI
  • N/A (2 DDI ports support HDMI™/DP (DDI1 BOM option, default is for VGA)
  • DisplayPort
  • N/A (2 DDI ports support HDMI™/DP (DDI1 BOM option, default is for VGA)

I/O Interface

  • GPIO
  • 8-bits (4 x GPI; 4 x GPO), 5V
  • USB
  • 8 x USB 2.0 (to carrier board)
    4 x USB 3.2 Gen 1(to carrier board)
  • Serial
  • 2 x COM (to carrier board)

Environment

  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • Operating Temperature
  • -20 ~ 70°C
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C

Power Supply

  • ATX
  • ATX +12 V and +5 VSB (standby power)
    AT: +12 V

Memory

  • Technology
  • Dual-channel DDR4 2133MHz
  • Max. Capacity
  • Up to 32 GB
  • Socket
  • 2 x 260-pin SO-DIMMs

Ethernet

  • Controller
  • 1 x Intel® I219LM GbE-PHY LAN (AMT 11.x supported)

Audio

  • Controller
  • Support HD audio interface to carrier board

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes

TPM

  • Controller
  • Yes (TPM2.0, by BOM option)

Expansion Slot

  • PCIe x 4
  • 1
  • PCIe x 1
  • 8 x PCI Express GEN. 3.0 lanes
    (Supports 5 x PCIe x1 or 4 x PCIe x1 & 1 x PCIe x4 )

Storage

  • SATA
  • 3 x SATA 3.0
  • mSATA
  • 32GB eMMC 5.0 (by BOM option)

Form Factor

  • Dimensions
  • 95 x 95 mm (COM Express Type 6 compact module)
  • Weight
  • 0.105 kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI

Software Platform

  • OS Support
  • Windows 7 (32/64-bit) (Skylake-ULT Only)
    Windows 8.1 (64-bit) (Skylake-ULT Only)
    Windows 10 (64-bit)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 919-98F7-001
  • MS-98F7 10 COM Express Compact M/B Intel Kabylake-U I7-7600U, 2*DDR4 SO-DIMM, DDI /VGA/ LVDS signal, 1*eMMC, 1*TPM2.0, 2*COM Express type 6 connector
  • 19-98F7-002
  • MS-98F7 10 OPT:A COM Express Compact M/B Intel Kabylake-U I5-7300U, 2*DDR4 SO-DIMM, 2*DDI / LVDS signal, 2*COM Express type 6 connector
  • 919-98F7-003
  • MS-98F7 10 OPT:B COM Express Compact M/B Intel Kabylake-U I3-7100U, 2*DDR4 SO-DIMM, 2*DDI / LVDS signal, 2*COM Express type 6 connector
  • 919-98F7-004
  • MS-98F7 10 OPT:C COM Express Compact M/B Intel Skylake-U I7-6600U, 2*DDR4 SO-DIMM, DDI /VGA/ LVDS signal, 1*eMMC, 1*TPM2.0, 2*COM Express type 6 connector

Packing List

  • Part Number
  • Description
  • Quantity
  • E31-2100190-K08
  • Heat spreader
  • 1
The MSI MS-98F7 is a COM Express Single Board Computer (SBC) designed for Type 6-Compact solutions, featuring the 7th/6th Gen Intel® Kaby Lake-U/Skylake-U Series processors. It supports up to 32GB of DDR4 memory through two SODIMM slots, with speeds up to 2133/1866 MHz. The board supports triple independent displays via VGA, LVDS, and two Digital Display Interfaces (DDI). Networking capabilities include GbE LAN. Expansion options include eight PCIe x1 (Gen 3) slots for additional peripherals. For storage, it provides three SATA 3.0 ports and includes a 32GB eMMC 5.0 module. It supports SATA RAID 0/1/5 configurations. Connectivity options include four USB 3.2 Gen 1 ports, eight USB 2.0 ports, and two UART ports. The board features onboard TPM 2.0 for enhanced security and supports Intel® Active Management Technology (iAMT) version 11.x.
