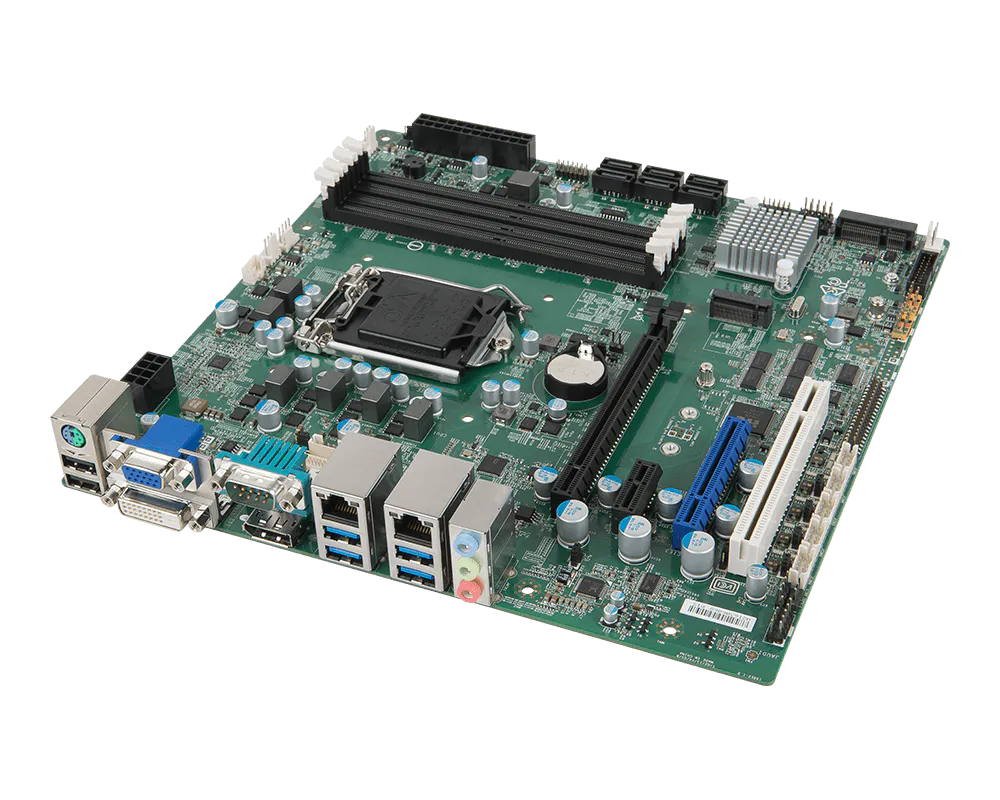

Micro-ATX with 7th/6th Gen Intel® Kaby Lake/Skylake, Superior I/O & Expansion Capability for High-Performance Solution

  • Intel® 7th/6th Gen Skylake-S/Kaby Lake-S Series with C236/H110
  • 4 DDR4 2666 MHz ECC/non-ECC UDIMM slots up to 64GB
  • Triple independent displays: VGA, DVI-D, DP, LVDS
  • 2 GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 3), 1 PCIe x8 (Gen 3), 1 PCIe x1 (Gen 3), 1 PCI, 1 Mini-PCIe (Full size, with mSATA) slots
  • M.2 M Key, 6 SATA 3.0 for storage
  • SATA RAID 0/1/5/10

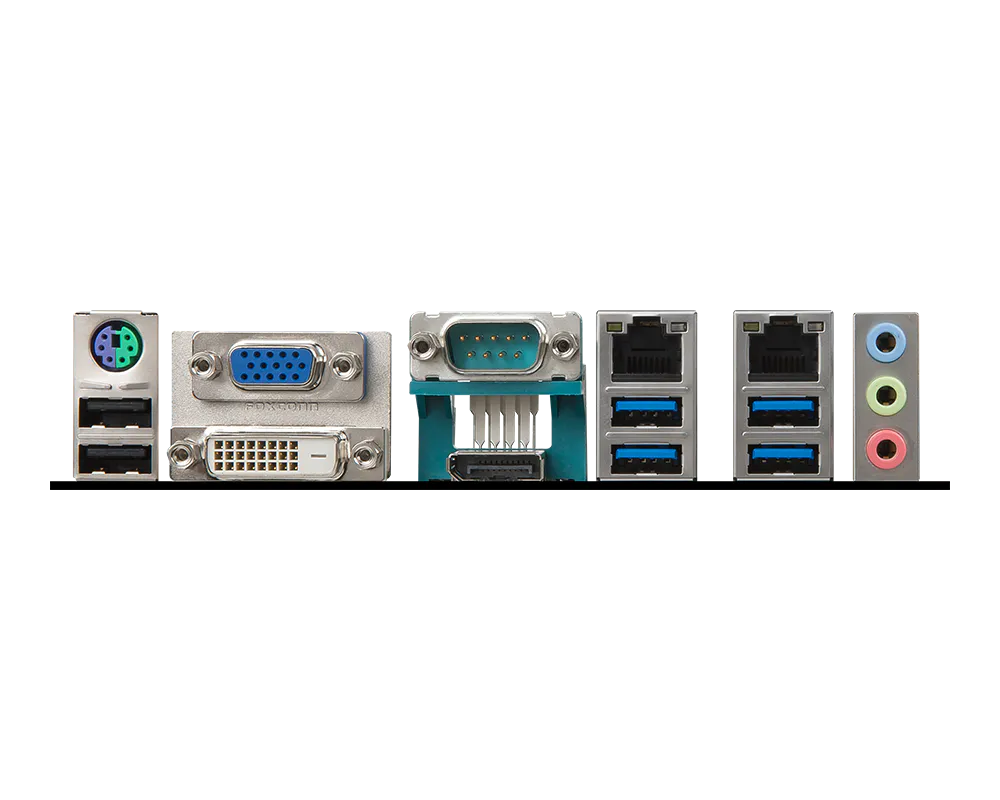

  • 6 USB 3.2 Gen 1, 5 USB 2.0, 10 COM (1 RS-485), GPIO, PS/2, Audio, S/PDIF, 3 System FAN
  • SMBus, iAMT11.x
  • ATX Powere
  • 產品規格
  • Ordering-Information
  • Packing-List
  • Optional-Items

產品規格

  • 料號編碼
  • MS-98E2-C236 SKU
  • MS-98E2-H110 SKU

Processor

  • CPU
  • 7th/6th Gen Intel® Desktop Kaby Lake/ Skylake Xeon/i7/i5/ i3/Pentium®/Celeron® Series Processor, Max 95W
  • 7th/6th Gen Intel® Desktop Kaby Lake/ Skylake Core™ i7/i5/ i3/Pentium®/Celeron® Series Processor, Max 95W
  • Frequency
  • 2.3GHz~4.0GHz (Depends on CPU)
  • 2.3GHz~4.0GHz (Depends on CPU)
  • L2 Cache
  • 2M ~ 8M (Depends on CPU)
  • 2M ~ 8M (Depends on CPU)
  • CPU Type
  • Socket (LGA 1151)
  • Socket (LGA 1151)
  • Chipset
  • Intel® C236 Express
  • Intel® H110 Express
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Dual-channel DDR4 (ECC) 2133MHz/2400MHz (7th Gen)
  • Dual-channel DDR4 (non-ECC) 2133MHz/2400MHz (7th Gen)
  • Max. Capacity
  • Up to 64 GB
  • Up to 32 GB
  • Socket
  • 4 x 288-pin Long-DIMMs
  • 2 x 288-pin Long-DIMMs

Graphic

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • 1
  • VGA
  • 1
  • 1
  • DVI
  • 1 (DVI-D)
  • 1 (DVI-D)
  • DisplayPort
  • 1
  • 1
  • Multiple Display
  • 3 independent displays
  • 2 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200
    DP up to 3840 x 2160
    DVI-D up to 1920 x 1200
    VGA up to 1920 x 1200
  • DP up to 3840 x 2160
    DVI-D up to 1920 x 1200
    VGA up to 1920 x 1200

Ethernet

  • Controller
  • 1 x Intel® I219-LM GbEPHY
    1 x Intel® I210-AT PCIe GbE LAN
  • 1 x Intel® I219-LM GbEPHY
    1 x Intel® I211-AT PCIe GbE LAN

Audio

  • Controller
  • Realtek® ALC887 HD Audio Codec
  • Realtek® ALC887 HD Audio Codec

Super I/O

  • Controller
  • Fintek F81866AD-I + F81216H
  • Fintek F81866AD-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes

TPM

  • Controller
  • Pin header
  • Pin header

I/O Interface

  • PS/2
  • 1
  • 1
  • USB
  • 6 x USB 2.0 (2 x rear, 4 x internal)
    6 x USB 3.2 Gen 1 (4 x rear, 2 x internal)
  • 6 x USB 2.0 (2 x rear, 4 x internal)
    4 x USB 3.2 Gen 1 (rear)
  • Serial
  • 10 x COM (1 x rear; 9 x internal)
    COM1: RS- 232/422/485, 0V/5V/12V
    COM2~6: RS-232, 0V/5V/12V
    COM7~COM10: RS- 232, without power
  • 6 x COM (1 x rear; 5 x internal)
    COM1: RS- 232/422/485, 0V/5V/12V
    COM2~6: RS-232, 0V/5V/12V
  • GPIO
  • 8-bits (4 x GPI, 4 x GPO), 5V
  • 8-bits (4 x GPI, 4 x GPO), 5V

Expansion Slot

  • PCIe x16
  • 1
  • 1
  • PCIe x8
  • 1(PCIe x4 signal)
  • 1(PCIe x1 signal)
  • PCIe x1
  • 1
  • 1
  • PCI
  • 1
  • 1
  • M.2
  • 1 x M Key ( PCIe x4, SATA3.0), 2242/2260/2280
  • Mini-PCIe
  • 1 x Full-size, mSATA
  • 1 x Full-size, mSATA

Storage

  • SATA
  • 6 x SATA 3.0
  • 3 x SATA 3.0
  • mSATA
  • 1 (shared w/ Mini-PCIe)
  • 1 (shared w/ Mini-PCIe)

Power Supply

  • ATX
  • ATX-Power 24P, 12V-8P
  • ATX-Power 24P, 12V-8P

Environment

  • Operating Temperature
  • 0 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • 0 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 244 x 244 mm (uATX)
  • 244 x 244 mm (uATX)
  • Weight
  • 0.73 Kg
  • 0.73 Kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI
  • FCC, CE, RCM, VCCI, BSMI

Software Platform

  • OS Support
  • Windows 7 (32/64-bit)
    Windows 8.1 (64-bit)
    Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)
  • Windows 7 (32/64-bit)
    Windows 8.1 (64-bit)
    Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 919-98E2-001
  • VER 1.1 OPTA,9.6-INCH, Intel Skylake-S/Kabylake-S +C236,4*DDR4, DP, VGA, LVDS, DVI, 1*M.2, 1*Mini- PCIe, 2*LAN, 6*SATA3.0, 6*USB3.0, 6*USB2.0, 10*COM, ATX Power,single for channel
  • 919-98E2-002
  • VER 1.1 OPTB,9.6-INCH, Intel Skylake-S/Kabylake-S +H110, 2*DDR4, DP, VGA, DVI, 1*Mini-PCIe, 2*LAN, 3*SATA3.0, 4*USB3.0, 6*USB2.0, 6*COM, ATX Power, single for channel

Packing List

  • Part Number
  • Description
  • K1D-1008261-V03
  • SATA Cable, 500mm
  • K14-1018003-V03
  • COM PORT Cable, 300mm
  • E21-98E2010-C22
  • I/O SHIELD

Optional Item

  • Part Number
  • Description
  • K14-1036004-V03
  • COM Port Cable, 200mm
  • K1B-3008012-E06
  • USB 2.0 Cable, 330mm
The MSI MS-98M9 ATX industrial motherboard supports 1st and 2nd Gen Intel® Cascade Lake/Skylake Xeon® Scalable Processors with Intel® C622/C621 chipset. It features six DDR4 2666 MHz ECC RDIMM slots for up to 192GB, dual 10GbE LAN and dual GbE LAN ports, multiple PCIe slots, mSATA, and eight SATA 3.0 ports with RAID support. It includes extensive I/O options, onboard TPM 2.0, and supports Intel® VROC for RAID with NVMe storage. The motherboard is designed for high-performance industrial applications. For more details, you can visit the [MSI product page](https://ipc.msi.com/product_detail/Industrial-Motherboard/ATX/MS-98m9).
