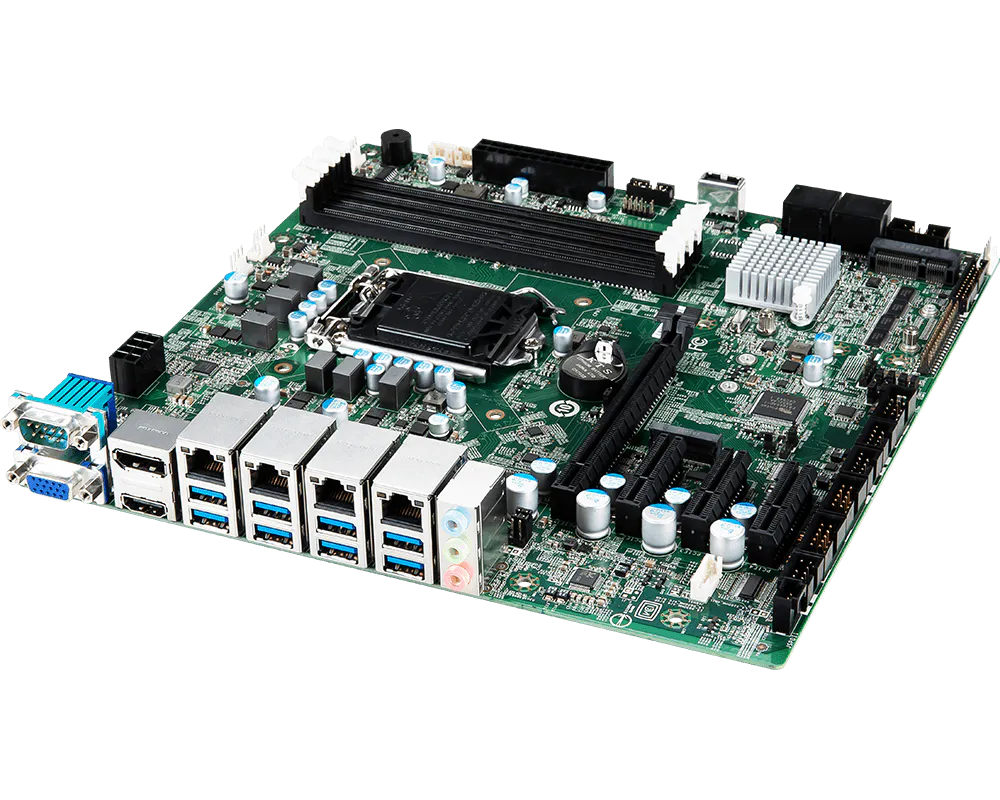

Micro-ATX with 8th Gen Intel® Coffee Lake-S Xeon, Core™ i7/i5/i3, Pentium®, Celeron® Processor for Superior I/O & Expansion Capability for High-Performance Solution
- Intel® 8th Gen Coffee Lake-S Series with C246/Q370
- 4 DDR4 2666 MHz ECC/non-ECC UDIMM slots up to 128GB
- Triple independent displays: VGA, DP, HDMI™
- 4 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3), 3 PCIe x4 (Gen 3), 1 Mini-PCIe (Full/Half size) slots
- M.2 M Key, 4 SATA 3.0 for storage
- SATA RAID 0/1/5/10

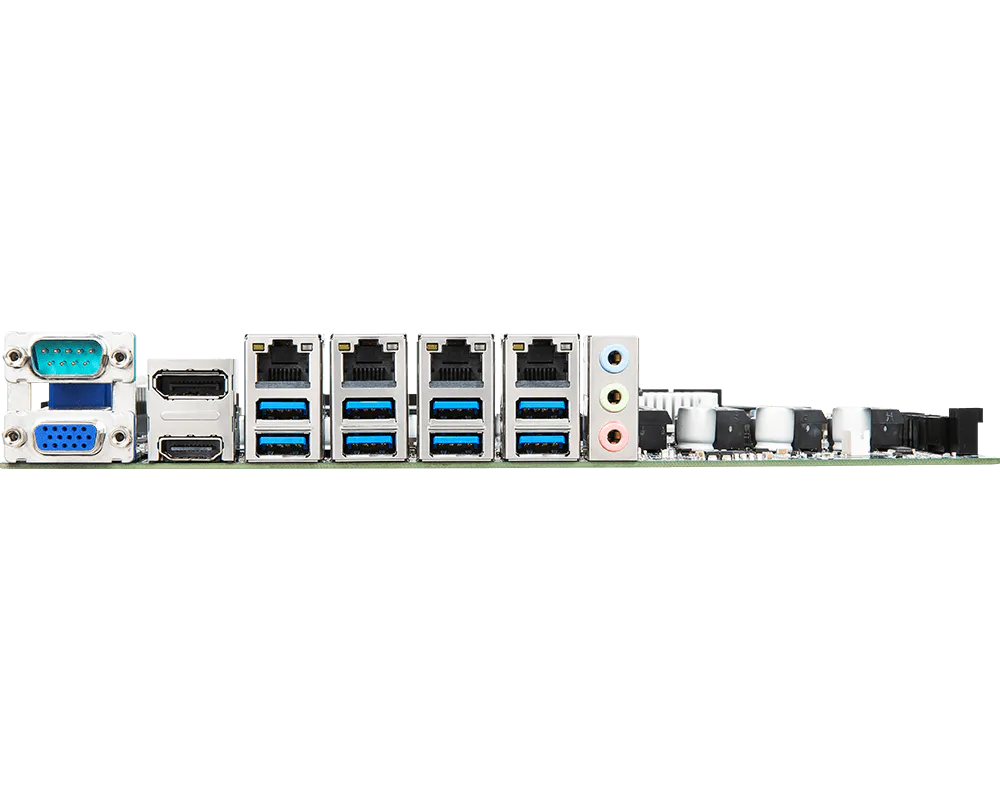

- 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 5 USB 2.0, 6 COM (2 RS-485), GPIO, LPT, PS/2, Audio, S/PDIF, 3 System FAN
- Onboard TPM 2.0 (by option)
- SMBus, I2C, iAMT12.x
- ATX Power
- 產品規格
- Ordering-Information
- Packing-List
- Optional-Items
產品規格
- 料號編碼
- MS-98L2
Environment
- Operating Temperature
- -10 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s
Ordering Information
- Part Number
- Description
- 919-98L2-001

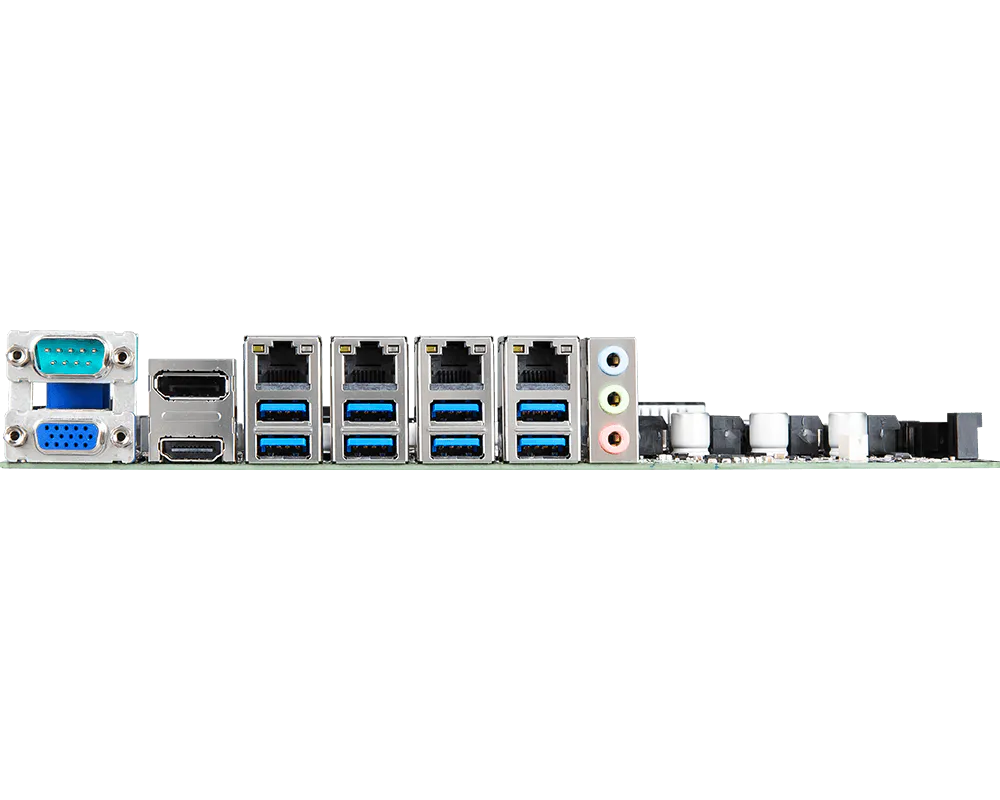

- MS-98L2\609-98L2-020\809-98L2-010 VER 10 OPT:A Intel Coffee Lake-S LGA1151,Q370,4*DDR4 UDIMM,1*PCIe x16,3*PCIe x4,HDMI™, DP,VGA,4*LAN,4*USB 3.2 Gen 2, 4*USB 3.2 Gen 1,5*USB 2.0, 4*SATA 3.0,M.2,Mini-PCIe, 6*COM,Micro-ATX,RoHS,SINGLE,For Channel
- 919-98L2-006

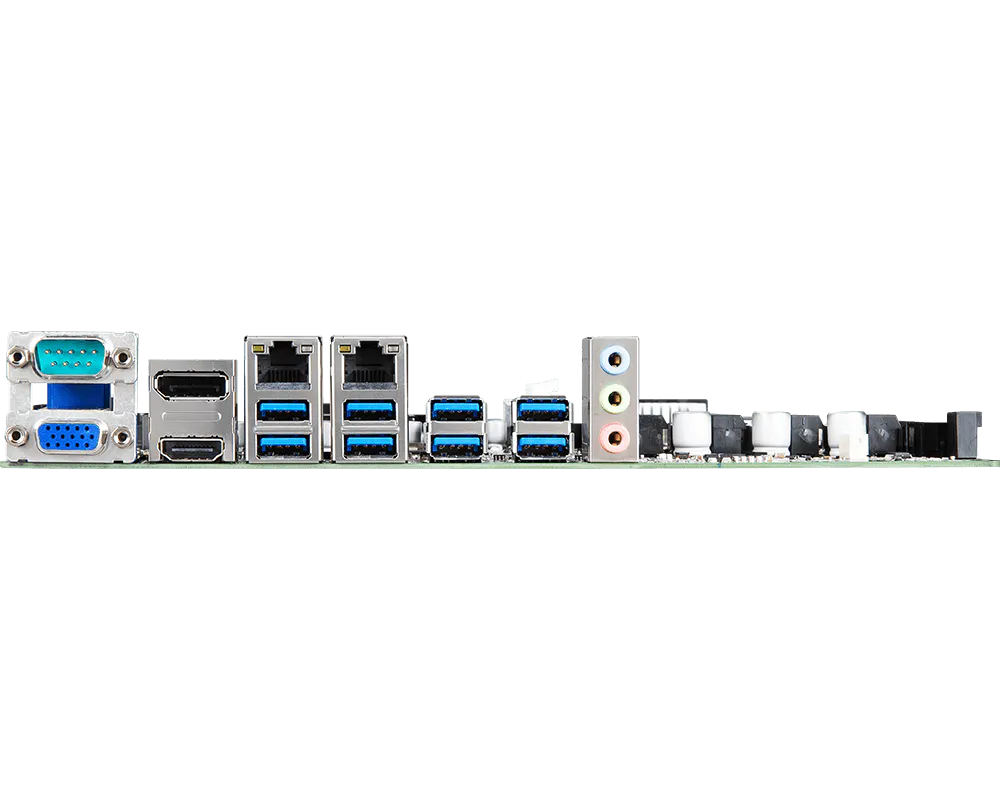

- MS-98L2\609-98L2-030\809-98L2-014 VER 10 OPT:C Intel Coffee Lake-S LGA1151, Q370,4*DDR4 UDIMM,1*PCIe x16,3*PCIe x4,HDMI™,DP,VGA,2*LAN,4*USB 3.2 Gen 2, 4*USB 3.2 Gen 1,5*USB 2.0,4*SATA 3.0,M.2,Mini-PCIe, 6*COM,Micro-ATX,RoHS,SINGLE,For Channel
- 919-98L2-005
- MS-98L2\609-98L2-010\809-98L2-013 VER 10 Intel Coffee Lake-S LGA1151, C246,4*DDR4 UDIMM,1*PCIe x16,3*PCIe x4,HDMI™,DP,VGA,4*LAN,4*USB 3.2 Gen 2, 4*USB 3.2 Gen 1,5*USB2.0,4*SATA3.0,M.2,Mini-PCIe,6*COM,Micro-ATX,RoHS,SINGLE,For Channel
Packing List
- Part Number
- Description
- Quantity
- K1D-1008261-V03
- SATA Cable, 500mm
- 2
- E21-98L2020-C22
- I/O Shielding (For SKU1)
- 1
Optional Item
- Part Number
- Description
- K14-1018004-V03
- COM Port Cable, 510mm
- K1B-3008012-E06
- USB 2.0 Cable, 330mm
