MS-9892
MS-9892
MS-9892
MS-9892
MS-9892
MS-9892

Mini-ITX with Intel® Apollo Lake/Apollo Lake-I for Fanless, Low-Power, High-Performance & Wide Temperature Solution

  • Intel® Apollo Lake/Apollo Lake-I Series SoC
  • 2 DDR3L 1866 MHz SODIMM slots up to 8GB
  • Triple independent displays : DP, HDMI™, LVDS/eDP
  • 2 GbE LAN with RJ-45
  • 1 PCIe x1 (Gen 2), 1 Mini-PCIe (Full/Half size, with SIM Holder), 1 Mini-PCIe (Full size, with mSATA) slots
  • mSATA, 2 SATA 3.0 for storage

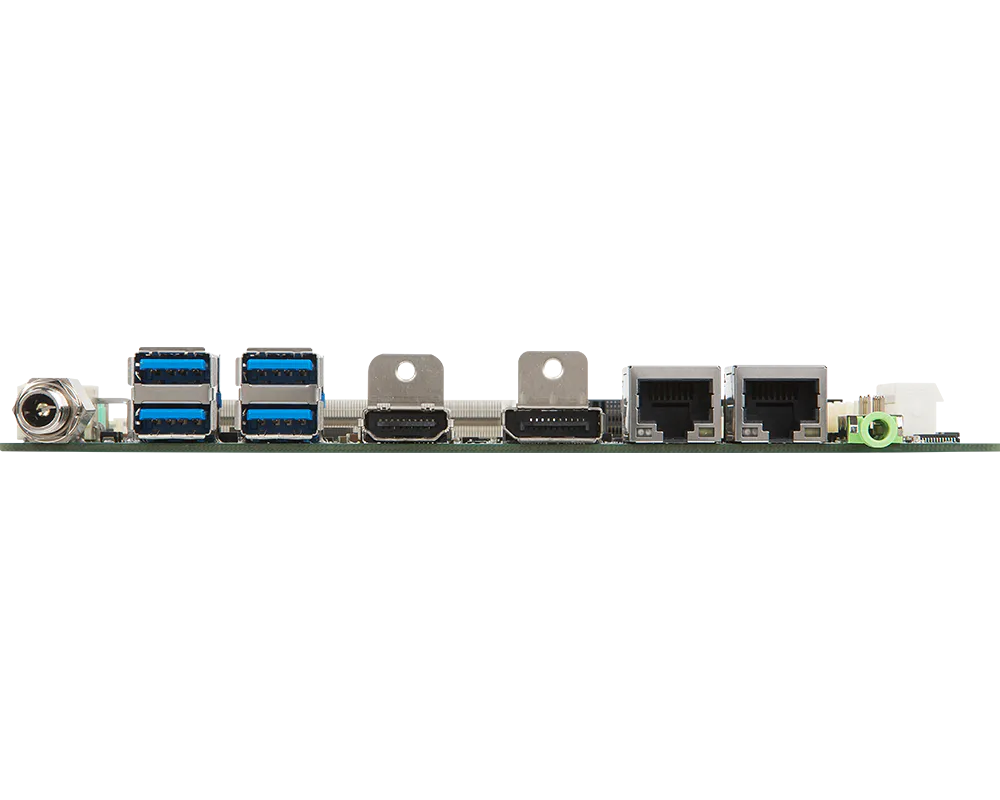

  • 4 USB 3.2 Gen 1, 6 USB 2.0, 6 COM (2 RS-485), GPIO, PS/2, Audio, S/PDIF, System FAN
  • Onboard TPM 2.0
  • SMBus, Chassis Intrusion
  • Wide operating temperature : -40~85°C (by option)
  • Wide Voltage DC-IN 12~24V
Wide Temperature Solutions promotion DM
Thin Mini-ITX Solutions promotion DM
  • 產品規格
  • Ordering-Information
  • Packing-List

產品規格

  • 料號編碼
  • MS-9892-SKU1
  • MS-9892-SKU2

Processor

  • CPU
  • Intel® Pentium® Processor N4200, QC, 6W
    Intel® Celeron® Processor N3350, DC, 6W
    Intel® Celeron® Processor J3455, QC, 10W
    Intel® Atom™ x5 Processor E3940, QC, 9W
  • Intel® Atom™ x5 Processor E3940, QC, 9W
    Intel® Atom™ x5 Processor E3930, DC, 6W
  • Frequency
  • N4200, 1.1 GHz, up to 2.5 GHz
    N3350, 1.1 GHz, up to 2.4 GHz
    J3455, 1.5 GHz, up to 2.3 GHz
    E3940, 1.6 GHz, up to 1.8 GHz
  • E3940, 1.6 GHz, up to 1.8 GHz
    E3930, 1.3 GHz, up to 1.8 GHz
  • L2 Cache
  • 1M~2M (Depends on CPU)
  • 1M~2M (Depends on CPU)
  • CPU Type
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC
  • Integrated in SoC
  • BIOS
  • AMI
  • AMI

Memory

  • Technology
  • Dual-channel DDR3L 1866 MHz
  • Dual-channel DDR3L 1866 MHz
  • Max. Capacity
  • Up to 8 GB
  • Up to 8 GB
  • Socket
  • 2 x 204-pin SO-DIMMs
  • 2 x 204-pin SO-DIMMs

Graphic

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • LVDS
  • 1 x Dual channel 18/24-bit
  • 1 x Dual channel 18/24-bit
  • eDP
  • 1 (colay with LVDS)
  • 1 (colay with LVDS)
  • HDMI
  • 1 (colay with DP)
  • 1 (colay with DP)
  • DisplayPort
  • 1 (colay with HDMI™)
  • 1 (colay with HDMI™)
  • Multiple Display
  • 3 independent displays
  • 3 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200@60Hz
    eDP up to 4096 x 2160@60Hz
    HDMI™ up to 3840 x 2160@30Hz
    DP up to 4096 x 2160@60Hz
  • LVDS up to 1920 x 1200@60Hz
    eDP up to 4096 x 2160@60Hz
    HDMI™ up to 3840 x 2160@30Hz
    DP up to 4096 x 2160@60Hz

Display

  • Graphic Memory
  • Depends on CPU
  • Depends on CPU

Ethernet

  • Controller
  • Intel I211-AT GbE LAN
  • Intel I210-IT GbE LAN

Audio

  • Controller
  • Realtek® ALC887-VD2-CG HD Audio Codec
  • Realtek® ALC887-VD2-CG HD Audio Codec

Super I/O

  • Controller
  • Fintek F81867D-I
  • Fintek F81867D-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes

TPM

  • Controller
  • Pin header (Default)
    Infineon SLB9665TT 2.0 (by BOM option)
  • Pin header (Default)
    Infineon SLB9665XT 2.0 (by BOM option)

I/O Interface

  • PS/2
  • 1 (pin header)
  • 1 (pin header)
  • USB
  • 6 x USB 2.0 (internal)
    4 x USB 3.2 Gen 1 (rear)
  • 6 x USB 2.0 (internal)
    4 x USB 3.2 Gen 1 (rear)
  • Serial
  • 6 x COM (6 x Internal)
    COM1/2: RS-232/422/485, 0V/5V/12V
    COM3~6: RS-232, W/O Power
  • 6 x COM (6 x Internal)
    COM1/2: RS-232/422/485, 0V/5V/12V
    COM3~6: RS-232, W/O Power
  • GPIO
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V

Expansion Slot

  • PCIe x1
  • 1
  • 1
  • Mini-PCIe
  • 1 x Full/Half size (w/ SIM holder)
    1 x Full size (mSATA)
  • 1 x Full/Half size (w/ SIM holder)
    1 x Full size (mSATA)

Storage

  • SATA
  • 2 x SATA3.0 (SATA2 share with mSATA)
  • 2 x SATA3.0 (SATA2 share with mSATA)
  • mSATA
  • 1 (shared w/SATA2)
  • 1 (shared w/SATA2)

Power Supply

  • DC Input
  • DC-in 12V~24V
  • DC-in 12V~24V

Environment

  • Operating Temperature
  • -10 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • -40 ~ 85°C
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -40 ~ 85°C

Form Factor

  • Dimensions
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • Weight
  • 0.38 Kg
  • 0.45 Kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI
  • FCC, CE, RCM, VCCI, BSMI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 919-9892-013
  • MS-9892 11 Intel Apollo Lake-I E3940, F1 Stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIe x1+2*SATA+1* mSATA, DC12~24V, WT
  • 919-9892-014
  • MS-9892 11 OPT: A Intel Apollo Lake-I E3940, F1 Stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIe x1+2*SATA+1* mSATA, DC12~24V, Non-WT
  • 919-9892-015
  • MS-9892 1.1 Intel Apollo Lake N4200, F1 stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIe x1+2*SATA+1*mSATA,DC12~24V, Non-WT
  • 919-9892-016
  • MS-9892 1.1 Intel Apollo Lake N3350, F1 stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIe x1+2*SATA+1*mSATA, DC12~24V, Non-WT
  • 919-9892-017
  • MS-9892 1.1 Intel Apollo Lake J3455, F1 stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIe x1+2*SATA+1*mSATA, DC12~24V, Non-WT
  • 919-9892-103
  • MS-9892 1.1 Intel Apollo Lake N4200, F1 stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe +1*PCIex1+2*SATA+1*mSATA,DC12~24V, Non-WT
  • 919-9892-104
  • MS-9892 1.1 Intel Apollo Lake N3350, F1 stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIe x1+2*SATA+1*mSATA,DC12~24V, Non-WT
  • 919-9892-105
  • MS-9892 1.1 Intel Apollo Lake J3455, F1 stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIex1+2*SATA+1*mSATA,DC12~24V, Non-WT
  • 919-9892-106
  • MS-9892 11 Intel Apollo Lake-I E3940, F1 stepping, 2*DDR3L, 4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIex1+2*SATA+1* mSATA, DC12~24V, WT
  • 919-9892-107
  • MS-9892 11 Intel Apollo Lake-I E3940, F1 stepping,2*DDR3L,4*USB3.0+6*USB2.0+6*COM+HDMI™+DP+2*LAN+1*eDP+1*LVDS+1*MiniPCIe+1*PCIe x1+2*SATA+1* mSATA, DC12~24V, Non-WT

Packing List

  • Part Number
  • Description
  • Quantity
  • K14-1018003-V03
  • COM Port Cable, 300mm (For 919-9892-006/919-9892-007/919-9892-008/919-9892-009/919-9892-010)
  • 1
  • K1D-1012115-V03
  • SATA Cable with Power, 230mm
  • 1
  • E21-9892010-C22
  • I/O SHIELDING
  • 1
