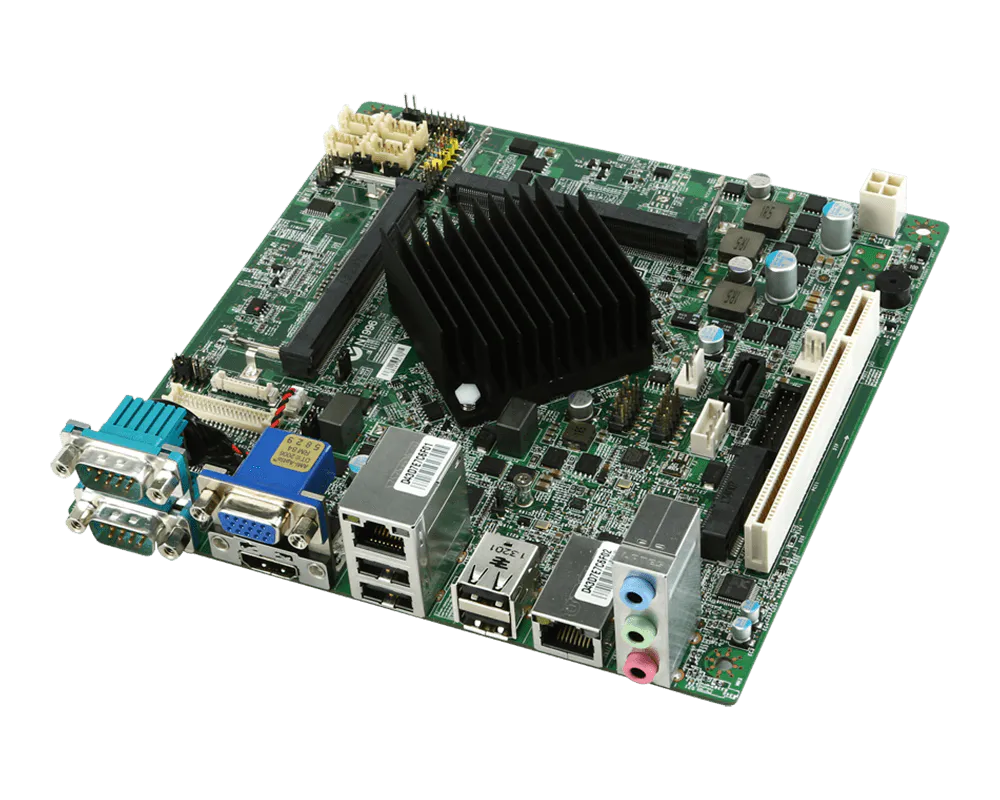

Mini-ITX with Intel® Atom™ Bay Trail for Multi-Displays, DC/ATX, Low-Power & Fanless Solution

Mini-ITX with Intel^® Atom™ Bay Trail for Multi-Displays, DC/ATX, Low-Power & Fanless Solution

Intel^® Bay Trail Series SoC
2 DDR3L 1333/1066 MHz SODIMM slots up to 8GB

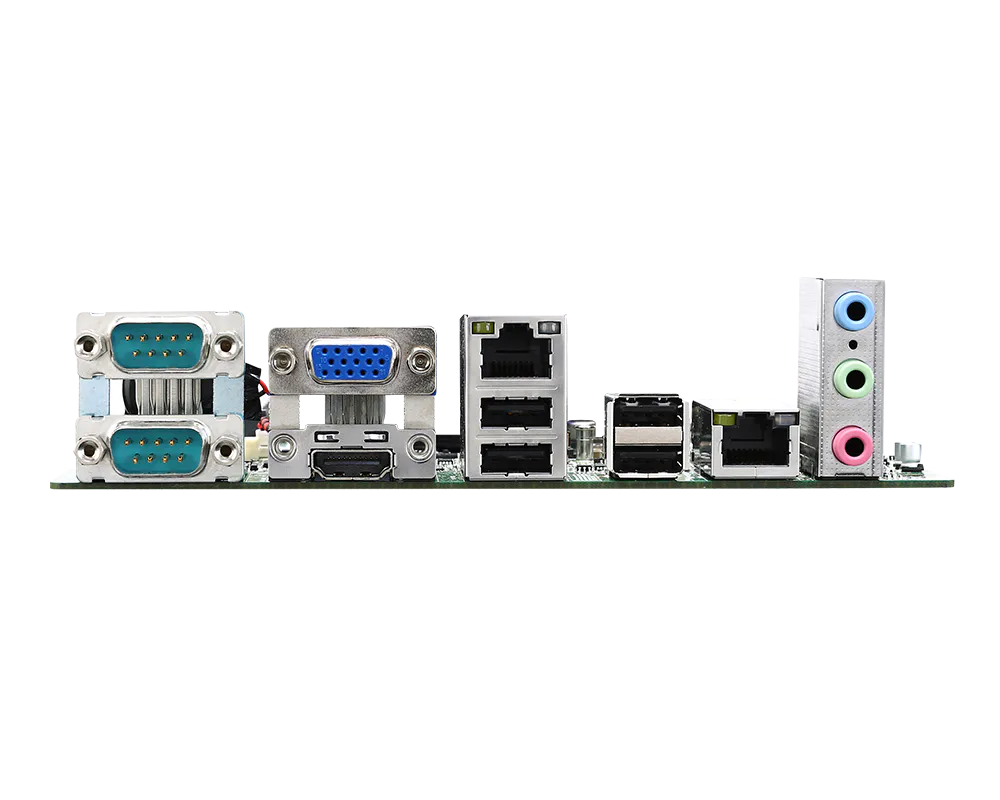

Dual independent displays: VGA, HDMI™, LVDS
2 GbE LAN with RJ-45
1 PCI, 1 Mini-PCIe (Full size, with mSATA) slots
mSATA, SATA 2.0 for storage
USB 3.2 Gen 1, 8 USB 2.0, 6 COM (1 RS485), GPIO, PS/2, Audio
Wide Voltage DC-IN 12/19/24V(ATX Power by option)

Overview
產品規格
Ordering-Information
Packing-List
Optional-Items


‧ Processor	CPU	Intel^® Celeron^® Processor J1900, QC, 10W Intel^® Celeron^® Processor N2930, QC, 7.5W
	Frequency	J1900, 2.0 GHz, up to 2.42 GHz N2930, 1.83 GHz, up to 2.16 GHz
	L2 Cache	2 MB
	CPU Type	BGA
	Chipset	Integrated
	BIOS	AMI
‧Memory	Technology	Dual-channel DDR3L 1333/1066 MHz
	Max. Capacity	Up to 8GB
	Socket	2 x 204-pin SO-DIMMs
‧Display	Controller	Intel^® HD Graphics
	Graphic Memory	Shared system memory up to 1.7 GB SDRAM
	LVDS	Daul Channel 24-bit (add chrontel 7511B chipset)
	VGA	1
	HDMI™	1
	Multiple Display	2 independent displays
	Display Mode	VGA up to 2560 x 1600 HDMI™ up to 1920 x 1080 LVDS up to 1920 x 1200
‧Ethernet	Controller	2 x Intel^® i210-AT GbE LAN
‧Audio	Controller	Realtek^® ALC887 HD Audio Codec
‧Super I/O	Controller	Fintek F81866AD-I
‧H/W Monitor	Watchdog Timer	256-level Watchdog Timer
	Smart Fan	Yes
‧TPM	Controller	Pin header
‧I/O Interface	USB	8 x USB 2.0 (4 x internal; 4 x rear) 1 x USB 3.0 (internal)
	Serial	6 x COM (COM1~2: rear; COM3~6: internal) COM1: RS-232/422/485, 0V/5V/12V COM 2~6: RS232, 0V/5V/12V
	PS/2	1 (Pin header)
	GPIO	8-bits (4 x GPI, 4 x GPO), 5V
‧Expansion Slot	PCI	1
	Mni-PCIe	1 x Full-size, mSATA
‧Storage	SATA	1 x SATA 2.0
	mSATA	1
‧ Power Supply	DC	DC-in 12V/19V/24V
	ATX	ATX-Power 20P
‧ Environment	Operating Temperature	0 ~ 60°C
	Operating Humidity	10 ~ 90%, non-condensing
	Storage Temperature	-20 ~ 80°C
	Storage Humidity	10 ~ 90%, non-condensing
‧ Form Factor	Dimensions	170mm x 170mm (Mini-ITX)
	Weight	0.37 Kg
‧ Regulatory Compliance	EMC	FCC, CE, RCM, VCCI, BSMI
‧ Software Platform	OS Support	Windows 8 (64-bit)

‧ Part Number	Description
919-98E3-001	MS-98E3 10 Intel Bay Trail D sku-J1900, DC,1Mini PCI_E+2DDR3L SO DIMM,1PCI, 1mini PCIe (with msata function), 8USB 2.0, 1USB 3.0,6*COM
919-98E3-002	MS-98E3 10 OPT: A Intel Bay Trail D sku-J1900, ATX- ,1Mini PCI_E+2DDR3L SO DIMM,1PCI, 1mini PCIe (with msata function), 8USB 2.0, 1USB 3.0,6*COM

‧ Part Number	Description		Quantity
K10-3004215-V03	DC power cable, 160mm		1
K1D-1012064-V03	SATA cable, 200mm		1
E21-98E3010-C22	I/O shield		1
G71-SEDC113-X03	Driver CD		1

‧ Part Number	Description
K14-1018003-V03	COM port cable, 300mm
K1B-3008012-E06	USB2.0 cable, 330mm

產品規格

料號編碼
MS-98E3

Processor

CPU
Intel^® Celeron^® Processor J1900, QC, 10W
Intel^® Celeron^® Processor N2930, QC, 7.5W

Frequency
J1900, 2.0 GHz, up to 2.42 GHz
N2930, 1.83 GHz, up to 2.16 GHz

L2 Cache
2 MB

CPU Type
BGA

Chipset
Integrated

BIOS
AMI

Display

Display Mode
VGA up to 2560 x 1600
HDMI™ up to 1920 x 1080
LVDS up to 1920 x 1200

Controller
Intel^® HD Graphics

Graphic Memory
Depends on CPU

Multiple Display
2 independent displays

LVDS
Daul Channel 24-bit (add chrontel 7511B chipset)

HDMI
1

I/O Interface

GPIO
8-bits (4 x GPI, 4 x GPO), 5V

USB
8 x USB 2.0 (4 x internal, 4 x rear)
1 x USB 3.1 Gen 1 (internal)

Serial
6 x COM (COM1~2: rear; COM3~6: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM 2~6: RS232, 0V/5V/12V

PS/2
1 (Pin header)

Environment

Storage Humidity
10 ~ 90%, non-condensing

Operating Temperature
0 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s

Operating Humidity
10 ~ 90%, non-condensing

Storage Temperature
-20 ~ 80°C

Power Supply

ATX
ATX-Power 20P

Memory

Technology
Dual-channel DDR3L 1333/1066 MHz

Max. Capacity
Up to 8GB

Socket
2 x 204-pin SO-DIMMs

Ethernet

Controller
2 x Intel^® i210-AT GbE LAN

Audio

Controller
Realtek^® ALC887 HD Audio Codec

Super I/O

Controller
Fintek F81866AD-I

H/W Monitor

Watchdog Timer
256-level Watchdog Timer

Smart Fan
Yes

TPM

Controller
Pin header

Expansion Slot

Mni-PCIe
1 x Full-size, mSATA

Storage

SATA
1 x SATA 2.0

mSATA
1

Power Supply

DC Input
DC-in 12V/19V/24V

Form Factor

Dimensions
170 x 170 mm (Mini-ITX)

Weight
0.37 kg

Certification

EMC
FCC, CE, RCM, VCCI, BSMI

Software Platform

OS Support
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Windows 10 (64-bit)

Ordering Information

Part Number
Description

919-98E3-001
MS-98E3 10 Intel Bay Trail D sku-J1900, DC,1*Mini PCI_E+2*DDR3L SO DIMM,1*PCI, 1*mini PCIe (with msata function), 8*USB 2.0, 1*USB 3.0,6*COM

919-98E3-002
MS-98E3 10 OPT: A Intel Bay Trail D sku-J1900, ATX- ,1*Mini PCI_E+2*DDR3L SO DIMM,1*PCI, 1*mini PCIe (with msata function), 8*USB 2.0, 1*USB 3.0,6*COM

Packing List

Part Number
Description
Quantity

K10-3004215-V03
DC power cable, 160mm
1

K1D-1012064-V03
SATA cable, 200mm
1

21-98E3010-C22
I/O shield
1

Optional Item

Part Number
Description

K14-1018003-V03
COM port cable, 300mm

K1B-3008012-E06
USB 2.0 cable, 330mm

The MSI MS-98E3 is a Mini-ITX industrial motherboard featuring Intel® Atom™ Bay Trail processors, suitable for low-power, fanless solutions. It supports up to 8GB DDR3L RAM, dual independent displays (VGA, HDMI™, LVDS), and includes multiple connectivity options such as dual GbE LAN, USB 3.2 Gen 1, USB 2.0, and multiple COM ports. It offers mSATA and SATA 2.0 for storage and operates on a wide voltage range of 12/19/24V DC-IN. Its compact design and robust performance make it ideal for various industrial applications.
