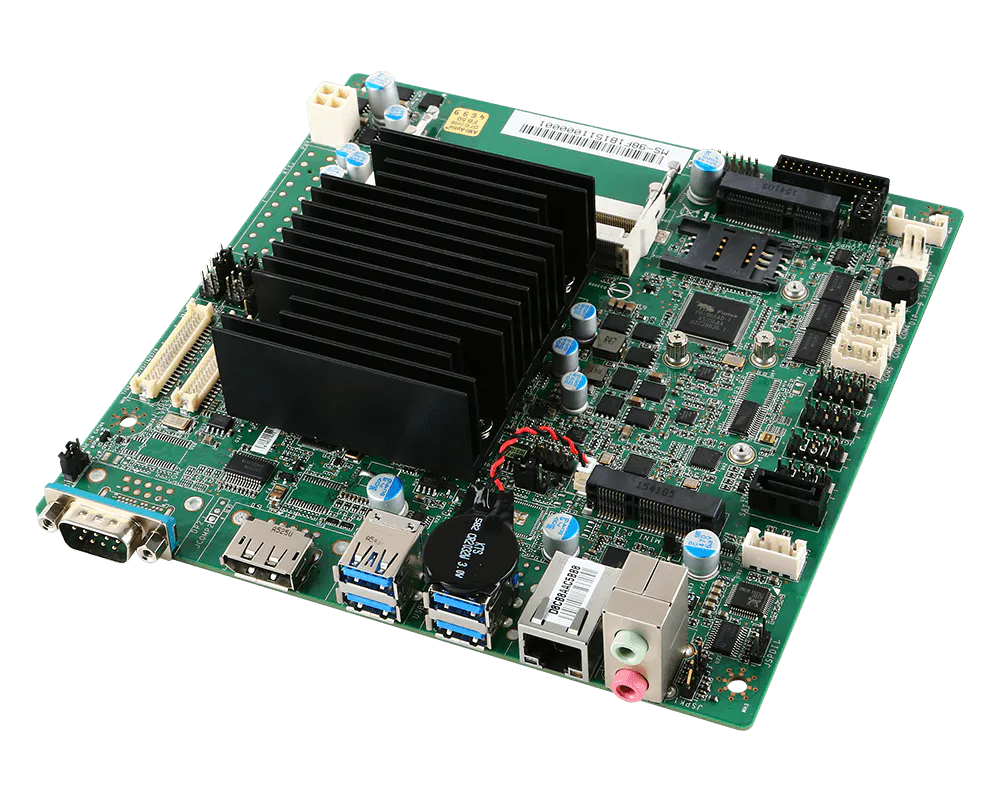

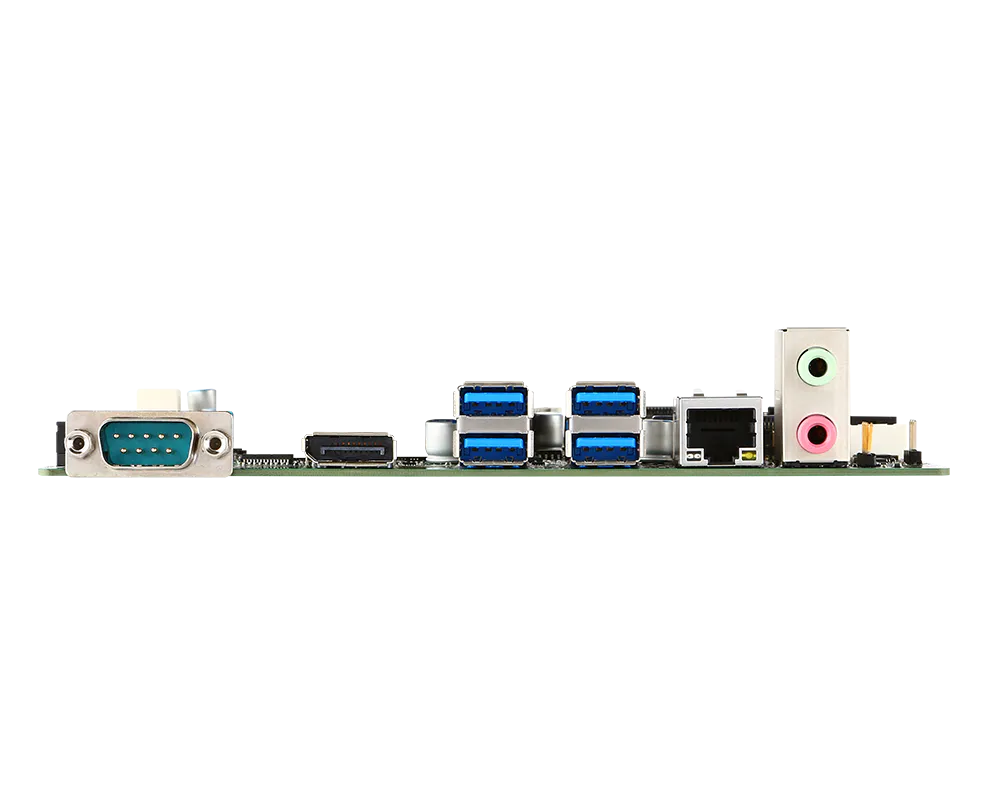

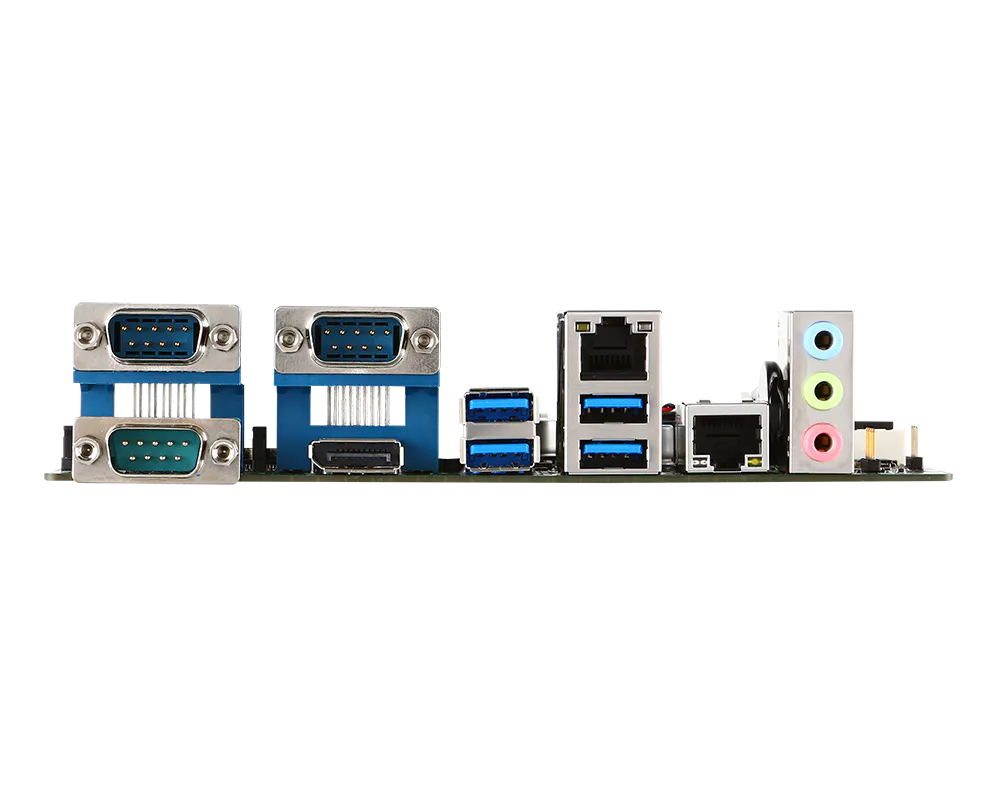

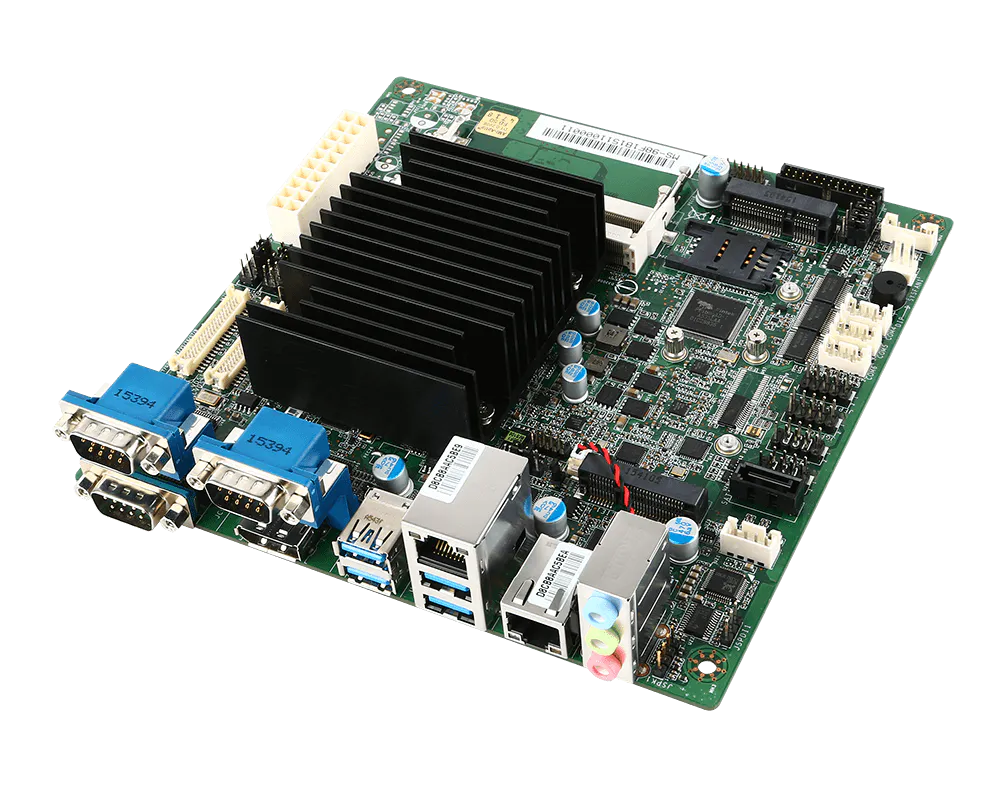

Mini-ITX with Intel® Atom™ Braswell Platform for Rich I/O Ports, Multi-Displays, Low-Power, Fanless & DC/ATX Solution

Mini-ITX with Intel^® Atom™ Braswell Platform for Rich I/O Ports, Multi-Displays, Low-Power, Fanless & DC/ATX Solution

Intel^® Braswell Series SoC
2 DDR3L 1600/1333 MHz SODIMM slots up to 8GB
Triple independent displays: DP, LVDS, LVDS(eDP by option)
2 GbE LAN with RJ-45
1 Mini-PCIe (Full/Half size, with SIM Holder), 1 Mini-PCIe (Full/Half size, with mSATA) slots
mSATA, SATA 3.0 for storage SATA RAID 0/1
4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM(2 RS485, 4 ports by option), GPIO, LPT, PS/2, Audio, S/PDIF, System FAN
Onboard TPM 1.2 (by option)
2 LVDS for dual independent panels
DC-IN 12V/19V/24V (ATX Power by option)

Overview
產品規格
Ordering-Information
Packing-List
Optional-Items


‧ Processor	CPU	Intel® Pentium processor N3710, QC, 6W Intel® Celeron processor N3160, QC, 6W Intel® Celeron processor N3060, DC, 6W Intel® Celeron processor N3010, DC, 4W
	Frequency	N3710, 1.6 GHz, up to 2.56 GHz N3160, 1.6 GHz, up to 2.24 GHz N3060, 1.6 GHz, up to 2.48 GHz N3010, 1.04 GHz, up to 2.24 GHz
	L2 Cache	2MB
	CPU Type	BGA
	Chipset	Integrated
	BIOS	AMI
‧Memory	Technology	Dual-channel DDR3L 1333/1600 MHz
	Max. Capacity	Up to 8GB
	Socket	2 x 204-pin SO-DIMM
‧Graphic	Controller	Intel® HD Graphics
	Graphic Memory	Shared system memory up to 1.7 GB SDRAM
	LVDS	2 x dual channel 18/24-bit
	eDP	1 (colay with LVDS)
	DisplayPort	1
	Multiple Display	3 independent displays
	Display Interface	LVDS up to 1920 x 1200 DP up to 3840 x 2160 eDP up to 2560 x 1600
‧Ethernet	Controller	2 x Intel® i210-AT GbE LAN	1 x Intel® i210-AT GbE LAN
‧Audio	Controller	Realtek® ALC887 co-lay ALC888S
‧Super I/O	Controller	Fintek F81866AD-I
‧H/W Monitor	Watchdog Timer	256-level Watchdog Timer
	Smart Fan	Yes
‧TPM	Controller	Pin header (default) Infineon SLB9635TT 1.2 (by BOM option)
‧I/O Interface	USB	4 x USB 3.0 (rear) 4 x USB 2.0 (internal)	4 x USB 3.0 (rear) 4 x USB 2.0 (internal)
	Serial	6 x COM (3 x rear; 3 x internal) COM1/5: RS- 232/422/485, 0V/5V/12V COM2~4: RS-232, 0V/5V/12V COM6: RS-232, w/o power	4 x port (1 x rear; 3 x internal) COM1/5: RS- 232/422/485, 0V/5V/12V COM4: RS-232, 0V/5V/12V COM6: RS-232, w/o power
	Parallel	1
	PS/2	1 (pin header)
	GPIO	8-bits (4 x GPI; 4 x GPO), 5V
‧Expansion Slot	Mini-PCIe	2 (support Full/Half-size, one w/ SIM holder)
‧Storage	SATA	1 x SATA 3.0
	mSATA	1 (supported by mini PCIe slot )
‧ Power Supply	DC	DC-in 12V/19V/24V
	ATX	ATX Power 20P
‧ Environment	Operating Temperature	0 ~ 60°C
	Operating Humidity	10 ~ 90%, non-condensing
	Storage Temperature	-20 ~ 80°C
	Storage Humidity	10 ~ 90%, non-condensing
‧ Form Factor	Dimensions	170mm x 170mm (Mini-ITX)
	Weight	0.37 kg
‧ Certification	EMC	FCC, CE, RCM, VCCI, BSMI
‧ Software Platform	OS Support	Windows 7 (64-bit) Windows 8.1 (64-bit) Windows 10 (64-bit) Fedora 23, Ubuntu 15.10

‧ Part Number	Description
919-98F1-104	MS-98F1\609-98F1-040\809-98F1-105\VER 11 OPT:D Intel N3160,2DDR3L,1DP,1LVDS,1LVDS colay eDP, 6COM,4USB3.0, 4USB2.0, 2Gbe LAN,1SATA3.0, 2Mini-PCIe,ATX Power,1SATA cable,1CD,1*I/O Shield, Bulk, For channel
919-98F1-103	MS-98F1\609-98F1-030\809-98F1-104\VER 11 OPT:C Intel N3060,2DDR3L,1DP,1LVDS,1LVDS colay eDP,4COM,4USB3.0, 4USB2.0, 1Gbe LAN,1SATA3.0, 2Mini-PCIe,DC Power, 1SATA cable,1Power cable,1CD,1I/O Shield,Bulk, For Channel

‧ Part Number	Description
K1D-1012064-V03	SATA CABLE
K10-3004215-V03	DC POWER CABLE For OPT: C
E21-98F1010-C22	I/O SHIELDING For OPT: C
E21-98F1020-C22	I/O SHIELDING For OPT: D
G71-SEDC153-N56/ X03	DRIVER CD

‧ Part Number	Description
K14-1018003-V03	COM port cable, 300mm
K1B-3008012-E06	USB 2.0 Cable, 330mm

產品規格

料號編碼
MS-98F1-SKU1
MS-98F1-SKU2

Processor

CPU
Intel^® Pentium processor N3710, QC, 6W
Intel^® Celeron processor N3160, QC, 6W
Intel^® Celeron processor N3060, DC, 6W
Intel^® Celeron processor N3010, DC, 4W
Intel^® Pentium processor N3710, QC, 6W
Intel^® Celeron processor N3160, QC, 6W
Intel^® Celeron processor N3060, DC, 6W
Intel^® Celeron processor N3010, DC, 4W

Frequency
N3710, 1.6 GHz, up to 2.56 GHz
N3160, 1.6 GHz, up to 2.24 GHz
N3060, 1.6 GHz, up to 2.48 GHz
N3010, 1.04 GHz, up to 2.24 GHz
N3710, 1.6 GHz, up to 2.56 GHz
N3160, 1.6 GHz, up to 2.24 GHz
N3060, 1.6 GHz, up to 2.48 GHz
N3010, 1.04 GHz, up to 2.24 GHz

L2 Cache
2MB
2MB

CPU Type
BGA
BGA

Chipset
Integrated
Integrated

BIOS
AMI
AMI

Memory

Technology
Dual-channel DDR3L 1333/1600 MHz
Dual-channel DDR3L 1333/1600 MHz

Max. Capacity
Up to 8GB
Up to 8GB

Socket
2 x 204-pin SO-DIMM
2 x 204-pin SO-DIMM

Graphic

Controller
Intel^® HD Graphics
Intel^® HD Graphics

Graphic Memory
Depends on CPU
Depends on CPU

LVDS
2 x dual channel 18/24-bit
2 x dual channel 18/24-bit

eDP
1 (colay with LVDS)
1 (colay with LVDS)

DisplayPort
1
1

Multiple Display
3 independent displays
3 independent displays

Display Interface
LVDS up to 1920 x 1200
DP up to 3840 x 2160
eDP up to 2560 x 1600
LVDS up to 1920 x 1200
DP up to 3840 x 2160
eDP up to 2560 x 1600

Ethernet

Controller
2 x Intel^® i210-AT GbE LAN
1 x Intel^® i210-AT GbE LAN

Audio

Controller
Realtek^® ALC887 co-lay ALC888S
Realtek^® ALC887 co-lay ALC888S

Super I/O

Controller
Fintek F81866AD-I
Fintek F81866AD-I

H/W Monitor

Watchdog Timer
256-level Watchdog Timer
256-level Watchdog Timer

Smart Fan
Yes
Yes

TPM

Controller
Pin header (default)
Infineon SLB9635TT 1.2 (by BOM option)
Pin header (default)
Infineon SLB9635TT 1.2 (by BOM option)

I/O Interface

PS/2
1 (pin header)
1 (pin header)

USB
4 x USB 2.0 (internal)
4 x USB 3.1 Gen 1 (rear)
2 x USB 2.0 (internal)
4 x USB 3.1 Gen 1 (rear)

Parallel
1
1

Serial
6 x COM ports (COM1~3: rear, COM4~6: internal)
COM1&5: RS-232/422/485,0V/5V/12V
COM2~4: RS-232,0V/5V/12V
COM6: RS-232 w/o power
4 x COM ports (COM1: rear, COM4~6: internal)
COM1&5: RS-232/422/485,0V/5V/12V
COM4: RS-232,0V/5V/12V
COM6: RS-232 w/o power

GPIO
8-bits (4 x GPI; 4 x GPO), 5V
8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

Mini-PCIe
2 (support Full/Half-size, one w/ SIM holder)
2 (support Full/Half-size, one w/ SIM holder)

Storage

SATA
1 x SATA 3.0
1 x SATA 3.0

mSATA
1 (supported by mini PCIe slot )
1 (supported by mini PCIe slot )

Power Supply

DC Input
DC-in 12V/19V/24V
DC-in 12V/19V/24V

ATX
ATX Power 20P
ATX Power 20P

Environment

Operating Temperature
0 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
0 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s

Operating Humidity
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing

Storage Humidity
10 ~ 90%, non-condensing
10 ~ 90%, non-condensing

Storage Temperature
-20 ~ 80°C
-20 ~ 80°C

Form Factor

Dimensions
170 x 170 mm (Mini-ITX)
170 x 170 mm (Mini-ITX)

Weight
0.37 kg
0.37 kg

Certification

EMC
FCC, CE, RCM, VCCI, BSMI
FCC, CE, RCM, VCCI, BSMI

Software Platform

OS Support
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux (Support by request)
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux (Support by request)

Ordering Information

Part Number
Description

919-98F1-104
MS-98F1\609-98F1-040\809-98F1-105\VER 11 OPT:D Intel N3160,2*DDR3L,1*DP,1*LVDS,1*LVDS colay eDP, 6*COM,4*USB3.0, 4*USB2.0, 2*Gbe LAN,1*SATA3.0, 2*Mini-PCIe,ATX Power,1*SATA cable,1*CD,1*I/O Shield, Bulk, For channel

919-98F1-103
MS-98F1\609-98F1-030\809-98F1-104\VER 11 OPT:C Intel N3060,2*DDR3L,1*DP,1*LVDS,1*LVDS colay eDP,4*COM,4*USB3.0, 4*USB2.0, 1*Gbe LAN,1*SATA3.0, 2*Mini-PCIe,DC Power, 1*SATA cable,1*Power cable,1*CD,1*I/O Shield,Bulk, For Channel

Packing List

Part Number
Description

K1D-1012064-V03
SATA CABLE

K10-3004215-V03
DC POWER CABLE For OPT: C

E21-98F1010-C22
I/O SHIELDING For OPT: C

E21-98F1020-C22
I/O SHIELDING For OPT: D

Optional Item

Part Number
Description

K14-1018003-V03
COM port cable, 300mm

K1B-3008012-E06
USB 2.0 Cable, 330mm

The MSI MS-98F1 is a Mini-ITX industrial motherboard featuring the Intel® Atom™ Braswell platform, designed for fanless, low-power applications. It supports up to 8GB of DDR3L memory, triple independent displays (DP, LVDS, eDP), dual GbE LAN, multiple USB and COM ports, and dual Mini-PCIe slots. It offers flexible power input options (12V/19V/24V DC or ATX) and operates in temperatures ranging from 0 to 60°C. This robust motherboard is ideal for industrial applications requiring rich I/O and multi-display capabilities.
