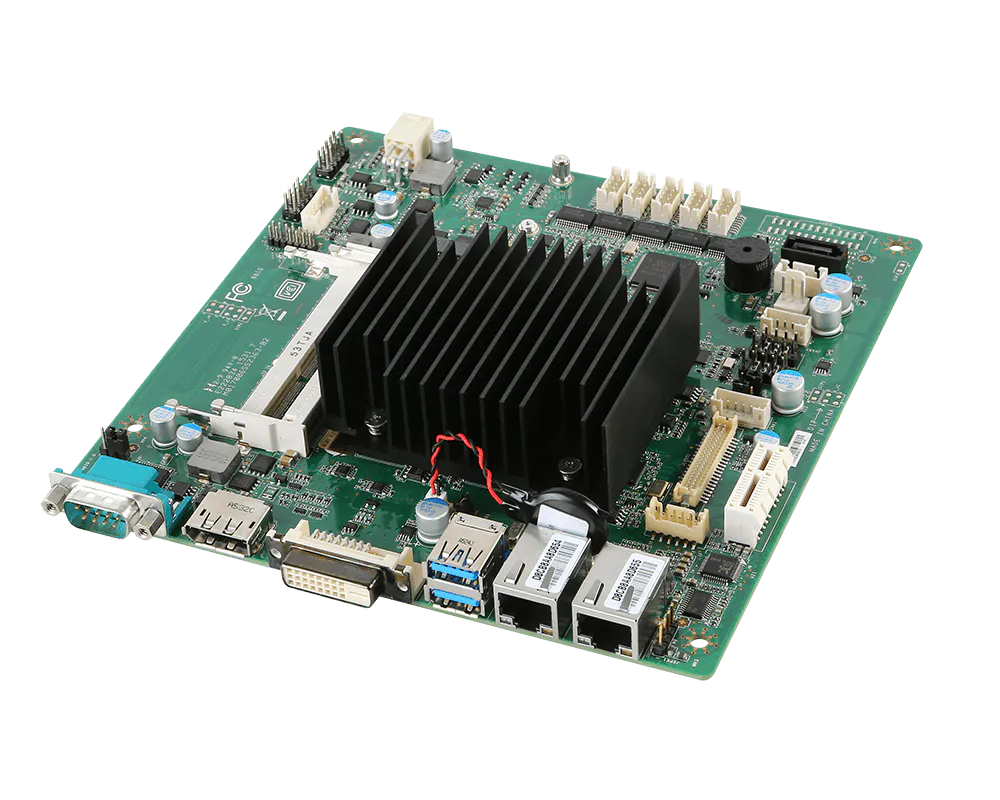

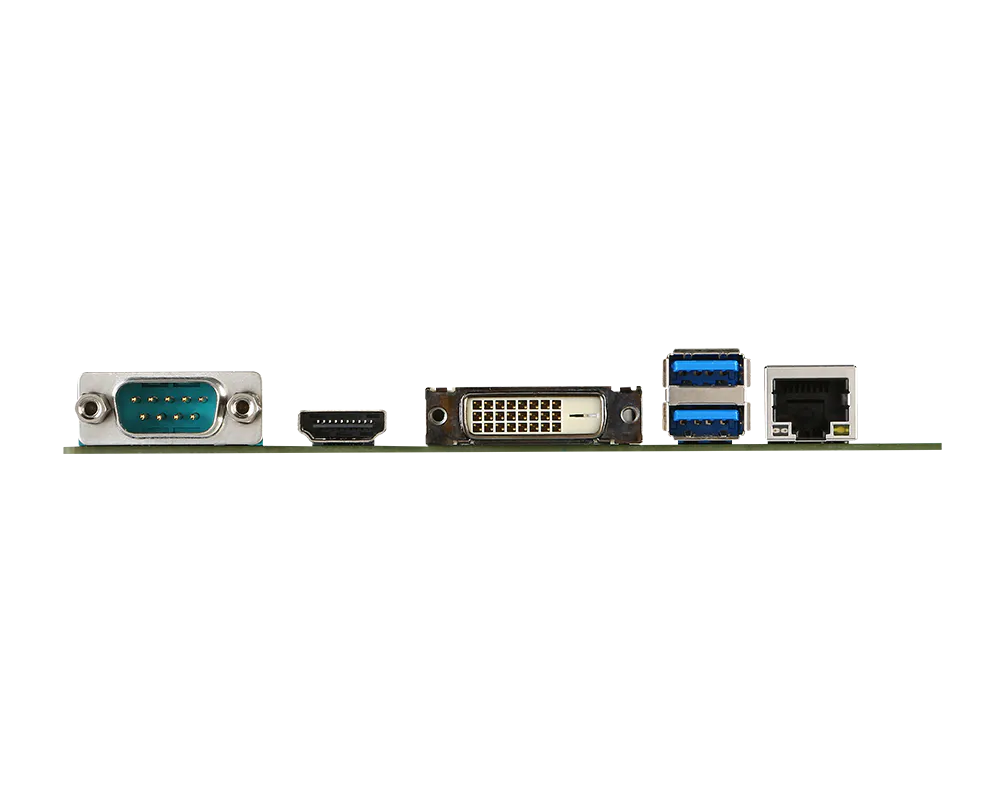

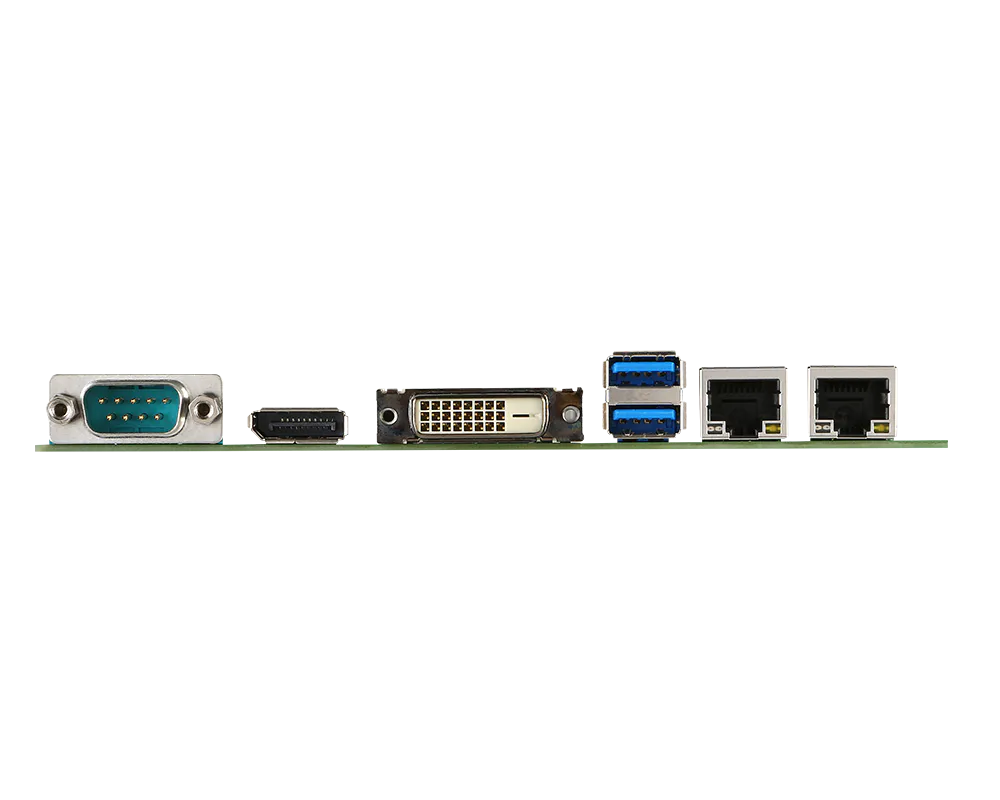

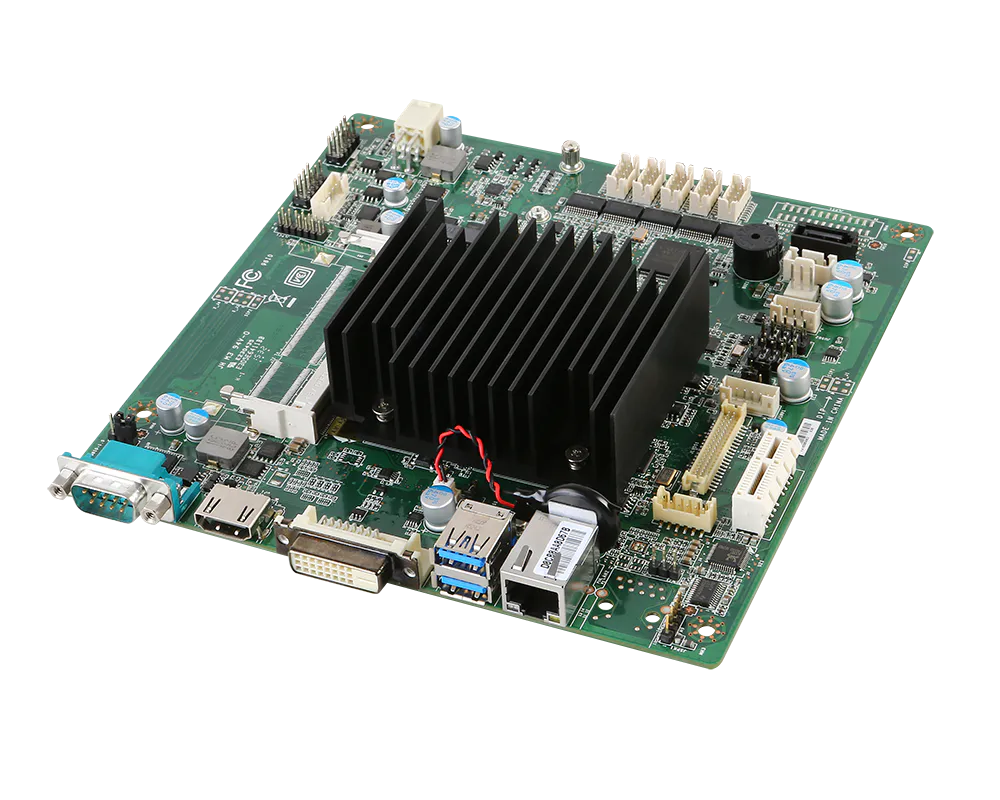

Mini-ITX with Intel® Atom™ Braswell Platform for Low-Power, Slim/Low-Profile and Fanless Solution
- Intel® Braswell Series SoC
- 2 DDR3L 1600/1333 MHz SODIMM slots up to 8GB
- Triple independent displays: DVI-D, DP(HDMI™ by option), LVDS
- 2 GbE LAN with RJ-45
- 1 PCIe x1(Gen 2), 1 Mini-PCIe (Full/Half size, with mSATA) slots
- mSATA, SATA 3.0 for storage SATA RAID 0/1
- 2 USB 3.2 Gen 1, 5 USB 2.0, 6 COM(1 RS485), GPIO, LPT(by option), PS/2, Audio, S/PDIF, System FAN
- Onboard TPM 1.2 (by option)
- DC-IN 12V
- 產品規格
- Ordering-Information
- Packing-List
- Optional-Items
產品規格
- 料號編碼
- MS-98I0
Processor
- CPU
- Intel® Pentium processor N3710, QC, 6W
Intel® Celeron processor N3160, QC, 6W
Intel® Celeron processor N3060, DC, 6W
Intel® Celeron processor N3010, DC, 4W
- Frequency
- N3710, 1.6 GHz, up to 2.56 GHz
N3160, 1.6 GHz, up to 2.24 GHz
N3060, 1.6 GHz, up to 2.48 GHz
N3010, 1.04 GHz, up to 2.24 GHz
- L2 Cache
- 2MB
- CPU Type
- BGA
- Chipset
- Integrated
- BIOS
- AMI
Memory
- Technology
- Dual-channel DDR3L 1333/1600 MHz
- Max. Capacity
- Up to 8GB
- Socket
- 2 x 204-pin SO-DIMMs (1 slot for opt SKU)
Display
- Controller
- Intel® HD Graphics
- Graphic Memory
- Depends on CPU
- LVDS
- Dual channel 24-bit
- DVI
- 1 (DVI-D)
- HDMI
- 1 (colay with DP)
- DisplayPort
- 1 (colay with HDMI™)
- Multiple Display
- 3 independent displays
- Display Interface
- LVDS up to 1920 x 1200
DP up to 3840 x 2160
HDMI™ up to 1920 x 1200
DVI up to 1920 x 1200
Ethernet
- Controller
- 2 or 1 x Realtek® RTL8111G-CG GbE
LAN (depends on SKU)
Audio
- Controller
- Realtek® ALC887 co-lay ALC888S
Super I/O
- Controller
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header (default)
Infineon SLB9635TT 1.2 (by BOM option
I/O Interface
- PS/2
- 1 (pin header)
- USB
- 5 x USB 2.0 (internal)
2 x USB 3.1 Gen 1 (rear)
- Parallel
- 1 (by BOM option)
- Serial
- 6 x COM (1 x rear; 5 x internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~6: RS-232, w/o power
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x1
- 1
- Mini-PCIe
- 1 (Full size co-lay mSATA, support Half-size card)
Storage
- SATA
- 1 x SATA 3.0
- mSATA
- 1 (support by mini PCIe slot)
Power Supply
- DC Input
- DC-in 12V
Environment
- Operating Temperature
- 0 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170 mm (Mini-ITX)
- Weight
- 0.37 kg
Certification
- EMC
- FCC, CE, RCM, VCCI
Software Platform
- OS Support
- Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 919-98I0-103
- MS-98I0\609-98I0-030\809-98I0-103 VER: 10 OPT:C, FANLESS, Braswell N3160, 2*DDR3L, 1*PCIex1, 1*DP, 1*DVI-D, 5*USB2.0, 2*USB3.0, 6*COM, 1*Mini-PCIe, 2*LAN, 1*SATA, 1*SATA Cable, 1*Power Cable, I/O Shield, BULK, For Channel
- 919-98I0-104
- MS-98I0\609-98I0-040\809-98I0-104 VER: 10 OPT:D, FANLESS, Braswell N3060, 1*DDR3L, 1*PCIex1, 1*DP, 1*DVI-D, 5*USB2.0, 2*USB3.0, 6*COM, 1*Mini-PCIe, 1*LAN, 1*SATA, 1*SATA CABLE, 1*Power CABLE, I/O Shield, BULK, For Channel
- 919-98I0-105
- MS-98I0\609-98I0-050\809-98I0-105 VER: 10 OPT:E, FANLESS, Braswell N3160, 2*DDR3L, 1*PCIex1, 1*HDMI™, 1*DVI-D, 5*USB2.0, 2*USB3.0, 6*COM, 1*Mini-PCIe, 2*LAN, 1*SATA, 1*SATA Cable, 1*Power Cable, I/O Shield, BULK, For Channel
Packing List
- Part Number
- Description
- E21-98I0010-C22
- I/O Shielding (2 x LAN)
- E21-98I0020-C22
- I/O Shielding (1 x LAN)
- K1D-1012064-V03
- SATA Cable, 200mm
- K10-3004215-V03
- DC power cable, 160mm
Optional Item
- Part Number
- Description
- K14-1018003-V03
- COM port cable, 300mm
- K1B-3008012-E06
- USB 2.0 Cable, 330mm
