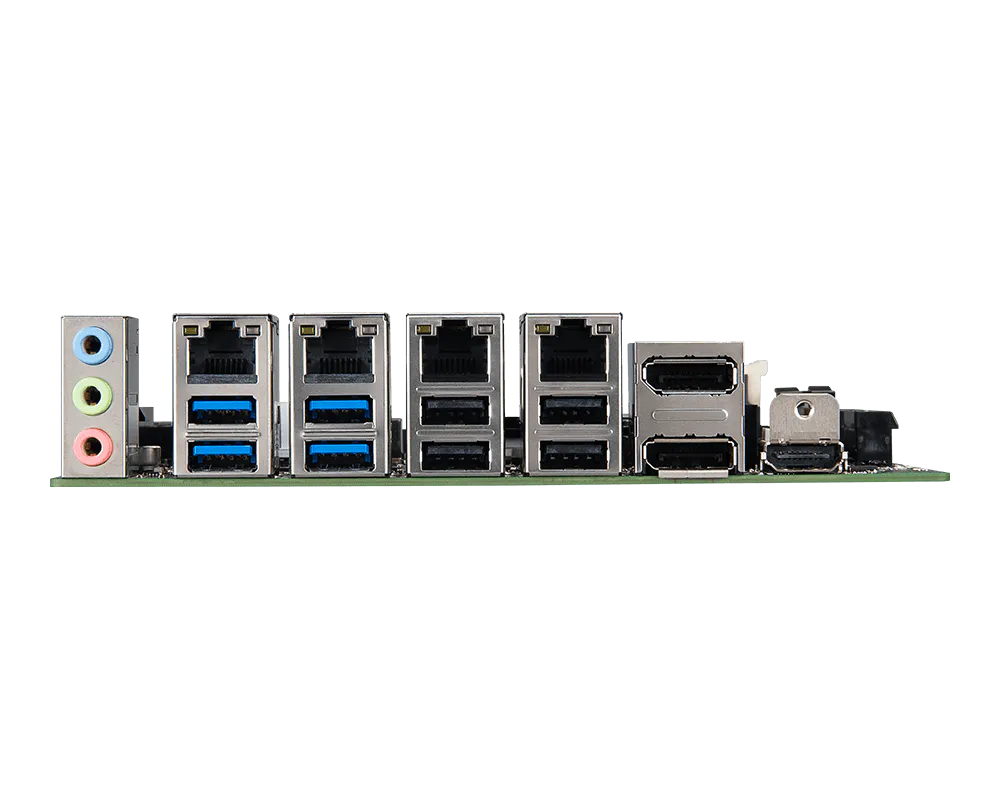

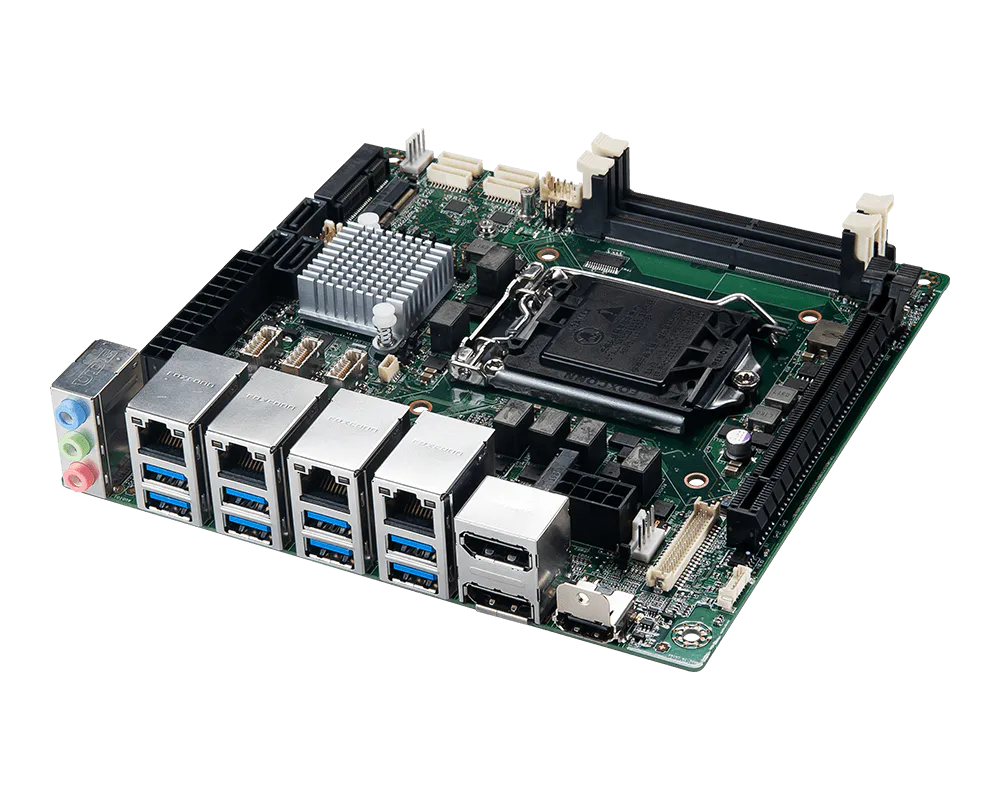

Mini-ITX with 9th/8th Gen Intel® Coffee Lake Refresh-S/Coffee Lake-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® Processor & Intel® C246/Q370/H310 for High-Performance Solution

  • Intel® 8th/9th Gen Coffee Lake-S/Coffee Lake Refresh-S Series with C246/Q370/H310
  • 2 DDR4 2666 MHz ECC/non-ECC SODIMM slots up to 64GB
  • Triple independent displays: 2DP, HDMI™ (DP by option), LVDS
  • 4 GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 3) Slot, M.2 E key (with CNVi), 1 Mini-PCIe (Full size, with SIM Holder) slots
  • M.2 M key, 3 SATA 3.0 for storage
  • SATA RAID 0/1/5/10 (RAID 10 Configured with M.2 M Key)
  • 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio, S/PDIF, System FAN
  • Onboard TPM 2.0 (by option)
  • SMBus, iAMT 12.x
  • ATX Power
  • 產品規格
  • Ordering-Information
  • Packing-List

產品規格

  • 料號編碼
  • MS-98L1-SKU1
  • MS-98L1-SKU2
  • MS-98L1-SKU3
  • MS-98L1-SKU4

Processor

  • CPU
  • 8th Gen Intel® Coffee Lake-S Xeon®/i7/i5/i3/Pentium®/Celeron® Series Processor, Max 95W
    9th Gen Intel® Coffee Lake Refresh-S Xeon®/i7/i5/i3/Pentium®/Celeron® IOTG Processor, Max 65W
  • 8th Gen Intel® Coffee Lake-S i7/i5/i3/Pentium®/Celeron® Series Processor, Max 95W
    9th Gen Intel® Coffee Lake Refresh-S i7/i5/i3/Pentium®/Celeron® IOTG Processor, Max 65W
  • 8th Gen Intel® Coffee Lake-S i7/i5/i3/Pentium®/Celeron® Series Processor, Max 95W
    9th Gen Intel® Coffee Lake Refresh-S i7/i5/i3/Pentium®/Celeron® IOTG Processor, Max 65W
  • 8th Gen Intel® Coffee Lake-S i7/i5/i3/Pentium®/Celeron® Series Processor, Max 95W
    9th Gen Intel® Coffee Lake Refresh-S i7/i5/i3/Pentium®/Celeron® IOTG Processor, Max 65W
  • Frequency
  • 2.0GHz~4.7GHz (Depends on CPU)
  • 2.0GHz~4.7GHz (Depends on CPU)
  • 2.0GHz~4.7GHz (Depends on CPU)
  • 2.0GHz~4.7GHz (Depends on CPU)
  • L2 Cache
  • 2MB~16MB (Depends on CPU)
  • 2MB~16MB (Depends on CPU)
  • 2MB~16MB (Depends on CPU)
  • 2MB~16MB (Depends on CPU)
  • CPU Type
  • Socket (LGA 1151)
  • Socket (LGA 1151)
  • Socket (LGA 1151)
  • Socket (LGA 1151)
  • Chipset
  • Intel® C246 Express
  • Intel® Q370 Express
  • Intel® H310 Express
  • Intel® H310 Express
  • BIOS
  • AMI UEFI
  • AMI UEFI
  • AMI UEFI
  • AMI UEFI

Memory

  • Technology
  • Dual-channel DDR4 (ECC/non-ECC) 2666MHz
  • Dual-channel DDR4 (non-ECC) 2666MHz
  • Dual-channel DDR4 (non-ECC) 2666MHz
  • Dual-channel DDR4 (non-ECC) 2666MHz
  • Max. Capacity
  • Up to 64 GB
  • Up to 64 GB
  • Up to 64 GB
  • Up to 64 GB
  • Socket
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs

Display

  • Controller
  • Intel® UHD Graphics
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • HDMI
  • 1 (Co-lay with DP by Optional)
  • 1 (Co-lay with DP by Optional)
  • 1 (Co-lay with DP by Optional)
  • 1 (Co-lay with DP by Optional)
  • Multiple Display
  • 3 independent displays
  • 3 independent displays
  • 2 independent displays
  • 2 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200 @60Hz
    HDMI™ up to 4096 x 2160 @24Hz
    DP up to 4096 x 2304 @60Hz
  • LVDS up to 1920 x 1200@60Hz
    HDMI™ up to 4096 x 2160@24Hz
    DP up to 4096 x 2304@60Hz
  • HDMI™ up to 4096 x 2160@24Hz
    DP up to 4096 x 2304@60Hz
  • HDMI™ up to 4096 x 2160@24Hz
    DP up to 4096 x 2304@60Hz

Graphic

  • LVDS
  • 1 x Dual channel 18/24-bit
  • 1 x Dual channel 18/24-bit
  • DisplayPort
  • 2
  • 2
  • 2
  • 2

Ethernet

  • Controller
  • 1 x Intel® I219-LM GbE LAN PHY
    3 x Intel® I210-AT GbE LAN
  • 1 x Intel® I219-LM GbE LAN PHY
    1 x Intel® I210-AT GbE LAN
  • 1 x Intel® I219-LM GbE LAN PHY
    3 x Intel® I211-AT GbE LAN
  • 1 x Intel® I219-LM GbE LAN PHY
    1 x Intel® I211-AT GbE LAN

Audio

  • Controller
  • Realtek® ALC887 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC887 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC887 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC887 Audio Codec (Co-lay ALC888S)

Super I/O

  • Controller
  • Fintek F81866AD-I
  • Fintek F81866AD-I
  • Fintek F81866AD-I
  • Fintek F81866AD-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes
  • Yes
  • Yes

TPM

  • Controller
  • Infineon SLB9665TT2.0
  • Infineon SLB9665TT2.0
  • Box header (Default)
    Infineon SLB9665TT2.0 (by BOM option)
  • Box header (Default)
    Infineon SLB9665TT2.0 (by BOM option)

Expansion Slot

  • PCIe x16
  • 1
  • 1
  • 1
  • 1
  • M.2
  • 1 x M key (PCIe x4 NVMe, SATA), 2242/2280
    1 x E key (PCIe x1, USB 2.0, CNVi), 2230
  • 1 x M Key (PCIe x4 NVMe, SATA), 2242/2280
    1 x E Key (PCIe x1, USB 2.0, CNVi), 2230
  • 1 x M Key (SATA), 2242/2280
  • 1 x M Key (SATA), 2242/2280
  • Mini-PCIe
  • 1 x Full-size (w/SIM holder)
  • 1 x Full-size (w/SIM holder)
  • 1 x Full-size
  • 1 x Full-size

Storage

  • SATA
  • 3 x SATA 3.0 (Support RAID 0/1/5/10, AHCI Mode, RAID 10 Configured with M.2 M Key)
  • 3 x SATA 3.0
    (Support RAID 0/1/5/10, AHCI Mode, RAID 10 Configured with M.2 M Key)
  • 3 x SATA 3.0
    (Support AHCI Mode)
  • 3 x SATA 3.0
    (Support AHCI Mode)

I/O Interface

  • USB
  • 2 x USB 2.0 (internal)
    6 x USB 3.2 Gen 1 (4 x rear, Signal Share with Internal Box Header; 2 x internal)
    4 x USB 3.2 Gen 2 (rear)
  • 2 x USB 2.0 (internal)
    6 x USB 3.2 Gen 1 (4 x rear, Signal Share with Internal Box Header; 2 x internal)
    4 x USB 3.2 Gen 2 (rear)
  • 4 x USB 2.0 (rear)
    4 x USB 3.2 Gen1 (rear)
  • 4 x USB 2.0 (rear)
    4 x USB 3.2 Gen1 (rear)
  • Serial
  • 6 x COM ports
    COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
    COM2: RS-232/422/485, 0V/5V/12V, Auto-flow Control
    COM3~6: RS-232, 0V/5V/12V (RS-232/422/485 by option)
  • 6 x COM ports
    COM1: RS-232/422/485,RI/5V/12V, Auto-flow Control
    COM2: RS-232/422/485,0V/5V/12V, Auto-flow Control
    COM3~6: RS-232,0V/5V/12V (RS-232/422/485 by option)
  • 4 x COM ports
    COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
    COM2~4: RS-232,0V/5V/12V(RS-232/422/485 by option)
  • 2 x COM ports
    COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
    COM2: RS-232, 0V/5V/12V (RS-232/422/485 by option)
  • GPIO
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V

Power Supply

  • ATX
  • ATX-Power 24P, 12V-8P
  • ATX-Power 24P, 12V-8P
  • ATX-Power 24P, 12V-8P
  • ATX-Power 24P, 12V-8P

Environment

  • Operating Temperature
  • -10 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • -10 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • Weight
  • 0.405 kg
  • 0.375 kg
  • 0.39 kg
  • 0.375 kg

Certification

  • EMC
  • CE, FCC Class B, BSMI, RCM, VCCI
  • CE, FCC Class B, BSMI, RCM, VCCI
  • CE, FCC Class B, BSMI, RCM, VCCI
  • CE, FCC Class B, BSMI, RCM, VCCI

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)
  • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 919-98L1-005
  • MS-98L1 10 Intel® CLF-S & CFLR-S C246 2*DDR4 SO-DIMM, 4*LAN, 2*DP, 1*HDMI™, 1*LVDS,3*SATA-3.0, 2*M.2, 1*PCIe x16, 1*Mini PCIe, 6*COM, 10*USB 3.2, 2*USB 2.0, ATX Power
  • 919-98L1-006
  • MS-98L1 10 OPT:A Intel® CLF-S & CFLR-S Q370 2*DDR4 SO-DIMM, 2*LAN, 2*DP, 1*HDMI™, 1*LVDS, 3*SATA-3.0, 2*M.2,1*PCIe x16, 1*Mini PCIe, 6*COM, 10*USB 3.2, 2*USB 2.0, ATX Power
  • 919-98L1-007
  • MS-98L1 10 OPT:B Intel CLF-S & CFLR-S H310 2*DDR4 SO-DIMM, 4*LAN, 2*DP, 1*HDMI™, 3*SATA-3.0,1*M.2,1*PCIe x16, 1*Mini PCIe, 4*COM, 4*USB 3.2 Gen2, 4*USB 2.0, ATX Power
  • 919-98L1-008
  • MS-98L1 10 OPT:C Intel CLF-S & CFLR-S H310 2*DDR4 SO-DIMM, 2*LAN, 2*DP, 1*HDMI™, 3*SATA-3.0,1*M.2,1*PCIe x16, 1*Mini PCIe, 4*COM, 4*USB 3.2 Gen2, 4*USB 2.0, ATX Power

Packing List

  • Part Number
  • Description
  • Quantity
  • K1D-1008261-V03
  • SATA Cable, 500mm
  • 1
  • K14-3018004-V03
  • COM Port Cable, 250mm
  • 1
  • E21-98L1010-C22
  • I/O SHIELDING (For 919-98L1-005)
  • 1
  • E21-98L1020-C22
  • I/O SHIELDING (For 919-98L1-006)
  • 1
  • E21-98L1030-C22
  • I/O SHIELDING (For 919-98L1-007)
  • 1
  • E21-98L1040-C22
  • I/O SHIELDING (For 919-98L1-008)
  • 1
  • G71-SEDC201-X03/N56
  • Driver CD
  • 1
