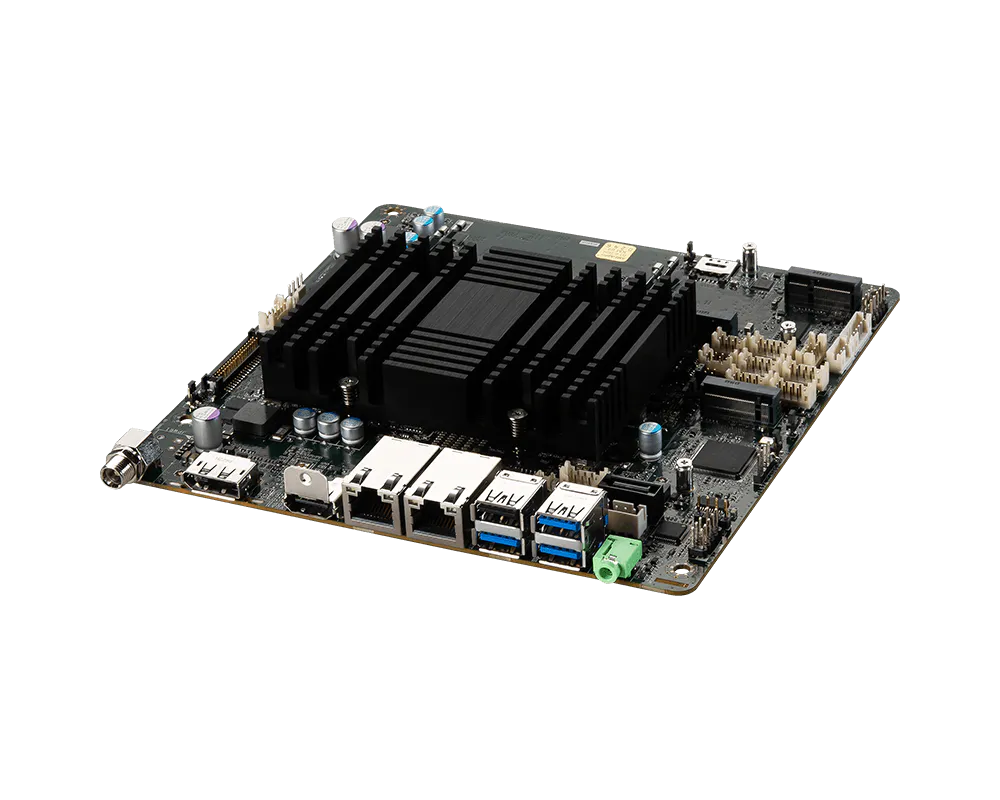

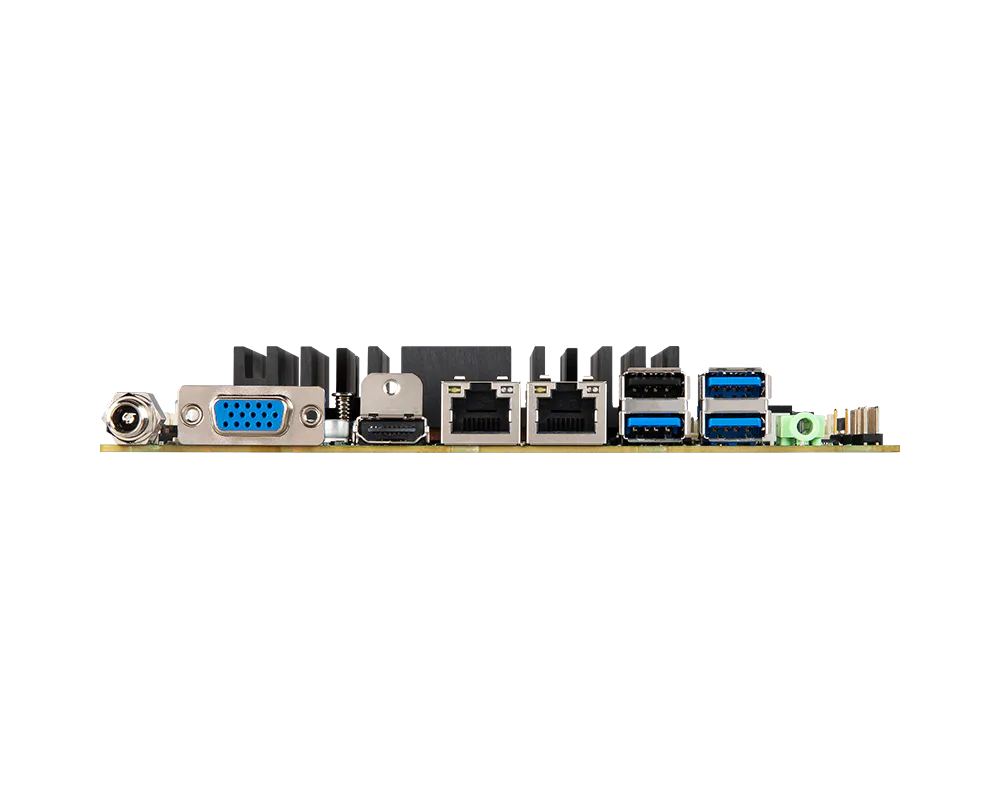

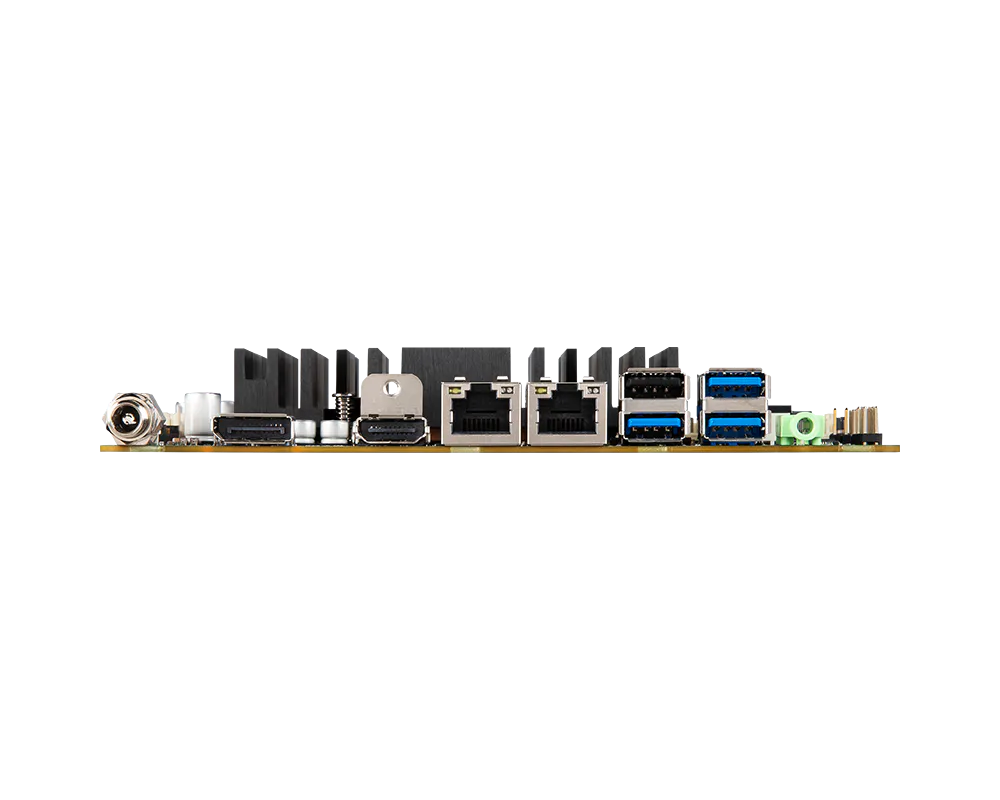

Mini-ITX with Intel® Elkhart Lake SoC Series for Fanless, Low-Power, High-Performance, Multi-Displays & Multi-Functions Solution

  • Intel® Elkhart Lake Series SoC
  • 2 DDR4 3200MHz SODIMM slots up to 32GB
  • Triple independent displays: 1 HDMI™, 1 DP/VGA, 1 LVDS/eDP
  • 2 2.5GbE LAN with RJ-45
  • M.2 E Key, M.2 B Key (with SIM Holder)
  • M.2 M Key, 1 SATA 3.0 for storag
  • mSATA, 1 SATA 3.0 for storage
  • 3 USB 3.2 Gen 1, 5 USB 2.0, 6 COM (2 RS-485), GPIO, PS/2, Audio, System FAN
  • Onboard TPM 2.0
  • DC-in 12V/19V/24V
  • 產品規格
  • Ordering-Information
  • Packing-List

產品規格

  • 料號編碼
  • MS-98N1-SKU1
  • MS-98N1-SKU2
  • MS-98N1-SKU3
  • MS-98N1-SKU4

Processor

  • CPU
  • Intel® Celeron® Processor J6412, QC, 10W
    Intel® Celeron® Processor N6210, DC, 6.5W
  • Intel® Celeron® Processor J6412, QC, 10W
    Intel® Celeron® Processor N6210, DC, 6.5W
  • Intel® Celeron® Processor J6412, QC, 10W
    Intel® Celeron® Processor N6210, DC, 6.5W
  • Intel Atom® x6211E Processor, DC, 6W
  • Frequency
  • J6412, 2.0 GHz, up to 2.6 GHz
    N6210, 1.2 GHz, up to 2.6 GHz
    x6211E, 1.3 GHz, up to 3.0 GHz
  • J6412, 2.0 GHz, up to 2.6 GHz
    N6210, 1.2 GHz, up to 2.6 GHz
    x6211E, 1.3 GHz, up to 3.0 GHz
  • J6412, 2.0 GHz, up to 2.6 GHz
    N6210, 1.2 GHz, up to 2.6 GHz
    x6211E, 1.3 GHz, up to 3.0 GHz
  • J6412, 2.0 GHz, up to 2.6 GHz
    N6210, 1.2 GHz, up to 2.6 GHz
    x6211E, 1.3 GHz, up to 3.0 GHz
  • L2 Cache
  • 1.5MB
  • 1.5MB
  • 1.5MB
  • 1.5MB
  • CPU Type
  • BGA
  • BGA
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC
  • Integrated in SoC
  • Integrated in SoC
  • Integrated in SoC
  • BIOS
  • AMI
  • AMI
  • AMI
  • AMI

Memory

  • Technology
  • Dual-channel DDR4 3200 MHz
  • Dual-channel DDR4 3200 MHz
  • Dual-channel DDR4 3200 MHz
  • Dual-channel DDR4 3200 MHz
  • Max. Capacity
  • Up to 32 GB
  • Up to 32 GB
  • Up to 32 GB
  • Up to 32 GB
  • Socket
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs
  • 2 x 260-pin DDR4 SO-DIMMs

Display

  • Controller
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • 1 x Dual channel 18/24-bit (Connector shared with eDP)
  • 1 x Dual channel 18/24-bit (Connector shared with eDP)
  • 1 x Dual channel 18/24-bit (Connector shared with eDP)
  • 1 x Dual channel 18/24-bit (Connector shared with eDP)
  • eDP
  • 1 (Connector shared with LVDS)
  • 1 (Connector shared with LVDS)
  • 1 (Connector shared with LVDS)
  • 1 (Connector shared with LVDS)
  • VGA
  • -
  • 1
  • -
  • -
  • DVI
  • -
  • -
  • -
  • -
  • HDMI
  • 1
  • 1
  • 1
  • 1
  • DisplayPort
  • 1
  • -
  • 1
  • 1
  • Multiple Display
  • 3 independent displays
  • 3 independent displays
  • 3 independent displays
  • 3 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200 @60 Hz
    eDP up to 4096 x 2160 @60 Hz
    DP up to 4096 x 2160 @60 Hz
    HDMI up to 4096 × 2160 @24 Hz
    VGA up to 1920 x 1200 @60 Hz
  • LVDS up to 1920 x 1200 @60 Hz
    eDP up to 4096 x 2160 @60 Hz
    DP up to 4096 x 2160 @60 Hz
    HDMI up to 4096 × 2160 @24 Hz
    VGA up to 1920 x 1200 @60 Hz
  • LVDS up to 1920 x 1200 @60 Hz
    eDP up to 4096 x 2160 @60 Hz
    DP up to 4096 x 2160 @60 Hz
    HDMI up to 4096 × 2160 @24 Hz
    VGA up to 1920 x 1200 @60 Hz
  • LVDS up to 1920 x 1200 @60 Hz
    eDP up to 4096 x 2160 @60 Hz
    DP up to 4096 x 2160 @60 Hz
    HDMI up to 4096 × 2160 @24 Hz
    VGA up to 1920 x 1200 @60 Hz

Ethernet

  • Controller
  • 2 x Intel® I225-V 2.5 GbE LAN
  • 2 x Intel® I225-V 2.5 GbE LAN
  • 2 x Intel® I225-V 2.5 GbE LAN
  • 2 x Intel® I225-IT 2.5 GbE LAN

Audio

  • Controller
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)
  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)

Super I/O

  • Controller
  • Fintek F81966D-I
  • Fintek F81966D-I
  • Fintek F81966D-I
  • Fintek F81966D-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • Yes
  • Yes
  • Yes
  • Yes

TPM

  • Controller
  • Infineon SLB9672VU 2.0
  • Infineon SLB9672VU 2.0
  • Infineon SLB9672VU 2.0
  • Infineon SLB9672VU 2.0

I/O Interface

  • PS/2
  • 1 (pin header)
  • 1 (pin header)
  • 1 (pin header)
  • 1 (pin header)
  • USB
  • 5 x USB 2.0 (1 x rear, 4 x internal)
    3 x USB 3.2 Gen 1 (rear)
  • 5 x USB 2.0 (1 x rear, 4 x internal)
    3 x USB 3.2 Gen 1 (rear)
  • 5 x USB 2.0 (1 x rear, 4 x internal)
    3 x USB 3.2 Gen 1 (rear)
  • 5 x USB 2.0 (1 x rear, 4 x internal)
    3 x USB 3.2 Gen 1 (rear)
  • Parallel
  • -
  • -
  • -
  • -
  • Serial
  • 6 x COM ports (internal)
    COM1: RS-232/422/485, RI/0V/5V/12V
    COM2: RS-232/422/485, 0V/5V/12V
    COM3-6: RS-232, W/O Power
  • 6 x COM ports (internal)
    COM1: RS-232/422/485, RI/0V/5V/12V
    COM2: RS-232/422/485, 0V/5V/12V
    COM3-6: RS-232, W/O Power
  • 6 x COM ports (internal)
    COM1: RS-232/422/485, RI/0V/5V/12V
    COM2: RS-232/422/485, 0V/5V/12V
    COM3-6: RS-232, W/O Power
  • 6 x COM ports (internal)
    COM1: RS-232/422/485, RI/0V/5V/12V
    COM2: RS-232/422/485, 0V/5V/12V
    COM3-6: RS-232, W/O Power
  • GPIO
  • 8-bits (4 x GPI, 4 x GPO), 5V
  • 8-bits (4 x GPI, 4 x GPO), 5V
  • 8-bits (4 x GPI, 4 x GPO), 5V
  • 8-bits (4 x GPI, 4 x GPO), 5V

Expansion Slot

  • PCIe x16
  • -
  • -
  • -
  • -
  • PCIe x8
  • -
  • -
  • -
  • -
  • PCIe x4
  • -
  • -
  • -
  • -
  • PCIe x1
  • -
  • -
  • -
  • -
  • PCI
  • -
  • -
  • -
  • -
  • M.2
  • 1 x M key (SATA), 2242
    1 x B key (PCIe x1, USB 3.2 Gen 1 x 1, USB 2.0 w/NANO SIM-Holder), 2242/3042
    1 x E key (PCIe x1, USB 2.0), 2230
  • 1 x M key (SATA), 2242
    1 x B key (PCIe x1, USB 3.2 Gen 1 x 1, USB 2.0 w/NANO SIM-Holder), 2242/3042
    1 x E key (PCIe x1, USB 2.0), 2230
  • 1 x M key (SATA), 2242
    1 x B key (PCIe x1, USB 3.2 Gen 1 x 1, USB 2.0 w/NANO SIM-Holder), 2242/3042
    1 x E key (PCIe x1, USB 2.0), 2230
  • 1 x M key (SATA), 2242
    1 x B key (PCIe x1, USB 3.2 Gen 1 x 1, USB 2.0 w/NANO SIM-Holder), 2242/3042
    1 x E key (PCIe x1, USB 2.0), 2230
  • Mini-PCIe
  • -
  • -
  • -
  • -

Storage

  • SATA
  • 1 x SATA 3.0
  • 1 x SATA 3.0
  • 1 x SATA 3.0
  • 1 x SATA 3.0
  • IDE
  • -
  • -
  • -
  • -
  • eSATA
  • -
  • -
  • -
  • -
  • CFast
  • -
  • -
  • -
  • -
  • mSATA
  • -
  • -
  • -
  • -
  • CompactFlash
  • -
  • -
  • -
  • -

Power Supply

  • DC Input
  • DC-in 12/19/24V
  • DC-in 12/19/24V
  • DC-in 12/19/24V
  • DC-in 12/19/24V
  • ATX
  • -
  • -
  • -
  • -

Environment

  • Operating Temperature
  • 0 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • 0 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • 0 ~ 60°C
    Note: Thermal w/ Airflow:0.7m/s
  • -20 ~ 70°C
    Note: Thermal w/ Airflow:0.7m/s
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • 170 x 170 mm (Mini-ITX)
  • Weight
  • 0.50 kg
  • 0.50 kg
  • 0.50 kg
  • 0.50 kg

Certification

  • EMC
  • FCC, CE, RCM, VCCI, BSMI, UKCA, IC
  • FCC, CE, RCM, VCCI, BSMI, UKCA, IC
  • FCC, CE, RCM, VCCI, BSMI, UKCA, IC
  • FCC, CE, RCM, VCCI, BSMI, UKCA, IC

Software Platform

  • OS Support
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Linux (Support by request)
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 919-98N1-101
  • Intel Elkhart Lake J6412,2*DDR4 SO-DIMM,3*USB3.2,5*USB2.0,6*COM, 1*eDP/LVDS,1*DP,1*HDMI,2*LAN,3*M.2,1*SATA3.0,DC-in 12/19/24V
  • 919-98N1-102
  • Intel Elkhart Lake J6412,2*DDR4 SO-DIMM,3*USB3.2,5*USB2.0,6*COM, 1*eDP/LVDS,1*VGA,1*HDMI,2*LAN,3*M.2,1*SATA3.0,DC-in 12/19/24V
  • 919-98N1-103
  • Intel Elkhart Lake N6210,2*DDR4 SO-DIMM,3*USB3.2,5*USB2.0,6*COM, 1*eDP/LVDS,1*DP,1*HDMI,2*LAN,3*M.2,1*SATA3.0,DC-in 12/19/24V
  • 919-98N1-104
  • Intel Elkhart Lake X6211E,2*DDR4 SO-DIMM,3*USB3.2,5*USB2.0,6*COM, 1*eDP/LVDS,1*DP,1*HDMI,2*LAN,3*M.2,1*SATA3.0,DC-in 12/19/24V, SEMI-WT

Packing List

  • Part Number
  • Description
  • Quantity
  • K1D-1012064-V03
  • SATA Cable with Power, 200mm
  • 1
  • K14-1009062-V03
  • COM PORT Cable, 250mm
  • 1
  • K1B-3008067-V03
  • USB Cable, 150mm
  • 1
  • E21-98N1010-C22
  • I/O SHIELDING For DP+HDMI
  • 1
  • E21-98N1020-C22
  • I/O SHIELDING For VGA+HDMI
  • 1
