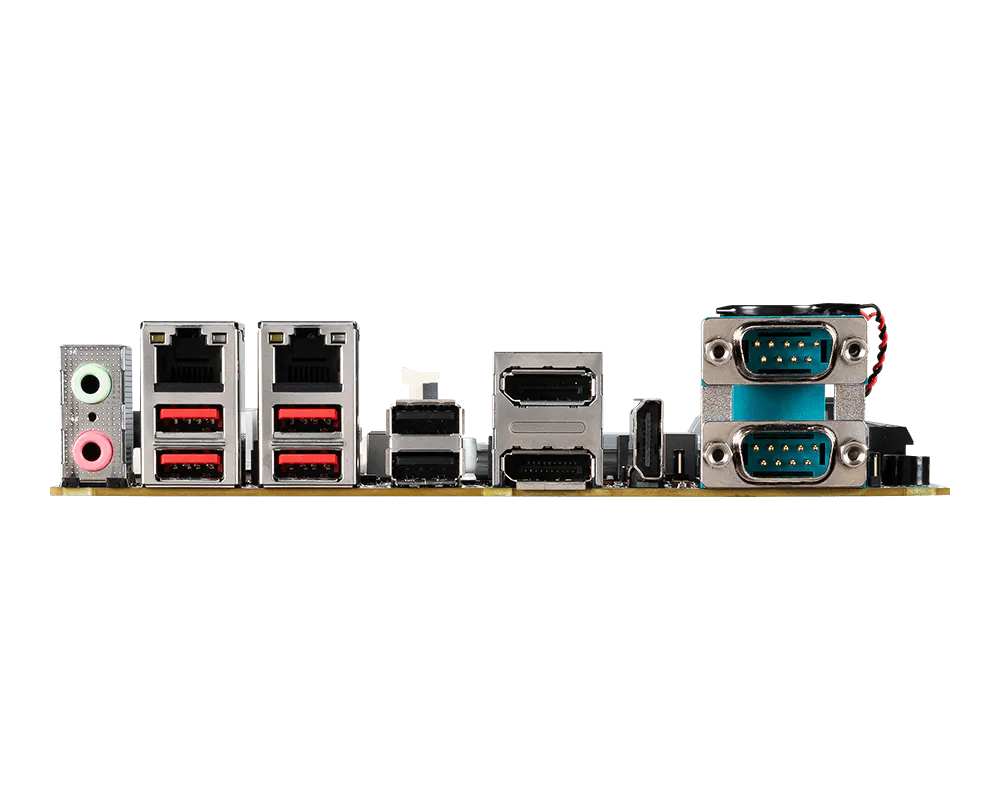

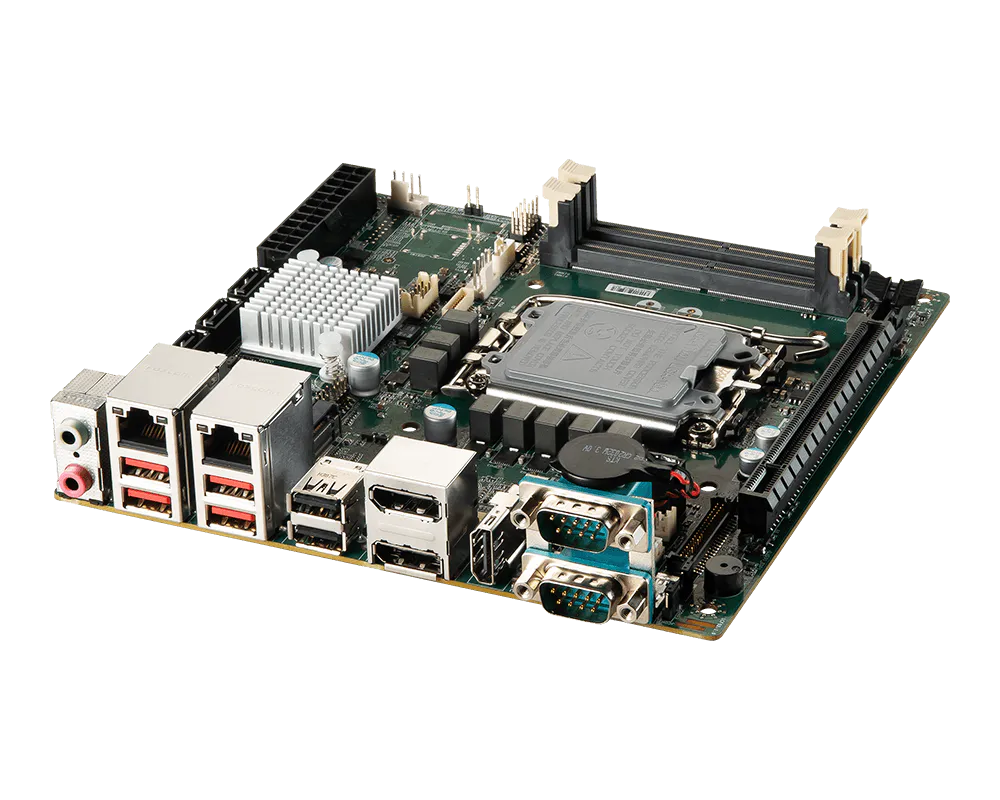

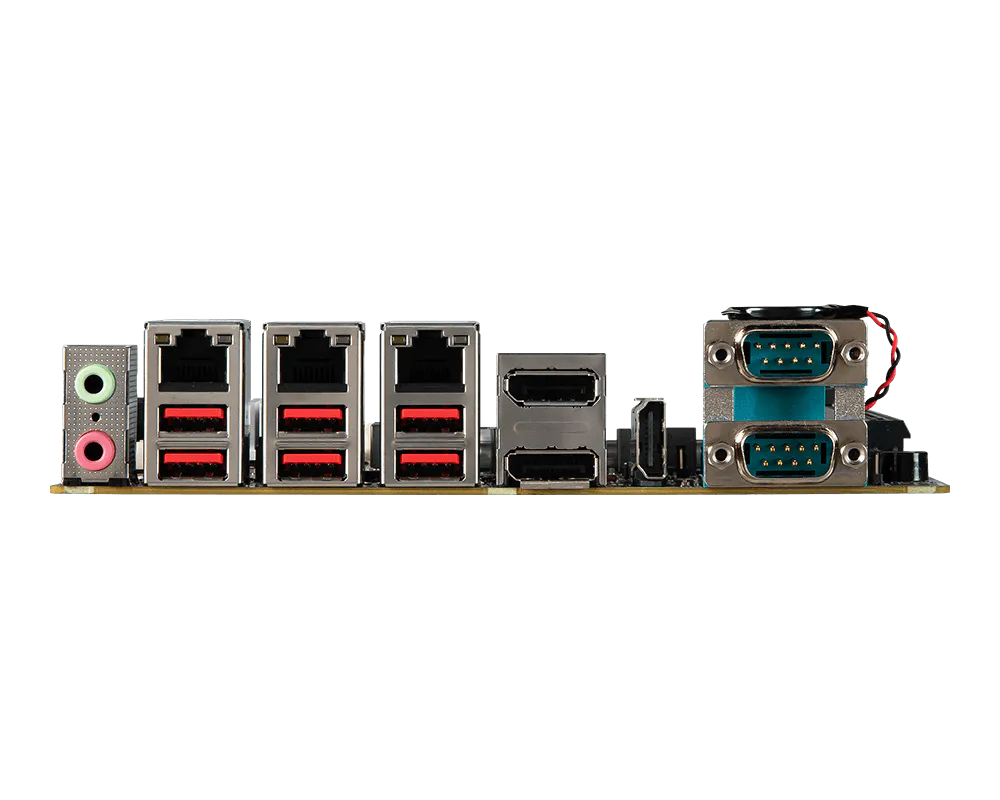

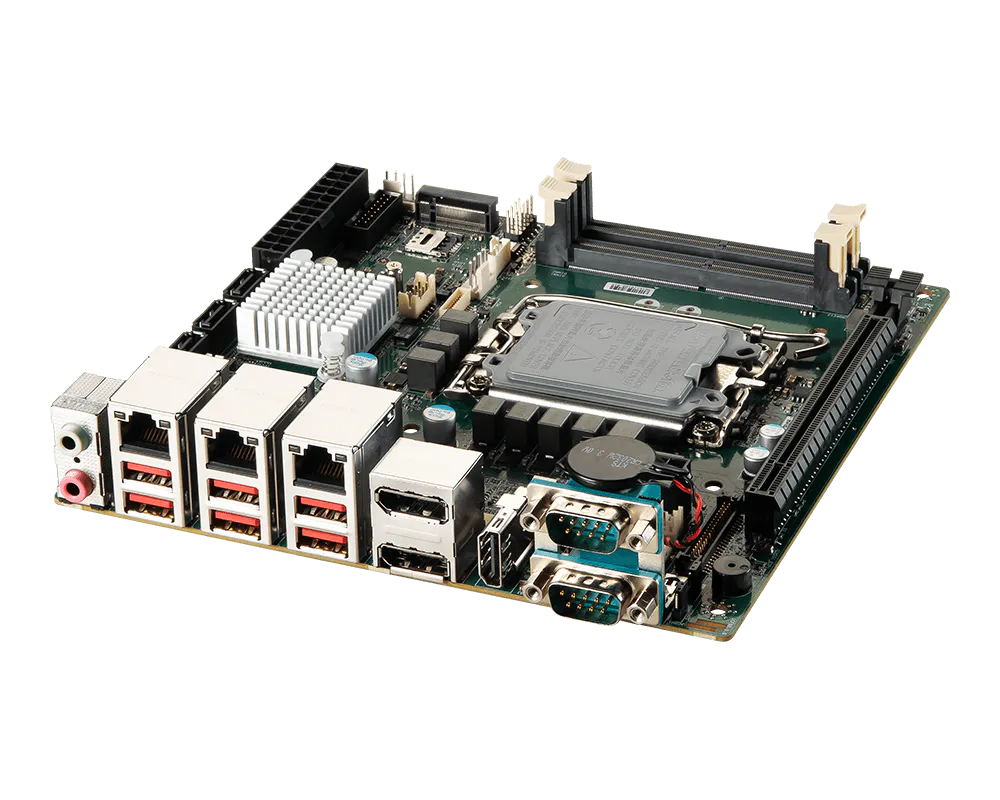

Mini-ITX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E/H610E for High-Performance Solution
- Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Alder Lake-S Series with R680E/Q670E/H610E
- 2 DDR4 3200 MT/s ECC/non-ECC SODIMM slots up to 64GB
- Quadruple independent displays: 2DP, HDMI, LVDS/eDP
- 3/2 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 4) Slot, 1 M.2 E key (with CNVi), 1 M.2 B key (with SIM Holder) slots
- M.2 M key, 3 SATA 3.0 for storage
- SATA RAID 0/1/5
- 6 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 2 USB 2.0, 4 COM (4 RS-485), GPIO, Audio, System FAN
- Onboard TPM 2.0
- SMBus, iAMT 16.x
- ATX Power
- 產品規格
- Ordering-Information
- Packing-List
產品規格
- 料號編碼
- MS-CF02-SKU1
- MS-CF02-SKU2
- MS-CF02-SKU3
Processor
- CPU
- 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W - 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W - 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
- Frequency
- 1.6 GHz~5.1 GHz (Depends on CPU)
- 1.6 GHz~5.1 GHz (Depends on CPU)
- 1.6 GHz~5.1 GHz (Depends on CPU)
- L2 Cache
- 2MB~30MB (Depends on CPU)
- 2MB~30MB (Depends on CPU)
- 2MB~30MB (Depends on CPU)
- CPU Type
- Socket (LGA 1700)
- Socket (LGA 1700)
- Socket (LGA 1700)
- Chipset
- Intel® R680E
- Intel® Q670E
- Intel® H610E
- BIOS
- AMI UEFI
- AMI UEFI
- AMI UEFI
Memory
- Technology
- Dual-channel
DDR4 (ECC/non-ECC) 3200MT/s - Dual-channel DDR4 (non-ECC) 3200MT/s
- Dual-channel DDR4 (non-ECC) 3200MT/s
- Max. Capacity
- Up to 64GB
- Up to 64GB
- Up to 64GB
- Socket
- 2 x 260-pin DDR4 SO-DIMMs
- 2 x 260-pin DDR4 SO-DIMMs
- 2 x 260-pin DDR4 SO-DIMMs
Display
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- Depends on CPU
- LVDS
- 1 x Dual channel 18/24-bit (Connector shared with eDP)
- 1 x Dual channel 18/24-bit (Connector shared with eDP)
- 1 x Dual channel 18/24-bit (Connector shared with eDP)
- eDP
- 1 (Connector shared with LVDS)
- 1 (Connector shared with LVDS)
- 1 (Connector shared with LVDS)
- VGA
- --
- --
- --
- DVI
- --
- --
- --
- HDMI
- 1
- 1
- 1
- DisplayPort
- 2
- 2
- 2
- Multiple Display
- 4 independent displays
- 4 independent displays
- 3 independent displays
- Display Interface
- LVDS up to 1920 x 1200@60Hz
eDP up to 4096 x 2304@60Hz
HDMI up to 4096 x 2160@24Hz
DP up to 4096 x 2304@60Hz - LVDS up to 1920 x 1200@60Hz
eDP up to 4096 x 2304@60Hz
HDMI up to 4096 x 2160@24Hz
DP up to 4096 x 2304@60Hz - LVDS up to 1920 x 1200@60Hz
eDP up to 4096 x 2304@60Hz
HDMI up to 4096 x 2160@24Hz
DP up to 4096 x 2304@60Hz
Ethernet
- Controller
- 3 x Intel® I225-LM 2.5GbE LAN
- 3 x Intel® I225-LM 2.5GbE LAN
- 2 x Intel® I225-V 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
Super I/O
- Controller
- Fintek F81966D-I
- Fintek F81966D-I
- Fintek F81966D-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
- Yes
TPM
- Controller
- Infineon SLB 9670VQ2.0
- Infineon SLB 9670VQ2.0
- Infineon SLB 9670VQ2.0
I/O Interface
- PS/2
- --
- --
- --
- USB
- 6 x USB 3.2 Gen 2 (rear)
2 x USB 3.2 Gen 1 (internal)
2 x USB 2.0 (internal) - 6 x USB 3.2 Gen 2 (rear)
2 x USB 3.2 Gen 1 (internal)
2 x USB 2.0 (internal) - 2 x USB 3.2 Gen2 (rear)
2 x USB 3.2 Gen1 (rear)
2 x USB 2.0 (rear)
2 x USB 2.0 (internal)
- Parallel
- --
- --
- --
- Serial
- 4 x COM ports
COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
COM2~4: RS-232/422/485, 0V/5V/12V, Auto-flow Control - 4 x COM ports
COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
COM2~4: RS-232/422/485, 0V/5V/12V, Auto-flow Control - 4 x COM ports
COM1: RS-232/422/485, RI/5V/12V, Auto-flow Control
COM2: RS-232/422/485, 0V/5V/12V, Auto-flow Control
COM3~4: RS-232, 0V/5V/12V (RS-232/422/485 by option)
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
- 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
- PCIe x16
- 1 x PCIe x16 (Gen 4)
- 1 x PCIe x16 (Gen 4)
- 1 x PCIe x16 (Gen 4)
- PCIe x8
- --
- --
- --
- PCIe x4
- --
- --
- --
- PCIe x1
- --
- --
- --
- PCI
- --
- --
- --
- M.2
- 1 x M key (PCIe x4 NVMe), 2242/2280
1 x E key (PCIe x1, USB 2.0, CNVi), 2230
1 x B key (PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0), 3042
(with SIM Holder) - 1 x M key (PCIe x4 NVMe), 2242/2280
1 x E key (PCIe x1, USB 2.0, CNVi), 2230
1 x B key (PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0), 3042
(with SIM Holder) - 1 x M key (PCIe x4 NVMe), 2242/2280
1 x E key (PCIe x1, USB 2.0, CNVi), 2230
- Mini-PCIe
- --
- --
- --
Storage
- SATA
- 3 x SATA 3.0 (Support RAID 0/1/5)
- 3 x SATA 3.0 (Support RAID 0/1/5)
- 3 x SATA 3.0 (Support AHCI Mode)
- eSATA
- --
- --
- --
- CFast
- --
- --
- --
- mSATA
- --
- --
- --
- CompactFlash
- --
- --
- --
Power Supply
- DC Input
- --
- --
- --
- ATX
- ATX-Power 24P, 12V-4P
- ATX-Power 24P, 12V-4P
- ATX-Power 24P, 12V-4P
Environment
- Operating Temperature
- 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170 mm (Mini-ITX)
- 170 x 170 mm (Mini-ITX)
- 170 x 170 mm (Mini-ITX)
- Weight
- 0.43 Kg
- 0.43 Kg
- 0.41 Kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
Software Platform
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request) - Windows 10 IoT Enterprise 2021 LTSC (64-bit)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 911-CF02-001
- MS-CF02\601-CF02-010\801-CF02-005 10 Intel Raptor Lake-S,R680E,2*DDR4 SO DIMM, 1*HDMI,2*DP,1*eDP,1*LVDS,1*M.2 E key,1*M.2 M key, 1*M.2 B key,1*PCIe x16,3*2.5GbE LAN, 3*SATA 3.0,8*USB 3.2,2*USB 2.0, 4*COM,TPM2.0,Mini-ITX
- 911-CF02-002
- MS-CF02\601-CF02-020\801-CF02-006 10 OPT:A Intel Raptor Lake-S,H610E,2*DDR4 SO DIMM, 1*HDMI,2*DP,1*eDP,1*LVDS,1*M.2 E key,1*M.2 M key, ,1*PCIe x16,2*2.5GbE LAN, 3*SATA 3.0,4*USB 3.2,4*USB 2.0, 4*COM,TPM2.0,Mini-ITX
- 911-CF02-003
- MS-CF02\601-CF02-030\801-CF02-007 10 OPT:B Intel Raptor Lake-S,Q670E,2*DDR4 SO DIMM, 1*HDMI,2*DP,1*eDP,1*LVDS,1*M.2 E key,1*M.2 M key, 1*M.2 B key,1*PCIe x16,3*2.5GbE LAN, 3*SATA 3.0,8*USB 3.2,2*USB 2.0, 4*COM,TPM2.0,Mini-ITX
Packing List
- Part Number
- Description
- Quantity
- K1D-1008261-V03
- SATA Cable, 500mm
- 1
- K14-3018004-V03
- COM Port Cable, 250mm
- 1
- E21-CF02010-C22
- I/O Shielding (For SKU 1&2)
- 1
- E21-CF02010-C22
- I/O Shielding (For SKU 3)
- 1
