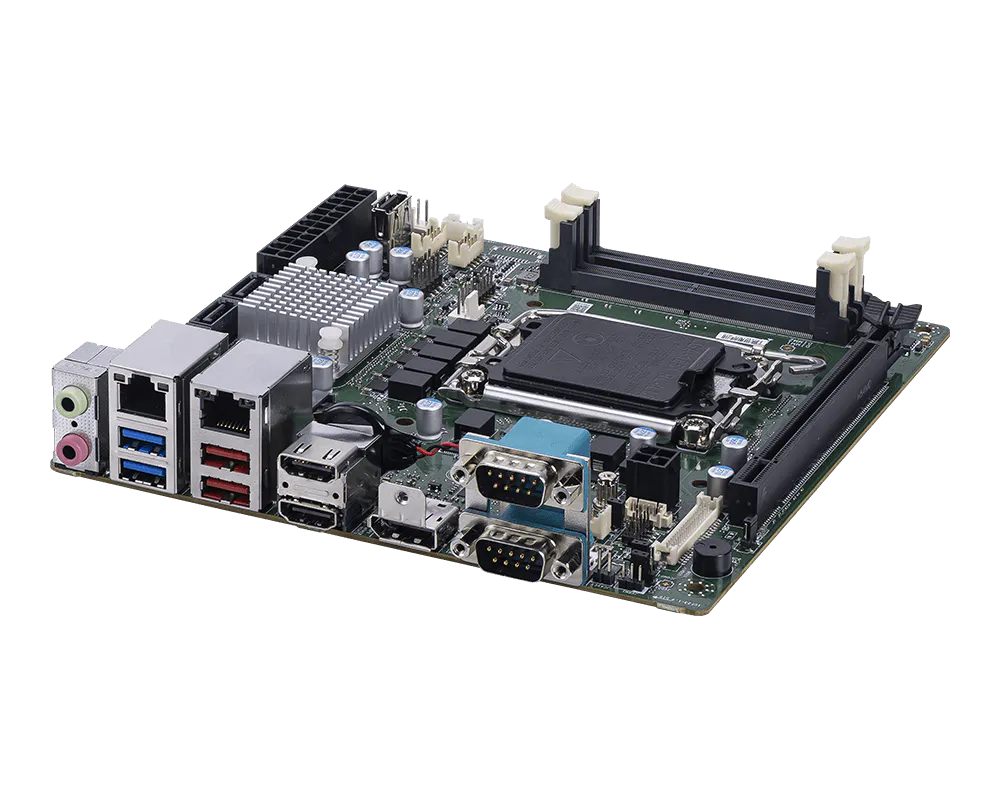

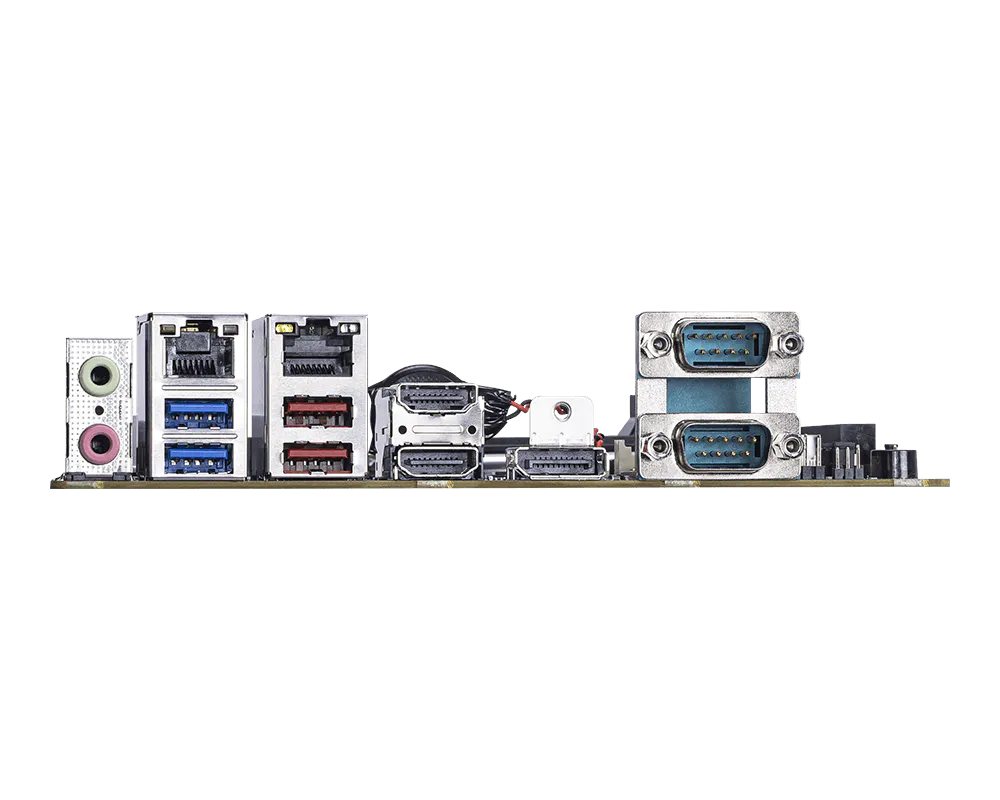

Mini-ITX with 15th Gen Intel® Arrow Lake-S Core Ultra 9/7/5 Series Processor, & Intel® H810 for Mainstream Solution
- Intel® 15th Gen Arrow Lake-S Core Ultra 9/7/5 Series with H810
- 2 DDR5 5600 MT/s non-ECC SODIMM & 6400 MT/s CSODIMM slots up to 128GB
- Triple independent displays: DP, HDMI, LVDS
- 1 2.5GbE LAN with RJ-45, 1 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5)
- 1 M.2 E Key Slot
- 1 M2 M Key, 3 SATA 3.0 for storage
- 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 5 USB 2.0,4 COM (1 RS-485), GPIO, Audio, System FAN
- Onboard TPM 2.0
- SMBus
- ATX Power
- 產品規格
- Ordering-Information
- Packing-List
產品規格
- 料號編碼
- MS-CF23-SKU1
- MS-CF23-SKU2
Processor
- CPU
- 15th Gen Intel® Arrow Lake-S Core Ultra 9/7/5 Series Processor, Max. TDP-65W
- 15th Gen Intel® Arrow Lake-S Core Ultra 9/7/5 Series Processor, Max. TDP-65W
- Frequency
- Depends on CPU
- Depends on CPU
- L2 Cache
- Depends on CPU
- Depends on CPU
- CPU Type
- Socket (LGA 1851)
- Socket (LGA 1851)
- Chipset
- Intel® H810
- Intel® H810
- BIOS
- AMI UEFI
- AMI UEFI
Memory
- Technology
- Dual-channel DDR5 (non-ECC) 5600MT/s
- Dual-channel DDR5 CSODIMM 6400MT/s
- Max. Capacity
- Up to 128GB
- Up to 128GB
- Socket
- 2 x 262-pin DDR5 SO-DIMMs
- 2 x 262-pin DDR5 SO-DIMMs
Display
- Controller
- Intel® UHD Graphics
- Intel® UHD Graphics
- Graphic Memory
- Depends on CPU
- Depends on CPU
- LVDS
- 1 x Dual channel 18/24-bit
- 1 x Dual channel 18/24-bit
- eDP
- --
- --
- VGA
- --
- --
- DVI
- --
- --
- HDMI
- 2
- 2
- DisplayPort
- 1
- 1
- Multiple Display
- 3 independent displays
- 3 independent displays
- Display Interface
- HDMI up to 4096 x 2160 @30Hz
DP up to 4096 x 2304 @60Hz
LVDS up to 1920 x 1200 @60Hz - HDMI up to 4096 x 2160 @30Hz
DP up to 4096 x 2304 @60Hz
LVDS up to 1920 x 1200 @60Hz
Ethernet
- Controller
- 1 x Intel® I219-LM GbE LAN PHY
1 x Intel® I226-V 2.5GbE LAN - 1 x Intel® I219-LM GbE LAN PHY
1 x Intel® I226-V 2.5GbE LAN
Audio
- Controller
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
- Realtek® ALC897 Audio Codec (Co-lay ALC888S)
Super I/O
- Controller
- Fintek F81966D-I
- Fintek F81966D-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
- Yes
TPM
- Controller
- Infineon® SLB 9672VU2.0
- Infineon® SLB 9672VU2.0
I/O Interface
- PS/2
- --
- --
- USB
- 2 x USB 10Gbps (rear)
2 x USB 5Gbps (rear)
5 x USB 2.0 (5 x Internal with one Vertical Type-A) - 2 x USB 10Gbps (rear)
2 x USB 5Gbps (rear)
5 x USB 2.0 (5 x Internal with one Vertical Type-A)
- Parallel
- --
- --
- Serial
- 4 x COM ports
COM1: RS-232/422/485, Auto-flow Control
COM2~4: RS-232 - 4 x COM ports
COM1: RS-232/422/485, Auto-flow Control
COM2~4: RS-232
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x16
- 1 x PCIe x16 (Gen 5)
- 1 x PCIe x16 (Gen 5)
- PCIe x8
- --
- --
- PCIe x4
- --
- --
- PCIe x1
- --
- --
- PCI
- --
- --
- M.2
- 1 x M key (PCIe x4 NVMe), 2280/2242
1 x E key (PCIe x1 & USB 2.0), 2230 - 1 x M key (PCIe x4 NVMe), 2280/2242
1 x E key (PCIe x1 & USB 2.0), 2230
- Mini-PCIe
- --
- --
Storage
- SATA
- 3 x SATA 3.0 (AHCI Mode Supported)
- 3 x SATA 3.0 (AHCI Mode Supported)
- IDE
- --
- --
- eSATA
- --
- --
- CFast
- --
- --
- mSATA
- --
- --
- CompactFlash
- --
- --
Power Supply
- DC Input
- --
- --
- ATX
- ATX-Power 24P, 12V-8P
- ATX-Power 24P, 12V-8P
Environment
- Operating Temperature
- 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s - 0 ~ 60°C
Note: Thermal Test w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170 mm (Mini-ITX)
- 170 x 170 mm (Mini-ITX)
- Weight
- 0.40 kg
- 0.40 kg
Certification
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA
Software Platform
- OS Support
- Windows 10 IoT Enterprise LTSC (64-bit)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request) - Windows 10 IoT Enterprise LTSC (64-bit)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 916-CF23-001
- MS-CF23\606-CF23-010,10\801-CF23-004,RL-S,H810, 2*CSODDR5,HDMI*2+DP+LVDS,1*M.2 M key,1*PCIe x16,1*2.5GbE LAN,1*1.0GbE LAN,3*SATA 3.0,2*USB 3.2 Gen2,2*USB3.2 Gen1,5*USB2.0,4*COM,TPM2.0 SINGLE 12PCS/BOX
- 916-CF23-101
- MS-CF23\606-CF23-010,10\801-CF23-102,RL-S,H810, 2*CSODDR5,HDMI*2+DP+LVDS,1*M.2 M key,1*PCIe x16,1*2.5GbE LAN,1*1.0GbE LAN,3*SATA 3.0,2*USB 3.2 Gen2,2*USB3.2 Gen1,5*USB2.0,4*COM,TPM2.0 BULK 20PCS
Packing List
- Part Number
- Description
- Quantity
- E21-CF23010-C22
- I/O SHIELDING,159.2*44.9mm, FOR HDMI*2+DP
- 1
