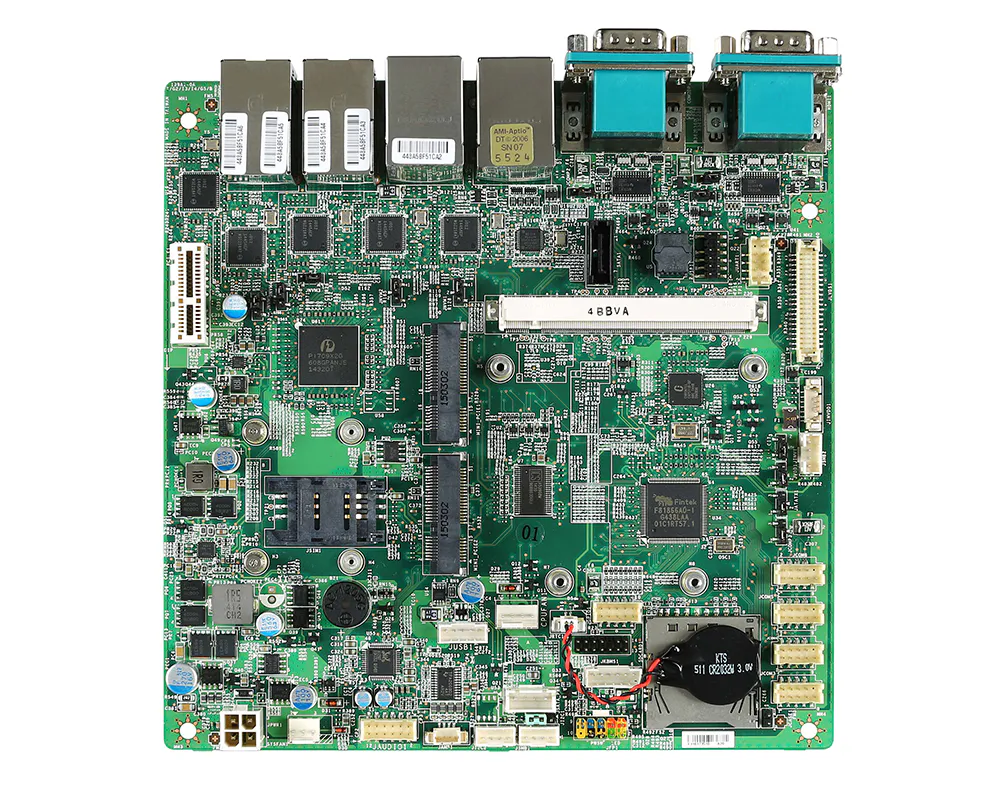

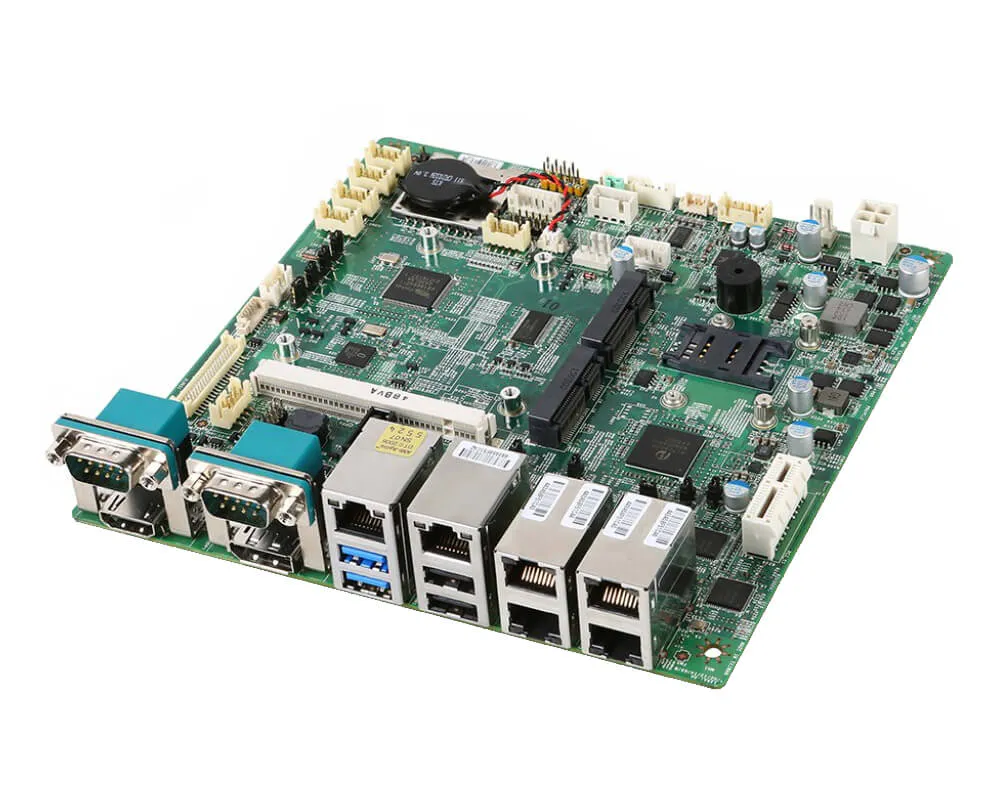

Qseven R2.0 Compliant Carrier Board in Mini-ITX for 6 GLAN & 7 COM Solution
- Support LVDS, HDMI™, and DP ports
- 6 RJ45 (one for Qseven module board)
- 2 USB 3.0, 3 USB 2.0, 6 COM ports and UART (from Qseven module board)
- 1 SATA 3.0, 1 SD socket, 1 mSATA, and Dual Mini-PCIe
- 1 SMBus, 1 I2C, and 1 CAN Bus expansion slots
- Compliant with Qseven specifications revision 2.0
- 產品規格
- Ordering-Information
- Packing-List
- Optional-Items
產品規格
- 料號編碼
- MS-99A1
Processor
- BIOS
- AMI
Display
- LVDS
- Dual channel 18/24-bit (depends on module board)
- HDMI
- 1
- DisplayPort
- 1
- Multiple Display
- 3 independent displays
- Display Interface
- Depends on module board
Ethernet
- Controller
- 5 x Intel® I211-AT GbE LAN (6 GLAN SKU)
1 x Intel® I211-AT GbE LAN (2 GLAN SKU)
Audio
- Controller
- Realtek® ALC887-VD2-CG HD Audio Codec
Super I/O
- Controller
- Fintek F81866AD-I
H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan
- Yes
TPM
- Controller
- Pin header

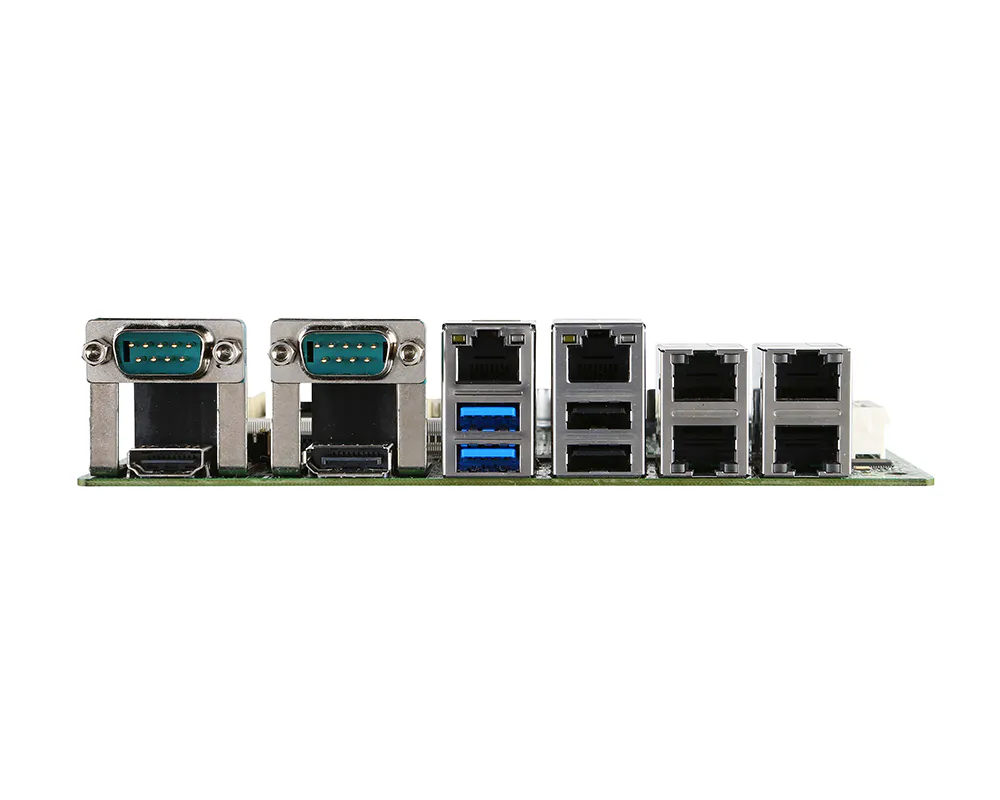

I/O Interface
- PS/2
- 1 (box header)
- USB
- 3 x USB 2.0 (2 x rear; 1 x internal)
2 x USB 3.2 Gen 1 (rear)
- Serial
- 6 x COM ports
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232/422/485, 0V/5V/12V
COM3~6: RS-232, 0V/5V/12V
1 x UART Port (from Qseven module board)
- GPIO
- 8-bits (4 x GPI; 4 x GPO), 5V
Expansion Slot
- PCIe x1
- 1
- Mini-PCIe
- 2 x Full-size (one w/ mSATA)
Storage
- SATA
- 1 x SATA 3.0
- mSATA
- 1
Power Supply
- DC Input
- DC-in 12V
Environment
- Operating Temperature
- -10 ~ 60°C
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -20 ~ 80°C
Form Factor
- Dimensions
- 170 x 170mm (Mini-ITX)
- Weight
- 0.242 kg
Certification
- EMC
- FCC, CE, RCM, VCCI, BSMI
Software Platform
- OS Support
- Depends on CPU Module Board
Ordering Information
- Part Number
- Description
- 919-99A1-002
- MS-99A1 VER 12 STD QSEVEN CARRIER BOARD,MXM CONNECTOR,DP,HDMI™, LVDS,6GLAN,5USB,6COM,UART,PCIe x1,Mini-PCIe,mSATA,SIM Holder,SMBus,I2C,DC-IN 12V,SATA CABLE ,SATA POWER CABLE,DC-IN CABLE,CD,SINGLE
Packing List
- Part Number
- Description
- Quantity
- K1D-3008006-V03
- SATA Power Cable, 300mm
- 1
- K1D-1008261-V03
- SATA Cable, 500mm
- 1
- K10-3004215-V03
- DC-IN Cable, 160mm
- 1
Optional Item
- Part Number
- Description
- K14-1018003-V03
- COM Port Cable, 300mm
