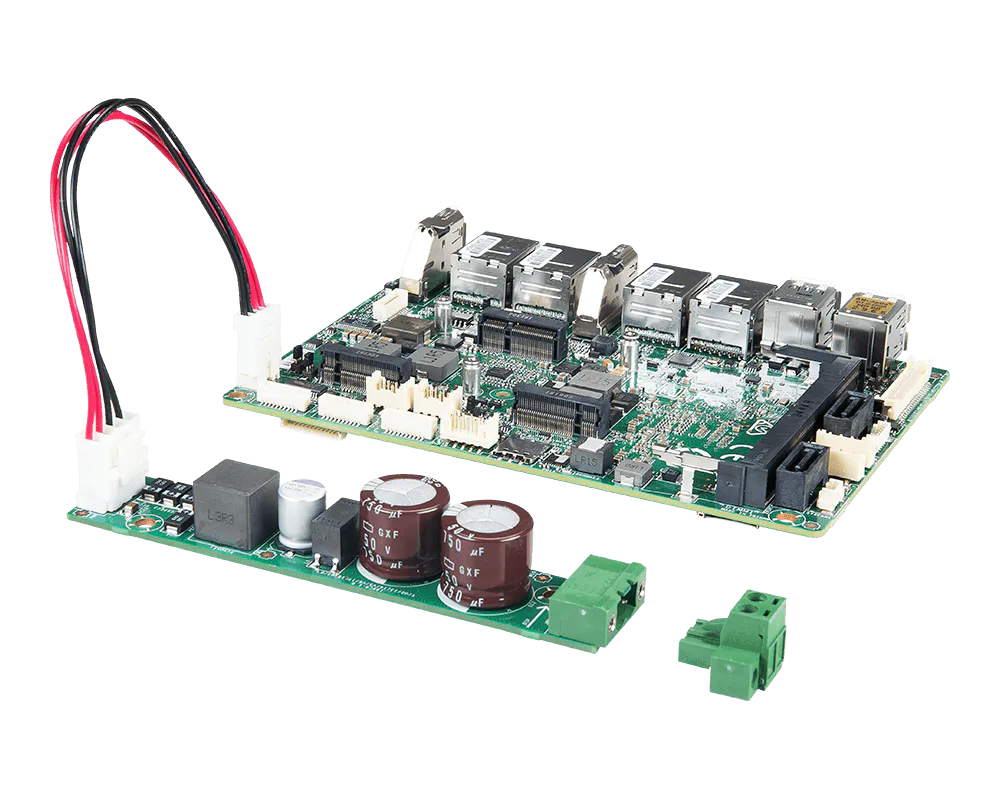

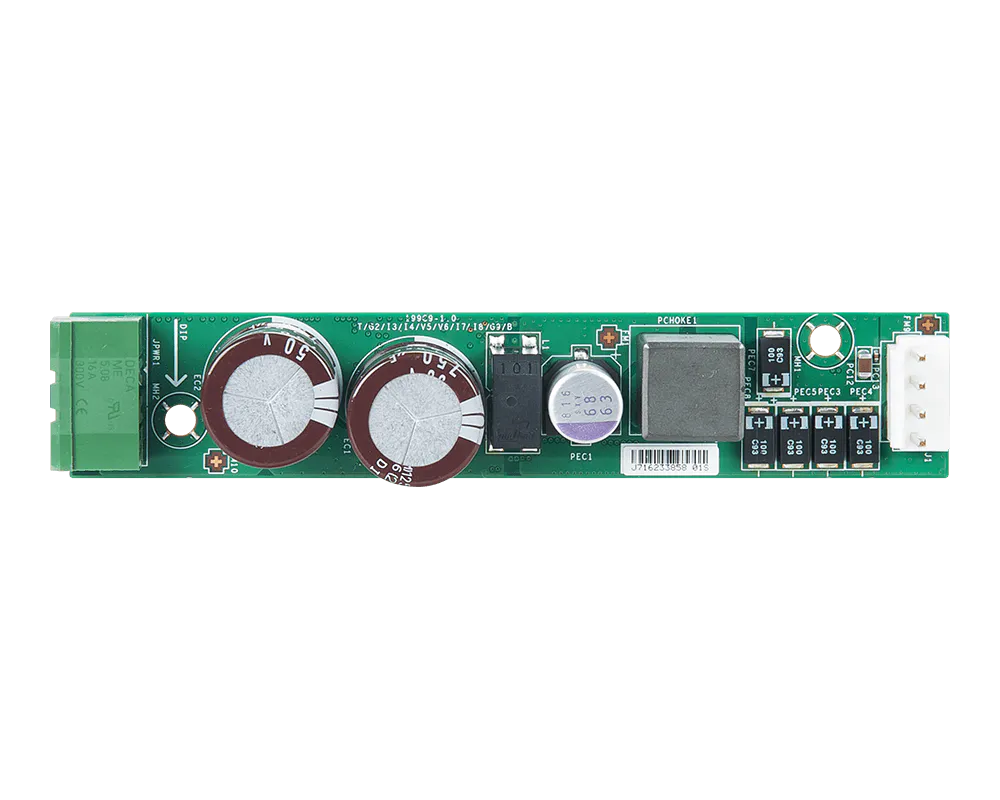

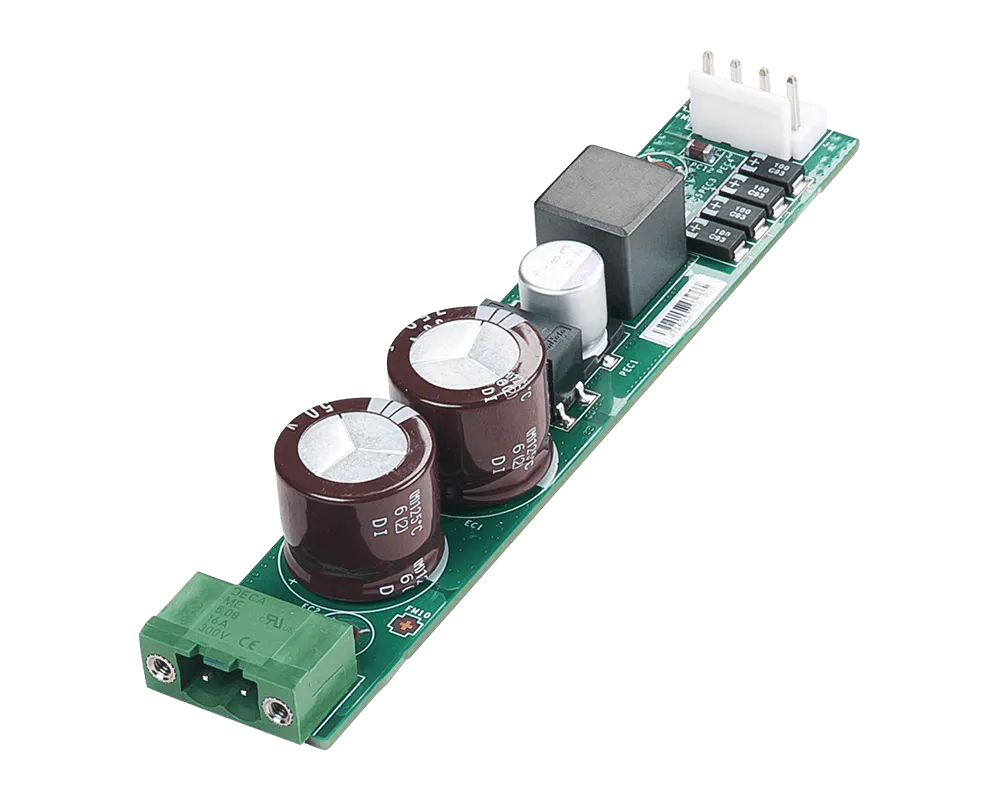

Compact-Size DC to DC Converter Module 140W With OCP/OVP Protection
- 140W Total Power
- Wide DC Input Range: +9~36V; DC Output: +12V/11.6A
- Supports over voltage/current protection
- Supports voltage reverse protection
- Operating Temperature Range: -40~85°C
- Efficiency up to 95%
- 產品規格
- Ordering-Information
- Packing-List
- Compatible-Embedded-Boards-Systems
產品規格
- 料號編碼
- MS-99C9
Power Supply
- DC Input
- DC-in 9~36V, DC-out 12V
Environment
- Operating Temperature
- -40 ~ 85°C
Note: Thermal w/ Airflow:0.7m/s
- Operating Humidity
- 10 ~ 90%, non-condensing
- Storage Humidity
- 10 ~ 90%, non-condensing
- Storage Temperature
- -40 ~ 85°C
Form Factor
- Dimensions
- 122 x 23 mm
(DC to DC Converter Module)
- Weight
- 0.046 kg
Certification
- EMC
- CE, FCC Class A, BSMI, VCCI, RCM
Software Platform
- OS Support
- Windows XP (32/64-bit)
Windows 7 (32/64-bit)
Windows 8.1 (32/64-bit)
Windows 10 (64-bit)
Linux (Support by request)
Ordering Information
- Part Number
- Description
- 919-99C9-102
- DC IN 9~36V port, DC out 12V, WT
Packing List
- Part Number
- Description
- Quantity
- NA1-1020073-SR2
- DC-in Phoenix Connector 1x2 Pin
- 1
Compatible Embedded Boards & Systems
- Form Factor
- Model
- CPU
- Pico-ITX
- MS-98I6
- Intel® Apollo Lake/Apollo Lake-I
- Pico-ITX
- MS-98H5
- Intel® Braswell
- 3.5"
- MS-98L3
- Intel® Whiskey Lake-U
- 3.5"
- MS-98H3
- Intel® Kaby Lake-U/Skylake-U
- 3.5"
- MS-98E6
- Intel® Apollo Lake /Apollo Lake-I
- 3.5"
- MS-98G6
- Intel® Bay Trail-D/M
- 3.5"
- MS-98F6
- Intel® Bay Trail-D/M
- 3.5"
- MS-98F3
- Intel® Haswell-U/Braswell-U
- EPIC
- MS-98H5
- Intel® Apollo Lake /Apollo Lake-I
- Mini-ITX
- MS-98K1
- Intel® Kaby Lake-S/Skylake-S
- Mini-ITX
- MS-98J4
- Intel® Kaby Lake-U/Skylake-U
- Mini-ITX
- MS-98B1
- Intel® Apollo Lake/Apollo Lake-I
- Mini-ITX
- MS-98J0
- Intel® Apollo Lake/Apollo Lake-I
- Mini-ITX
- MS-9892
- Intel® Apollo Lake/Apollo Lake-I
- Mini-ITX
- MS-98F1
- Intel® Braswell
- Mini-ITX
- MS-98I0
- Intel® Braswell
- Mini-ITX
- MS-98F5
- Intel® Bay Trail-D/M
- Mini-ITX
- MS-98E3
- Intel® Bay Trail-D/M
- Compact-Size Box PC
- MS-9A89
- Intel® Kaby Lake-U/Apollo Lake/Apollo Lake-I
- Transportation/In-Vehicle Box PC
- MS-9B17
- Intel® Apollo Lake
- Din Rail Slim Box PC
- MS-9A77
- Intel® Kaby Laby-U/Skylake-U
- Din Rail Slim Box PC
- MS-9A97
- Intel® Apollo Lake
