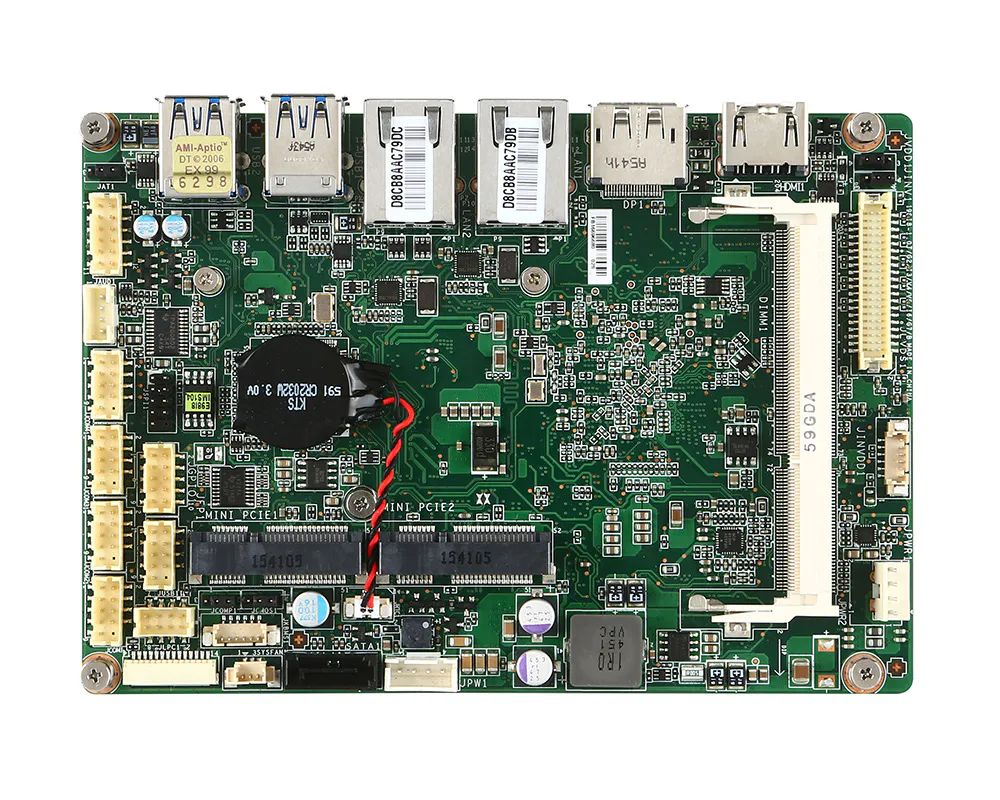

3.5” Fanless SBC with Intel^® Braswell N3000 Series SoC in for Low Power and High Performance Solution

Intel^® Braswell N3000 Series SoC

Support DDR3L 1333/1600 MHz SO-DIMM memory up to 8GB

3 independent displays with HDMI™, DP, and LVDS outputs

4 USB 3.0, 2 USB 2.0, and 4 COM ports

Dual Mini-PCIe, SATA, mSATA, and Dual GbE LAN

Support DC-in 9~36V

Overview

製品仕様

Ordering-Information

Packing-List

‧ Processor CPU Intel® Celeron® Processor N3160, QC, 6W
Intel® Celeron® Processor N3010, DC, 4W

Frequency N3160, 1.6 GHz up to 2.24 GHz
N3010, 1.04 GHz up to 2.24 GHz

L2 Cache 2MB

CPU Type BGA

Chipset Integrated in SoC

BIOS AMI

‧Memory Technology Single-channel DDR3L 1600MHz

Max. Capacity Up to 8GB

Socket 1 x 204-pin SO-DIMM

‧Graphic Controller Intel® HD Graphics

Graphic Memory Shared system memory up to 1.7 GB SDRAM

LVDS Dual Channel 18/24-bit

HDMI™ 1

DisplayPort 1

Multiple Display 3 independent displays

Display Interface LVDS up to 1920 x 1200 @ 60 Hz,
HDMI™ up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz
DP1.1a up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz

‧Ethernet Controller 2 x Realtek RTL8111G GbE LAN

‧Audio Controller Realtek® ALC887-VD2-CG HD Audio Codec

‧Super I/O Controller Fintek F81866AD-I

‧H/W Monitor Watchdog Timer 256-level Watchdog Timer

Smart Fan Yes

‧TPM Controller Pin header

‧I/O Interface USB 2 x USB 2.0 (2 x internal)
4 x USB 3.0 (4 x rear)

Serial 4 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232

PS/2 1 (box header)

GPIO 8-bits (4 x GPI; 4 x GPO)

‧Expansion Slot M.2 N/A

Mini-PCIe 2 x Full-size (one w/ mSATA)

‧Storage SATA 1 x SATA 3.0

mSATA 1 (Shared with Mini-PCIe1)

‧ Power Supply DC DC-in 9~36V

ATX N/A

‧ Environment Operating Temperature -10 ~ 60°C

Operating Humidity 10 ~ 90%, non-condensing

Storage Temperature -20 ~ 80°C

Storage Humidity 10 ~ 90%, non-condensing

‧ Form Factor Dimensions 146mm x 102mm (3.5")

Weight 0.33 kg

‧ Certification EMC FCC, CE, RCM, VCCI, BSMI

‧ Software Platform OS Support Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Fedora 21
Ubuntu 14.04.03

‧ Part Number Description

919-98I8-003 MS-98I8 10 OPTB, 3.5-INCH, INTEL CELERON N3160, 1*DDR3L SO-DIMM, DP, HDMI™, LVDS, 2*MINI-PCIE, 2*LAN, 1*SATA3.0, 1*MSATA, 6*USB (4*USB 3.0+2*USB 2.0), 4*COM, DC-IN 9~36V

919-98I8-004 MS-98I8 10 OPTC, 3.5-INCH, INTEL CELERON N3010, 1*DDR3L SO-DIMM, DP, HDMI™, LVDS, 2*MINI- PCIE, 2*LAN, 1*SATA3.0, 1*MSATA, 6*USB(4*USB 3.0+2*USB 2.0), 4*COM, DC-IN 9~36V

‧ Part Number Description

K10-3002145-V03 DC LOCKABLE CABLE, 120mm

K1B-3008034-V03 USB2.0 CABLE, 150mm

K14-1009062-V03 INT COM PORT CABLE, 250mm

K1D-1012064-V03 SATA Power CABLE, 200mm

G71-SEDC152-N56 / X03 DRIVER CD

製品仕様

型番

MS-98I8

Processor

CPU

Intel^® Celeron^® Processor N3160, QC, 6W
Intel^® Celeron^® Processor N3010, DC, 4W

Frequency

N3160, 1.6 GHz up to 2.24 GHz
N3010, 1.04 GHz up to 2.24 GHz

L2 Cache

2MB

CPU Type

BGA

Chipset

Integrated in SoC

BIOS

AMI

Memory

Technology

Single-channel DDR3L 1600MHz

Max. Capacity

Up to 8GB

Socket

1 x 204-pin SO-DIMM

Display

Controller

Intel^® HD Graphics

Graphic Memory

Depends on CPU

LVDS

Dual Channel 18/24-bit

HDMI

1

DisplayPort

1

Multiple Display

3 independent displays

Display Interface

LVDS up to 1920 x 1200 @ 60 Hz
HDMI™ up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz
DP1.1a up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz

Ethernet

Controller

2 x Realtek^® RTL8111G GbE LAN

Audio

Controller

Realtek^® ALC887-VD2-CG HD Audio Codec

Super I/O

Controller

Fintek F81866AD-I

H/W Monitor

Watchdog Timer

256-level Watchdog Timer

Smart Fan

Yes

TPM

Controller

Pin header

I/O Interface

PS/2

1 (box header)

USB

2 x USB 2.0 (2 x internal)
4 x USB 3.2 Gen 1 (rear)

Serial

4 x COM ports (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232

GPIO

8-bits (4 x GPI; 4 x GPO), 5V

Expansion Slot

Mini-PCIe

2 x Full-size (Mini-PCIe1 Slot w/ mSATA)

Storage

SATA

1 x SATA 3.0

mSATA

1 (Shared with Mini-PCIe1)

Power Supply

DC Input

DC-in 9~36V

Environment

Operating Temperature

-10 ~ 60°C
Note: Thermal w/ Airflow:0.7m/s

Operating Humidity

10 ~ 90%, non-condensing

Storage Humidity

10 ~ 90%, non-condensing

Storage Temperature

-20 ~ 80°C

Form Factor

Dimensions

146 x 102 mm (3.5")

Weight

0.33 kg

Certification

EMC

FCC, CE, RCM, VCCI, BSMI

Software Platform

OS Support

Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux (Support by request)

Ordering Information

Part Number

Description

919-98I8-003

MS-98I8 10 OPTB, 3.5-INCH, INTEL CELERON N3160, 1*DDR3L SO-DIMM, DP, HDMI™, LVDS, 2*MINI-PCIE, 2*LAN, 1*SATA3.0, 1*MSATA, 6*USB (4*USB 3.0+2*USB 2.0), 4*COM, DC-IN 9~36V

919-98I8-004

MS-98I8 10 OPTC, 3.5-INCH, INTEL CELERON N3010, 1*DDR3L SO-DIMM, DP, HDMI™, LVDS, 2*MINI- PCIE, 2*LAN, 1*SATA3.0, 1*MSATA, 6*USB(4*USB 3.0+2*USB 2.0), 4*COM, DC-IN 9~36V

Packing List

Part Number

Description

K10-3002145-V03

DC LOCKABLE CABLE, 120mm

K1B-3008034-V03

USB2.0 CABLE, 150mm

14-1009062-V03

INT COM PORT CABLE, 250mm

K1D-1012064-V03

SATA Power CABLE, 200mm

G71-SEDC152-N56 / X03

DRIVER CD

E31-0806020-K08

Heatsink


‧ Processor	CPU	Intel® Celeron® Processor N3160, QC, 6W Intel® Celeron® Processor N3010, DC, 4W
	Frequency	N3160, 1.6 GHz up to 2.24 GHz N3010, 1.04 GHz up to 2.24 GHz
	L2 Cache	2MB
	CPU Type	BGA
	Chipset	Integrated in SoC
	BIOS	AMI
‧Memory	Technology	Single-channel DDR3L 1600MHz
	Max. Capacity	Up to 8GB
	Socket	1 x 204-pin SO-DIMM
‧Graphic	Controller	Intel® HD Graphics
	Graphic Memory	Shared system memory up to 1.7 GB SDRAM
	LVDS	Dual Channel 18/24-bit
	HDMI™	1
	DisplayPort	1
	Multiple Display	3 independent displays
	Display Interface	LVDS up to 1920 x 1200 @ 60 Hz, HDMI™ up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz DP1.1a up to 2560 x 1600 @ 60 Hz, 3840 x 2160 @ 30 Hz
‧Ethernet	Controller	2 x Realtek RTL8111G GbE LAN
‧Audio	Controller	Realtek® ALC887-VD2-CG HD Audio Codec
‧Super I/O	Controller	Fintek F81866AD-I
‧H/W Monitor	Watchdog Timer	256-level Watchdog Timer
‧H/W Monitor	Smart Fan	Yes
‧TPM	Controller	Pin header
‧I/O Interface	USB	2 x USB 2.0 (2 x internal) 4 x USB 3.0 (4 x rear)
	Serial	4 x COM (internal) COM1: RS-232/422/485, 0V/5V/12V COM2~4: RS-232
	PS/2	1 (box header)
	GPIO	8-bits (4 x GPI; 4 x GPO)
‧Expansion Slot	M.2	N/A
‧Expansion Slot	Mini-PCIe	2 x Full-size (one w/ mSATA)
‧Storage	SATA	1 x SATA 3.0
‧Storage	mSATA	1 (Shared with Mini-PCIe1)
‧ Power Supply	DC	DC-in 9~36V
‧ Power Supply	ATX	N/A
‧ Environment	Operating Temperature	-10 ~ 60°C
	Operating Humidity	10 ~ 90%, non-condensing
	Storage Temperature	-20 ~ 80°C
	Storage Humidity	10 ~ 90%, non-condensing
‧ Form Factor	Dimensions	146mm x 102mm (3.5")
‧ Form Factor	Weight	0.33 kg
‧ Certification	EMC	FCC, CE, RCM, VCCI, BSMI
‧ Software Platform	OS Support	Windows 7 (32/64-bit) Windows 8.1 (64-bit) Windows 10 (64-bit) Fedora 21 Ubuntu 14.04.03

‧ Part Number	Description
919-98I8-003	MS-98I8 10 OPTB, 3.5-INCH, INTEL CELERON N3160, 1DDR3L SO-DIMM, DP, HDMI™, LVDS, 2MINI-PCIE, 2LAN, 1SATA3.0, 1MSATA, 6USB (4USB 3.0+2USB 2.0), 4*COM, DC-IN 9~36V
919-98I8-004	MS-98I8 10 OPTC, 3.5-INCH, INTEL CELERON N3010, 1DDR3L SO-DIMM, DP, HDMI™, LVDS, 2MINI- PCIE, 2LAN, 1SATA3.0, 1MSATA, 6USB(4USB 3.0+2USB 2.0), 4*COM, DC-IN 9~36V

‧ Part Number	Description
K10-3002145-V03	DC LOCKABLE CABLE, 120mm
K1B-3008034-V03	USB2.0 CABLE, 150mm
K14-1009062-V03	INT COM PORT CABLE, 250mm
K1D-1012064-V03	SATA Power CABLE, 200mm
G71-SEDC152-N56 / X03	DRIVER CD
