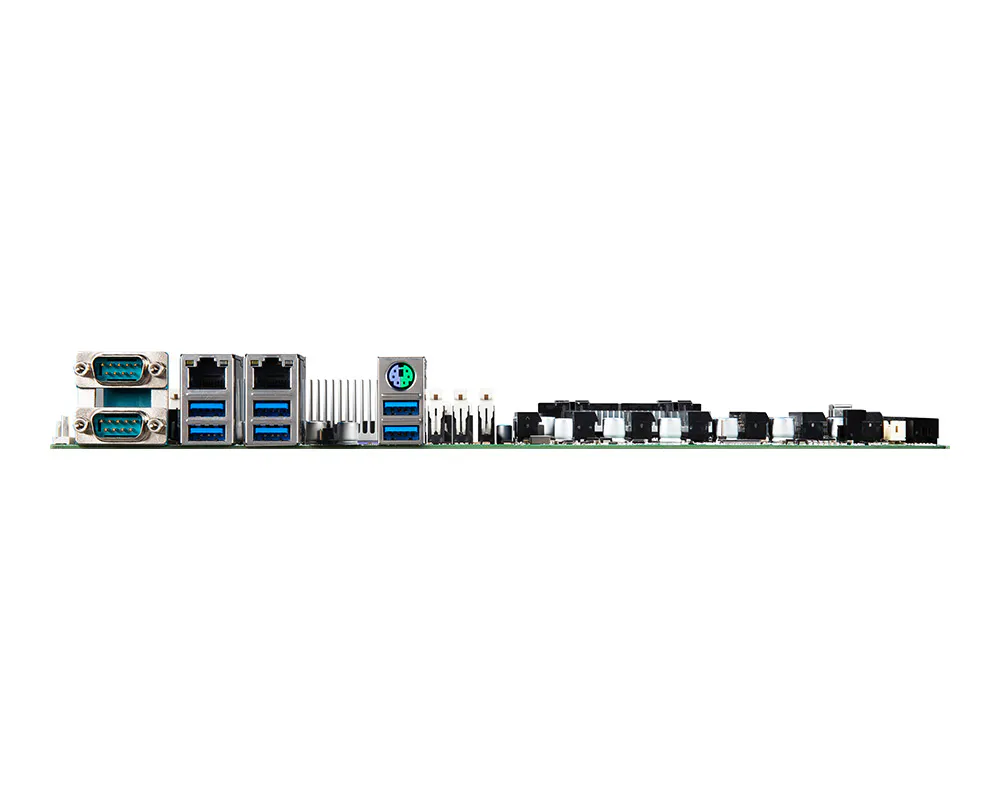

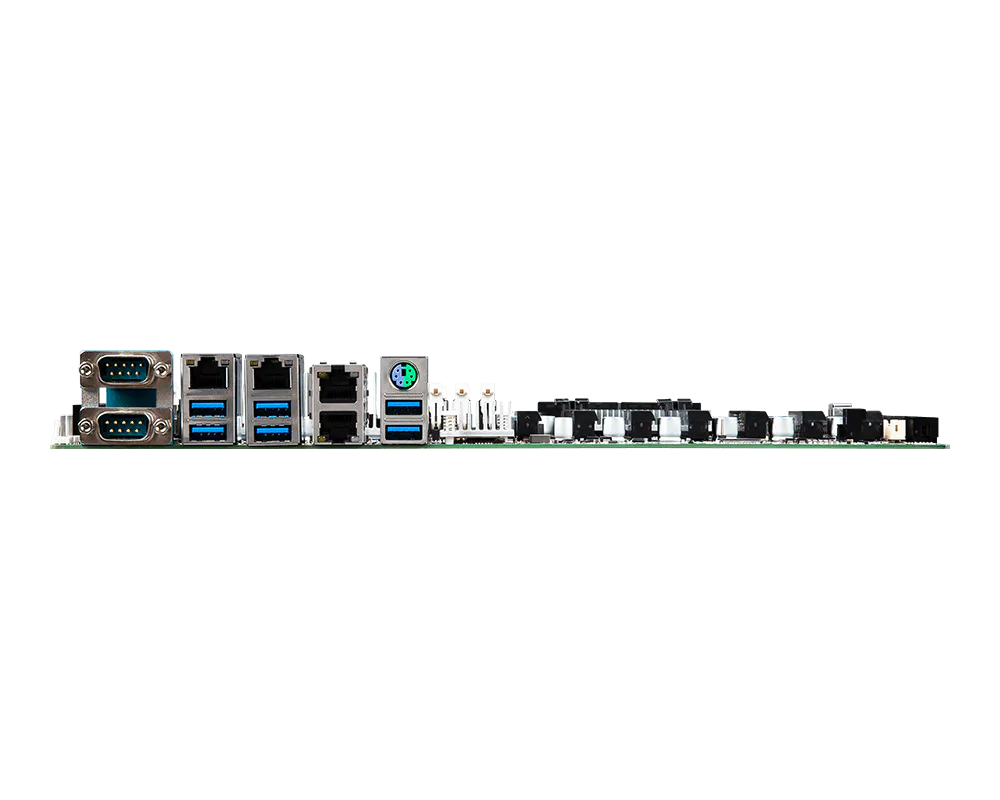

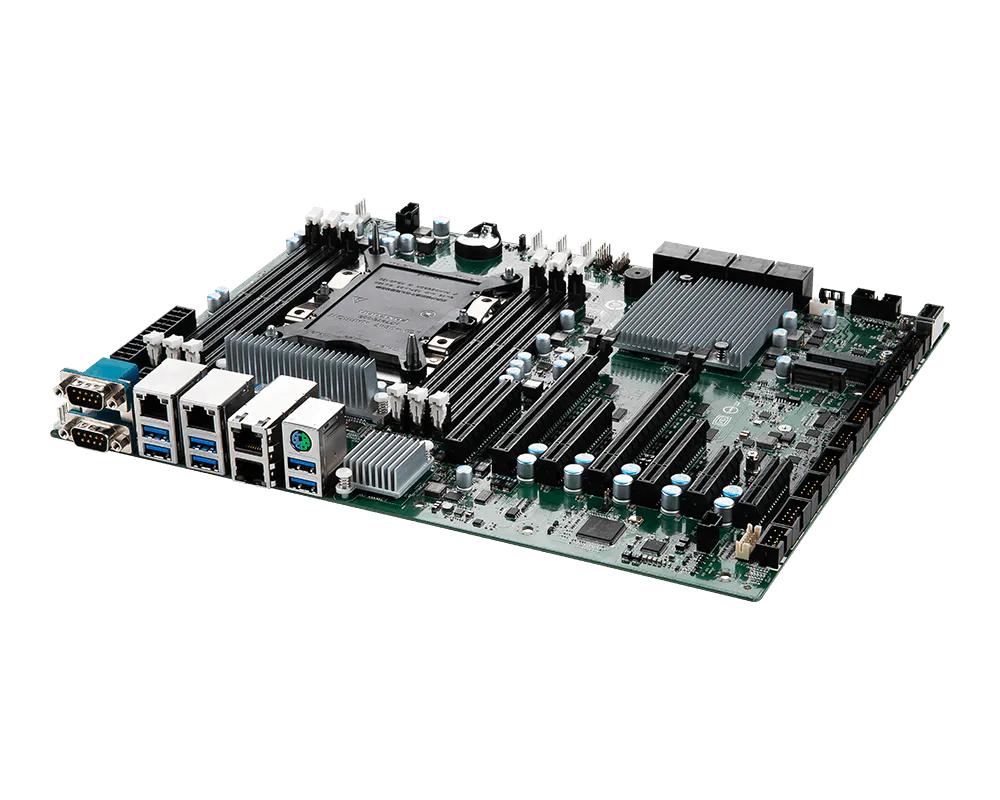

ATX with 2nd/1st Gen Intel® Cascade Lake/Skylake Xeon® Scalable Processors & Intel® C622/C621 Chipset for Ultra-High Performance Solution

ATX with 2nd/1st Gen Intel^® Cascade Lake/Skylake Xeon^® Scalable Processors & Intel^® C622/C621 Chipset for Ultra-High Performance Solution

Intel^® 2nd/1st Gen Cascade Lake-SP/Skylake-SP Series with C622/C621
6 DDR4 2666 MHz ECC RDIMMs up to 192GB
2 GbE LAN, 2 10GbE LAN with RJ-45
2 PCIe x16 (Gen 3) or 4 PCIe x8 (Gen3), 1 PCIe x8 (Gen 3), 2 PCIe x4 (Gen 3), 1 Mini-PCIe (Full/Half-size, with mSATA) slots
mSATA, 8 SATA 3.0 for storage
SATA RAID 0/1/5/10
6 USB 3.2 Gen 1, 7 USB 2.0, 6 COM (2 RS-485), GPIO, PS/2, Audio, 6 System FAN
Onboard TPM 2.0
Intel^® VROC for RAID function with NVMe storage
SMBus, Chassis Intrusion, PMBus
ATX Power

919-98M9-001
MS-98M9\609-98M9-010\809-98M9-003 Ver 1.0 Intel Xeon-SP C622, 4*DDR4 RDIMM, 2*PCIe x16, 3*PCIe x8, 2*PCIe x4, 1*Mini-PCIe, TPM2.0,4*LANs, 6*USB3.0, 7*USB2.0, 8*SATA-3.0, 6*COM, ATX POWER, RoHS,SINGLE

919-98M9-002
MS-98M9\609-98M9-020\809-98M9-004 Ver 1.0 Intel Xeon-SP C621,4*DDR4 RDIMM, 2*PCIe x16, 3*PCIe x8, 2*PCIe x4, 1*Mini-PCIe, TPM2.0, 2*LANs, 6*USB3.0, 7*USB2.0, 8*SATA-3.0, 6*COM, ATX POWER, RoHS, SINGLE
